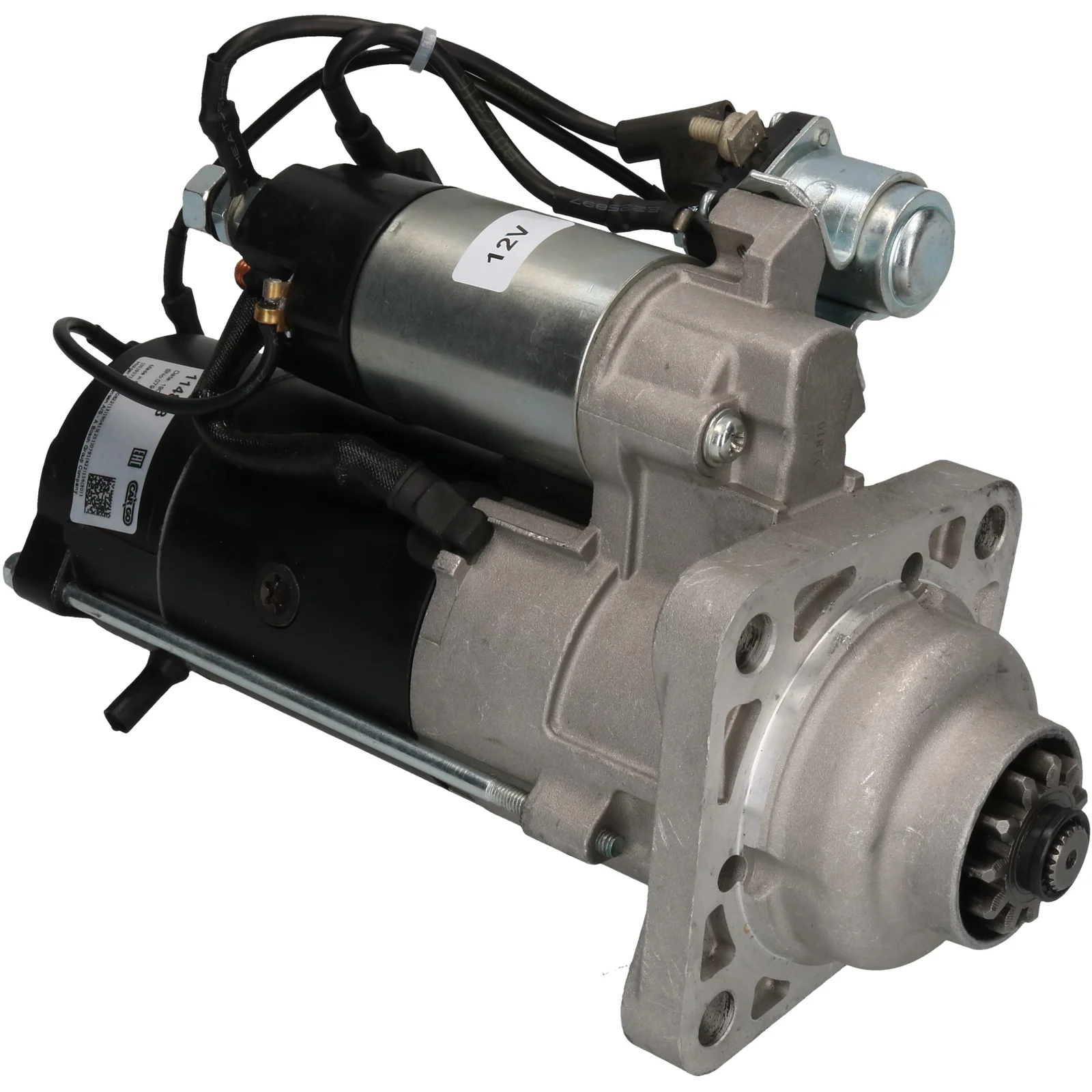

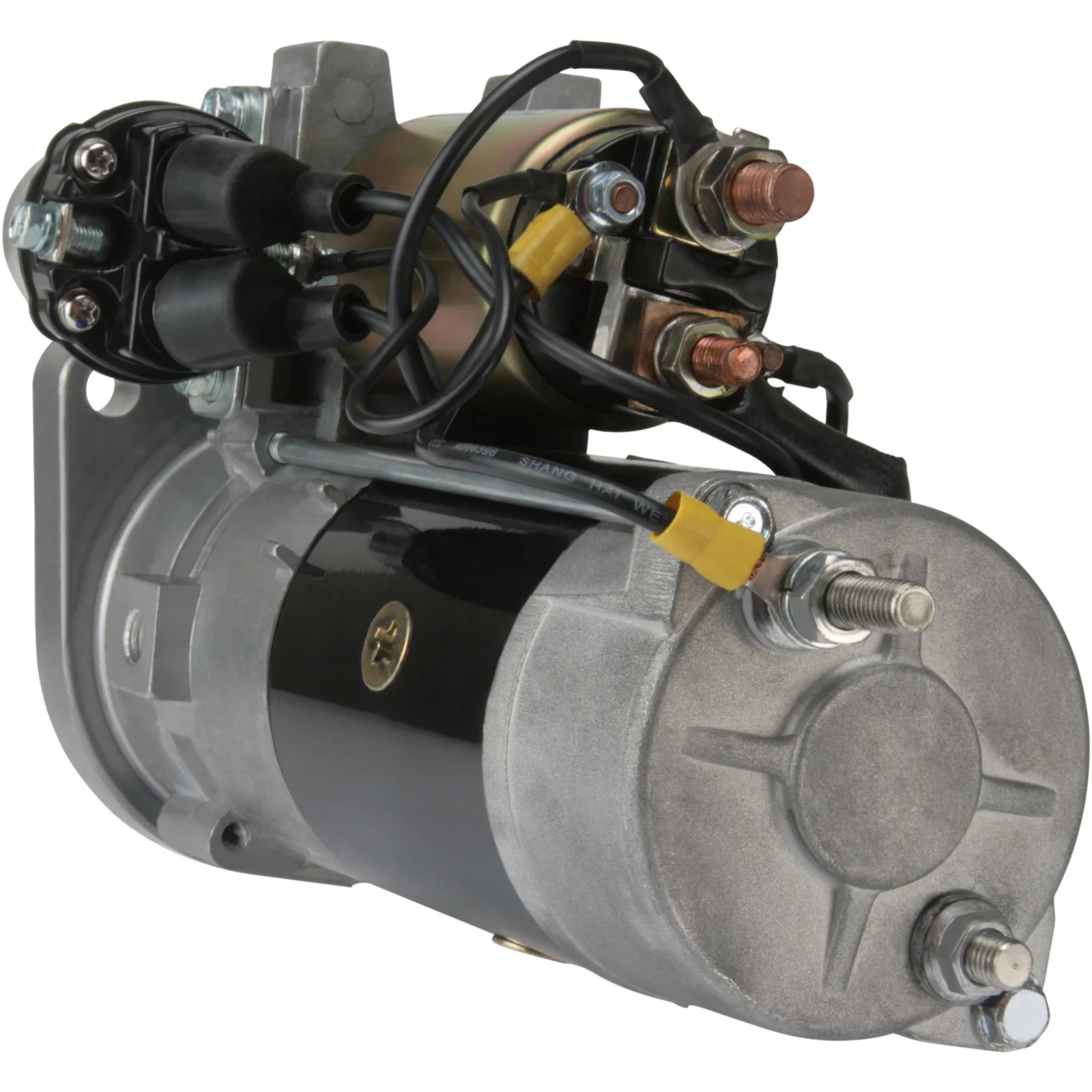

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114818

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.6, No./teeth: 11, Rotation: CW

Beskrivning

Start 12V-3.6kW passar Penta 12V - 3.6kW, 11k, insulated A - 89mm, B - 48mm, DE Gavel mont.håll = 11.5 mm Alternative : 91-605-5579 (13mm mounting holes) För Yourex produkt order 91-605-8555

Voltage: 12
kW: 3.6
Insulated return: Yes
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 3 mm: 13.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 235.00
Dist./front: 54.00
No./teeth: 11
B+: M10
Position/B+: 7
Thread length mm: 22.00
Terminal 50: M5
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Position/b-: 50
B-: M8
Total length mm: 314.00
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M8
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/b- 50
Position/B+ 7
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 235.00
Dist./front 54.00
Drive dist. 47.50
Gear type GR
Insulated return Yes
kW 3.6
Terminal 50 M5
Voltage 12
Total length 314.00 mm
Dist. 127.00 mm
Thread length 22.00 mm
Mount. hole 3 13.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032114818, M008T55578, M008T55579, M008T55779, M8T-55578, M8T55578, M8T55579, M8T55779, M8T55779AM, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 21423438, 21423488

  • Konkurrentreferens
    CST35210, DRS0545, LRS02636, MITM8T55779, S5302S, S5395S, 25-4309, 25-5179, 638.057.112, 810.532.113, 30626N, 31502N, 220553, 220553A, 254537, 254699, 11040931

  • Bilmärken
    Volvo Penta

  • Normaliserat artikelnummer
    cst35210, drs0545, f032114818, lrs02636, m008t55578, m008t55579, m008t55779, m8t55578, m8t55579, m8t55779, m8t55779am, mitm8t55779, s5302s, s5395s, 30626n, 31502n, 220553, 220553a, 254309, 254537, 254699, 255179, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 11040931, 21423438, 21423488, 638057112, 810532113

  • Passar modeller
    Volvo Penta Model: Engine Model series: Various Models Approved: Yes
    Volvo Penta Series: Marin Model: D 4-180... (12V)
    Volvo Penta Series: Marin Model: D 4-260... (12V)
    Volvo Penta Series: Marin Model: D 4-300... (12V)
    Volvo Penta Series: Marin Model: D 6-300... (12V)
    Volvo Penta Series: Marin Model: D 6-330... (12V)
    Volvo Penta Series: Marin Model: D 6-370... (12V)
    Volvo Penta Series: Marin Model: D 6-435... (12V)
