Artikelnr: F032114816

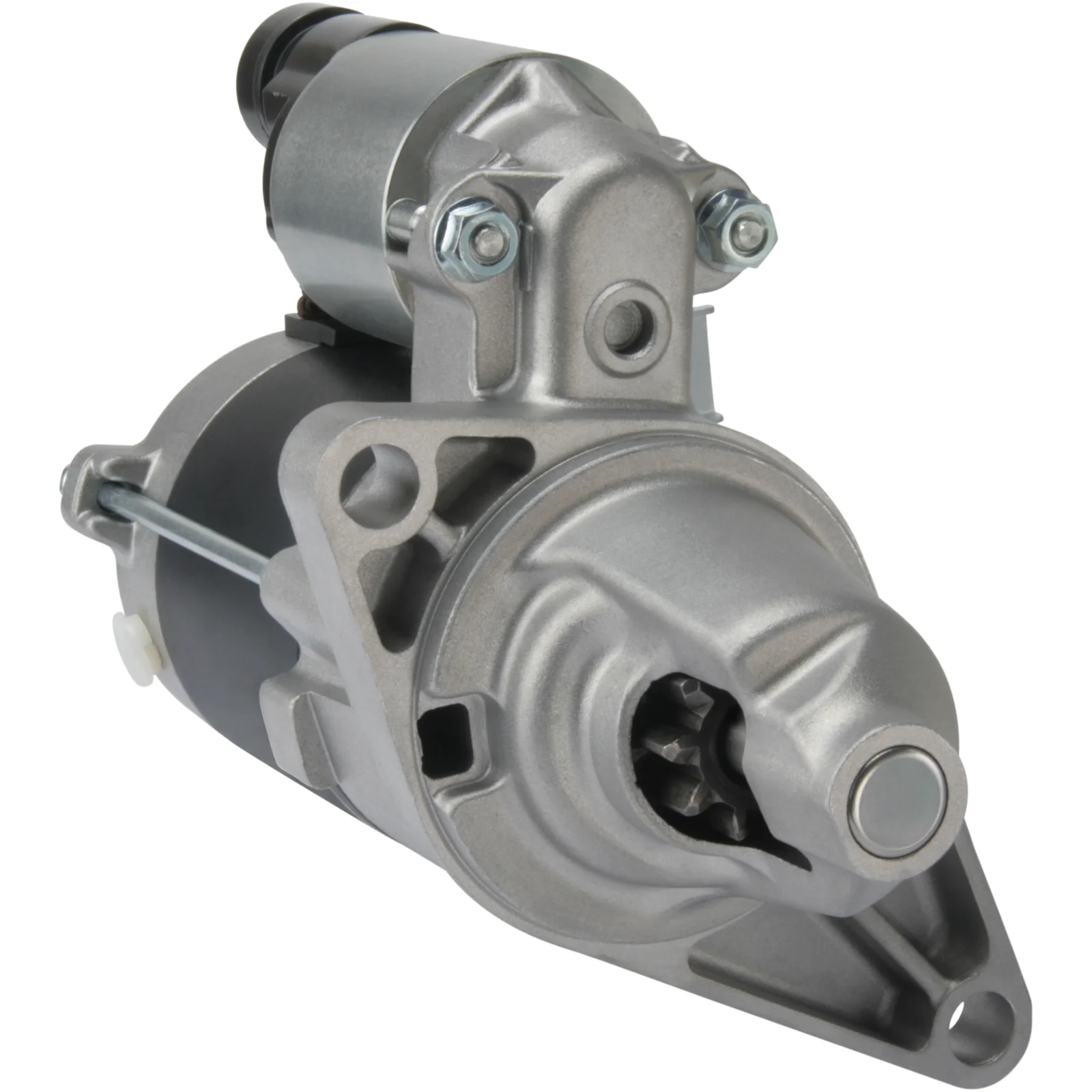

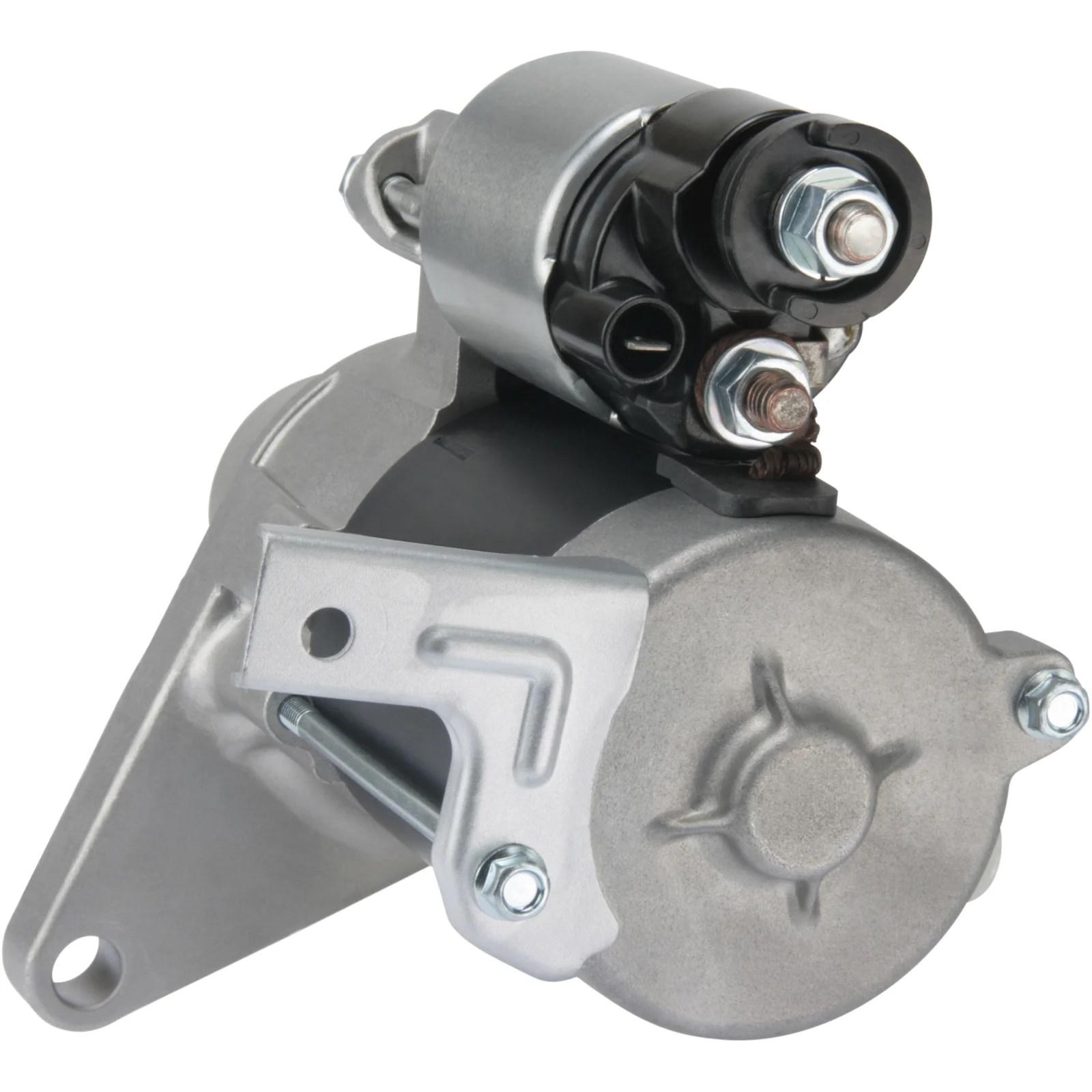

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 0.8
Mount. flange: 75.00
Drive dist.: 33.50
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 130.50
Dist./front: 70.00
No./teeth: 9
B+: M8
Position/50: 40
Terminal 50: 6.30
Gear type: DD
Mount. bracket: w/
Dist. mm: 139.50
Rotation: CW
Total length mm: 205.00
Prod. info: BN
No./mount. holes: 2 (0)

Specifikation

B+ M8
No./teeth 9
Mount. bracket w/
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 130.50
Dist./front 70.00
Drive dist. 33.50
Gear type DD
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 205.00 mm
Dist. 139.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm
  • OEM

    F032114816, js1360, 31200-P7A-J01, 31200-plc-t01, 31200-PLC-T011M, 228000-9580
  • Konkurrentreferens

    CST40235, DRS0346, F042S0H111, LRS02383, STR-H111, 25-4055, 120.520.092, 322.056.082, 9632, 30492, 30492R, 106594, 201360, 11040754, 0986023770
  • Normaliserat artikelnummer

    cst40235, drs0346, f032114816, f042s0h111, js1360, lrs02383, strh111, 9632, 30492, 30492r, 31200p7aj01, 31200plct01, 31200plct011m, 106594, 201360, 254055, 11040754, 120520092, 322056082, 0986023770, 2280009580
  • Passar modeller

    Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z5 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.4 Brand of engine: D14Z5 From date: 01-12-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU_, EP_ Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 0.8
    Mount. flange: 75.00
    Drive dist.: 33.50
    Mount. hole 2 mm: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 130.50
    Dist./front: 70.00
    No./teeth: 9
    B+: M8
    Position/50: 40
    Terminal 50: 6.30
    Gear type: DD
    Mount. bracket: w/
    Dist. mm: 139.50
    Rotation: CW
    Total length mm: 205.00
    Prod. info: BN
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 9
    Mount. bracket w/
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 130.50
    Dist./front 70.00
    Drive dist. 33.50
    Gear type DD
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 205.00 mm
    Dist. 139.50 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning
    • OEM

      F032114816, js1360, 31200-P7A-J01, 31200-plc-t01, 31200-PLC-T011M, 228000-9580
    • Konkurrentreferens

      CST40235, DRS0346, F042S0H111, LRS02383, STR-H111, 25-4055, 120.520.092, 322.056.082, 9632, 30492, 30492R, 106594, 201360, 11040754, 0986023770
    • Normaliserat artikelnummer

      cst40235, drs0346, f032114816, f042s0h111, js1360, lrs02383, strh111, 9632, 30492, 30492r, 31200p7aj01, 31200plct01, 31200plct011m, 106594, 201360, 254055, 11040754, 120520092, 322056082, 0986023770, 2280009580
    • Passar modeller

      Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z5 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Model type: S Type of engine: i S Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU, EP Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.4 Brand of engine: D14Z5 From date: 01-12-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i Size of motor: 1.4 Brand of engine: D14Z6 Type description: EU_, EP_ Body: Hatchback From date: 01-02-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
