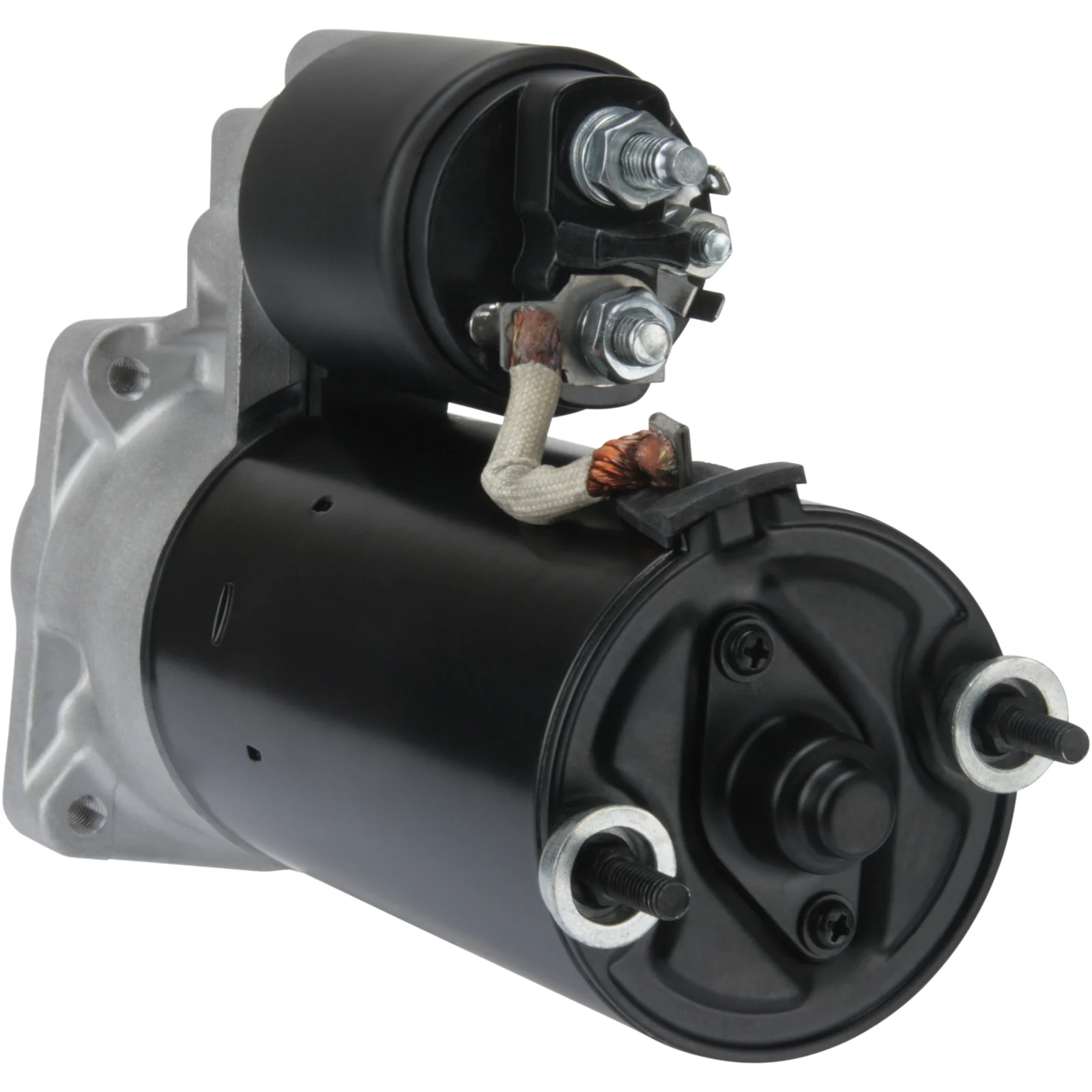

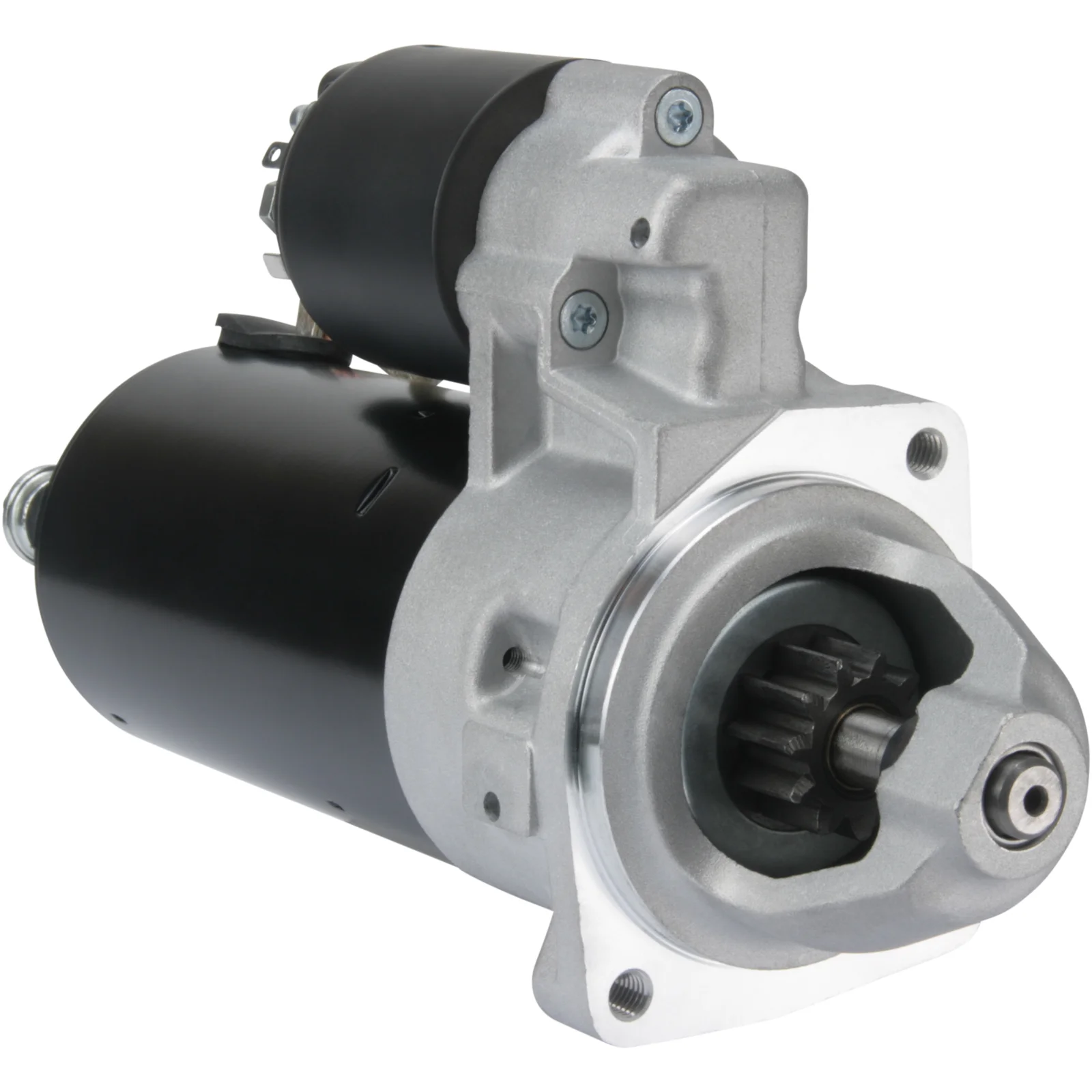

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114741

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.6, No./teeth: 11, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.6
Mount. flange: 76.00
Drive dist.: 21.50
Mount. hole 3 mm: M8
Dist./back: 186.00
Dist./front: 60.00
No./teeth: 11
B+: M8
Thread length mm: 13.50
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. 2: 63.50
Dist. 3: 96.50
Dist. mm: 73.50
Rotation: CCW
Total length mm: 260.00
Prod. info: BN
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 76.00
No./mount. holes 3 (3)
Position/50 15
Prod. info BN
Dist. 2 63.50
Dist. 3 96.50
Rotation CCW
Dist./back 186.00
Dist./front 60.00
Drive dist. 21.50
Gear type GR
kW 1.6
Terminal 50 M6
Voltage 12
Total length 260.00 mm
Dist. 73.50 mm
Thread length 13.50 mm
Mount. hole 3 M8 mm

  • OEM
    F032114741, 1986S00717, 250761, 292083, 0001109011, 0001314040, 58402060, 58402490

  • Konkurrentreferens
    CST10189, DRS0922, LRS02611, S0459, 500.529.113, 618.019.112, 31232N, 220719, 220719A, 254006, 11090313, 063521090110

  • Normaliserat artikelnummer
    cst10189, drs0922, f032114741, lrs02611, s0459, 1986s00717, 31232n, 220719, 220719a, 250761, 254006, 292083, 0001109011, 0001314040, 11090313, 58402060, 58402490, 500529113, 618019112, 063521090110

  • Passar modeller
    Piaggio Model: Ape Car D Model series: Ape Car D Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
    Piaggio Model: Ape Car TMD Model series: Ape Car TMD Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
    Piaggio Model: Ape Poker Quadriciclo Model series: Ape Poker Quadriciclo Size of motor: 0.4 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.6
    Mount. flange: 76.00
    Drive dist.: 21.50
    Mount. hole 3 mm: M8
    Dist./back: 186.00
    Dist./front: 60.00
    No./teeth: 11
    B+: M8
    Thread length mm: 13.50
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 63.50
    Dist. 3: 96.50
    Dist. mm: 73.50
    Rotation: CCW
    Total length mm: 260.00
    Prod. info: BN
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 76.00
    No./mount. holes 3 (3)
    Position/50 15
    Prod. info BN
    Dist. 2 63.50
    Dist. 3 96.50
    Rotation CCW
    Dist./back 186.00
    Dist./front 60.00
    Drive dist. 21.50
    Gear type GR
    kW 1.6
    Terminal 50 M6
    Voltage 12
    Total length 260.00 mm
    Dist. 73.50 mm
    Thread length 13.50 mm
    Mount. hole 3 M8 mm
  • Fordonsmatchning

    • OEM
      F032114741, 1986S00717, 250761, 292083, 0001109011, 0001314040, 58402060, 58402490

    • Konkurrentreferens
      CST10189, DRS0922, LRS02611, S0459, 500.529.113, 618.019.112, 31232N, 220719, 220719A, 254006, 11090313, 063521090110

    • Normaliserat artikelnummer
      cst10189, drs0922, f032114741, lrs02611, s0459, 1986s00717, 31232n, 220719, 220719a, 250761, 254006, 292083, 0001109011, 0001314040, 11090313, 58402060, 58402490, 500529113, 618019112, 063521090110

    • Passar modeller
      Piaggio Model: Ape Car D Model series: Ape Car D Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
      Piaggio Model: Ape Car TMD Model series: Ape Car TMD Size of motor: 0.5 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
      Piaggio Model: Ape Poker Quadriciclo Model series: Ape Poker Quadriciclo Size of motor: 0.4 From date: 01-10-1986 To date: 01-12-1996 Approved: Yes
