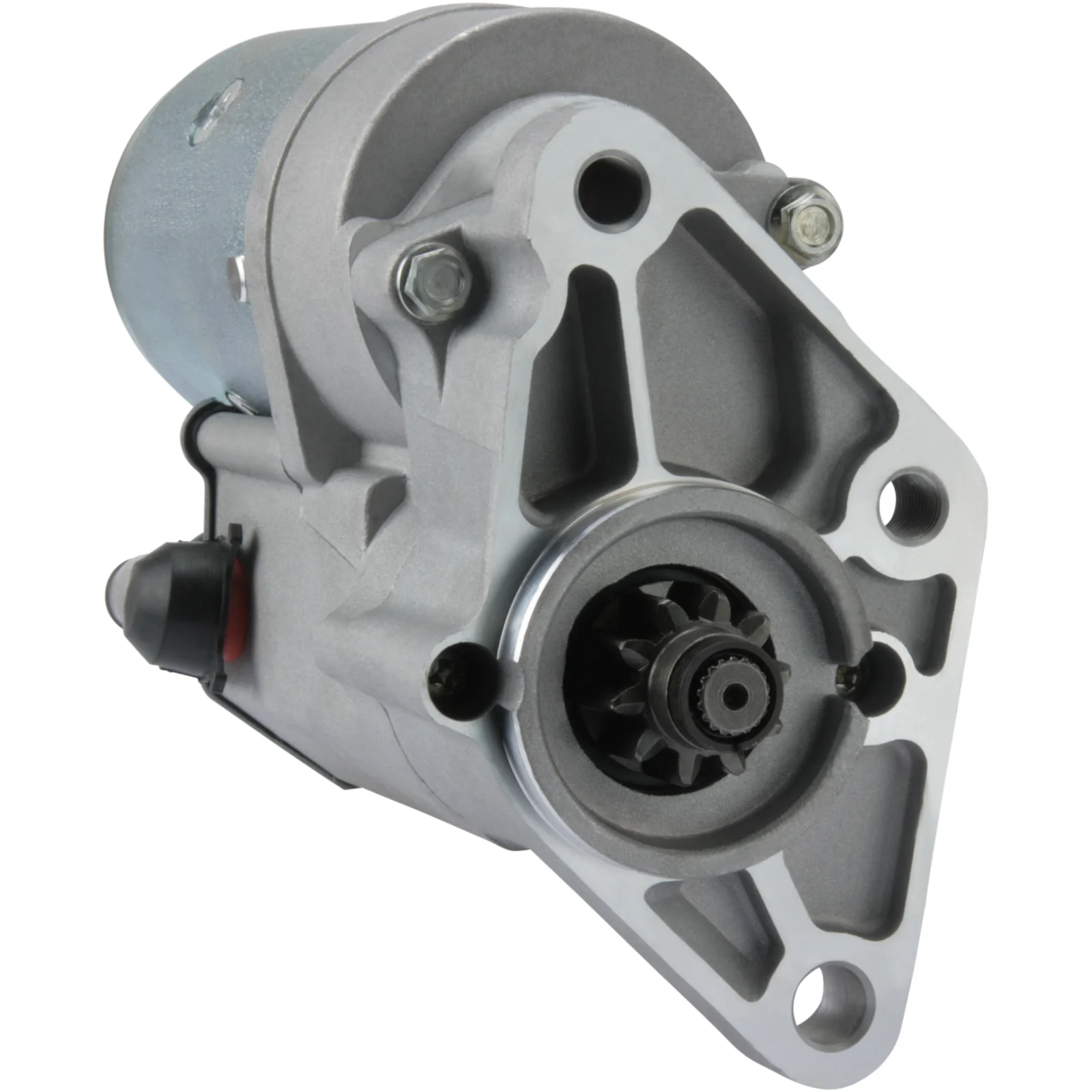

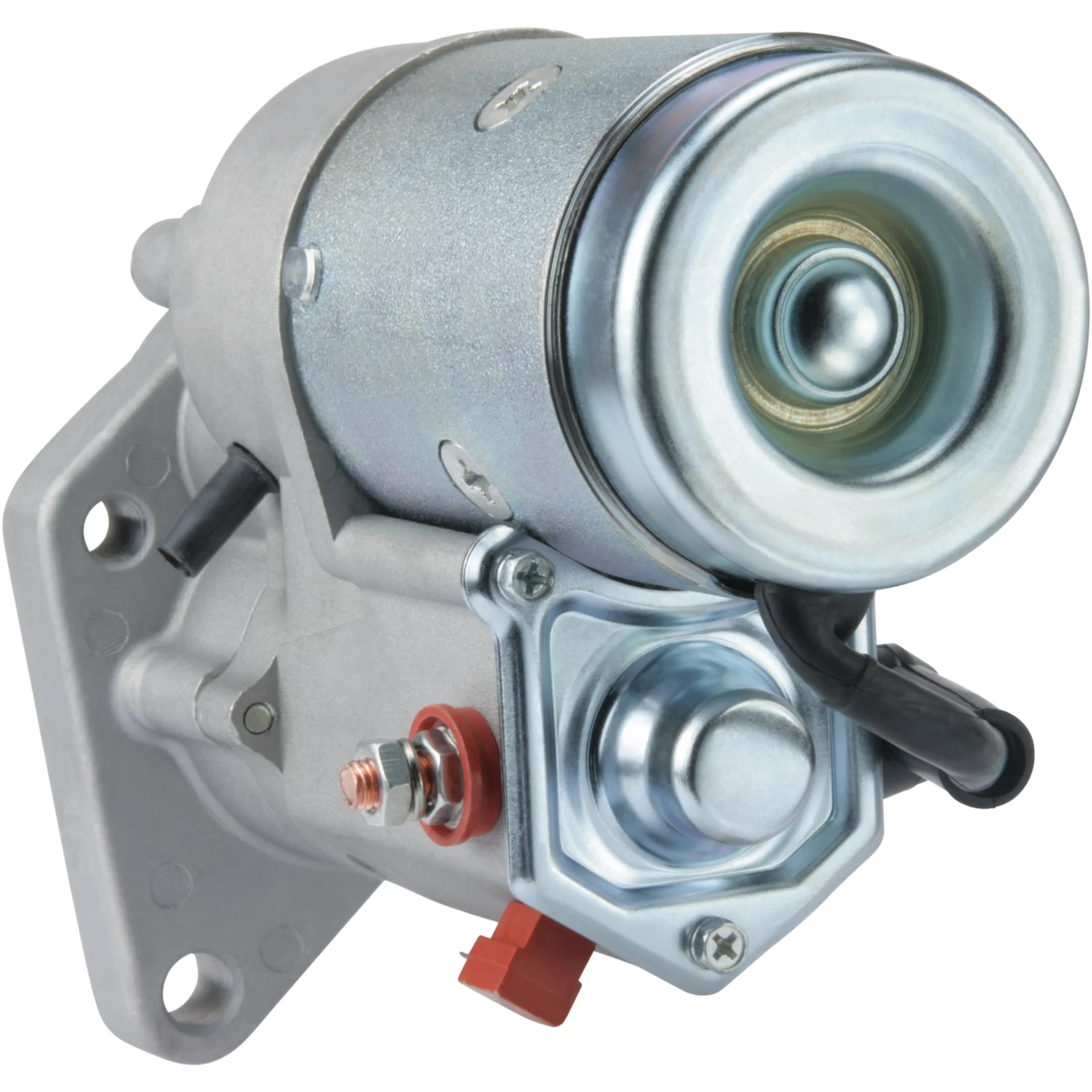

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114732

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 64.00
Drive dist.: 13.00
Mount. hole 3 mm: M12
Mount. hole 2 mm: 13.20
Dist./back: 159.00
Dist./front: 26.00
No./teeth: 10
B+: M8
Terminal 50: 6.30
Gear type: GR
Dist. 2: 139.50
Dist. 3: 74.50
Dist. mm: 83.50
Rotation: CW
Total length mm: 237.00
Drive type: Steel
No./mount. holes: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 64.00
No./mount. holes 3 (2)
Dist. 2 139.50
Dist. 3 74.50
Rotation CW
Dist./back 159.00
Dist./front 26.00
Drive dist. 13.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 237.00 mm
Dist. 83.50 mm
Mount. hole 3 M12 mm
Mount. hole 2 13.20 mm

  • OEM
    cs1446, F032114732, 1986S01286, 03111-4240, 03111-4241, 36100-4X210, 36100-4x211

  • Konkurrentreferens
    CST32111, DRS0147, S9085, 8EA012528-491, 25-3359, 624.013.102, 33187N, 33187R, 101446, 105502, 220379, 220379A, 458701, 8212542, 11040707, 063522616, 0986029040, 063522616010

  • Normaliserat artikelnummer
    cs1446, cst32111, drs0147, f032114732, s9085, 8ea012528491, 1986s01286, 33187n, 33187r, 101446, 105502, 220379, 220379a, 253359, 361004x210, 361004x211, 458701, 8212542, 11040707, 031114240, 031114241, 063522616, 624013102, 0986029040, 063522616010

  • Passar modeller
    Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-11-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes
    Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-11-2003 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-12-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Kia Model: Bongo Model series: Bongo Model type: 4x4 Type of engine: TDiC Size of motor: 2.9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Kia Model: Bongo Model series: Bongo Type of engine: TDiC Size of motor: 2.9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Kia Model: Bongo Van Model series: Bongo Van Model type: TDiC Type of engine: TDIC Size of motor: 2.9 Brand of engine: HJ3 Body: Van Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 64.00
    Drive dist.: 13.00
    Mount. hole 3 mm: M12
    Mount. hole 2 mm: 13.20
    Dist./back: 159.00
    Dist./front: 26.00
    No./teeth: 10
    B+: M8
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 139.50
    Dist. 3: 74.50
    Dist. mm: 83.50
    Rotation: CW
    Total length mm: 237.00
    Drive type: Steel
    No./mount. holes: 3 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 64.00
    No./mount. holes 3 (2)
    Dist. 2 139.50
    Dist. 3 74.50
    Rotation CW
    Dist./back 159.00
    Dist./front 26.00
    Drive dist. 13.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 237.00 mm
    Dist. 83.50 mm
    Mount. hole 3 M12 mm
    Mount. hole 2 13.20 mm
  • Fordonsmatchning

    • OEM
      cs1446, F032114732, 1986S01286, 03111-4240, 03111-4241, 36100-4X210, 36100-4x211

    • Konkurrentreferens
      CST32111, DRS0147, S9085, 8EA012528-491, 25-3359, 624.013.102, 33187N, 33187R, 101446, 105502, 220379, 220379A, 458701, 8212542, 11040707, 063522616, 0986029040, 063522616010

    • Normaliserat artikelnummer
      cs1446, cst32111, drs0147, f032114732, s9085, 8ea012528491, 1986s01286, 33187n, 33187r, 101446, 105502, 220379, 220379a, 253359, 361004x210, 361004x211, 458701, 8212542, 11040707, 031114240, 031114241, 063522616, 624013102, 0986029040, 063522616010

    • Passar modeller
      Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-11-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes
      Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-11-2003 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-12-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Kia Model: Bongo Model series: Bongo Model type: 4x4 Type of engine: TDiC Size of motor: 2.9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Kia Model: Bongo Model series: Bongo Type of engine: TDiC Size of motor: 2.9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Kia Model: Bongo Van Model series: Bongo Van Model type: TDiC Type of engine: TDIC Size of motor: 2.9 Brand of engine: HJ3 Body: Van Fuel: Diesel Approved: Yes
