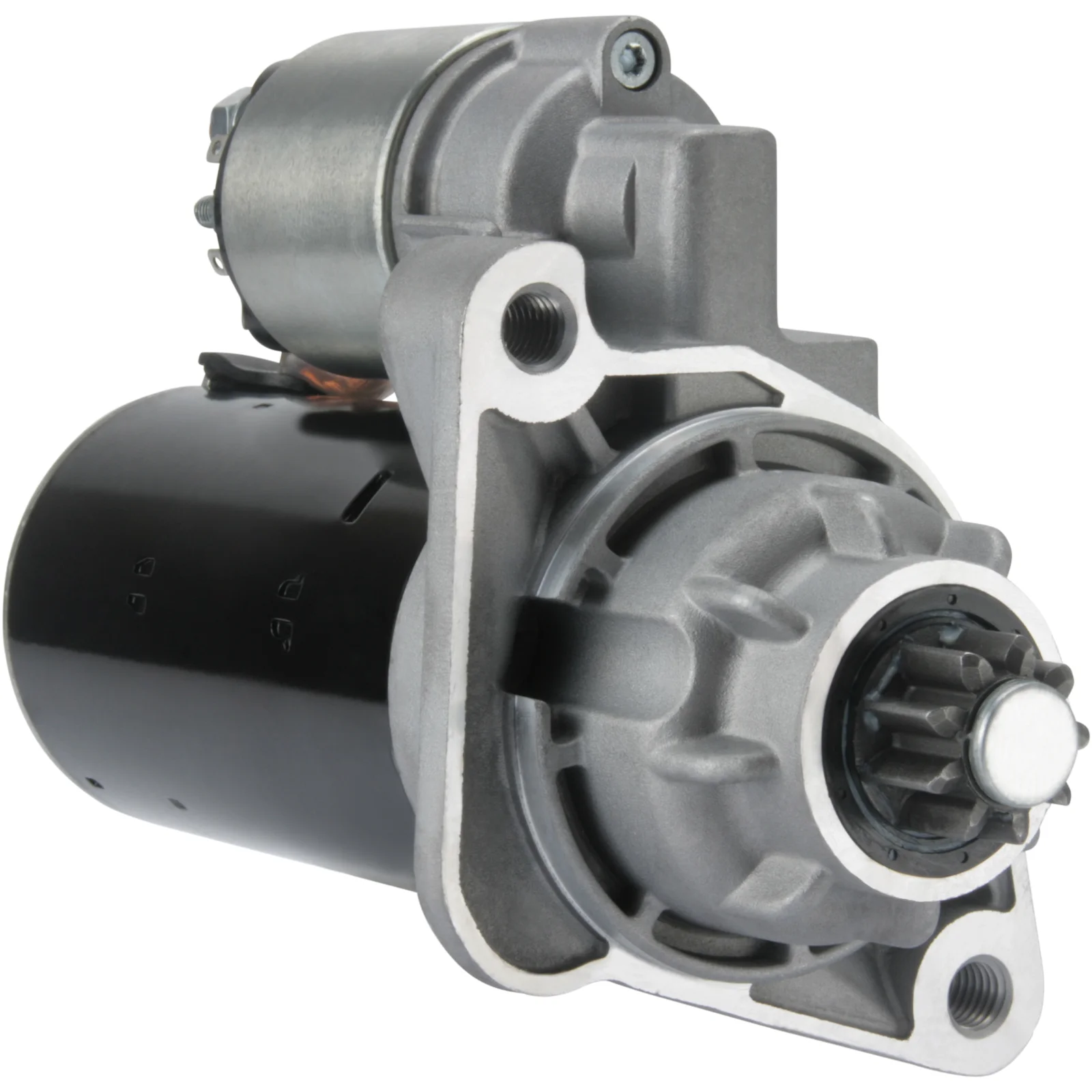

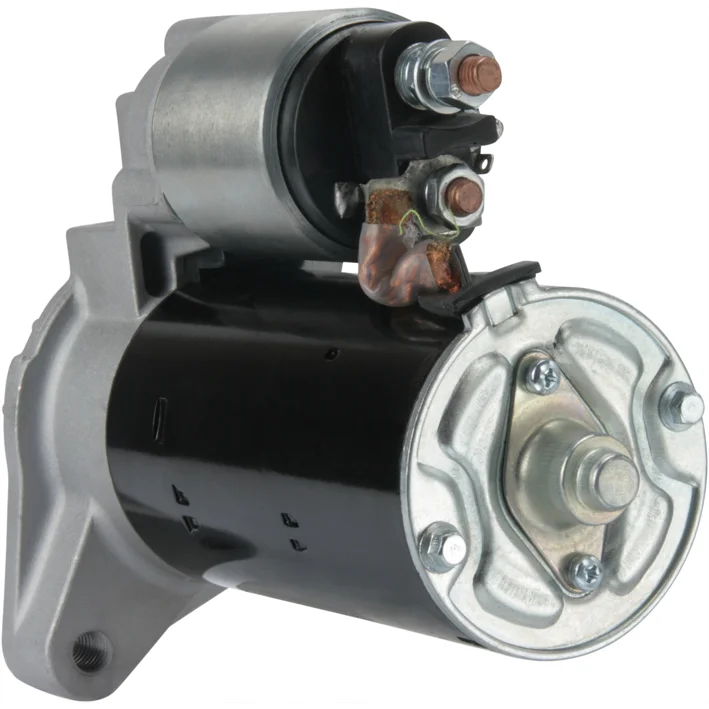

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114723

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 60.00
Dist./back: 169.00
Dist./front: 63.00
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 130.50
Rotation: CW
Total length mm: 245.00
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (2)
Position/50 15
Rotation CW
Dist./back 169.00
Dist./front 63.00
Drive dist. 60.00
Gear type GR
kW 2.2
Terminal 50 M6
Voltage 12
Total length 245.00 mm
Dist. 130.50 mm

  • OEM
    cs1378, F032114723, 1986S00822, 0001125600, 0001125601, 070911023B, 070911023BX

  • Konkurrentreferens
    CST10283, DRS3928, lrs01679, S0403, 8EA012526-051, 25-3225, 300.563.092, 311.236.092, 3052, 32700N, 101378, 106755, 458885, 8022460, 8213304, 11022460, 42022460, 0986022460

  • Normaliserat artikelnummer
    cs1378, cst10283, drs3928, f032114723, lrs01679, s0403, 8ea012526051, 1986s00822, 3052, 32700n, 101378, 106755, 253225, 458885, 0001125600, 0001125601, 8022460, 8213304, 11022460, 42022460, 070911023b, 070911023bx, 300563092, 311236092, 0986022460

  • Passar modeller
    VW Model: Touareg Model series: Touareg Model type: R5 Type of engine: TDi Size of motor: 2.5 Brand of engine: BLK Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-08-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Model type: R5 Type of engine: TDi Size of motor: 2.5 Brand of engine: BPD Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-08-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 2.5 Brand of engine: BAC Body: SUV From date: 01-01-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 82.50
    Drive dist.: 60.00
    Dist./back: 169.00
    Dist./front: 63.00
    No./teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 130.50
    Rotation: CW
    Total length mm: 245.00
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (2)
    Position/50 15
    Rotation CW
    Dist./back 169.00
    Dist./front 63.00
    Drive dist. 60.00
    Gear type GR
    kW 2.2
    Terminal 50 M6
    Voltage 12
    Total length 245.00 mm
    Dist. 130.50 mm
  • Fordonsmatchning

    • OEM
      cs1378, F032114723, 1986S00822, 0001125600, 0001125601, 070911023B, 070911023BX

    • Konkurrentreferens
      CST10283, DRS3928, lrs01679, S0403, 8EA012526-051, 25-3225, 300.563.092, 311.236.092, 3052, 32700N, 101378, 106755, 458885, 8022460, 8213304, 11022460, 42022460, 0986022460

    • Normaliserat artikelnummer
      cs1378, cst10283, drs3928, f032114723, lrs01679, s0403, 8ea012526051, 1986s00822, 3052, 32700n, 101378, 106755, 253225, 458885, 0001125600, 0001125601, 8022460, 8213304, 11022460, 42022460, 070911023b, 070911023bx, 300563092, 311236092, 0986022460

    • Passar modeller
      VW Model: Touareg Model series: Touareg Model type: R5 Type of engine: TDi Size of motor: 2.5 Brand of engine: BLK Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-08-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Model type: R5 Type of engine: TDi Size of motor: 2.5 Brand of engine: BPD Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-08-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 2.5 Brand of engine: BAC Body: SUV From date: 01-01-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
