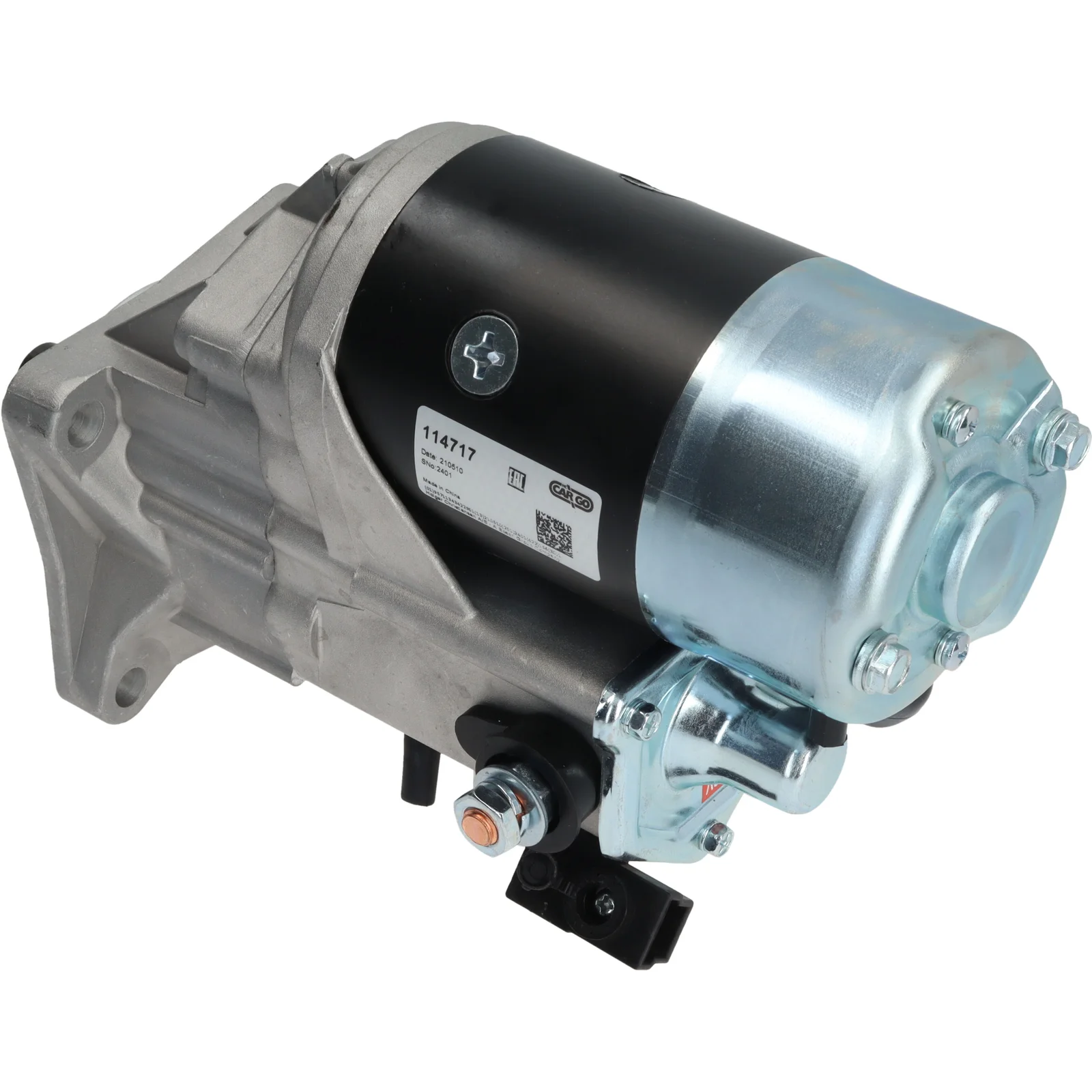

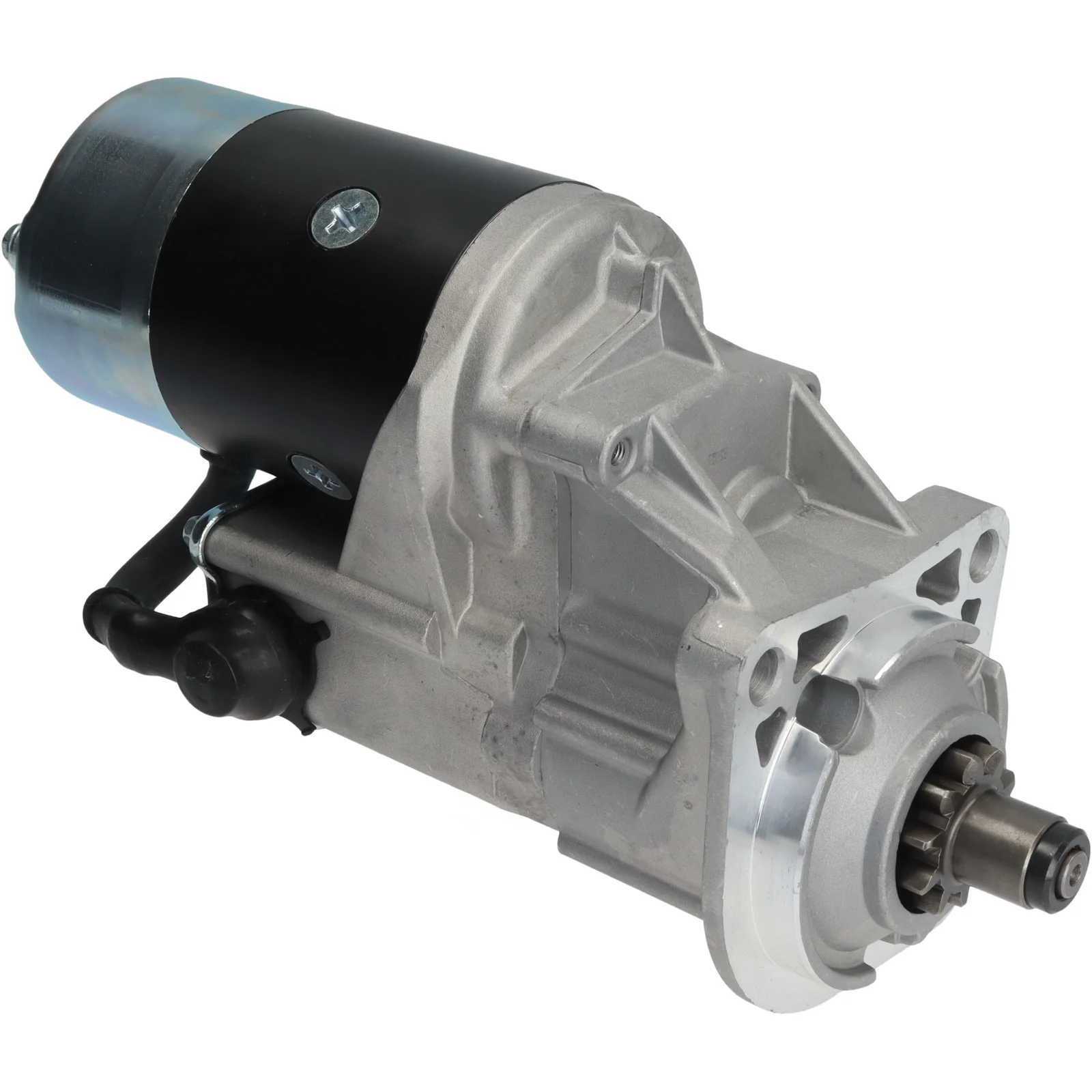

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114717

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.7, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.7
Mount. flange: 89.00
Drive dist.: 30.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./front: 56.00
No./teeth: 10
B+: M10
Position/B+: 45
Position/50: 37
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 298.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 37
Position/B+ 45
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./front 56.00
Drive dist. 30.00
Gear type GR
kW 2.7
Voltage 12
Total length 298.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114717, MP10237, 32A66-02100, 428000-1660

  • Konkurrentreferens
    CST40338, DSN2115, LRS04229, S6288S, 25-5391, 700.020.103, 10705N

  • Normaliserat artikelnummer
    cst40338, dsn2115, f032114717, lrs04229, mp10237, s6288s, 32a6602100, 10705n, 255391, 700020103, 4280001660

  • Passar modeller
    Various Industrial applications Model: Various Industrial applications Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.7
    Mount. flange: 89.00
    Drive dist.: 30.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./front: 56.00
    No./teeth: 10
    B+: M10
    Position/B+: 45
    Position/50: 37
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 298.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 37
    Position/B+ 45
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./front 56.00
    Drive dist. 30.00
    Gear type GR
    kW 2.7
    Voltage 12
    Total length 298.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114717, MP10237, 32A66-02100, 428000-1660

    • Konkurrentreferens
      CST40338, DSN2115, LRS04229, S6288S, 25-5391, 700.020.103, 10705N

    • Normaliserat artikelnummer
      cst40338, dsn2115, f032114717, lrs04229, mp10237, s6288s, 32a6602100, 10705n, 255391, 700020103, 4280001660

    • Passar modeller
      Various Industrial applications Model: Various Industrial applications Approved: Yes
