Artikelnr: F032114711

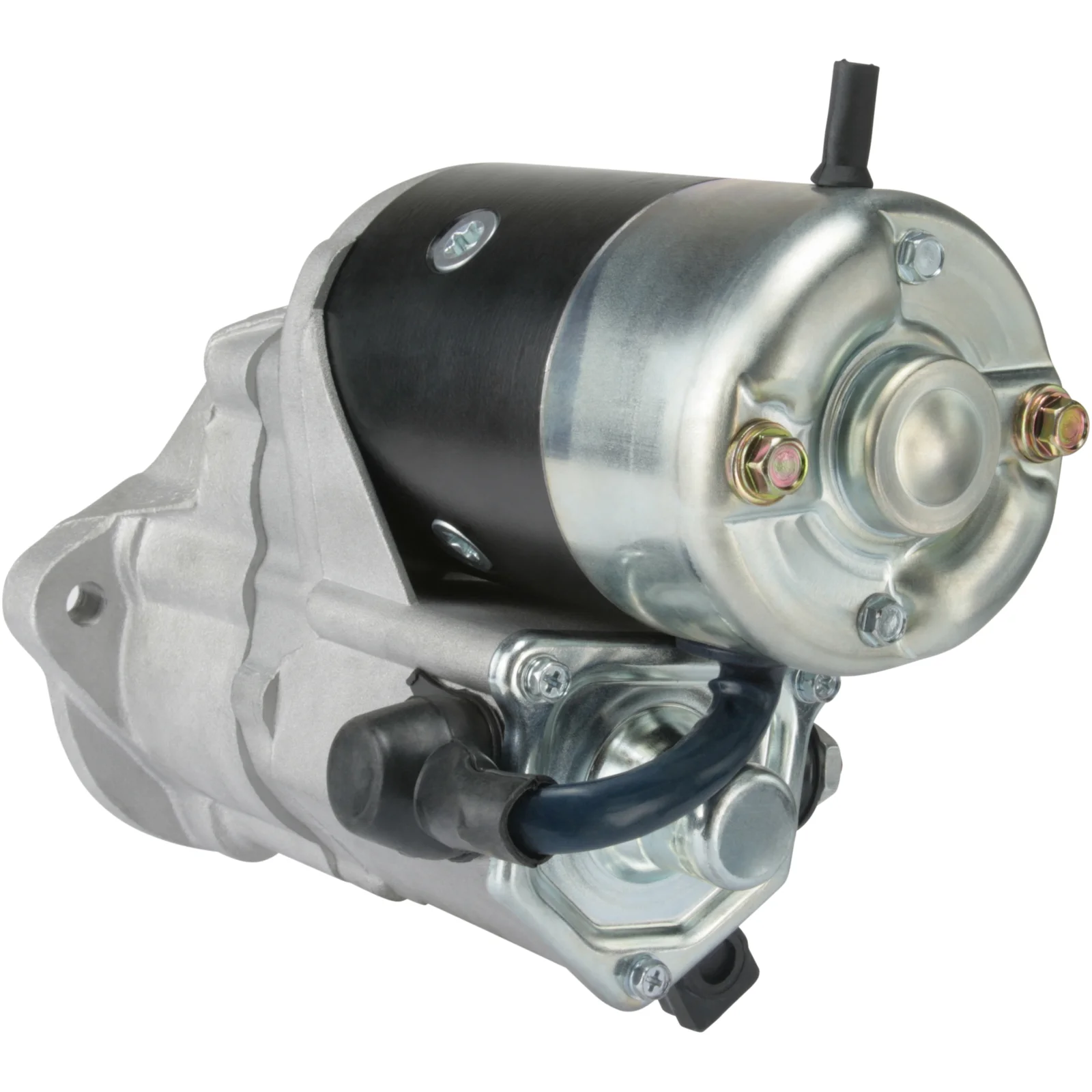

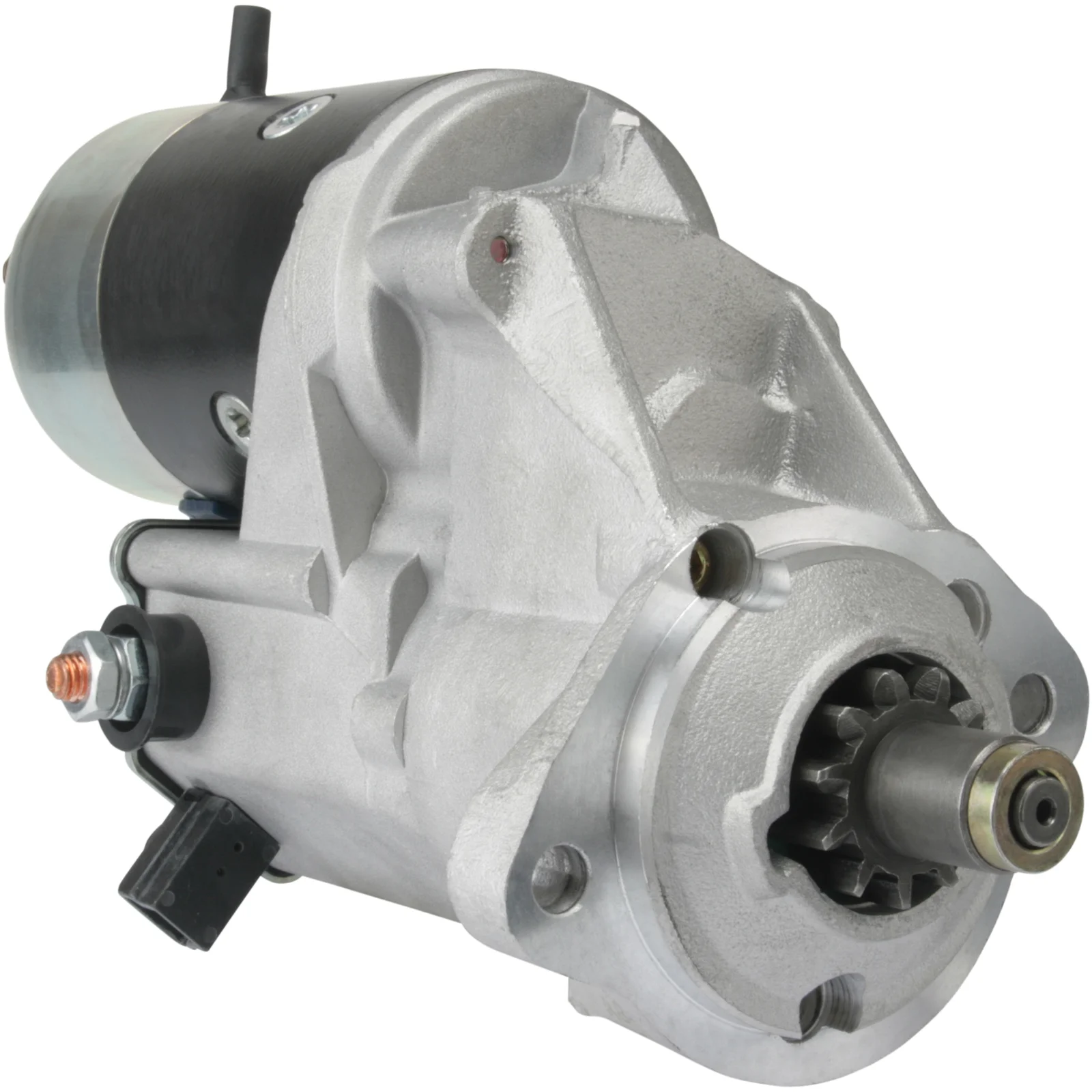

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 82.50
Drive dist.: 25.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 183.00
Dist./front: 55.00
No./teeth: 11
B+: M10
Position/50: 22
Terminal 50: M5
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 300.00
Prod. info: BN
No./mount. holes: 2 (0)

Specifikation

B+ M10
No./teeth 11
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 22
Prod. info BN
Rotation CW
Dist./back 183.00
Dist./front 55.00
Drive dist. 25.00
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 300.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    F032114711, 15527-63011, 15527-63012, 15527-63013, 028000-7800, 028000-7801, 028000-7802, 028000-7803
  • Konkurrentreferens

    CST40242, 254044
  • Normaliserat artikelnummer

    cst40242, f032114711, 254044, 0280007800, 0280007801, 0280007802, 0280007803, 1552763011, 1552763012, 1552763013
  • Passar modeller

    Kubota Model: Engine Model series: Engine Brand of engine: D1402 From date: 01-01-1979 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 82.50
    Drive dist.: 25.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 183.00
    Dist./front: 55.00
    No./teeth: 11
    B+: M10
    Position/50: 22
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 300.00
    Prod. info: BN
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 22
    Prod. info BN
    Rotation CW
    Dist./back 183.00
    Dist./front 55.00
    Drive dist. 25.00
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 300.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning
    • OEM

      F032114711, 15527-63011, 15527-63012, 15527-63013, 028000-7800, 028000-7801, 028000-7802, 028000-7803
    • Konkurrentreferens

      CST40242, 254044
    • Normaliserat artikelnummer

      cst40242, f032114711, 254044, 0280007800, 0280007801, 0280007802, 0280007803, 1552763011, 1552763012, 1552763013
    • Passar modeller

      Kubota Model: Engine Model series: Engine Brand of engine: D1402 From date: 01-01-1979 Fuel: Diesel Approved: Yes
