HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114690

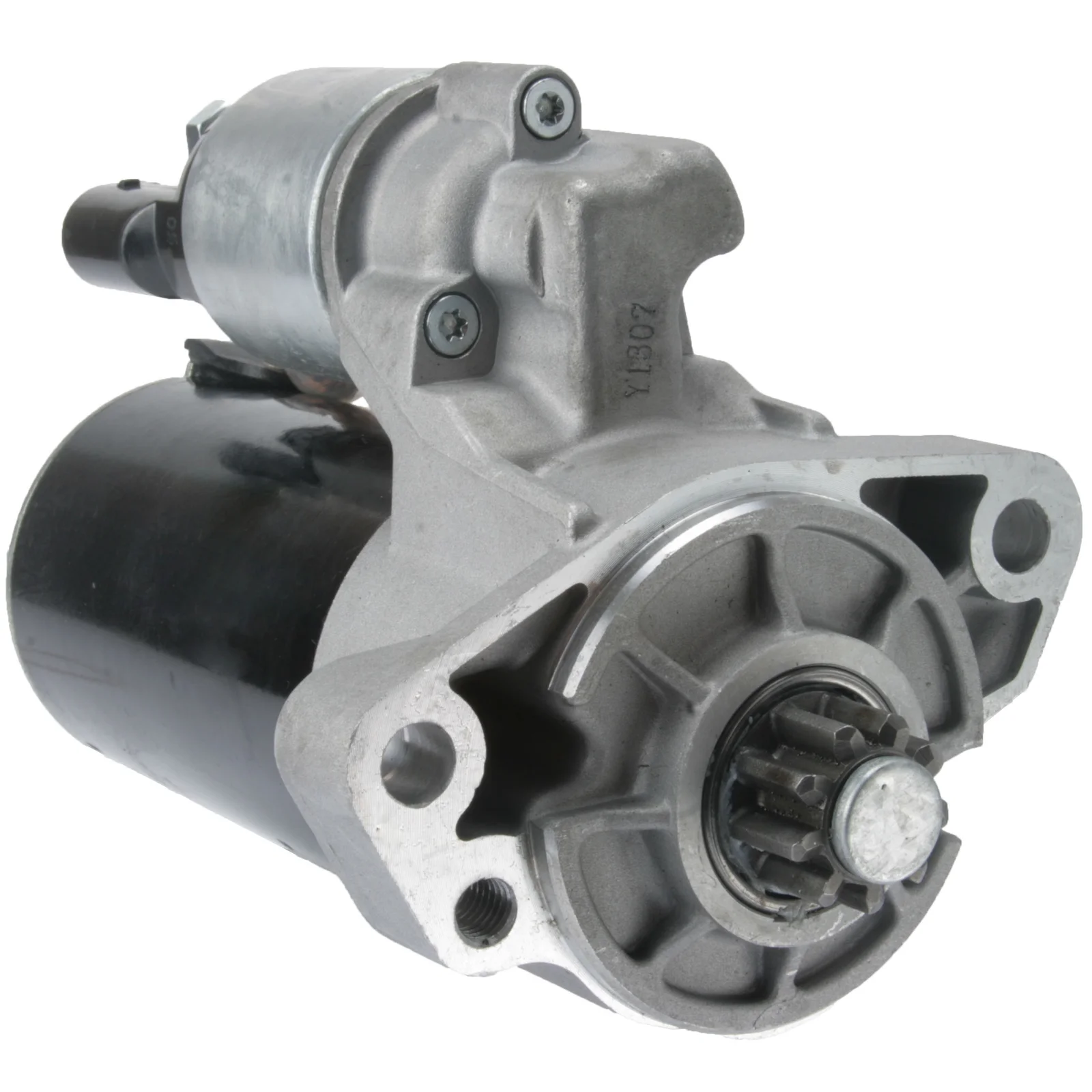

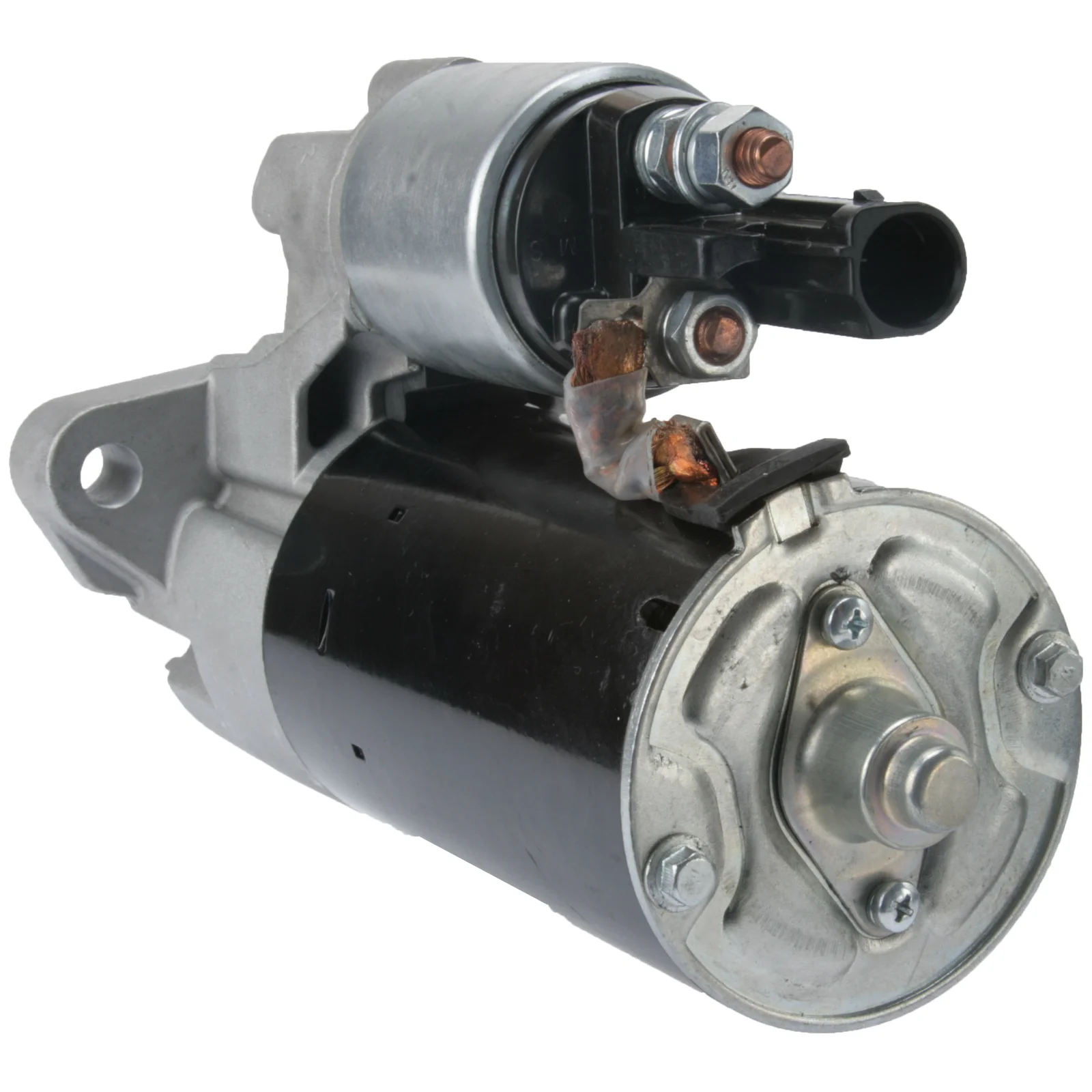

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 76.20
Drive dist.: 25.00
Mount. hole 3 mm: 10.50
Mount. hole 1 mm: 11.00
Dist./back: 183.00
Dist./front: 28.00
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Dist. 2: 24.00
Dist. 3: 104.50
Dist. mm: 101.50
Rotation: CW
Total length mm: 230.00
No./mount. holes: 3 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.20
No./mount. holes 3 (1)
Position/50 15
Dist. 2 24.00
Dist. 3 104.50
Rotation CW
Dist./back 183.00
Dist./front 28.00
Drive dist. 25.00
Gear type GR
kW 2.0
Terminal 50 4.80
Voltage 12
Total length 230.00 mm
Dist. 101.50 mm
Mount. hole 3 10.50 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1521, F032114690, 1986S00820, 0001125519, 0001125520, 056911024J, 059911023J, 059911023s, 059911023SX, 059911024j, 059911024JX

  • Konkurrentreferens
    DRS0566, LRS02330, S0213, S0213PR, S0316, 25-4002, 300.577.093, 311.246.092, 3066, 33330, 33330R, 106244, 220683, 220683A, 254305, 458927, 8080392, 11090174, 42024050

  • Normaliserat artikelnummer
    cs1521, drs0566, f032114690, lrs02330, s0213, s0213pr, s0316, 1986s00820, 3066, 33330, 33330r, 106244, 220683, 220683a, 254002, 254305, 458927, 0001125519, 0001125520, 8080392, 11090174, 42024050, 056911024j, 059911023j, 059911023s, 059911023sx, 059911024j, 059911024jx, 300577093, 311246092

  • Passar modeller
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Body: SUV From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: BKS Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-04-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-04-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CATA Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 76.20
    Drive dist.: 25.00
    Mount. hole 3 mm: 10.50
    Mount. hole 1 mm: 11.00
    Dist./back: 183.00
    Dist./front: 28.00
    No./teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 4.80
    Gear type: GR
    Dist. 2: 24.00
    Dist. 3: 104.50
    Dist. mm: 101.50
    Rotation: CW
    Total length mm: 230.00
    No./mount. holes: 3 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 76.20
    No./mount. holes 3 (1)
    Position/50 15
    Dist. 2 24.00
    Dist. 3 104.50
    Rotation CW
    Dist./back 183.00
    Dist./front 28.00
    Drive dist. 25.00
    Gear type GR
    kW 2.0
    Terminal 50 4.80
    Voltage 12
    Total length 230.00 mm
    Dist. 101.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      cs1521, F032114690, 1986S00820, 0001125519, 0001125520, 056911024J, 059911023J, 059911023s, 059911023SX, 059911024j, 059911024JX

    • Konkurrentreferens
      DRS0566, LRS02330, S0213, S0213PR, S0316, 25-4002, 300.577.093, 311.246.092, 3066, 33330, 33330R, 106244, 220683, 220683A, 254305, 458927, 8080392, 11090174, 42024050

    • Normaliserat artikelnummer
      cs1521, drs0566, f032114690, lrs02330, s0213, s0213pr, s0316, 1986s00820, 3066, 33330, 33330r, 106244, 220683, 220683a, 254002, 254305, 458927, 0001125519, 0001125520, 8080392, 11090174, 42024050, 056911024j, 059911023j, 059911023s, 059911023sx, 059911024j, 059911024jx, 300577093, 311246092

    • Passar modeller
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Body: SUV From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: BKS Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-04-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-04-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CATA Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-05-2010 Fuel: Diesel Approved: Yes
