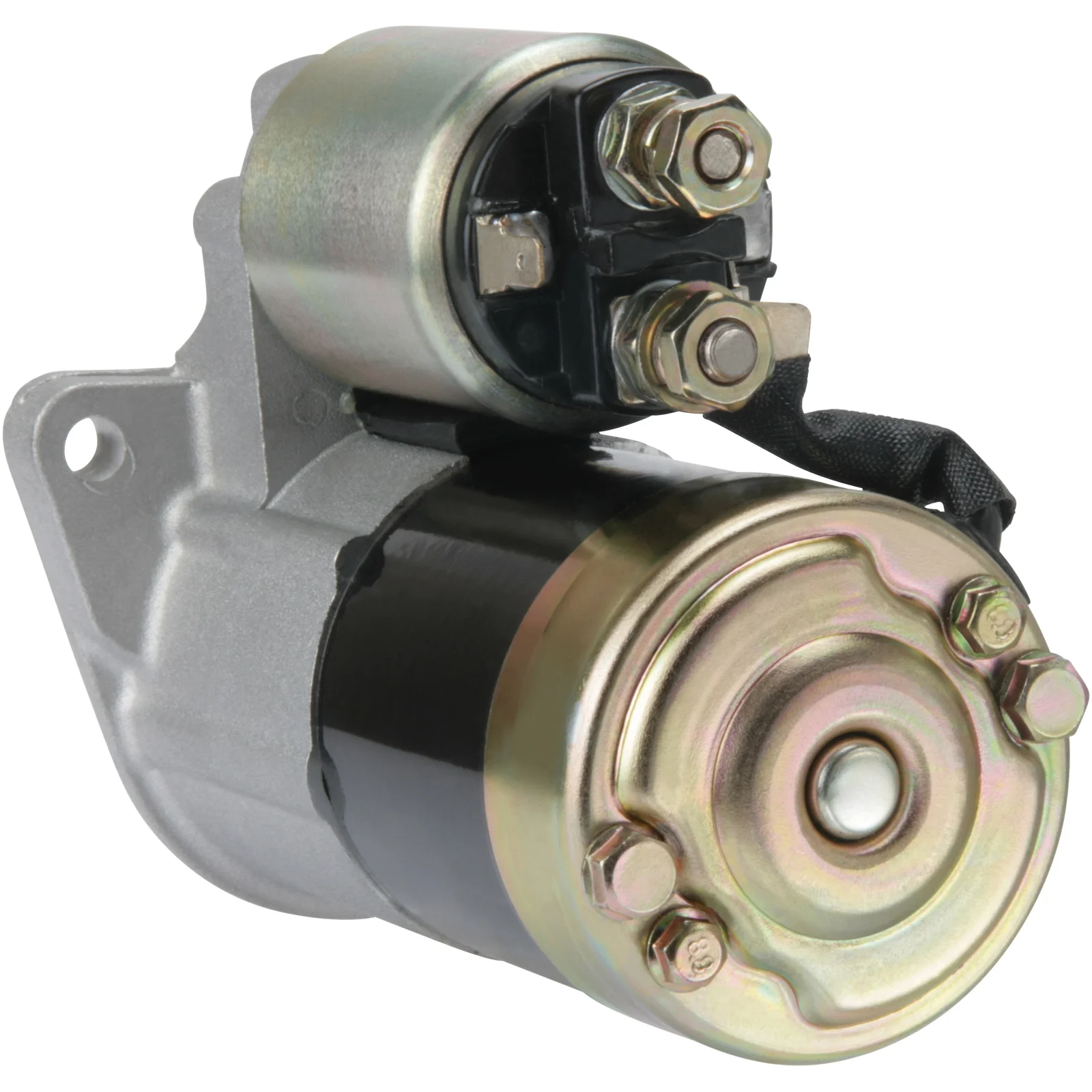

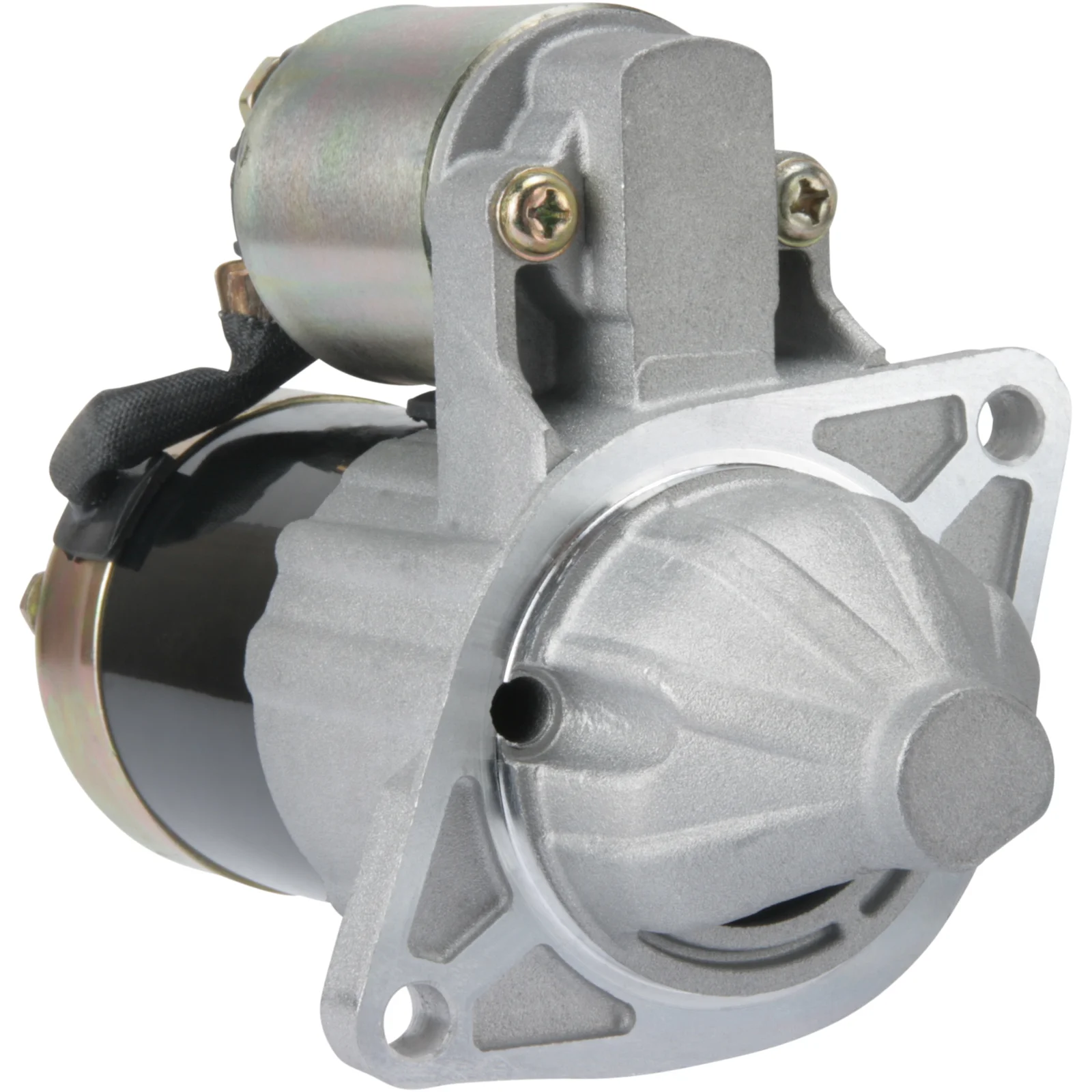

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114686

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.3, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.3
Mount. flange: 66.00
Drive dist.: 17.50
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Dist./back: 145.00
Dist./front: 55.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 109.50
Rotation: CW
Total length mm: 201.50
Drive type: Steel
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 66.00
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 145.00
Dist./front 55.00
Drive dist. 17.50
Drive type Steel
Gear type GR
kW 1.3
Terminal 50 6.30
Voltage 12
Total length 201.50 mm
Dist. 109.50 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032114686, M0T88081, M0T88084, 16824-63011, 16824-63014

  • Konkurrentreferens
    CST35284, S5315S, 25-5282, 19107, 19107N, 255023

  • Normaliserat artikelnummer
    cst35284, f032114686, m0t88081, m0t88084, s5315s, 19107, 19107n, 255023, 255282, 1682463011, 1682463014

  • Passar modeller
    Grasshopper Model: Lawn mower Model series: 722d Brand of engine: Kubota Approved: Yes
    Grasshopper Model: Lawn mower Model series: 722d Brand of engine: kubota Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.3
    Mount. flange: 66.00
    Drive dist.: 17.50
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Dist./back: 145.00
    Dist./front: 55.00
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 109.50
    Rotation: CW
    Total length mm: 201.50
    Drive type: Steel
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 66.00
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 145.00
    Dist./front 55.00
    Drive dist. 17.50
    Drive type Steel
    Gear type GR
    kW 1.3
    Terminal 50 6.30
    Voltage 12
    Total length 201.50 mm
    Dist. 109.50 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Fordonsmatchning

    • OEM
      F032114686, M0T88081, M0T88084, 16824-63011, 16824-63014

    • Konkurrentreferens
      CST35284, S5315S, 25-5282, 19107, 19107N, 255023

    • Normaliserat artikelnummer
      cst35284, f032114686, m0t88081, m0t88084, s5315s, 19107, 19107n, 255023, 255282, 1682463011, 1682463014

    • Passar modeller
      Grasshopper Model: Lawn mower Model series: 722d Brand of engine: Kubota Approved: Yes
      Grasshopper Model: Lawn mower Model series: 722d Brand of engine: kubota Approved: Yes
