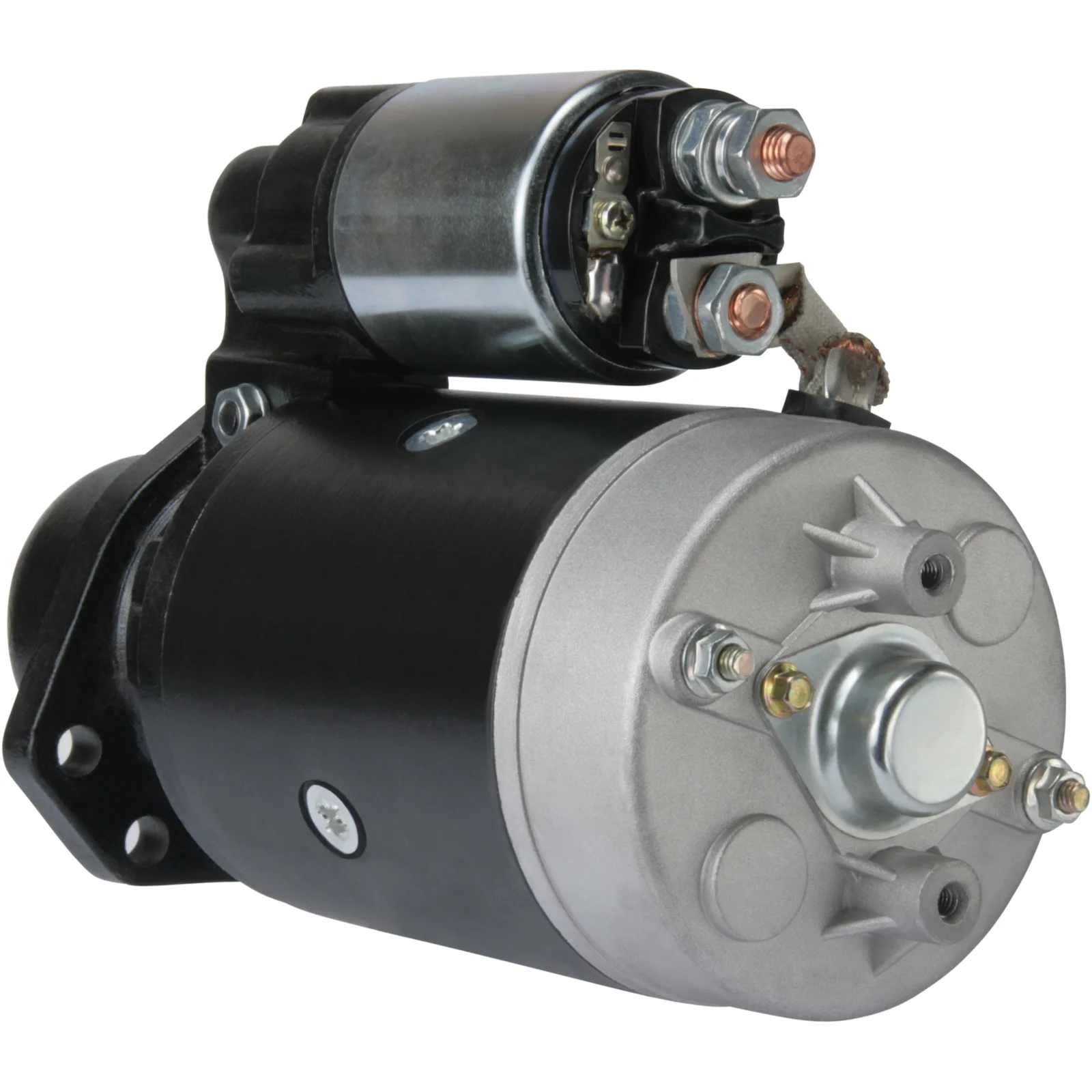

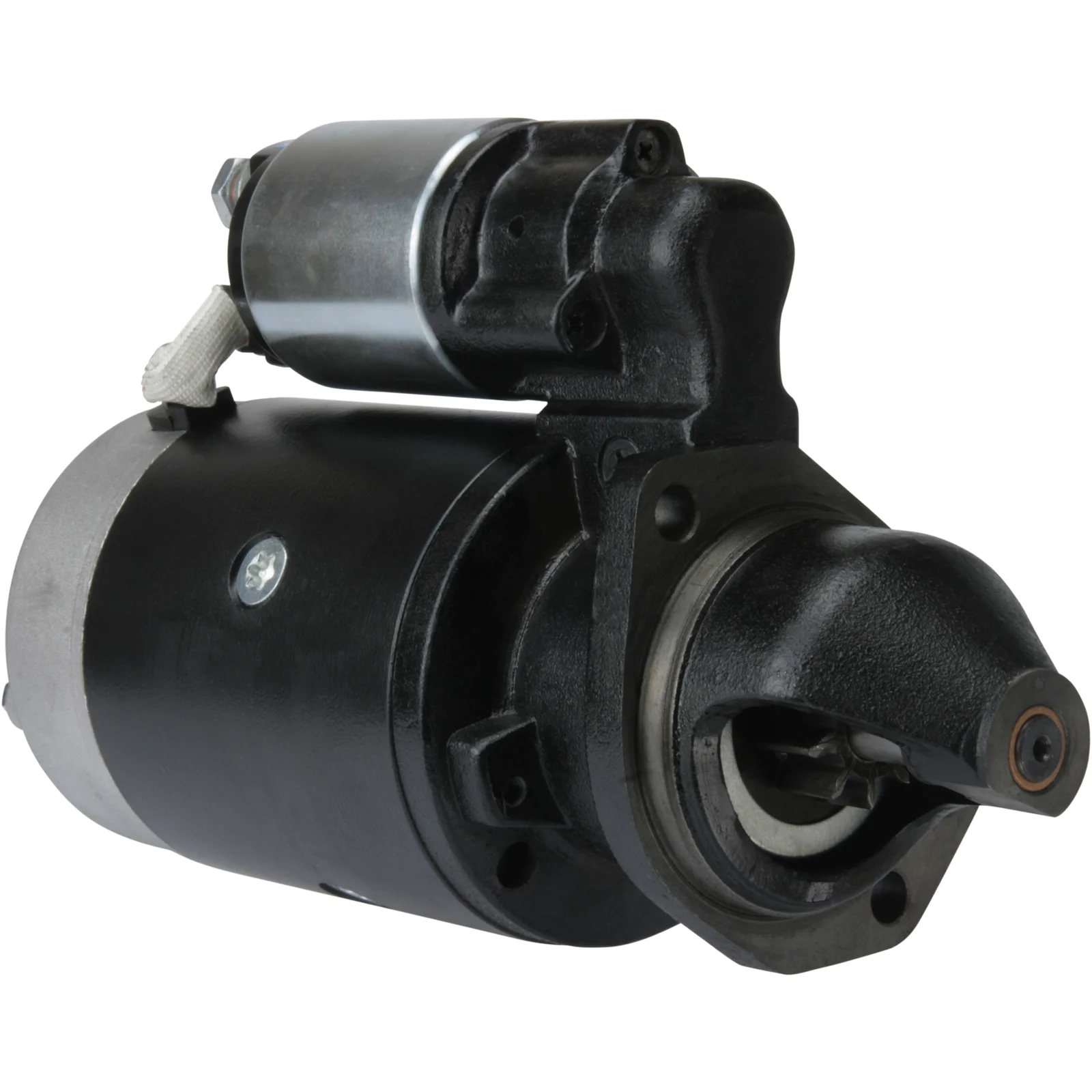

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114676

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 23.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 217.00
Dist./front: 67.00
No./teeth: 9
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 105.00
Dist. 3: 102.00
Dist. mm: 28.00
Rotation: CW
Total length mm: 293.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 105.00
Dist. 3 102.00
Rotation CW
Dist./back 217.00
Dist./front 67.00
Drive dist. 23.00
Drive type Steel
Gear type DD
kW 2.2
Terminal 50 M4
Voltage 12
Total length 293.00 mm
Dist. 28.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032114676, 01181877, 1181877, 01182386, 1182386, 0001362705

  • Konkurrentreferens
    CST10395, DRS0789, LRS02639, S0847S, 25-4312, 688.031.092, 254147, 254884, 11090508

  • Normaliserat artikelnummer
    cst10395, drs0789, f032114676, lrs02639, s0847s, 254147, 254312, 254884, 01181877, 1181877, 01182386, 1182386, 0001362705, 11090508, 688031092

  • Passar modeller
    KHD Model: Engine Model series: Various Models Approved: Yes
    KHD Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 82.50
    Drive dist.: 23.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 217.00
    Dist./front: 67.00
    No./teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 105.00
    Dist. 3: 102.00
    Dist. mm: 28.00
    Rotation: CW
    Total length mm: 293.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 105.00
    Dist. 3 102.00
    Rotation CW
    Dist./back 217.00
    Dist./front 67.00
    Drive dist. 23.00
    Drive type Steel
    Gear type DD
    kW 2.2
    Terminal 50 M4
    Voltage 12
    Total length 293.00 mm
    Dist. 28.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032114676, 01181877, 1181877, 01182386, 1182386, 0001362705

    • Konkurrentreferens
      CST10395, DRS0789, LRS02639, S0847S, 25-4312, 688.031.092, 254147, 254884, 11090508

    • Normaliserat artikelnummer
      cst10395, drs0789, f032114676, lrs02639, s0847s, 254147, 254312, 254884, 01181877, 1181877, 01182386, 1182386, 0001362705, 11090508, 688031092

    • Passar modeller
      KHD Model: Engine Model series: Various Models Approved: Yes
      KHD Model: Various Models Model series: Various Models Approved: Yes
