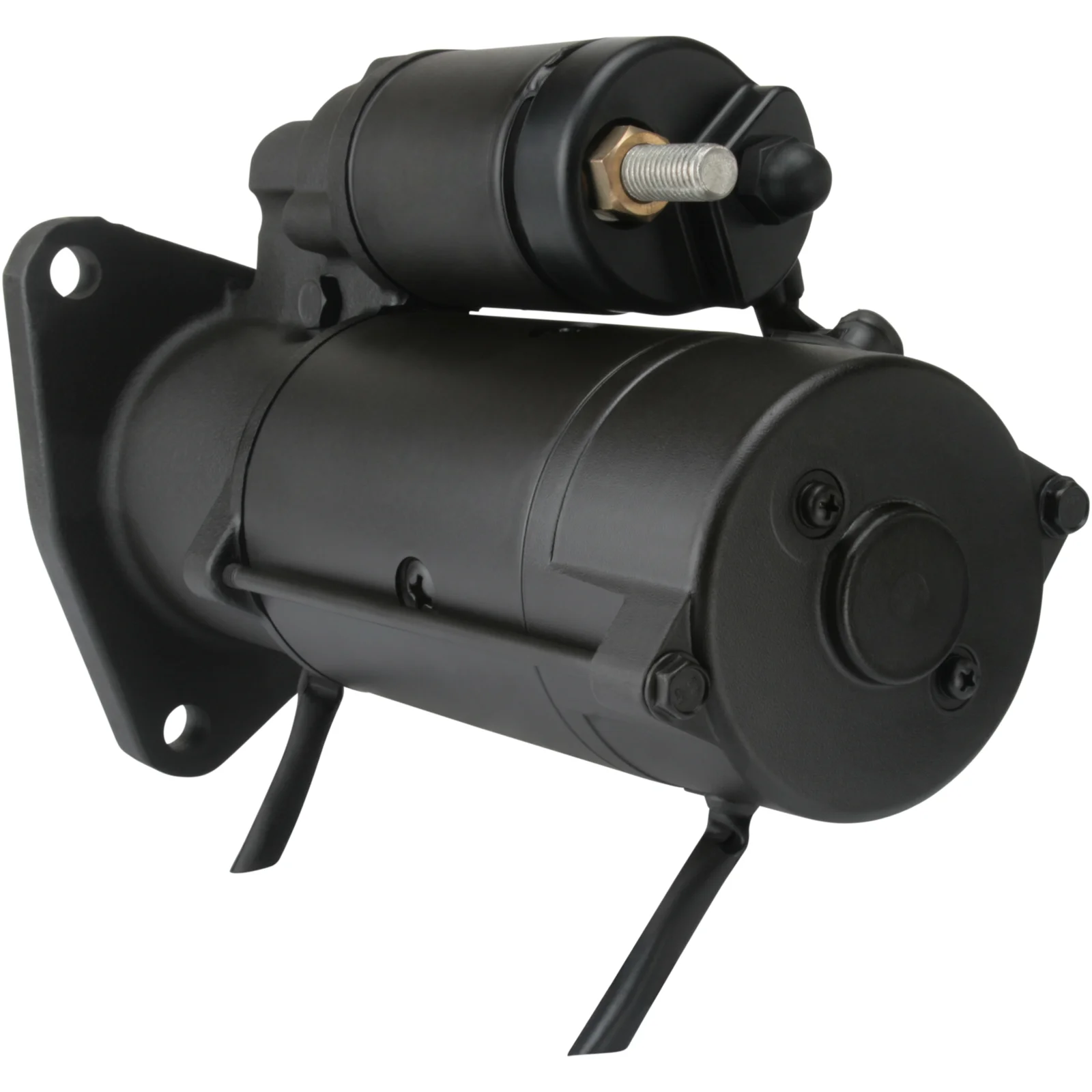

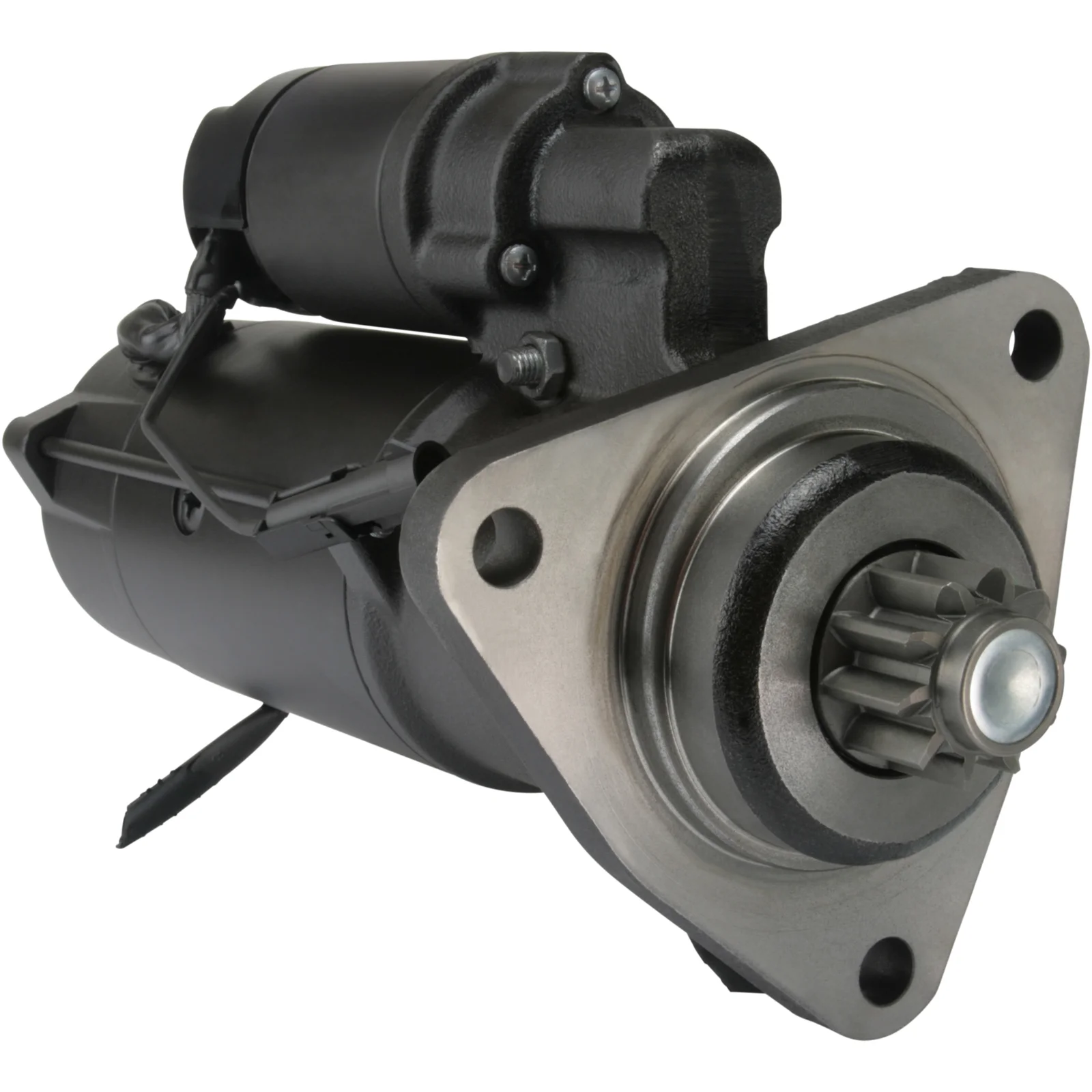

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114480

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.2
Mount. flange: 92.00
Drive dist.: 48.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 273.00
Dist./front: 54.00
No./teeth: 10
B+: M12
Terminal 50: Plug
Gear type: GR
Dist. 2: 127.00
Dist. 3: 127.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 327.00
Prod. info: BN
Oil sealed: Yes
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
No./teeth 10
Mount. flange 92.00
Oil sealed Yes
No./mount. holes 3 (0)
Prod. info BN
Dist. 2 127.00
Dist. 3 127.00
Rotation CW
Dist./back 273.00
Dist./front 54.00
Drive dist. 48.00
Gear type GR
kW 4.2
Terminal 50 Plug
Voltage 12
Total length 327.00 mm
Dist. 127.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    AZF4627, azf4687, F032114480, 11.131.260, 11.131.830, 84213446, 87425232, 87499205

  • Konkurrentreferens
    CST21201, IS1114, LRS02601, MS64, S9214(LETRIKA), S9214S, 25-4274, 540.519.103, 685.033.102, 255383

  • Normaliserat artikelnummer
    azf4627, azf4687, cst21201, f032114480, is1114, lrs02601, ms64, s9214letrika, s9214s, 254274, 255383, 11131260, 11131830, 84213446, 87425232, 87499205, 540519103, 685033102

  • Passar modeller
    Case IH Model: Magnum Model series: 235 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
    Case IH Model: Magnum Model series: 260 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
    Case IH Model: Magnum Model series: 290 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
    Case IH Model: Magnum Model series: 315 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
    Case IH Model: Magnum Model series: 340 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 4.2
    Mount. flange: 92.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 273.00
    Dist./front: 54.00
    No./teeth: 10
    B+: M12
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 127.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 327.00
    Prod. info: BN
    Oil sealed: Yes
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    No./teeth 10
    Mount. flange 92.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 273.00
    Dist./front 54.00
    Drive dist. 48.00
    Gear type GR
    kW 4.2
    Terminal 50 Plug
    Voltage 12
    Total length 327.00 mm
    Dist. 127.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      AZF4627, azf4687, F032114480, 11.131.260, 11.131.830, 84213446, 87425232, 87499205

    • Konkurrentreferens
      CST21201, IS1114, LRS02601, MS64, S9214(LETRIKA), S9214S, 25-4274, 540.519.103, 685.033.102, 255383

    • Normaliserat artikelnummer
      azf4627, azf4687, cst21201, f032114480, is1114, lrs02601, ms64, s9214letrika, s9214s, 254274, 255383, 11131260, 11131830, 84213446, 87425232, 87499205, 540519103, 685033102

    • Passar modeller
      Case IH Model: Magnum Model series: 235 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
      Case IH Model: Magnum Model series: 260 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
      Case IH Model: Magnum Model series: 290 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
      Case IH Model: Magnum Model series: 315 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
      Case IH Model: Magnum Model series: 340 Size of motor: 8.7 Body: Tractor Fuel: Diesel Approved: Yes
