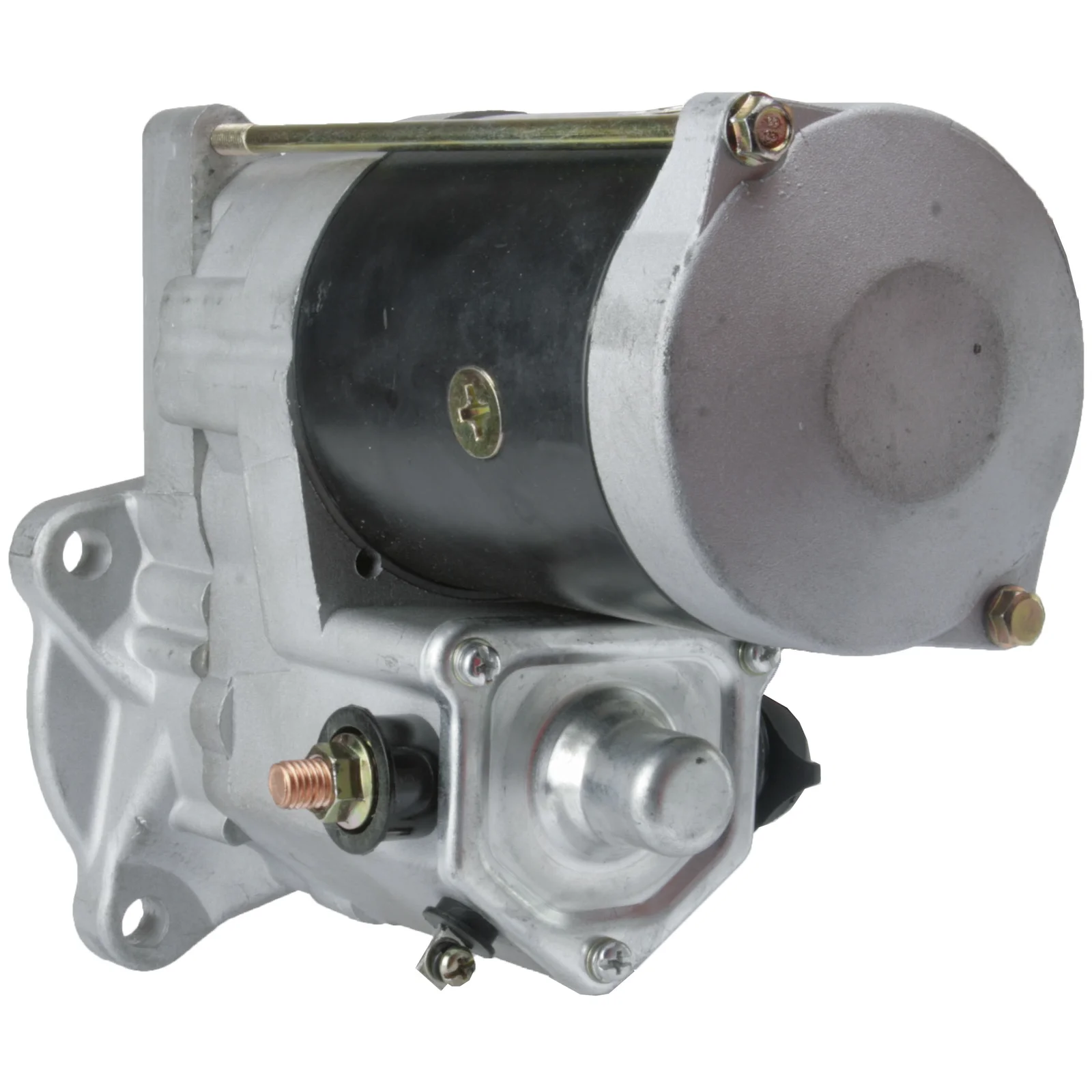

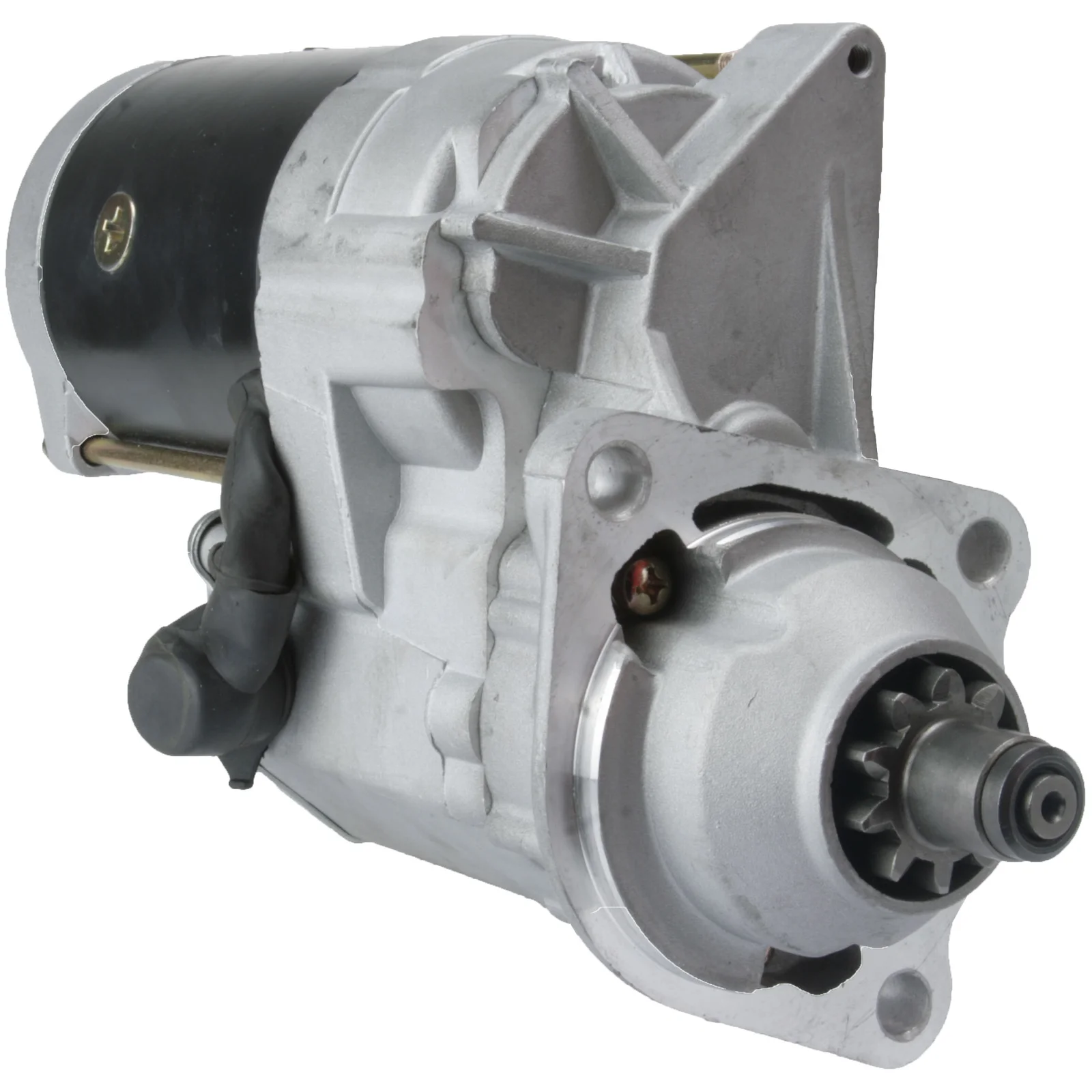

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114449

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.0
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 3 mm: 12.00
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 12.00
Dist./back: 242.00
Dist./front: 72.50
No./teeth: 10
B+: M10
Position/B+: 45
Position/50: 35
Terminal 50: M5
Gear type: GR
Dist. 2: 126.50
Dist. 3: 89.50
Dist. mm: 89.50
Rotation: CW
Total length mm: 318.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Servicing: Case
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 35
Position/B+ 45
Prod. info BN
Dist. 2 126.50
Dist. 3 89.50
Rotation CW
Dist./back 242.00
Dist./front 72.50
Servicing Case
Drive dist. 47.50
Drive type Steel
Gear type GR
kW 4.0
Terminal 50 M5
Voltage 12
Total length 318.00 mm
Waterproof No
Dist. 89.50 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032114449, 116928A2, 128000-5370, 128000-5371, 128000-5372, 128000-5620, 128000-5621, 128000-5622, 128000-5623, 228000-6870, 228000-6871, 228000-6872, 259720A1

  • Konkurrentreferens
    CST40504, DSN2010, 630.519.103, 254644

  • Normaliserat artikelnummer
    cst40504, dsn2010, f032114449, 116928a2, 254644, 259720a1, 630519103, 1280005370, 1280005371, 1280005372, 1280005620, 1280005621, 1280005622, 1280005623, 2280006870, 2280006871, 2280006872

  • Passar modeller
    Case IH Model: MX 120 MAXXUM Model series: MX 120 MAXXUM Model type: Ag Tractors Brand of engine: 6BT5.9 Body: Tractor Approved: Yes
    Case Model: 5000 Series Model series: 5130 Brand of engine: 6T-590 From date: 01-06-1990 Fuel: Diesel Approved: Yes
    Case Model: 5000 Series Model series: 5140 Brand of engine: 6T-590 From date: 01-06-1990 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 12.00
    Mount. hole 2 mm: 12.00
    Mount. hole 1 mm: 12.00
    Dist./back: 242.00
    Dist./front: 72.50
    No./teeth: 10
    B+: M10
    Position/B+: 45
    Position/50: 35
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 126.50
    Dist. 3: 89.50
    Dist. mm: 89.50
    Rotation: CW
    Total length mm: 318.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Servicing: Case
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 35
    Position/B+ 45
    Prod. info BN
    Dist. 2 126.50
    Dist. 3 89.50
    Rotation CW
    Dist./back 242.00
    Dist./front 72.50
    Servicing Case
    Drive dist. 47.50
    Drive type Steel
    Gear type GR
    kW 4.0
    Terminal 50 M5
    Voltage 12
    Total length 318.00 mm
    Waterproof No
    Dist. 89.50 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Fordonsmatchning

    • OEM
      F032114449, 116928A2, 128000-5370, 128000-5371, 128000-5372, 128000-5620, 128000-5621, 128000-5622, 128000-5623, 228000-6870, 228000-6871, 228000-6872, 259720A1

    • Konkurrentreferens
      CST40504, DSN2010, 630.519.103, 254644

    • Normaliserat artikelnummer
      cst40504, dsn2010, f032114449, 116928a2, 254644, 259720a1, 630519103, 1280005370, 1280005371, 1280005372, 1280005620, 1280005621, 1280005622, 1280005623, 2280006870, 2280006871, 2280006872

    • Passar modeller
      Case IH Model: MX 120 MAXXUM Model series: MX 120 MAXXUM Model type: Ag Tractors Brand of engine: 6BT5.9 Body: Tractor Approved: Yes
      Case Model: 5000 Series Model series: 5130 Brand of engine: 6T-590 From date: 01-06-1990 Fuel: Diesel Approved: Yes
      Case Model: 5000 Series Model series: 5140 Brand of engine: 6T-590 From date: 01-06-1990 Fuel: Diesel Approved: Yes
