Artikelnr: F032114447

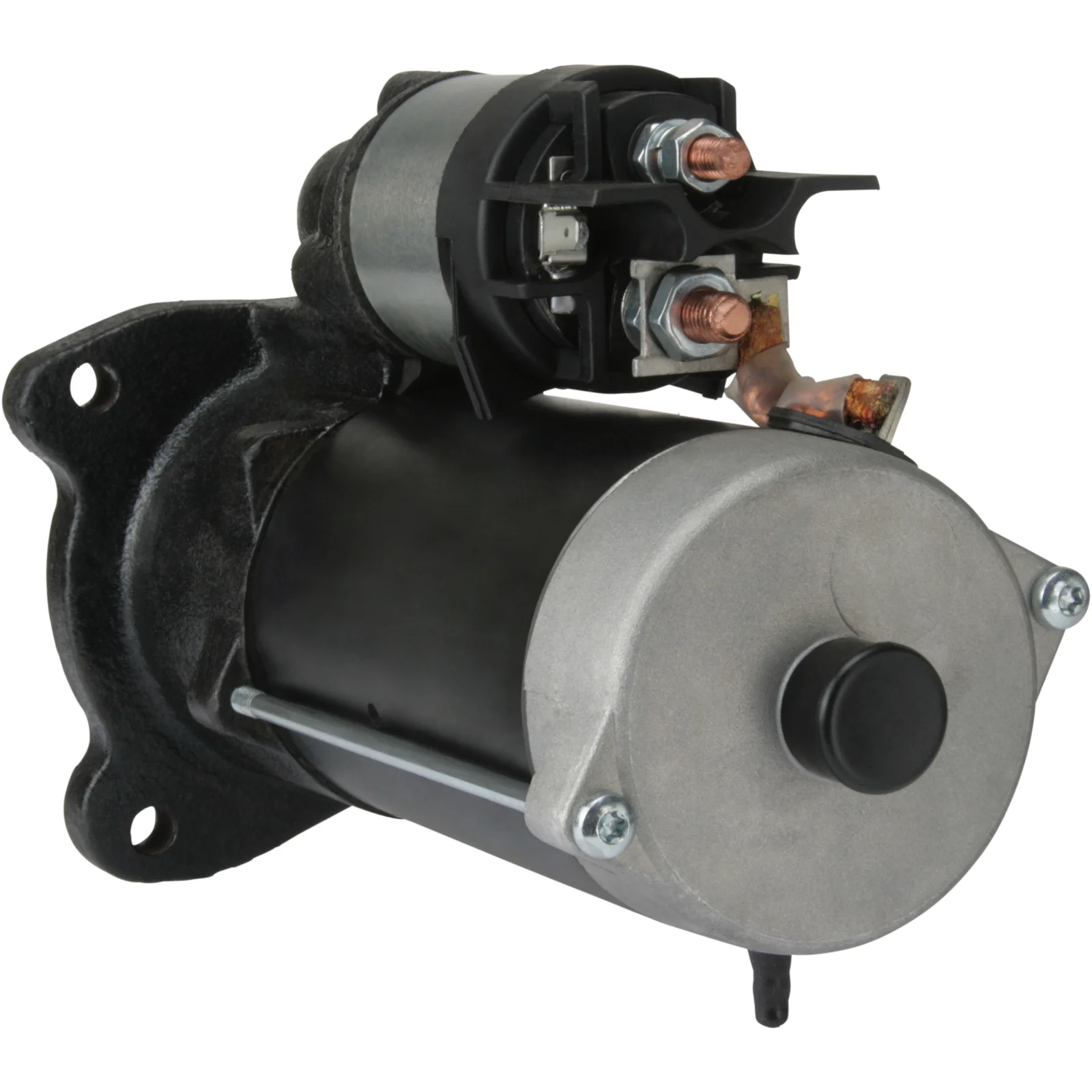

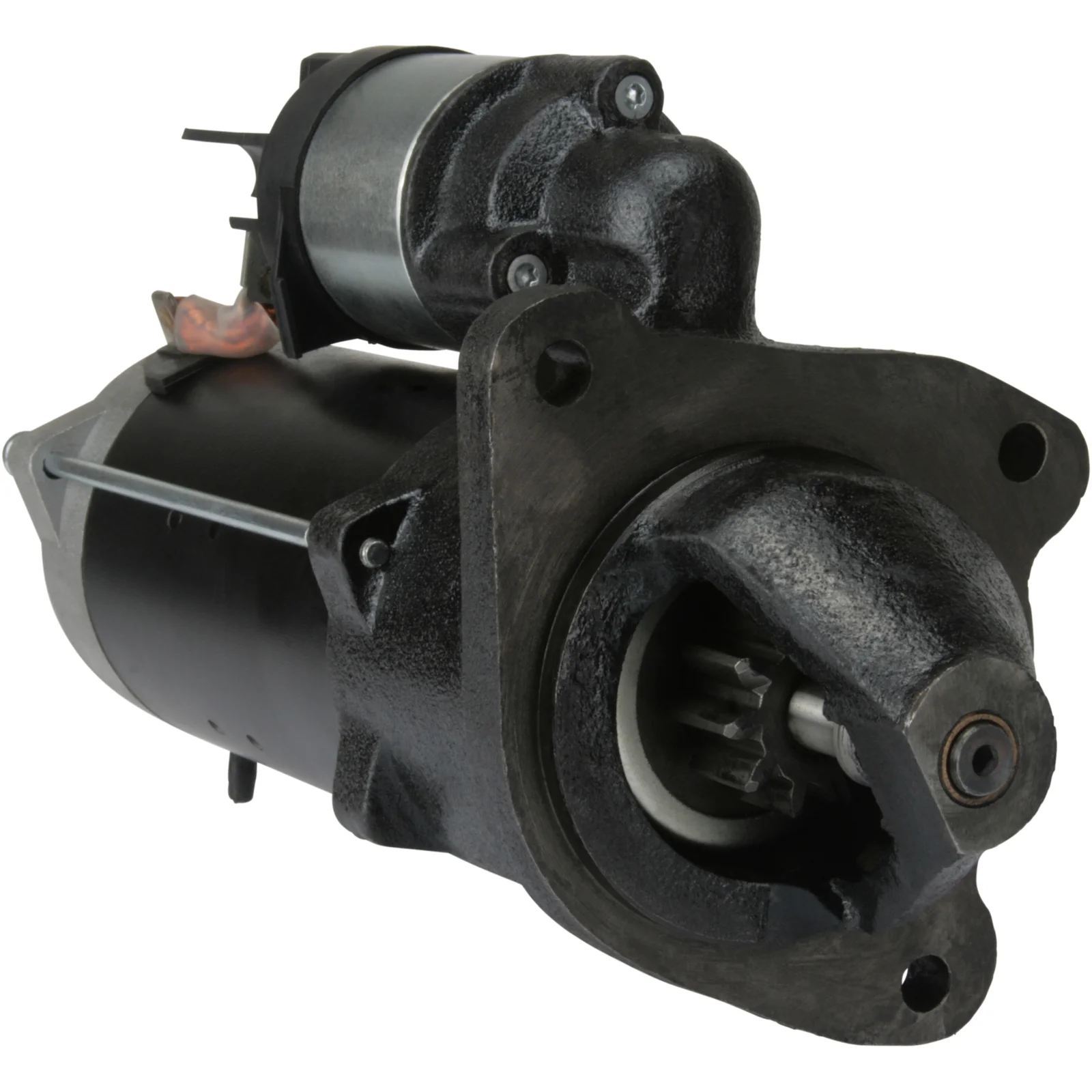

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 92.00
Drive dist.: 21.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 234.00
Dist./front: 67.50
No./teeth: 10
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. 2: 146.00
Dist. 3: 103.50
Dist. mm: 103.50
Rotation: CW
Total length mm: 316.00
Prod. info: BN
No./mount. holes: 3 (0)

Specifikation

B+ M8
No./teeth 10
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 146.00
Dist. 3 103.50
Rotation CW
Dist./back 234.00
Dist./front 67.50
Drive dist. 21.00
Gear type GR
kW 3.0
Terminal 50 6.30
Voltage 12
Total length 316.00 mm
Dist. 103.50 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    AZF4115, AZF4183, AZF4511, AZF4539, F032114447, 11.130.785, 11.131.027, 11.131.430, 11.131.705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550
  • Konkurrentreferens

    CST21109, CST21147, DRS0985, IS1016, MS25, S9225, S9225(LETRIKA), 25-3166, 19653N, 254309
  • Normaliserat artikelnummer

    azf4115, azf4183, azf4511, azf4539, cst21109, cst21147, drs0985, f032114447, is1016, ms25, s9225, s9225letrika, 19653n, 253166, 254309, 11130785, 11131027, 11131430, 11131705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550
  • Passar modeller

    Case Model: MXM Series Model series: MXM Series From date: 01-01-2002 Approved: Yes
    New Holland Model: TM Model series: 165 Size of motor: 7.5 Body: Tractor From date: 01-10-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 92.00
    Drive dist.: 21.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 234.00
    Dist./front: 67.50
    No./teeth: 10
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 146.00
    Dist. 3: 103.50
    Dist. mm: 103.50
    Rotation: CW
    Total length mm: 316.00
    Prod. info: BN
    No./mount. holes: 3 (0)
  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 146.00
    Dist. 3 103.50
    Rotation CW
    Dist./back 234.00
    Dist./front 67.50
    Drive dist. 21.00
    Gear type GR
    kW 3.0
    Terminal 50 6.30
    Voltage 12
    Total length 316.00 mm
    Dist. 103.50 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning
    • OEM

      AZF4115, AZF4183, AZF4511, AZF4539, F032114447, 11.130.785, 11.131.027, 11.131.430, 11.131.705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550
    • Konkurrentreferens

      CST21109, CST21147, DRS0985, IS1016, MS25, S9225, S9225(LETRIKA), 25-3166, 19653N, 254309
    • Normaliserat artikelnummer

      azf4115, azf4183, azf4511, azf4539, cst21109, cst21147, drs0985, f032114447, is1016, ms25, s9225, s9225letrika, 19653n, 253166, 254309, 11130785, 11131027, 11131430, 11131705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550
    • Passar modeller

      Case Model: MXM Series Model series: MXM Series From date: 01-01-2002 Approved: Yes
      New Holland Model: TM Model series: 165 Size of motor: 7.5 Body: Tractor From date: 01-10-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes
