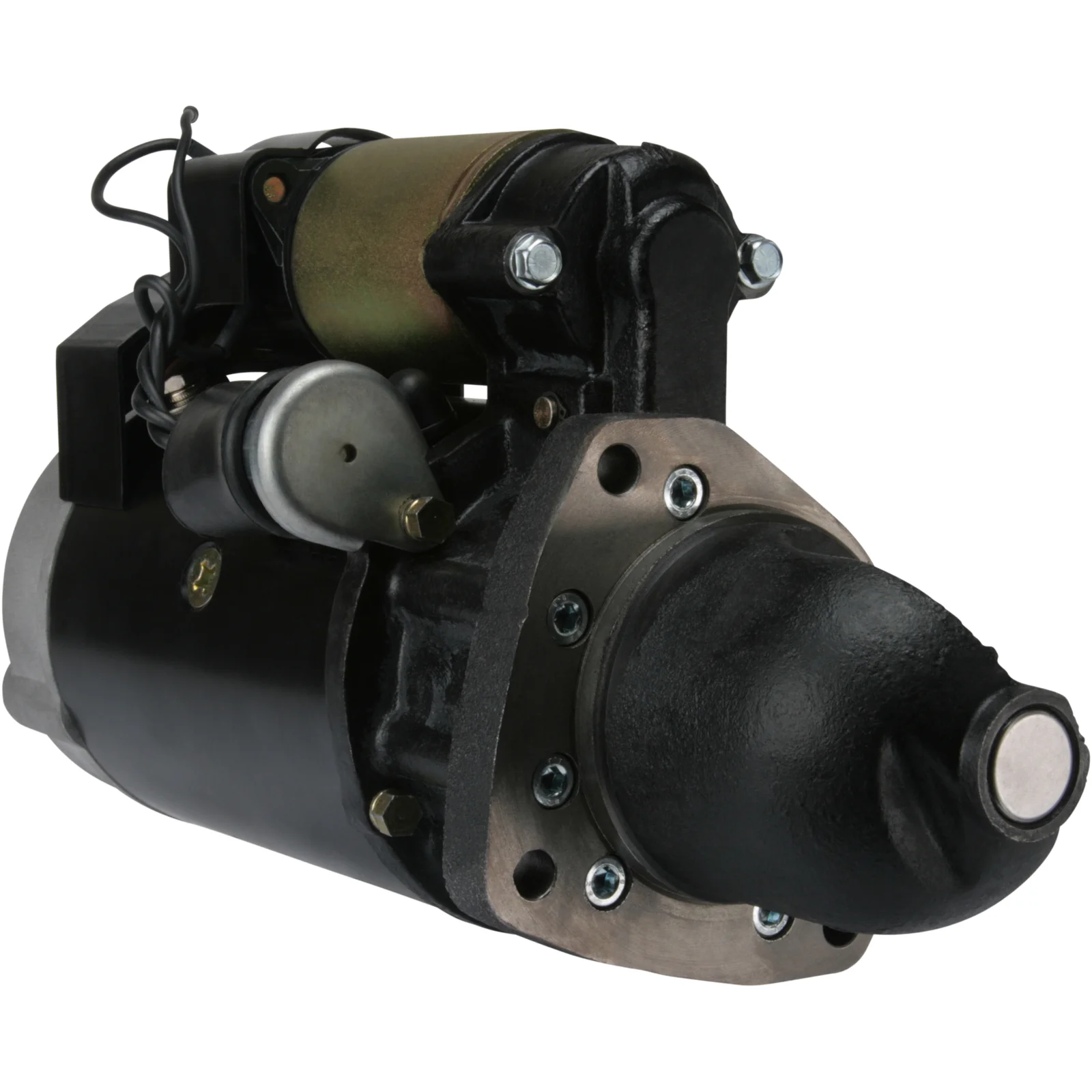

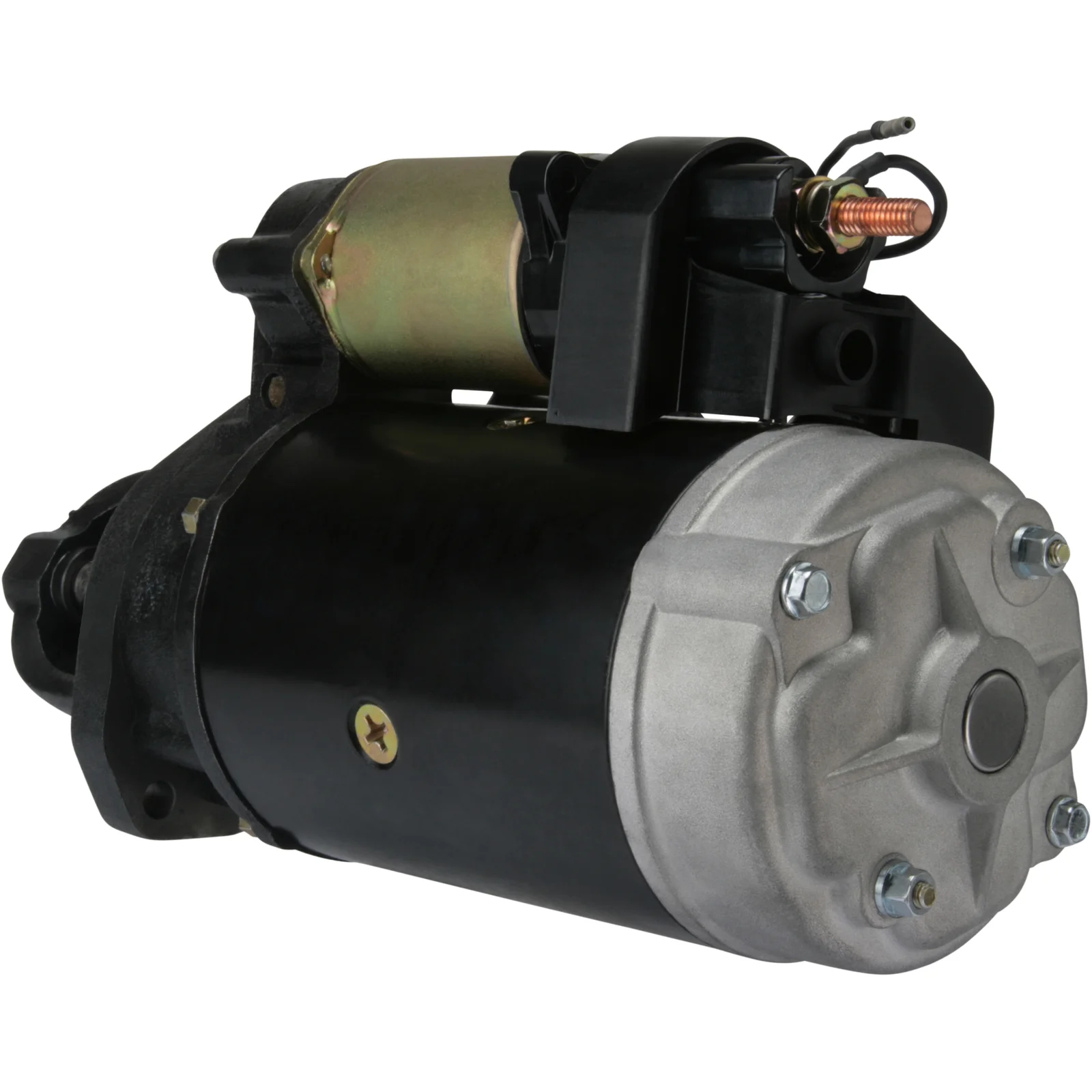

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114309

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.0
Mount. flange: 89.00
Drive dist.: 46.50
Mount. hole 3 mm: 10.80
Mount. hole 2 mm: 10.80
Mount. hole 1 mm: 10.80
Dist./back: 285.00
Dist./front: 96.00
No./teeth: 10
B+: 3/8" UNC
Terminal 50: Plug
Gear type: DD
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 381.00
Prod. info: BN
Oil sealed: Yes
No./mount. holes: 3 (0)

Filer

Specifikation

B+ 3/8" UNC
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Prod. info BN
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 285.00
Dist./front 96.00
Drive dist. 46.50
Gear type DD
kW 4.0
Terminal 50 Plug
Voltage 12
Total length 381.00 mm
Dist. 90.00 mm
Mount. hole 3 10.80 mm
Mount. hole 2 10.80 mm
Mount. hole 1 10.80 mm

  • OEM
    F032114309, 4N0241, 9X0354, 028000-3650, 028000-5960, 028000-5961

  • Konkurrentreferens
    CST40155, DRS0333, 25-2418, 640.537.103, 672.019.102, 17103, 254457

  • Normaliserat artikelnummer
    cst40155, drs0333, f032114309, 4n0241, 9x0354, 17103, 252418, 254457, 0280003650, 0280005960, 0280005961, 640537103, 672019102

  • Passar modeller
    Caterpillar Model: 900 Model series: 910 Model type: Wheel loader Approved: Yes
    Caterpillar Model: 900 Model series: 916 Model type: Wheel loader Approved: Yes
    Caterpillar Model: 900 Model series: 931 Model type: Track Loader Brand of engine: 3204 Approved: Yes
    Caterpillar Model: 900 Model series: 935C Model type: Track Loader Brand of engine: 3046 Approved: Yes
    Caterpillar Model: D3 Model series: D3B Model type: Track Tracktor Brand of engine: 3204 Approved: Yes
    Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 46.50
    Mount. hole 3 mm: 10.80
    Mount. hole 2 mm: 10.80
    Mount. hole 1 mm: 10.80
    Dist./back: 285.00
    Dist./front: 96.00
    No./teeth: 10
    B+: 3/8" UNC
    Terminal 50: Plug
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 381.00
    Prod. info: BN
    Oil sealed: Yes
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ 3/8" UNC
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 285.00
    Dist./front 96.00
    Drive dist. 46.50
    Gear type DD
    kW 4.0
    Terminal 50 Plug
    Voltage 12
    Total length 381.00 mm
    Dist. 90.00 mm
    Mount. hole 3 10.80 mm
    Mount. hole 2 10.80 mm
    Mount. hole 1 10.80 mm
  • Fordonsmatchning

    • OEM
      F032114309, 4N0241, 9X0354, 028000-3650, 028000-5960, 028000-5961

    • Konkurrentreferens
      CST40155, DRS0333, 25-2418, 640.537.103, 672.019.102, 17103, 254457

    • Normaliserat artikelnummer
      cst40155, drs0333, f032114309, 4n0241, 9x0354, 17103, 252418, 254457, 0280003650, 0280005960, 0280005961, 640537103, 672019102

    • Passar modeller
      Caterpillar Model: 900 Model series: 910 Model type: Wheel loader Approved: Yes
      Caterpillar Model: 900 Model series: 916 Model type: Wheel loader Approved: Yes
      Caterpillar Model: 900 Model series: 931 Model type: Track Loader Brand of engine: 3204 Approved: Yes
      Caterpillar Model: 900 Model series: 935C Model type: Track Loader Brand of engine: 3046 Approved: Yes
      Caterpillar Model: D3 Model series: D3B Model type: Track Tracktor Brand of engine: 3204 Approved: Yes
      Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
      1 / 2
