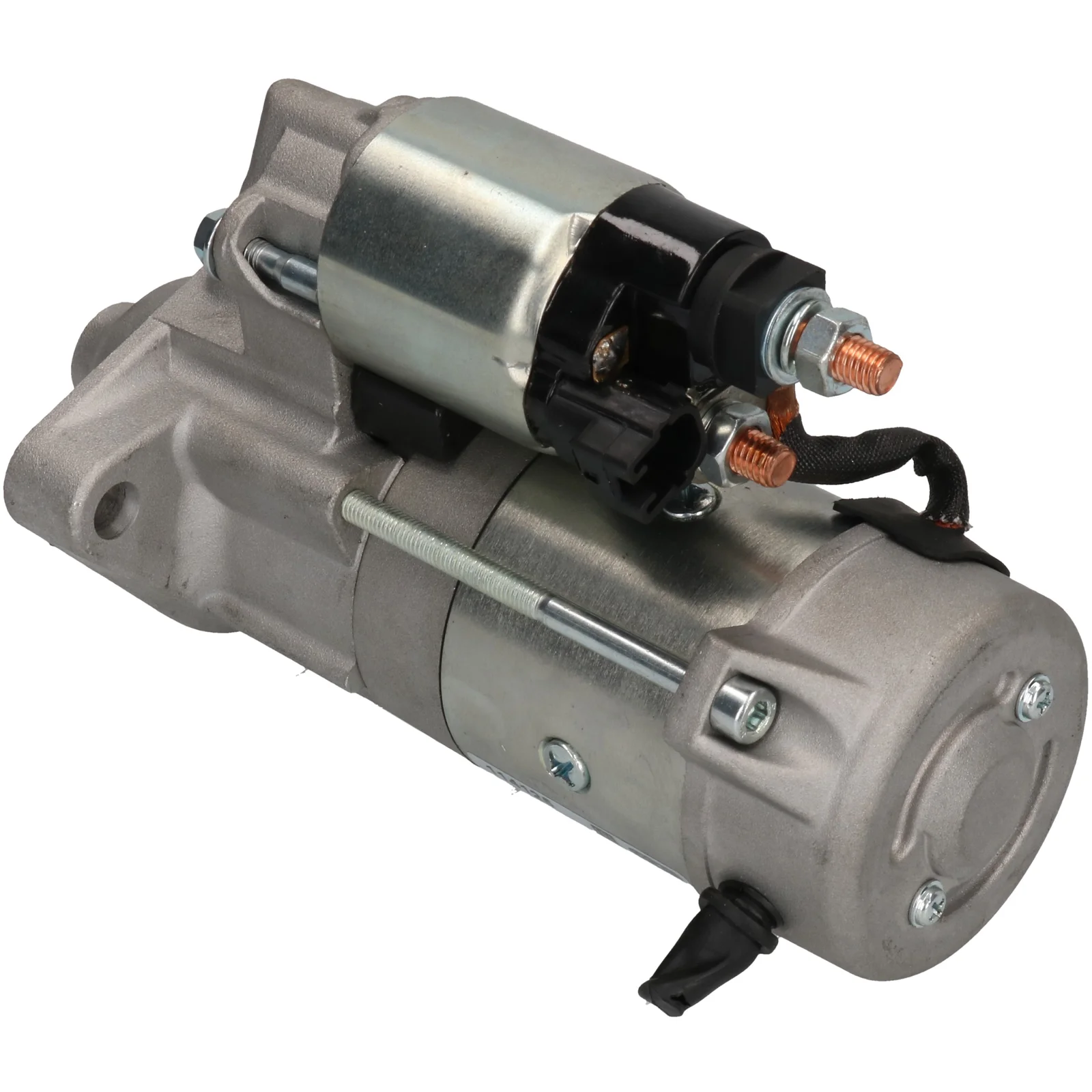

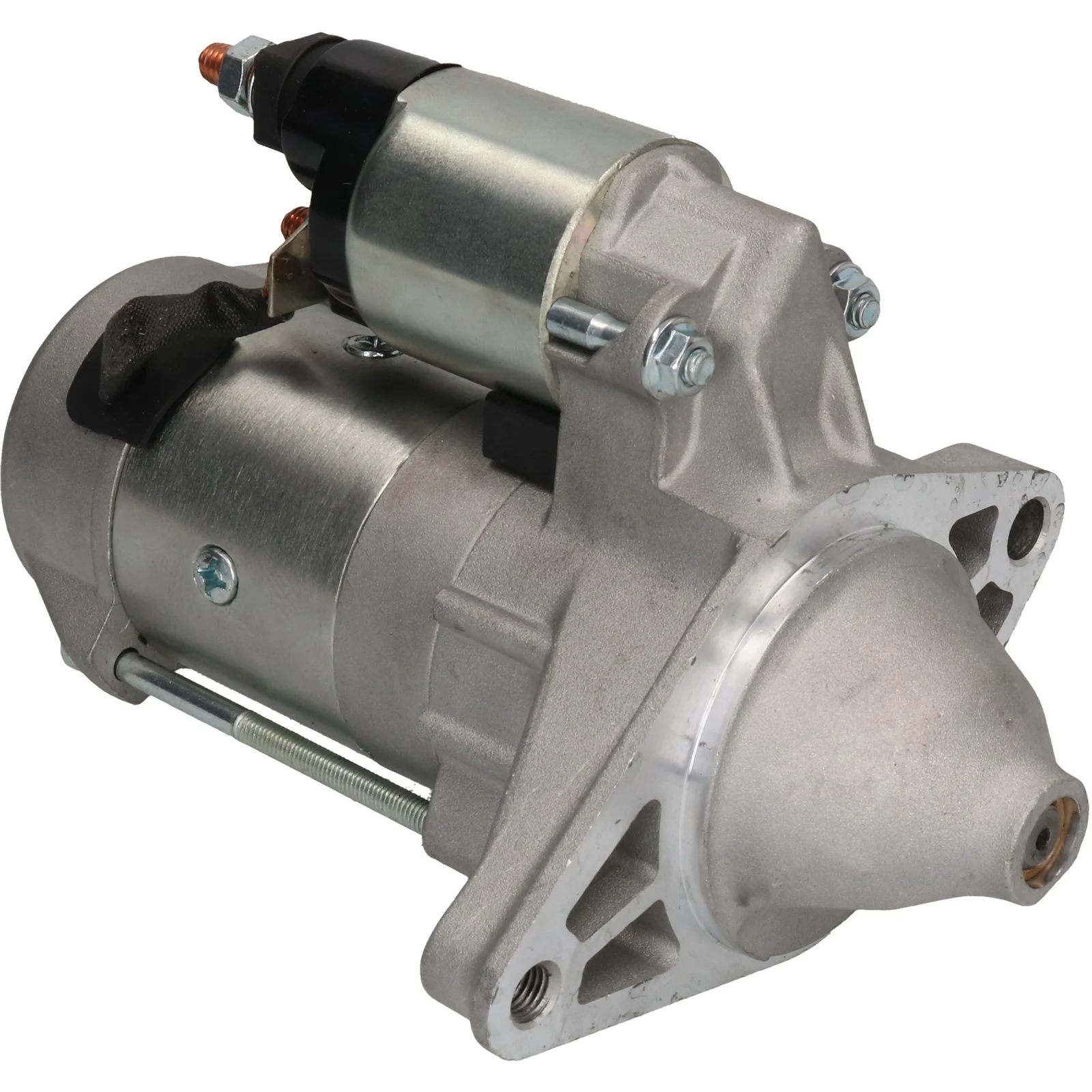

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114125

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 74.00
Drive dist.: 11.50
Mount. hole 1 mm: 11.00
Dist./back: 171.00
Dist./front: 45.00
No./teeth: 8
B+: M8
Position/50: 40
Terminal 50: Plug
Gear type: GR
Dist. mm: 129.50
Rotation: CW
Total length mm: 216.00
Prod. info: BN
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 171.00
Dist./front 45.00
Drive dist. 11.50
Gear type GR
kW 1.2
Terminal 50 Plug
Voltage 12
Total length 216.00 mm
Dist. 129.50 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114125, js1308, 28100-0J020, 228000-9540

  • Konkurrentreferens
    DRT3550, LRS02380, 8EA011611-391, 25-4052, 190.563.082, 9511, 32451N, 32452, 32452N, 201308, 220759, 220759A, 0986023550

  • Normaliserat artikelnummer
    drt3550, f032114125, js1308, lrs02380, 8ea011611391, 9511, 32451n, 32452, 32452n, 201308, 220759, 220759a, 254052, 281000j020, 190563082, 0986023550, 2280009540

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 74.00
    Drive dist.: 11.50
    Mount. hole 1 mm: 11.00
    Dist./back: 171.00
    Dist./front: 45.00
    No./teeth: 8
    B+: M8
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 129.50
    Rotation: CW
    Total length mm: 216.00
    Prod. info: BN
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 171.00
    Dist./front 45.00
    Drive dist. 11.50
    Gear type GR
    kW 1.2
    Terminal 50 Plug
    Voltage 12
    Total length 216.00 mm
    Dist. 129.50 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114125, js1308, 28100-0J020, 228000-9540

    • Konkurrentreferens
      DRT3550, LRS02380, 8EA011611-391, 25-4052, 190.563.082, 9511, 32451N, 32452, 32452N, 201308, 220759, 220759A, 0986023550

    • Normaliserat artikelnummer
      drt3550, f032114125, js1308, lrs02380, 8ea011611391, 9511, 32451n, 32452, 32452n, 201308, 220759, 220759a, 254052, 281000j020, 190563082, 0986023550, 2280009540

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
