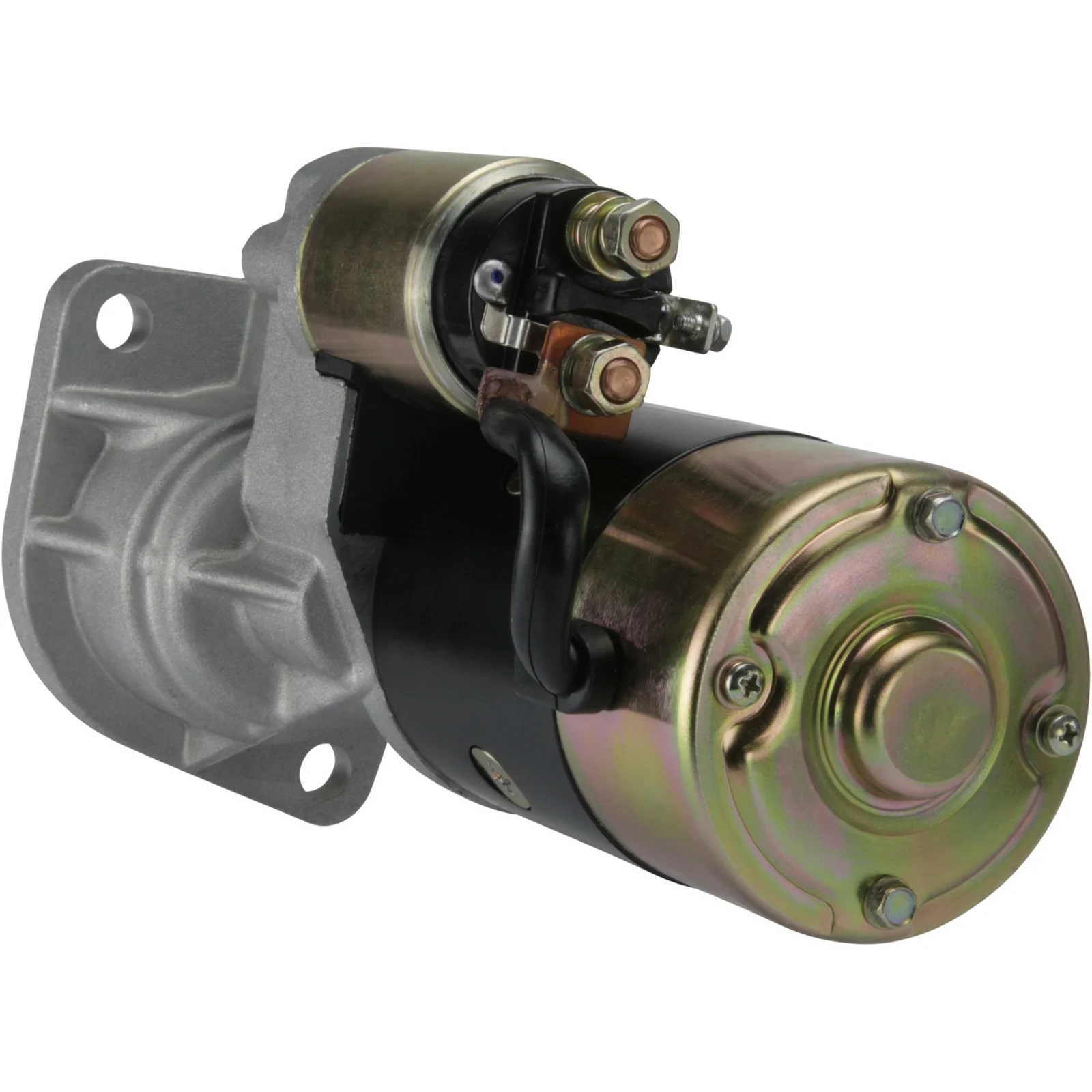

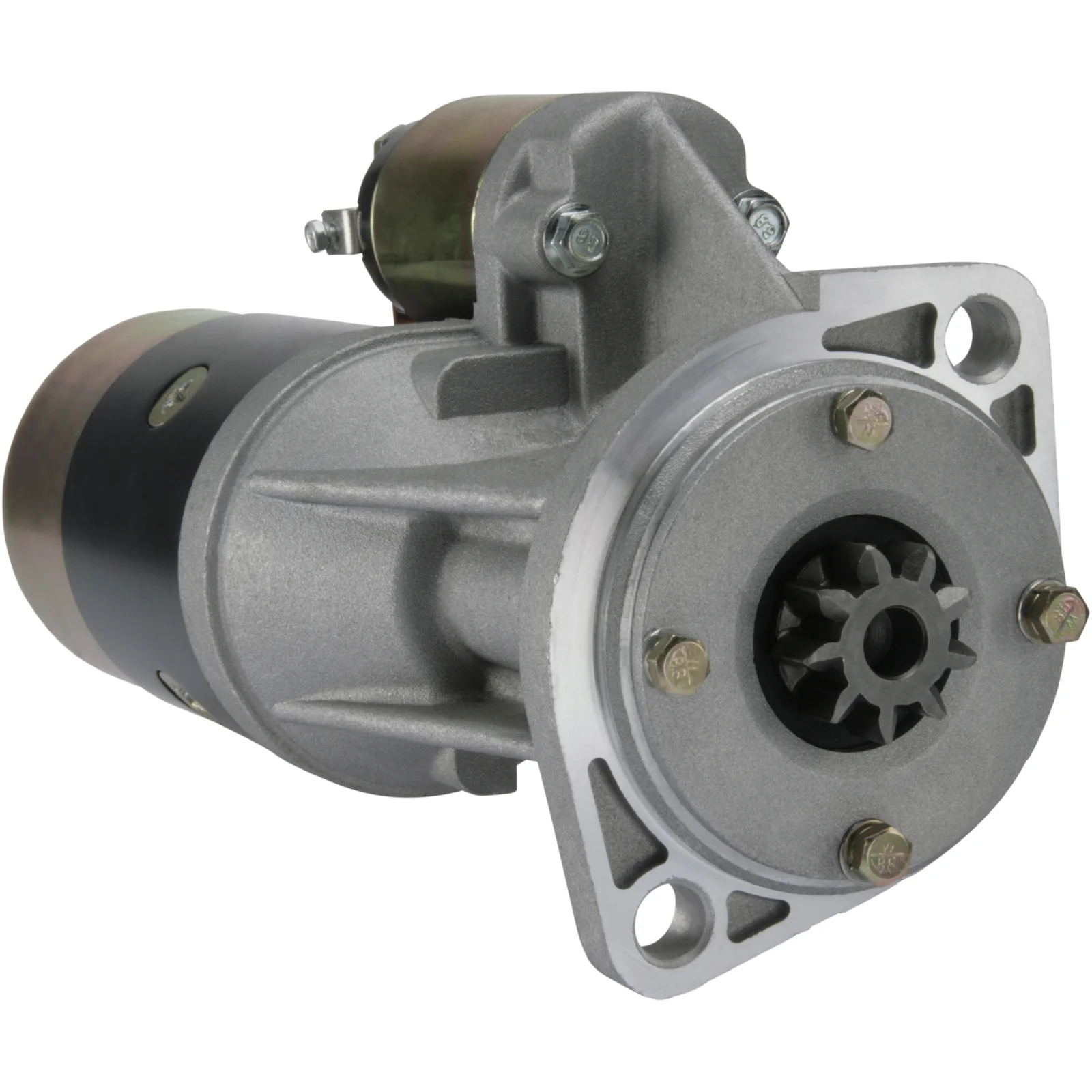

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114098

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 95.00
Drive dist.: 20.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 218.00
Dist./front: 20.50
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: M4
Gear type: GR
Dist. mm: 119.50
Rotation: CW
Total length mm: 242.00
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 218.00
Dist./front 20.50
Drive dist. 20.50
Gear type GR
kW 3.0
Terminal 50 M4
Voltage 12
Total length 242.00 mm
Dist. 119.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032114098, s13-160, 123900-77010

  • Konkurrentreferens
    CST20135, LRS02445, S2021, 25-4117, 19697N, 254124, 11040752

  • Normaliserat artikelnummer
    cst20135, f032114098, lrs02445, s13160, s2021, 19697n, 254117, 254124, 11040752, 12390077010

  • Passar modeller
    Gehl Model: Skid Steer Model series: Various Models Brand of engine: 4TNE106 Approved: Yes
    Gehl Model: Various Models Model series: Various Models Brand of engine: 4TNE106 Approved: Yes
    Yanmar Model: 4TNE106 Model series: 4TNE106 Brand of engine: 4TNE106 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 95.00
    Drive dist.: 20.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 218.00
    Dist./front: 20.50
    No./teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 119.50
    Rotation: CW
    Total length mm: 242.00
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 218.00
    Dist./front 20.50
    Drive dist. 20.50
    Gear type GR
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 242.00 mm
    Dist. 119.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032114098, s13-160, 123900-77010

    • Konkurrentreferens
      CST20135, LRS02445, S2021, 25-4117, 19697N, 254124, 11040752

    • Normaliserat artikelnummer
      cst20135, f032114098, lrs02445, s13160, s2021, 19697n, 254117, 254124, 11040752, 12390077010

    • Passar modeller
      Gehl Model: Skid Steer Model series: Various Models Brand of engine: 4TNE106 Approved: Yes
      Gehl Model: Various Models Model series: Various Models Brand of engine: 4TNE106 Approved: Yes
      Yanmar Model: 4TNE106 Model series: 4TNE106 Brand of engine: 4TNE106 Approved: Yes
