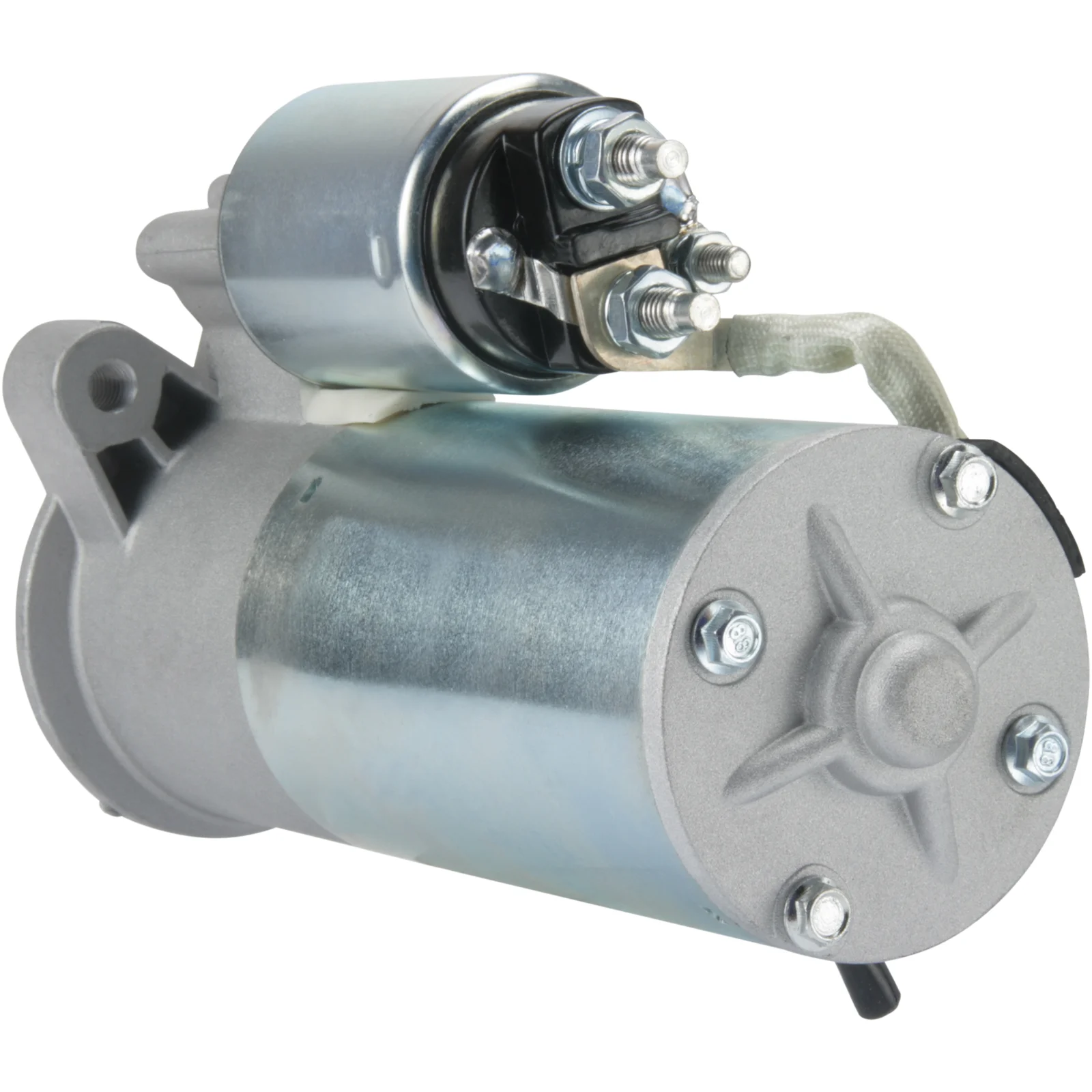

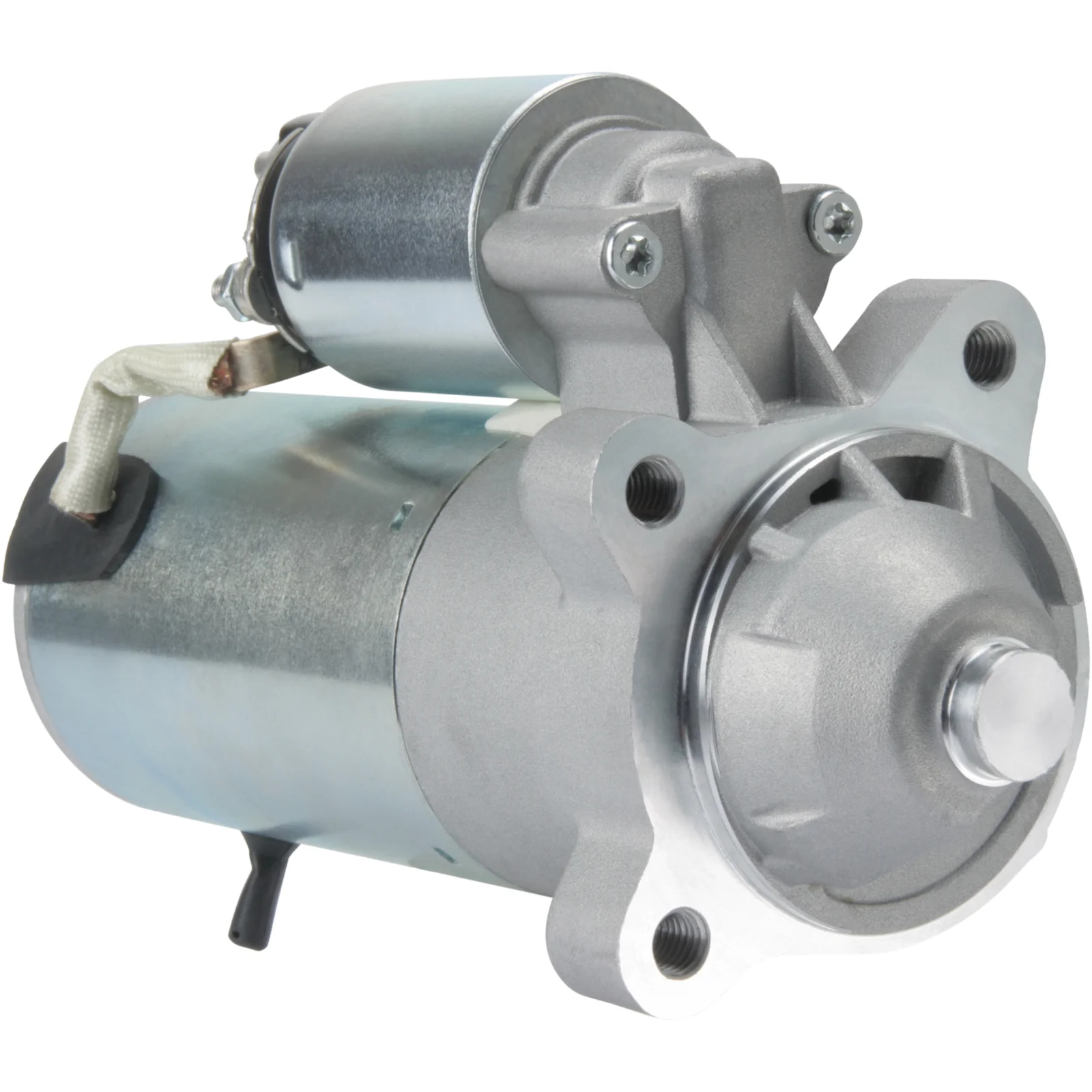

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114092

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 76.00
Drive dist.: 6.00
Mount. hole 3 mm: M10
Dist./back: 183.00
Dist./front: 43.00
No./teeth: 9
B+: M8
Position/50: 20
Terminal 50: M6
Gear type: GR
Dist. 2: 66.50
Dist. 3: 66.50
Dist. mm: 103.00
Rotation: CW
Total length mm: 239.00
Drive type: Steel
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.00
No./mount. holes 3 (3)
Position/50 20
Dist. 2 66.50
Dist. 3 66.50
Rotation CW
Dist./back 183.00
Dist./front 43.00
Drive dist. 6.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 239.00 mm
Dist. 103.00 mm
Mount. hole 3 M10 mm

  • OEM
    cs1408, F032114092, 4M5T11000KB, 4M5T11000KC, 4M5T11000KD, 4M5T11000KE, 6G9N11000EA, 6g9n11000eb, 6G9N11000EC, 1986S01038, 0001109204, 0001109340, 0001109341, 0001109389, 0001109390, 1253808, 1387092, 1480550, 1564725, 1671579, 1728770, 1756792, 1756794

  • Konkurrentreferens
    CST10319, CST14124, DRT1820, DRT1820X, F042S0H090, lrs02249, LRS02567, S0872S, S9071, STR-H090, 8EA012526-131, 8EA738258-511, 20-100-01044, 25-3420, 25-4239, 319.058.092, 319.080.092, 3125, 17924R, 32513N, 101408, 106440, 106620, 220415, 220415A, 220416, 220416A, 438412, 438618, 726100, 726195, 726900, 8080252, 8212262, 11021820, 42109204, 0986021820, 063521093890

  • Normaliserat artikelnummer
    cs1408, cst10319, cst14124, drt1820, drt1820x, f032114092, f042s0h090, lrs02249, lrs02567, s0872s, s9071, strh090, 4m5t11000kb, 4m5t11000kc, 4m5t11000kd, 4m5t11000ke, 6g9n11000ea, 6g9n11000eb, 6g9n11000ec, 8ea012526131, 8ea738258511, 1986s01038, 3125, 17924r, 32513n, 101408, 106440, 106620, 220415, 220415a, 220416, 220416a, 253420, 254239, 438412, 438618, 726100, 726195, 726900, 0001109204, 0001109340, 0001109341, 0001109389, 0001109390, 1253808, 1387092, 1480550, 1564725, 1671579, 1728770, 1756792, 1756794, 8080252, 8212262, 11021820, 42109204, 319058092, 319080092, 0986021820, 2010001044, 063521093890

  • Passar modeller
    Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-01-2005 To date: 01-03-2007 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Type description: BD_ From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Type description: WA_ Body: MPV From date: 01-01-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 76.00
    Drive dist.: 6.00
    Mount. hole 3 mm: M10
    Dist./back: 183.00
    Dist./front: 43.00
    No./teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 66.50
    Dist. 3: 66.50
    Dist. mm: 103.00
    Rotation: CW
    Total length mm: 239.00
    Drive type: Steel
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 76.00
    No./mount. holes 3 (3)
    Position/50 20
    Dist. 2 66.50
    Dist. 3 66.50
    Rotation CW
    Dist./back 183.00
    Dist./front 43.00
    Drive dist. 6.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M6
    Voltage 12
    Total length 239.00 mm
    Dist. 103.00 mm
    Mount. hole 3 M10 mm
  • Fordonsmatchning

    • OEM
      cs1408, F032114092, 4M5T11000KB, 4M5T11000KC, 4M5T11000KD, 4M5T11000KE, 6G9N11000EA, 6g9n11000eb, 6G9N11000EC, 1986S01038, 0001109204, 0001109340, 0001109341, 0001109389, 0001109390, 1253808, 1387092, 1480550, 1564725, 1671579, 1728770, 1756792, 1756794

    • Konkurrentreferens
      CST10319, CST14124, DRT1820, DRT1820X, F042S0H090, lrs02249, LRS02567, S0872S, S9071, STR-H090, 8EA012526-131, 8EA738258-511, 20-100-01044, 25-3420, 25-4239, 319.058.092, 319.080.092, 3125, 17924R, 32513N, 101408, 106440, 106620, 220415, 220415A, 220416, 220416A, 438412, 438618, 726100, 726195, 726900, 8080252, 8212262, 11021820, 42109204, 0986021820, 063521093890

    • Normaliserat artikelnummer
      cs1408, cst10319, cst14124, drt1820, drt1820x, f032114092, f042s0h090, lrs02249, lrs02567, s0872s, s9071, strh090, 4m5t11000kb, 4m5t11000kc, 4m5t11000kd, 4m5t11000ke, 6g9n11000ea, 6g9n11000eb, 6g9n11000ec, 8ea012526131, 8ea738258511, 1986s01038, 3125, 17924r, 32513n, 101408, 106440, 106620, 220415, 220415a, 220416, 220416a, 253420, 254239, 438412, 438618, 726100, 726195, 726900, 0001109204, 0001109340, 0001109341, 0001109389, 0001109390, 1253808, 1387092, 1480550, 1564725, 1671579, 1728770, 1756792, 1756794, 8080252, 8212262, 11021820, 42109204, 319058092, 319080092, 0986021820, 2010001044, 063521093890

    • Passar modeller
      Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-01-2005 To date: 01-03-2007 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Type description: BD_ From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Type description: WA_ Body: MPV From date: 01-01-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      1 / 5
