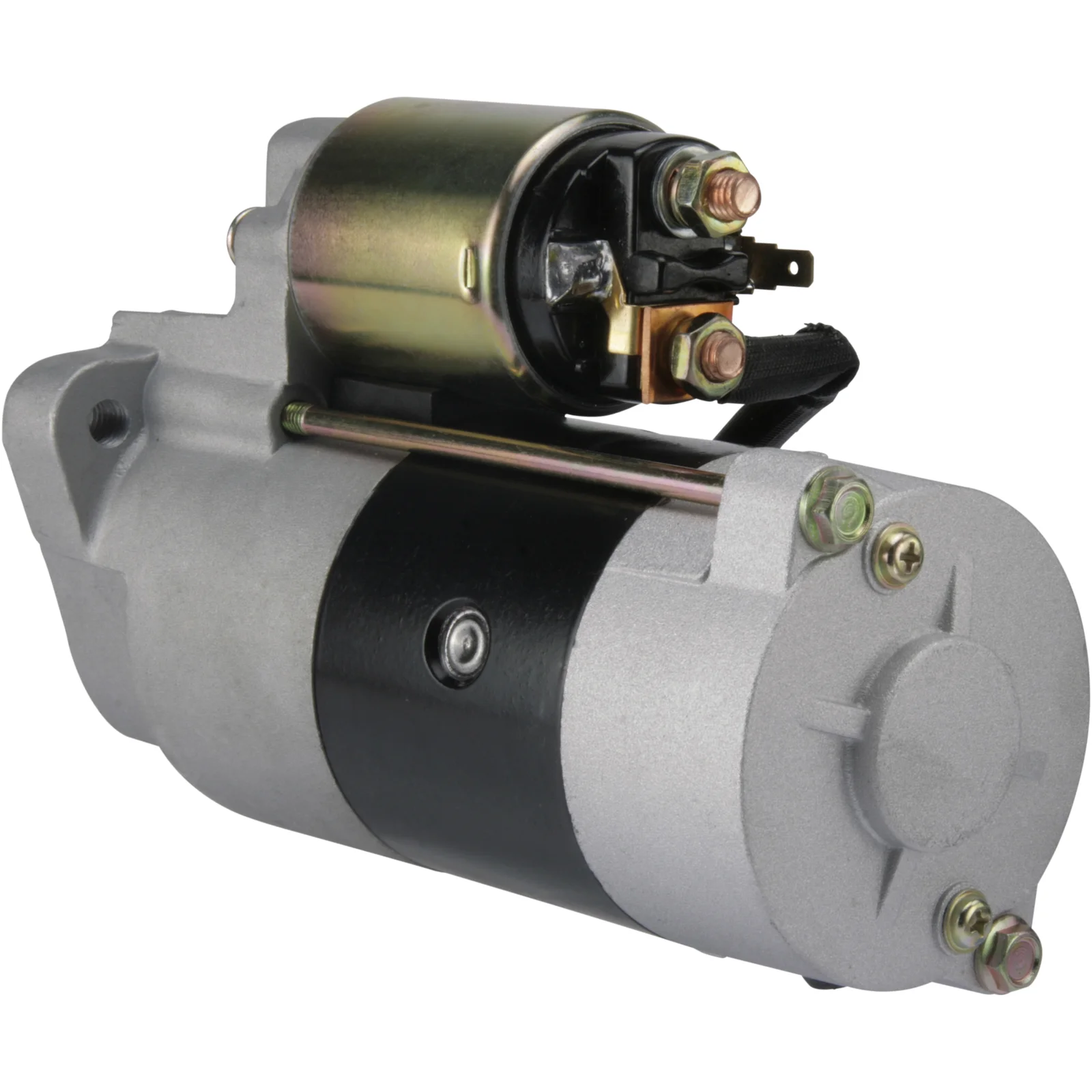

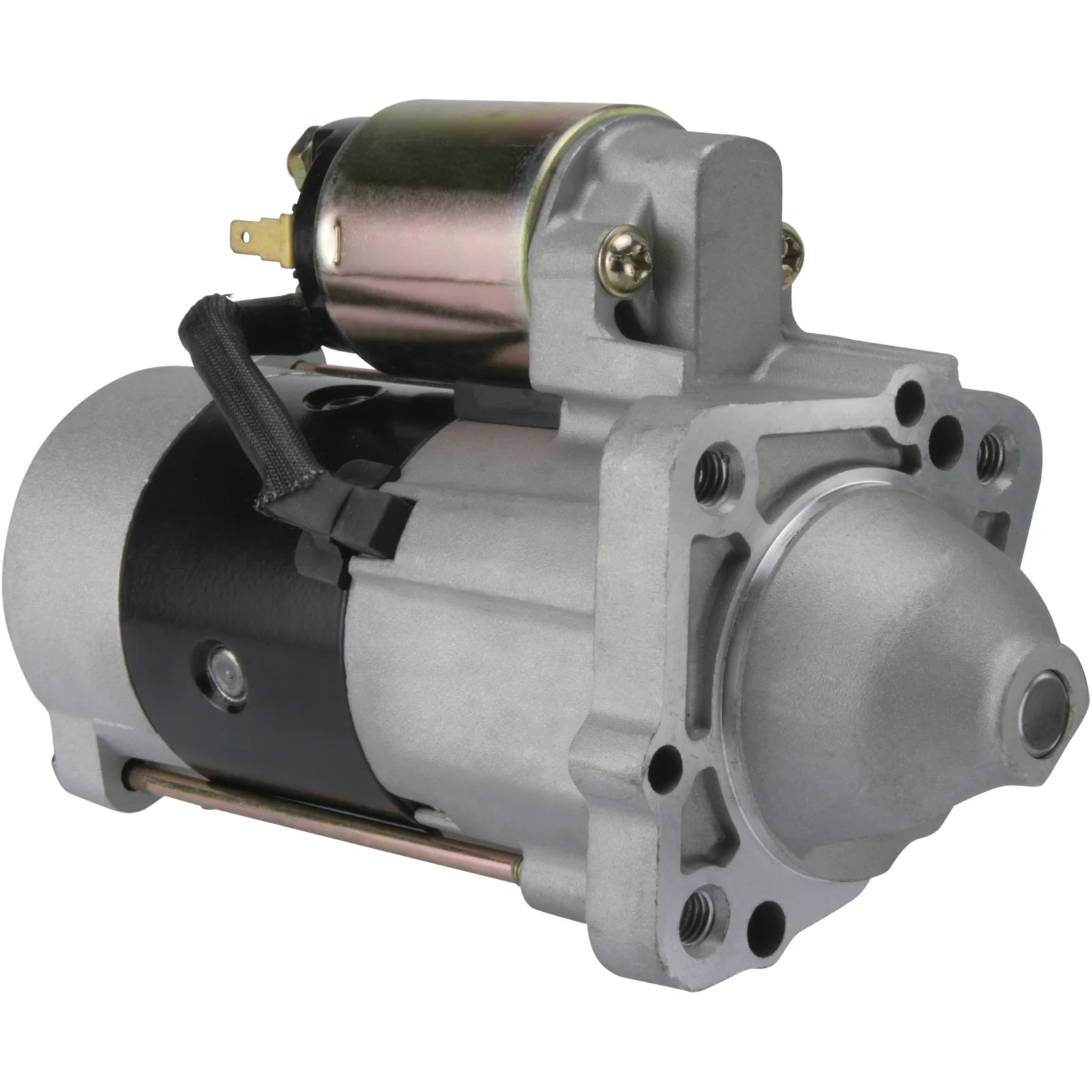

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114061

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 66.00
Drive dist.: 3.00
Mount. hole 3 mm: M10
Dist./back: 187.00
Dist./front: 39.00
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. 2: 71.00
Dist. 3: 71.00
Dist. mm: 100.00
Rotation: CW
Total length mm: 227.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 66.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 71.00
Dist. 3 71.00
Rotation CW
Dist./back 187.00
Dist./front 39.00
Drive dist. 3.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 227.50 mm
Waterproof No
Dist. 100.00 mm
Mount. hole 3 M10 mm

  • OEM
    cs1444, F032114061, M002T85271, m2t85271, 1986S00935, 31100-68d00

  • Konkurrentreferens
    CST35191, drs3984, F042S0H085, J5218018, lrs01716, S5050, STR-H085, 8EA738258-911, 25-3271, 345.019.102, 9765, 31333N, 101444, 106649, 458901, 8080295, 11040729, 0986029090

  • Normaliserat artikelnummer
    cs1444, cst35191, drs3984, f032114061, f042s0h085, j5218018, lrs01716, m002t85271, m2t85271, s5050, strh085, 8ea738258911, 1986s00935, 9765, 31333n, 101444, 106649, 253271, 458901, 3110068d00, 8080295, 11040729, 345019102, 0986029090

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHW From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ Type description: FT, GT From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 66.00
    Drive dist.: 3.00
    Mount. hole 3 mm: M10
    Dist./back: 187.00
    Dist./front: 39.00
    No./teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 71.00
    Dist. 3: 71.00
    Dist. mm: 100.00
    Rotation: CW
    Total length mm: 227.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 71.00
    Dist. 3 71.00
    Rotation CW
    Dist./back 187.00
    Dist./front 39.00
    Drive dist. 3.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 227.50 mm
    Waterproof No
    Dist. 100.00 mm
    Mount. hole 3 M10 mm
  • Fordonsmatchning

    • OEM
      cs1444, F032114061, M002T85271, m2t85271, 1986S00935, 31100-68d00

    • Konkurrentreferens
      CST35191, drs3984, F042S0H085, J5218018, lrs01716, S5050, STR-H085, 8EA738258-911, 25-3271, 345.019.102, 9765, 31333N, 101444, 106649, 458901, 8080295, 11040729, 0986029090

    • Normaliserat artikelnummer
      cs1444, cst35191, drs3984, f032114061, f042s0h085, j5218018, lrs01716, m002t85271, m2t85271, s5050, strh085, 8ea738258911, 1986s00935, 9765, 31333n, 101444, 106649, 253271, 458901, 3110068d00, 8080295, 11040729, 345019102, 0986029090

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHW From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: HDi Size of motor: 2.0 Brand of engine: RHZ Type description: FT, GT From date: 01-07-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
