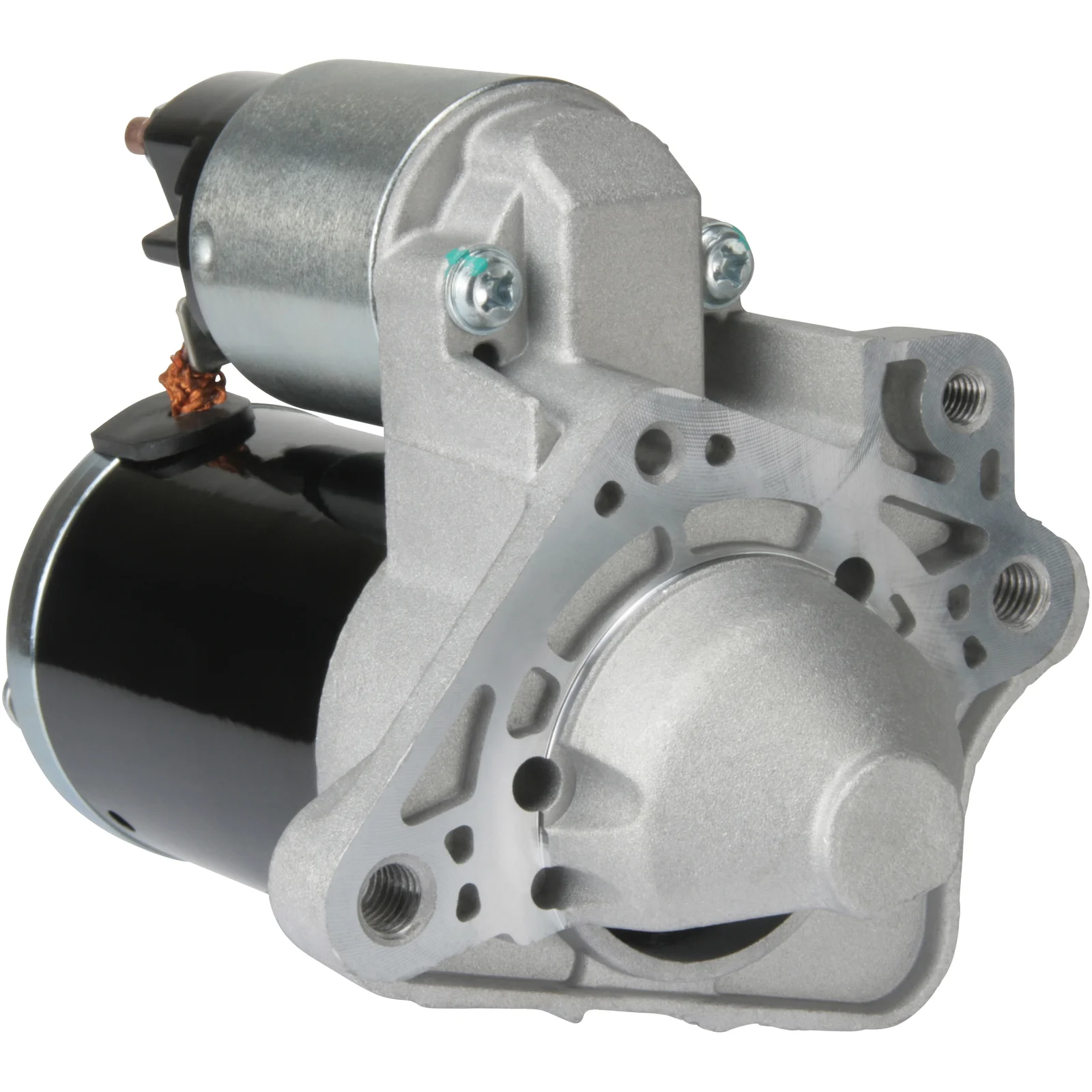

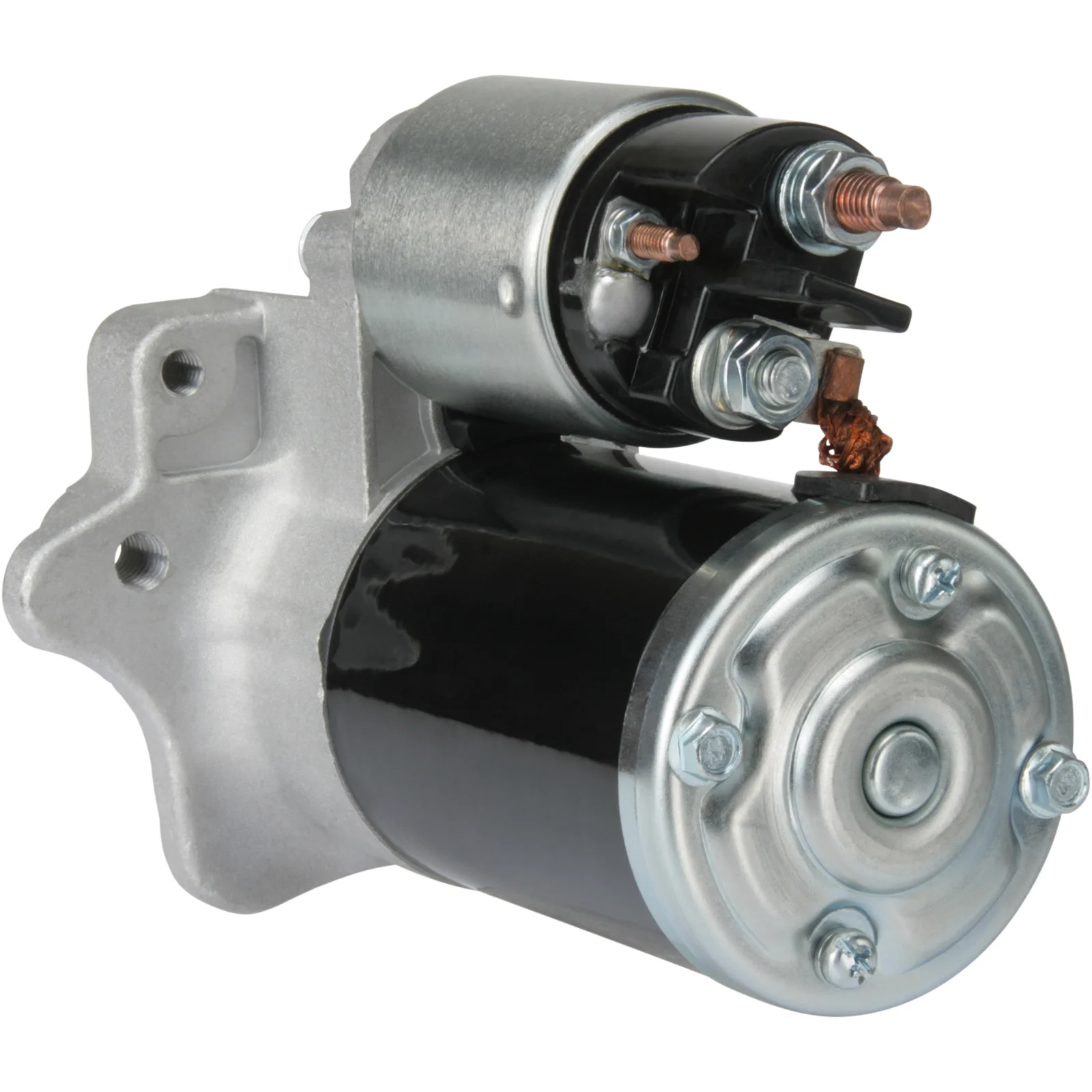

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114057

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.1, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.1
Mount. flange: 62.00
Drive dist.: 1.00
Mount. hole 3 mm: M10
Dist./back: 142.50
Dist./front: 34.00
No./teeth: 8
B+: M8
Terminal 50: M5
Gear type: DD
Dist. 2: 105.50
Dist. 3: 106.50
Dist. mm: 28.50
Rotation: CW
Total length mm: 177.00
Prod. info: BN
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 62.00
No./mount. holes 3 (3)
Prod. info BN
Dist. 2 105.50
Dist. 3 106.50
Rotation CW
Dist./back 142.50
Dist./front 34.00
Drive dist. 1.00
Gear type DD
kW 1.1
Terminal 50 M5
Voltage 12
Total length 177.00 mm
Dist. 28.50 mm
Mount. hole 3 M10 mm

  • OEM
    cs1425, F032114057, M000T45371ZT, M0T45371, M0T45371ZT, 7711368060, 8200298371, 8200584837

  • Konkurrentreferens
    CST35174, DRS0186, LRS02353, MITM0T45371, S5151, 8EA011612-371, 8EA738259-071, 25-4025, 330.055.082, 3080, 33353N, 101425, 106370, 220762, 220762A, 438434, 438509, 458834, 8080399, 11090128, 42025770, 0986025770

  • Normaliserat artikelnummer
    cs1425, cst35174, drs0186, f032114057, lrs02353, m000t45371zt, m0t45371, m0t45371zt, mitm0t45371, s5151, 8ea011612371, 8ea738259071, 3080, 33353n, 101425, 106370, 220762, 220762a, 254025, 438434, 438509, 458834, 8080399, 11090128, 42025770, 330055082, 0986025770, 7711368060, 8200298371, 8200584837

  • Passar modeller
    Renault Model: Clio Model series: Clio Model type: GT Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.6 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2005 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: KR0/1_ Body: Estate From date: 01-02-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M804 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: KR0/1_ Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
    Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 770 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 780 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M790 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M800 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M801 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M791 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M792 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M794 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Model type: RS Size of motor: 1.6 Brand of engine: K4M754 Type description: CN0. Body: Hatchback From date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Model type: RS Size of motor: 1.6 Brand of engine: K4M854 Type description: CN0. Body: Hatchback From date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Wind Model series: Wind Size of motor: 1.6 Brand of engine: K4M854 Body: Convertible From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 12
    kW: 1.1
    Mount. flange: 62.00
    Drive dist.: 1.00
    Mount. hole 3 mm: M10
    Dist./back: 142.50
    Dist./front: 34.00
    No./teeth: 8
    B+: M8
    Terminal 50: M5
    Gear type: DD
    Dist. 2: 105.50
    Dist. 3: 106.50
    Dist. mm: 28.50
    Rotation: CW
    Total length mm: 177.00
    Prod. info: BN
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 62.00
    No./mount. holes 3 (3)
    Prod. info BN
    Dist. 2 105.50
    Dist. 3 106.50
    Rotation CW
    Dist./back 142.50
    Dist./front 34.00
    Drive dist. 1.00
    Gear type DD
    kW 1.1
    Terminal 50 M5
    Voltage 12
    Total length 177.00 mm
    Dist. 28.50 mm
    Mount. hole 3 M10 mm
  • Fordonsmatchning

    • OEM
      cs1425, F032114057, M000T45371ZT, M0T45371, M0T45371ZT, 7711368060, 8200298371, 8200584837

    • Konkurrentreferens
      CST35174, DRS0186, LRS02353, MITM0T45371, S5151, 8EA011612-371, 8EA738259-071, 25-4025, 330.055.082, 3080, 33353N, 101425, 106370, 220762, 220762A, 438434, 438509, 458834, 8080399, 11090128, 42025770, 0986025770

    • Normaliserat artikelnummer
      cs1425, cst35174, drs0186, f032114057, lrs02353, m000t45371zt, m0t45371, m0t45371zt, mitm0t45371, s5151, 8ea011612371, 8ea738259071, 3080, 33353n, 101425, 106370, 220762, 220762a, 254025, 438434, 438509, 458834, 8080399, 11090128, 42025770, 330055082, 0986025770, 7711368060, 8200298371, 8200584837

    • Passar modeller
      Renault Model: Clio Model series: Clio Model type: GT Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.6 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2005 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: KR0/1_ Body: Estate From date: 01-02-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M804 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: KR0/1_ Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
      Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 770 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 780 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M790 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M800 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M801 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M791 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M792 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M794 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Model type: RS Size of motor: 1.6 Brand of engine: K4M754 Type description: CN0. Body: Hatchback From date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Model type: RS Size of motor: 1.6 Brand of engine: K4M854 Type description: CN0. Body: Hatchback From date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Wind Model series: Wind Size of motor: 1.6 Brand of engine: K4M854 Body: Convertible From date: 01-07-2010 Fuel: Gasoline Approved: Yes
