HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114053

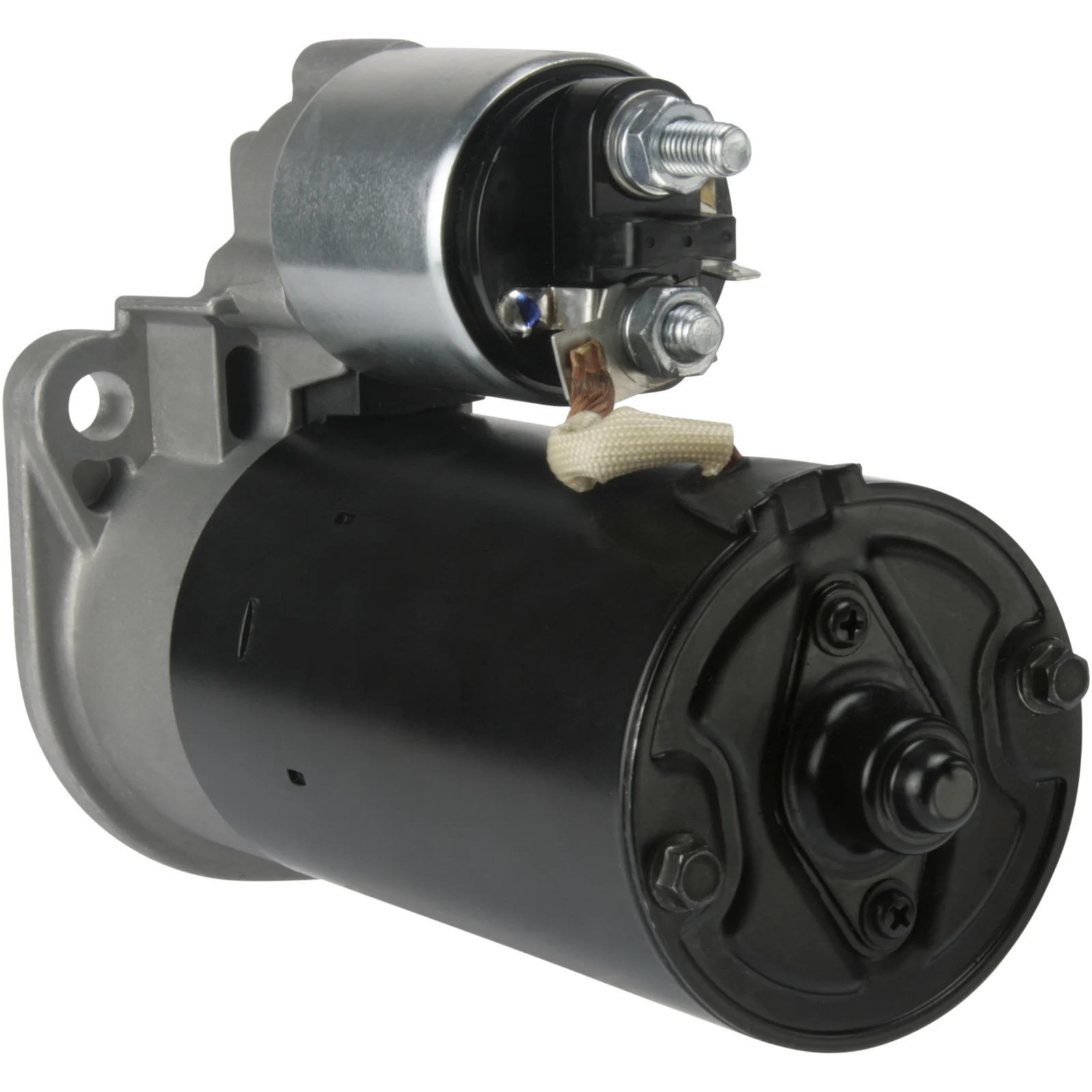

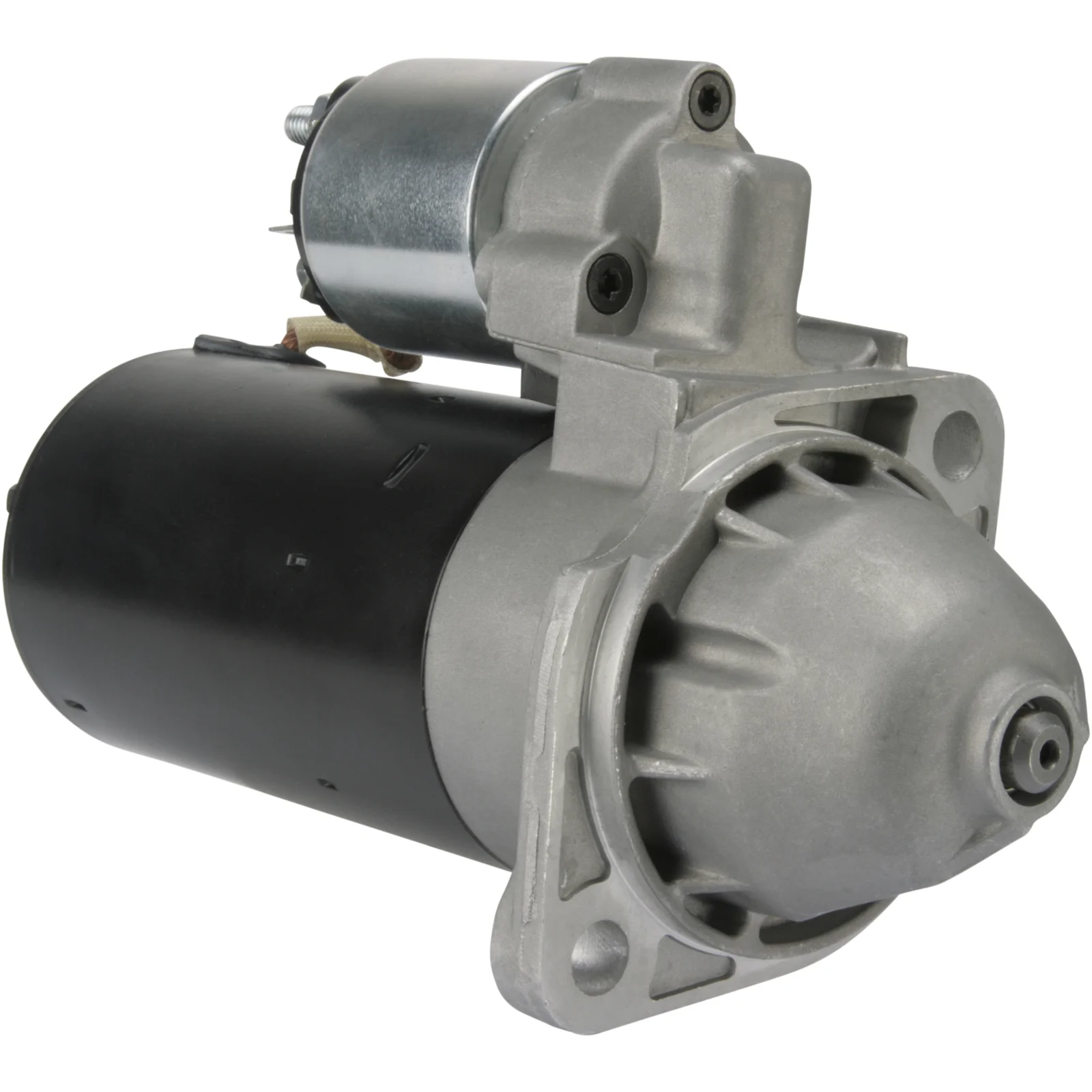

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 16.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 173.00
Dist./front: 55.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 240.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 173.00
Dist./front 55.00
Drive dist. 16.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 240.50 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    ED0058102810, F032114053, 333H5787, 1986S00718, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 58401910, 0058402810, 58402810

  • Konkurrentreferens
    CST10168, DRS0013, LRS01975, MS732, S0156, 8EA015642-101, 25-3334, 690.548.092, 19785N, 220889, 220889A, 254020, 11090003, 0986024090

  • Normaliserat artikelnummer
    cst10168, drs0013, ed0058102810, f032114053, lrs01975, ms732, s0156, 8ea015642101, 333h5787, 1986s00718, 19785n, 220889, 220889a, 253334, 254020, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 11090003, 58401910, 0058402810, 58402810, 690548092, 0986024090

  • Passar modeller
    Lombardini Model: Engine Model series: Various Models Size of motor: 1.3 Brand of engine: LDW1303 From date: 01-05-1993 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 1.6 Brand of engine: LDW1503 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 2.1 Brand of engine: LDW2004 From date: 01-01-1990 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 16.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 173.00
    Dist./front: 55.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 240.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 173.00
    Dist./front 55.00
    Drive dist. 16.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 240.50 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      ED0058102810, F032114053, 333H5787, 1986S00718, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 58401910, 0058402810, 58402810

    • Konkurrentreferens
      CST10168, DRS0013, LRS01975, MS732, S0156, 8EA015642-101, 25-3334, 690.548.092, 19785N, 220889, 220889A, 254020, 11090003, 0986024090

    • Normaliserat artikelnummer
      cst10168, drs0013, ed0058102810, f032114053, lrs01975, ms732, s0156, 8ea015642101, 333h5787, 1986s00718, 19785n, 220889, 220889a, 253334, 254020, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 11090003, 58401910, 0058402810, 58402810, 690548092, 0986024090

    • Passar modeller
      Lombardini Model: Engine Model series: Various Models Size of motor: 1.3 Brand of engine: LDW1303 From date: 01-05-1993 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 1.6 Brand of engine: LDW1503 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 2.1 Brand of engine: LDW2004 From date: 01-01-1990 Fuel: Diesel Approved: Yes
