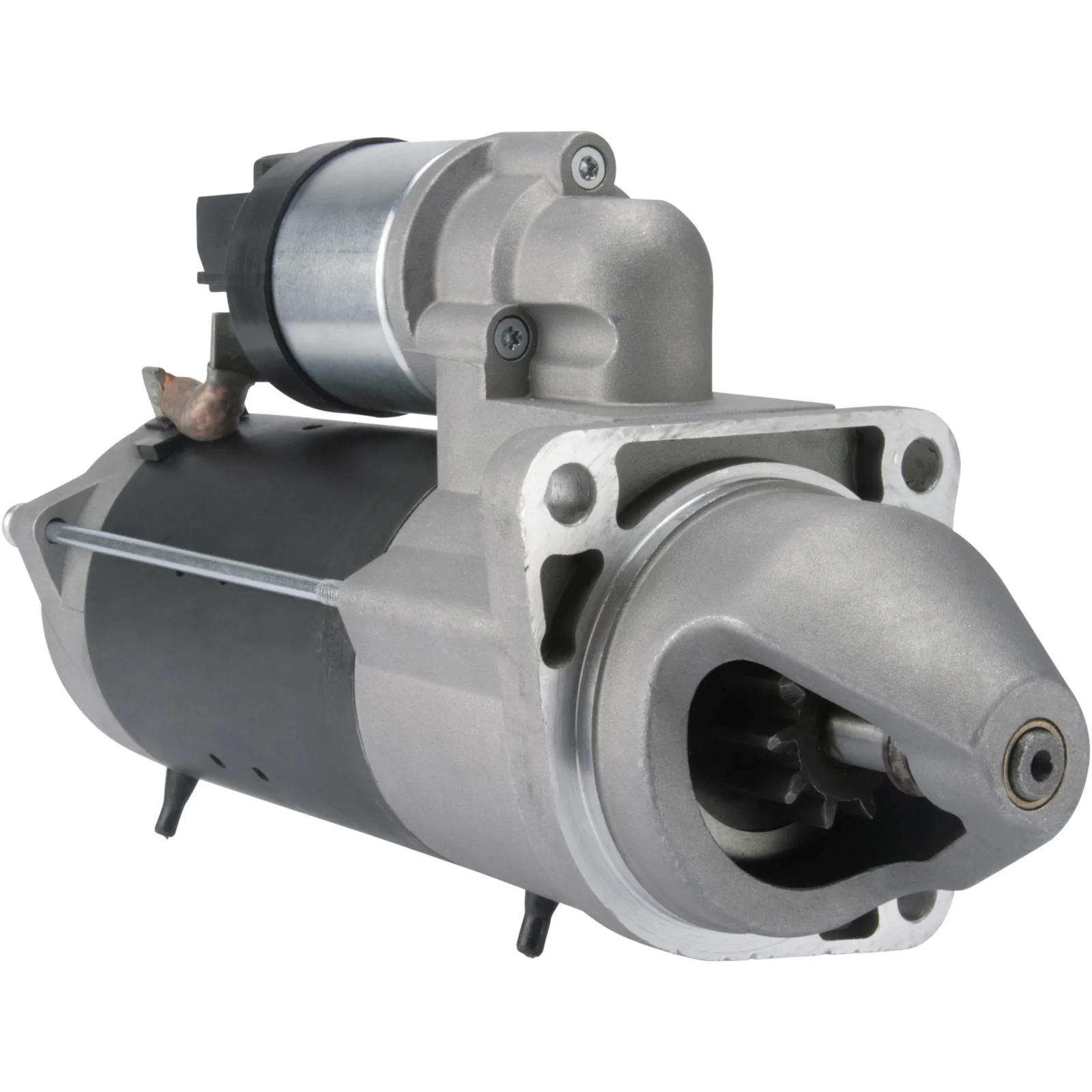

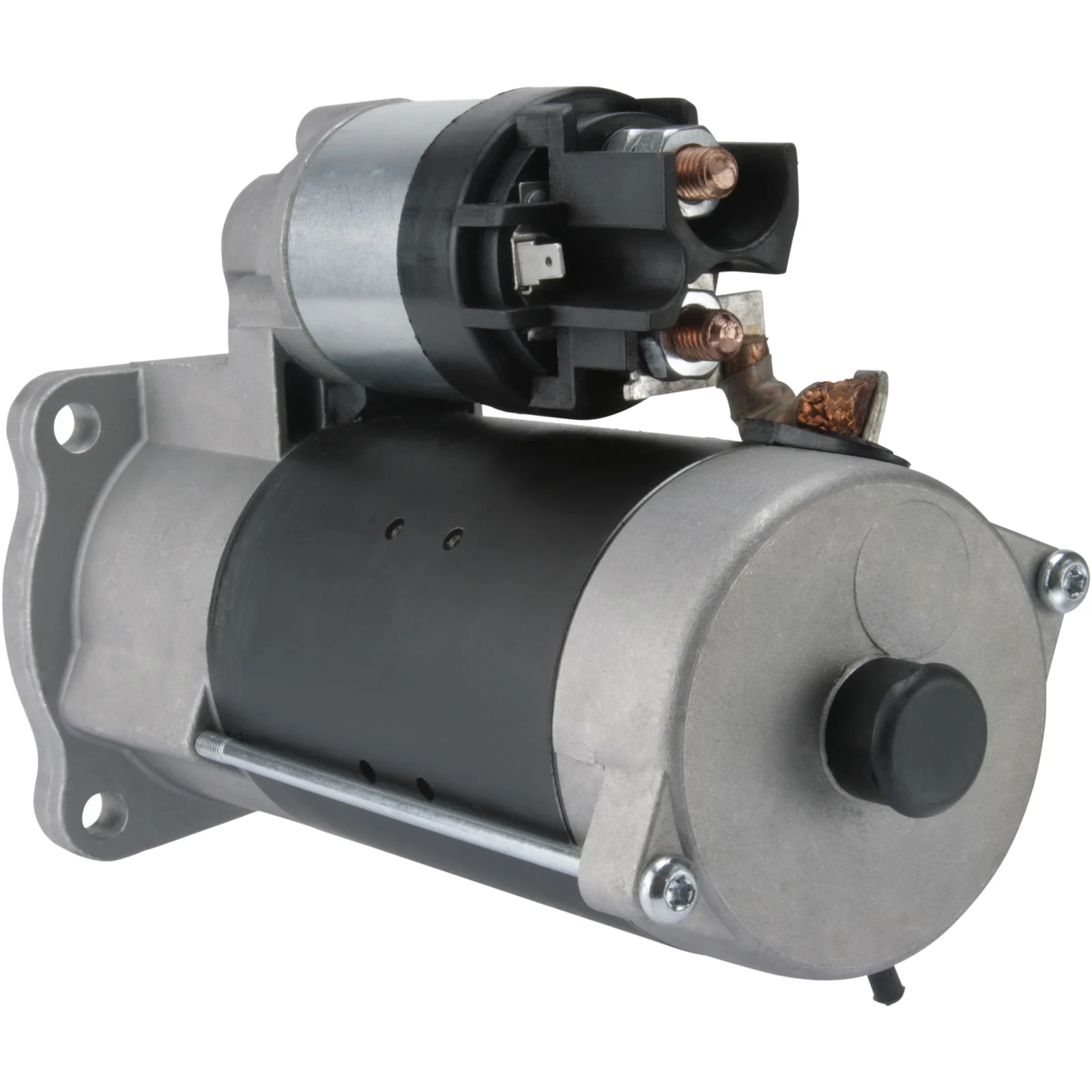

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114050

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.2
Mount. flange: 89.00
Drive dist.: 27.50
Mount. hole 3 mm: 10.80
Mount. hole 2 mm: 10.80
Mount. hole 1 mm: 10.80
Dist./back: 227.50
Dist./front: 75.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 317.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 227.50
Dist./front 75.00
Drive dist. 27.50
Gear type GR
kW 4.2
Terminal 50 6.30
Voltage 12
Total length 317.00 mm
Dist. 90.00 mm
Mount. hole 3 10.80 mm
Mount. hole 2 10.80 mm
Mount. hole 1 10.80 mm

  • OEM
    azf4122, AZF4135, AZF4535, F032114050, 11.130.999, 11.131.464, 11.131.520, 11.131.920, 0001230022, 3670185M92, 3691576M91, 4897223, 47715263, 82032859, 84151331, 87318735, 87583926, 87653219, 0000500389864, 500389864, 504163666, 5801394270, 7700068173

  • Konkurrentreferens
    CST10362, DRS0365, IS0999, LRS02446, LRS02633, MS138, S0302, S9228, 25-4118, 25-4306, 540.516.103, 600.234.102, 19793N, 254382, 11090159

  • Normaliserat artikelnummer
    azf4122, azf4135, azf4535, cst10362, drs0365, f032114050, is0999, lrs02446, lrs02633, ms138, s0302, s9228, 19793n, 254118, 254306, 254382, 0001230022, 3670185m92, 3691576m91, 4897223, 11090159, 11130999, 11131464, 11131520, 11131920, 47715263, 82032859, 84151331, 87318735, 87583926, 87653219, 0000500389864, 500389864, 504163666, 540516103, 600234102, 5801394270, 7700068173

  • Passar modeller
    Case Model: Puma Model series: various models Brand of engine: 6-411 From date: 01-01-2006 Approved: Yes
    New Holland Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 4.2
    Mount. flange: 89.00
    Drive dist.: 27.50
    Mount. hole 3 mm: 10.80
    Mount. hole 2 mm: 10.80
    Mount. hole 1 mm: 10.80
    Dist./back: 227.50
    Dist./front: 75.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 317.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 227.50
    Dist./front 75.00
    Drive dist. 27.50
    Gear type GR
    kW 4.2
    Terminal 50 6.30
    Voltage 12
    Total length 317.00 mm
    Dist. 90.00 mm
    Mount. hole 3 10.80 mm
    Mount. hole 2 10.80 mm
    Mount. hole 1 10.80 mm
  • Fordonsmatchning

    • OEM
      azf4122, AZF4135, AZF4535, F032114050, 11.130.999, 11.131.464, 11.131.520, 11.131.920, 0001230022, 3670185M92, 3691576M91, 4897223, 47715263, 82032859, 84151331, 87318735, 87583926, 87653219, 0000500389864, 500389864, 504163666, 5801394270, 7700068173

    • Konkurrentreferens
      CST10362, DRS0365, IS0999, LRS02446, LRS02633, MS138, S0302, S9228, 25-4118, 25-4306, 540.516.103, 600.234.102, 19793N, 254382, 11090159

    • Normaliserat artikelnummer
      azf4122, azf4135, azf4535, cst10362, drs0365, f032114050, is0999, lrs02446, lrs02633, ms138, s0302, s9228, 19793n, 254118, 254306, 254382, 0001230022, 3670185m92, 3691576m91, 4897223, 11090159, 11130999, 11131464, 11131520, 11131920, 47715263, 82032859, 84151331, 87318735, 87583926, 87653219, 0000500389864, 500389864, 504163666, 540516103, 600234102, 5801394270, 7700068173

    • Passar modeller
      Case Model: Puma Model series: various models Brand of engine: 6-411 From date: 01-01-2006 Approved: Yes
      New Holland Model: Various Models Model series: Various Models Approved: Yes
