HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114003

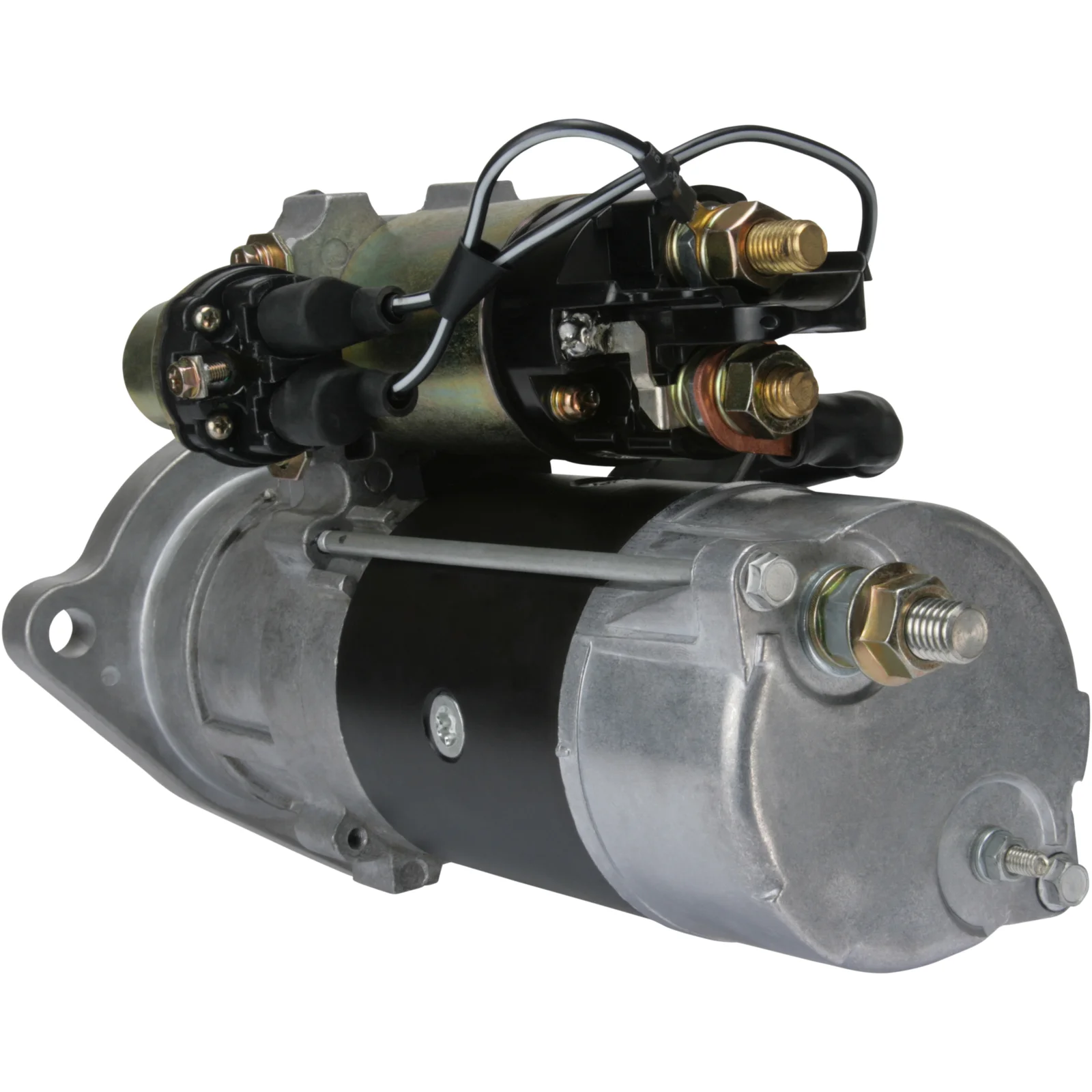

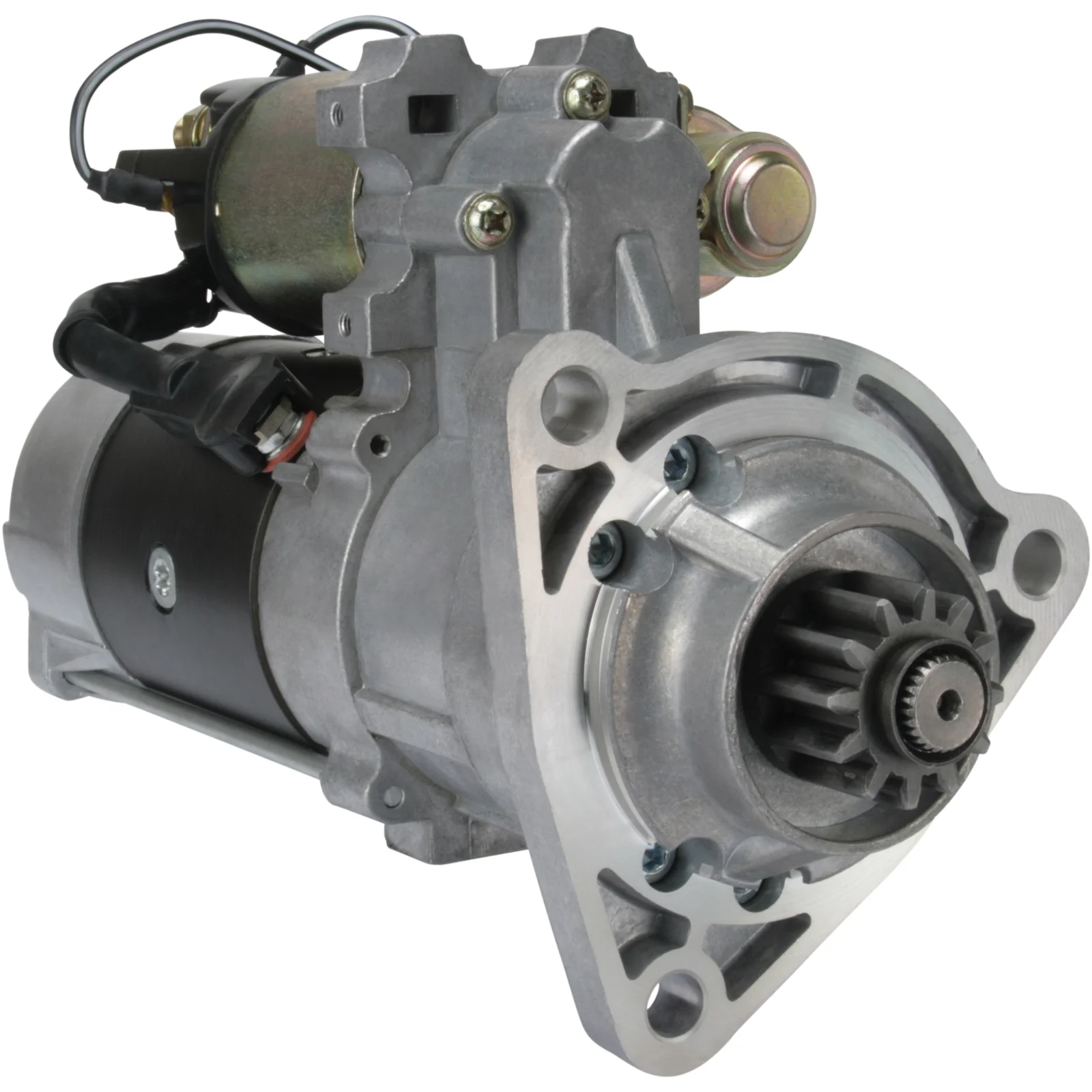

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 5.0, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 12
kW: 5.0
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 296.00
Dist./front: 56.00
No./teeth: 12
B+: M12
Thread length mm: 22.00
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 127.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 345.00
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Prod. info BN
Dist. 2 127.00
Dist. 3 127.00
Rotation CW
Dist./back 296.00
Dist./front 56.00
Drive dist. 47.50
Gear type GR
kW 5.0
Terminal 50 M5
Voltage 12
Total length 345.00 mm
Dist. 127.00 mm
Thread length 22.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    A0051511001, a0051517001, a0061511601, a0061517101, A0071510601, F032114003, M009T70172, M009T70173, M009T72271, M009T72971, M105R2031SE, m9t70172, M9T70173, M9T72271, M9T72971, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601

  • Konkurrentreferens
    CST35344, CST60160, LRS02620, S1018, S5077, 25-4293, 25-4450, 325.079.122, 550.563.123, 550.598.123, 625.038.122, 6835N, 6910N, 6910R, 6919N, 255083

  • Normaliserat artikelnummer
    a0051511001, a0051517001, a0061511601, a0061517101, a0071510601, cst35344, cst60160, f032114003, lrs02620, m009t70172, m009t70173, m009t72271, m009t72971, m105r2031se, m9t70172, m9t70173, m9t72271, m9t72971, s1018, s5077, 6835n, 6910n, 6910r, 6919n, 254293, 254450, 255083, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601, 325079122, 550563123, 550598123, 625038122

  • Passar modeller
    Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.913 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.919 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.921 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.945 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.990 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Axor 2 Model series: 2633 Size of motor: 7.2 Brand of engine: OM926.913 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Axor 2 Model series: 2633 Size of motor: 7.2 Brand of engine: OM926.919 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Axor 2 Model series: 2633 Size of motor: 7.2 Brand of engine: OM926.945 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 5.0
    Mount. flange: 92.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 296.00
    Dist./front: 56.00
    No./teeth: 12
    B+: M12
    Thread length mm: 22.00
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 127.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 345.00
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 296.00
    Dist./front 56.00
    Drive dist. 47.50
    Gear type GR
    kW 5.0
    Terminal 50 M5
    Voltage 12
    Total length 345.00 mm
    Dist. 127.00 mm
    Thread length 22.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      A0051511001, a0051517001, a0061511601, a0061517101, A0071510601, F032114003, M009T70172, M009T70173, M009T72271, M009T72971, M105R2031SE, m9t70172, M9T70173, M9T72271, M9T72971, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601

    • Konkurrentreferens
      CST35344, CST60160, LRS02620, S1018, S5077, 25-4293, 25-4450, 325.079.122, 550.563.123, 550.598.123, 625.038.122, 6835N, 6910N, 6910R, 6919N, 255083

    • Normaliserat artikelnummer
      a0051511001, a0051517001, a0061511601, a0061517101, a0071510601, cst35344, cst60160, f032114003, lrs02620, m009t70172, m009t70173, m009t72271, m009t72971, m105r2031se, m9t70172, m9t70173, m9t72271, m9t72971, s1018, s5077, 6835n, 6910n, 6910r, 6919n, 254293, 254450, 255083, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601, 325079122, 550563123, 550598123, 625038122

    • Passar modeller
      Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.913 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.919 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.921 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.945 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Axor 2 Model series: 2533 Size of motor: 7.2 Brand of engine: OM926.990 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Axor 2 Model series: 2633 Size of motor: 7.2 Brand of engine: OM926.913 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Axor 2 Model series: 2633 Size of motor: 7.2 Brand of engine: OM926.919 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Axor 2 Model series: 2633 Size of motor: 7.2 Brand of engine: OM926.945 Type description: Axor 2 Body: Platform / Chassis From date: 01-10-2004 Fuel: Diesel Approved: Yes
