HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113929

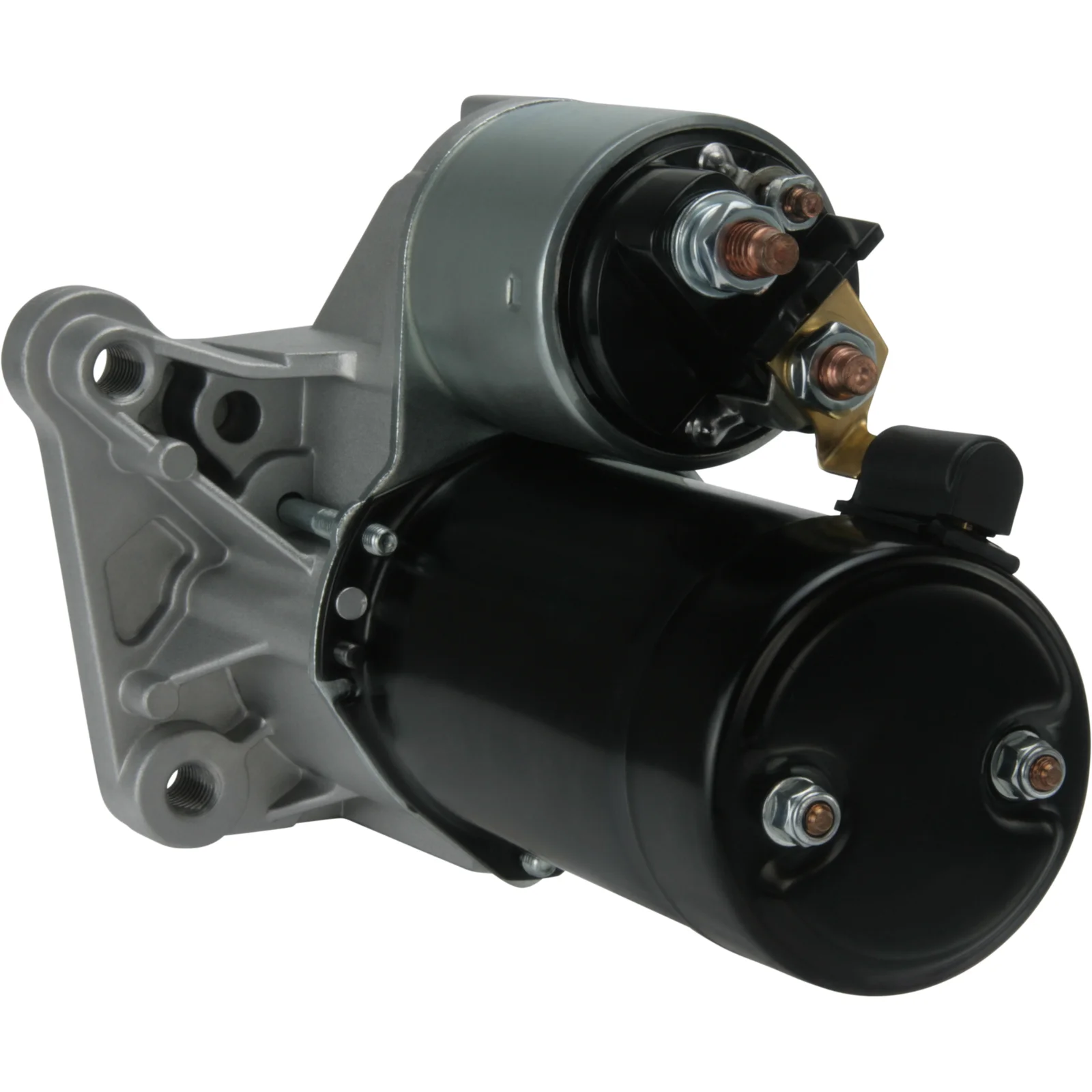

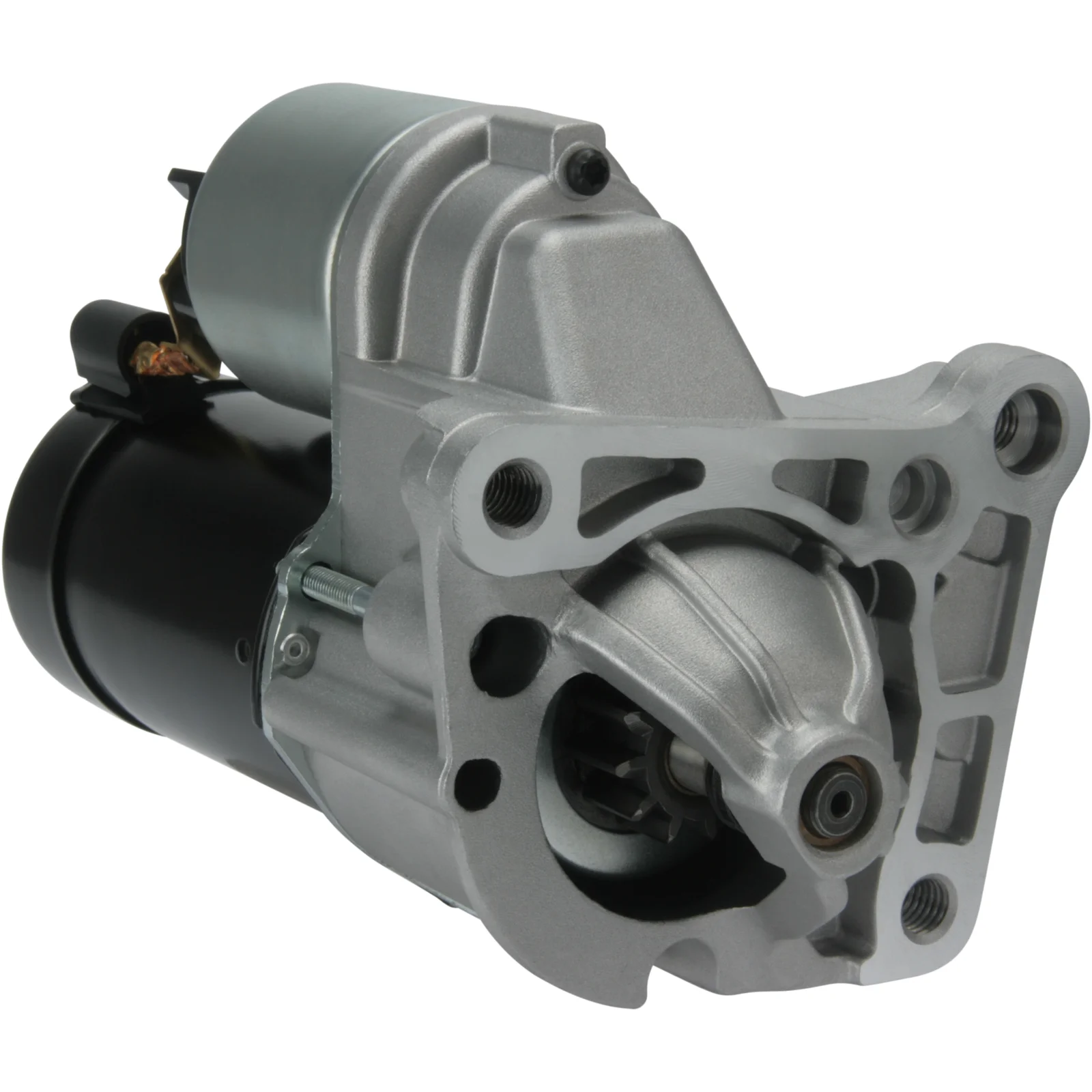

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Drive dist.: -1.00
Mount. hole 3 mm: M10
Dist./back: 176.00
Dist./front: 31.00
No./teeth: 11
B+: M8
Position/50: 2
Terminal 50: M5
Gear type: GR
Dist. 2: 104.50
Dist. 3: 92.00
Dist. mm: 74.00
Rotation: CW
Total length mm: 209.00
Prod. info: BN
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 11
No./mount. holes 3 (3)
Position/50 2
Prod. info BN
Dist. 2 104.50
Dist. 3 92.00
Rotation CW
Dist./back 176.00
Dist./front 31.00
Drive dist. -1.00
Gear type GR
kW 1.2
Terminal 50 M5
Voltage 12
Total length 209.00 mm
Dist. 74.00 mm
Mount. hole 3 M10 mm

  • OEM
    cs1344, d6ra105, d6ra115, F032113929, 1986S00914, 7700113627, 7711134297, 8200143045

  • Konkurrentreferens
    CST15171, DRS3963, F042S07019, LRS01729, S3064, STR-4617, 8EA011350-341, 8EA011610-991, 8EA738255-001, 25-3286, 330.023.112, 3002, 32640N, 32729, 32729N, 101344, 104786, 201082, 220402, 220402A, 438112, 455976, 726025, 726825, 838038, 8080193, 8212445, 11090054, 0986021671, 944280801930

  • Normaliserat artikelnummer
    cs1344, cst15171, d6ra105, d6ra115, drs3963, f032113929, f042s07019, lrs01729, s3064, str4617, 8ea011350341, 8ea011610991, 8ea738255001, 1986s00914, 3002, 32640n, 32729, 32729n, 101344, 104786, 201082, 220402, 220402a, 253286, 438112, 455976, 726025, 726825, 838038, 8080193, 8212445, 11090054, 330023112, 0986021671, 7700113627, 7711134297, 8200143045, 944280801930

  • Passar modeller
    Renault Model: Kangoo Model series: Kangoo Model type: 4x4 Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q790 Body: MPV From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express 4x4 Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q782 Type description: FC0V Body: Van From date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express 4x4 Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q790 Type description: FC0V Body: Van From date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q782 Body: Van From date: 01-02-2000 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: Kombi Van Type of engine: DCI Size of motor: 1.9 Brand of engine: F9Q732, F9Q733 Type description: KA_ Body: Box Body / Estate From date: 01-04-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes Manufacture type: Kombi Van
    Renault Model: Megane Model series: Megane Model type: Kombi Van Type of engine: Diesel Size of motor: 1.9 Brand of engine: F9Q744 Type description: KA_ Body: Box Body / Estate From date: 01-04-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes Manufacture type: Kombi Van
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q732 Type description: DA05, DA1F Body: Coupe From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: coach
    Renault Model: Megane Model series: Megane Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: BA1U Body: Hatchback From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: KA1U Body: Estate From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Megane Model series: Megane Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: LA1U From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: classic
    Renault Model: Sc nic Model series: Sc nic Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: JA1U Body: MPV From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes
    Renault Model: Scenic Model series: Scenic Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q734 Type description: FA0_, JA0/1_ Body: Van From date: 01-09-1999 To date: 01-04-2001 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Drive dist.: -1.00
    Mount. hole 3 mm: M10
    Dist./back: 176.00
    Dist./front: 31.00
    No./teeth: 11
    B+: M8
    Position/50: 2
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 104.50
    Dist. 3: 92.00
    Dist. mm: 74.00
    Rotation: CW
    Total length mm: 209.00
    Prod. info: BN
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    No./mount. holes 3 (3)
    Position/50 2
    Prod. info BN
    Dist. 2 104.50
    Dist. 3 92.00
    Rotation CW
    Dist./back 176.00
    Dist./front 31.00
    Drive dist. -1.00
    Gear type GR
    kW 1.2
    Terminal 50 M5
    Voltage 12
    Total length 209.00 mm
    Dist. 74.00 mm
    Mount. hole 3 M10 mm
  • Fordonsmatchning

    • OEM
      cs1344, d6ra105, d6ra115, F032113929, 1986S00914, 7700113627, 7711134297, 8200143045

    • Konkurrentreferens
      CST15171, DRS3963, F042S07019, LRS01729, S3064, STR-4617, 8EA011350-341, 8EA011610-991, 8EA738255-001, 25-3286, 330.023.112, 3002, 32640N, 32729, 32729N, 101344, 104786, 201082, 220402, 220402A, 438112, 455976, 726025, 726825, 838038, 8080193, 8212445, 11090054, 0986021671, 944280801930

    • Normaliserat artikelnummer
      cs1344, cst15171, d6ra105, d6ra115, drs3963, f032113929, f042s07019, lrs01729, s3064, str4617, 8ea011350341, 8ea011610991, 8ea738255001, 1986s00914, 3002, 32640n, 32729, 32729n, 101344, 104786, 201082, 220402, 220402a, 253286, 438112, 455976, 726025, 726825, 838038, 8080193, 8212445, 11090054, 330023112, 0986021671, 7700113627, 7711134297, 8200143045, 944280801930

    • Passar modeller
      Renault Model: Kangoo Model series: Kangoo Model type: 4x4 Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q790 Body: MPV From date: 01-10-2003 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express 4x4 Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q782 Type description: FC0V Body: Van From date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express 4x4 Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q790 Type description: FC0V Body: Van From date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q782 Body: Van From date: 01-02-2000 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: Kombi Van Type of engine: DCI Size of motor: 1.9 Brand of engine: F9Q732, F9Q733 Type description: KA_ Body: Box Body / Estate From date: 01-04-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes Manufacture type: Kombi Van
      Renault Model: Megane Model series: Megane Model type: Kombi Van Type of engine: Diesel Size of motor: 1.9 Brand of engine: F9Q744 Type description: KA_ Body: Box Body / Estate From date: 01-04-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes Manufacture type: Kombi Van
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q732 Type description: DA05, DA1F Body: Coupe From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: coach
      Renault Model: Megane Model series: Megane Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: BA1U Body: Hatchback From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: KA1U Body: Estate From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Megane Model series: Megane Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: LA1U From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: classic
      Renault Model: Sc nic Model series: Sc nic Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: JA1U Body: MPV From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes
      Renault Model: Scenic Model series: Scenic Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q734 Type description: FA0_, JA0/1_ Body: Van From date: 01-09-1999 To date: 01-04-2001 Fuel: Diesel Approved: Yes
      1 / 3
