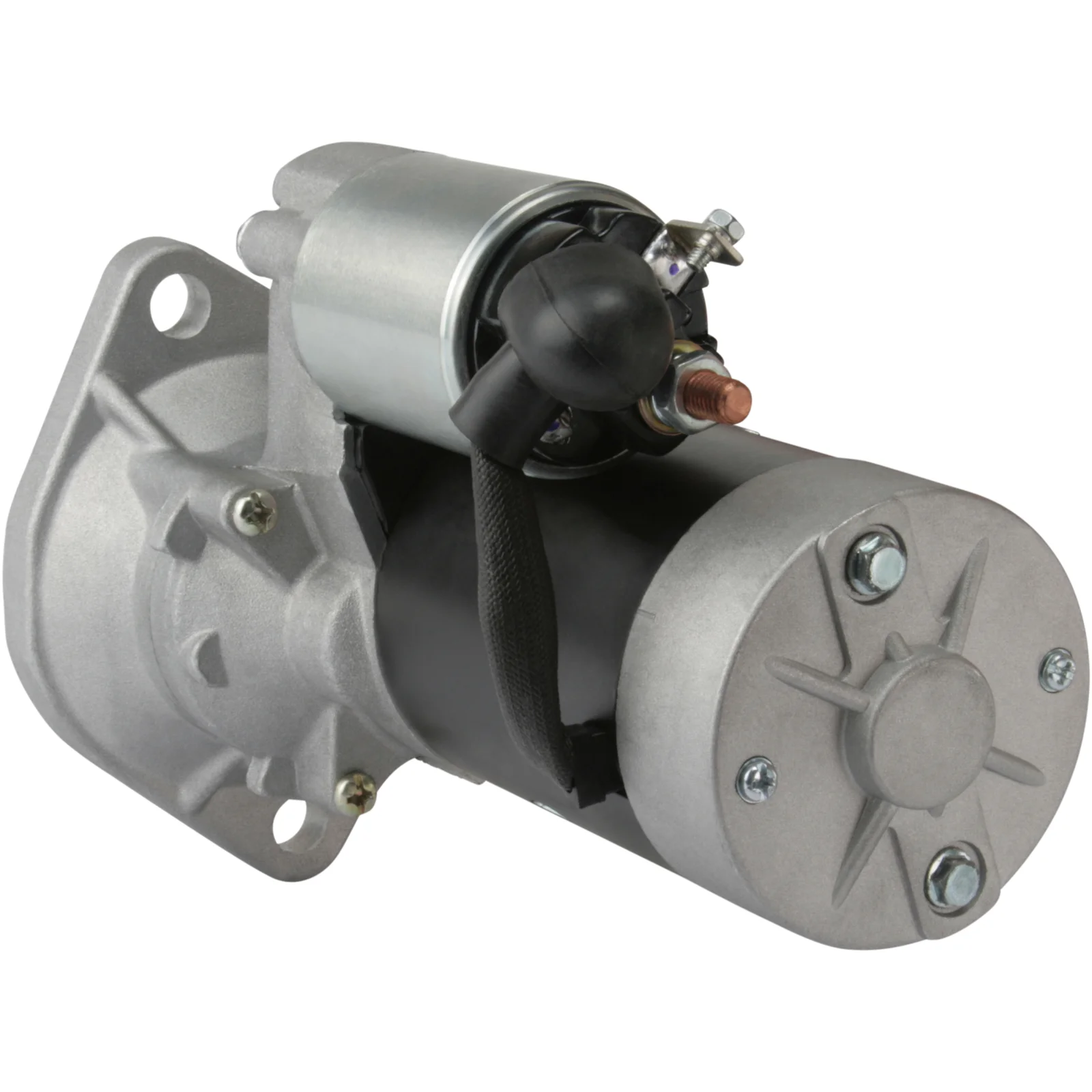

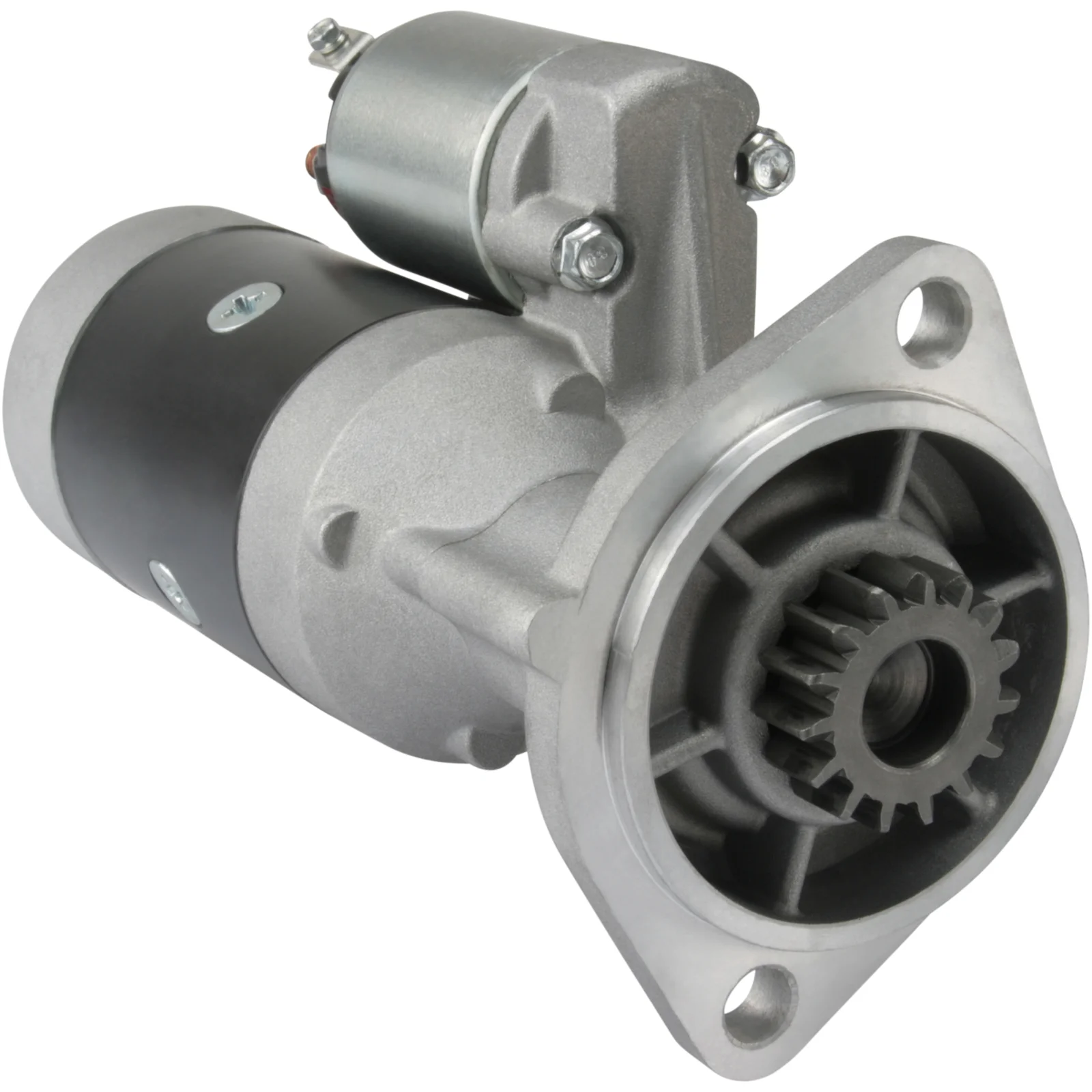

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113924

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 15, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 95.00
Drive dist.: 20.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 203.00
Dist./front: 20.00
No./teeth: 15
B+: M8
Position/50: 10
Terminal 50: M4
Gear type: DD/GR
Dist. mm: 119.00
Rotation: CW
Total length mm: 226.00
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 15
Mount. flange 95.00
No./mount. holes 2 (0)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 203.00
Dist./front 20.00
Drive dist. 20.00
Gear type DD/GR
kW 1.4
Terminal 50 M4
Voltage 12
Total length 226.00 mm
Dist. 119.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032113924, js731, s114-146, s114-206, s114-244, s114-244a, s114-257, s114-257a, S114-257B, s114-257c, s114-257d, s114-257g, s114-257h, s114-349, s114-349a, s114-349b, S114-448, s114-483, s114-483a, 105891-77010, 124772-77020, 128000-0711, 171008-77010

  • Konkurrentreferens
    drs3247, LRS01120, LRS01162, PBNS3032, 8ea730271-001, 25-0423, 25-1048, 25-1150, 25-2322, 682.006.152, 682.011.152, 682.034.152, 980.001.152, 980.002.152, 980.538.152, 4254, 18205N, 20731, 33549, 33729, 33794, 220578, 220578A, 255060, 11040493

  • Normaliserat artikelnummer
    drs3247, f032113924, js731, lrs01120, lrs01162, pbns3032, s114146, s114206, s114244, s114244a, s114257, s114257a, s114257b, s114257c, s114257d, s114257g, s114257h, s114349, s114349a, s114349b, s114448, s114483, s114483a, 8ea730271001, 4254, 18205n, 20731, 33549, 33729, 33794, 220578, 220578a, 250423, 251048, 251150, 252322, 255060, 11040493, 682006152, 682011152, 682034152, 980001152, 980002152, 980538152, 1280000711, 10589177010, 12477277020, 17100877010

  • Passar modeller
    John Deere Model: 650 Model series: 650 Model type: Utility tractor Brand of engine: 3T90 Body: Tractor Approved: Yes
    John Deere Model: 750 Model series: 750 Model type: Utility tractor Brand of engine: 3T80 Body: Tractor Approved: Yes
    Mustang Model: Mini Loader Model series: 930A Approved: Yes
    Mustang Model: Mini Loader Model series: 980 Approved: Yes
    Yanmar Model: 4JH Model series: 4JH Approved: Yes
    Yanmar Model: Engine Model series: 2T80L Brand of engine: 2T80L Approved: Yes
    Yanmar Model: Engine Model series: 3T84C Brand of engine: 3T84C Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 95.00
    Drive dist.: 20.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 203.00
    Dist./front: 20.00
    No./teeth: 15
    B+: M8
    Position/50: 10
    Terminal 50: M4
    Gear type: DD/GR
    Dist. mm: 119.00
    Rotation: CW
    Total length mm: 226.00
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 15
    Mount. flange 95.00
    No./mount. holes 2 (0)
    Position/50 10
    Prod. info BN
    Rotation CW
    Dist./back 203.00
    Dist./front 20.00
    Drive dist. 20.00
    Gear type DD/GR
    kW 1.4
    Terminal 50 M4
    Voltage 12
    Total length 226.00 mm
    Dist. 119.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032113924, js731, s114-146, s114-206, s114-244, s114-244a, s114-257, s114-257a, S114-257B, s114-257c, s114-257d, s114-257g, s114-257h, s114-349, s114-349a, s114-349b, S114-448, s114-483, s114-483a, 105891-77010, 124772-77020, 128000-0711, 171008-77010

    • Konkurrentreferens
      drs3247, LRS01120, LRS01162, PBNS3032, 8ea730271-001, 25-0423, 25-1048, 25-1150, 25-2322, 682.006.152, 682.011.152, 682.034.152, 980.001.152, 980.002.152, 980.538.152, 4254, 18205N, 20731, 33549, 33729, 33794, 220578, 220578A, 255060, 11040493

    • Normaliserat artikelnummer
      drs3247, f032113924, js731, lrs01120, lrs01162, pbns3032, s114146, s114206, s114244, s114244a, s114257, s114257a, s114257b, s114257c, s114257d, s114257g, s114257h, s114349, s114349a, s114349b, s114448, s114483, s114483a, 8ea730271001, 4254, 18205n, 20731, 33549, 33729, 33794, 220578, 220578a, 250423, 251048, 251150, 252322, 255060, 11040493, 682006152, 682011152, 682034152, 980001152, 980002152, 980538152, 1280000711, 10589177010, 12477277020, 17100877010

    • Passar modeller
      John Deere Model: 650 Model series: 650 Model type: Utility tractor Brand of engine: 3T90 Body: Tractor Approved: Yes
      John Deere Model: 750 Model series: 750 Model type: Utility tractor Brand of engine: 3T80 Body: Tractor Approved: Yes
      Mustang Model: Mini Loader Model series: 930A Approved: Yes
      Mustang Model: Mini Loader Model series: 980 Approved: Yes
      Yanmar Model: 4JH Model series: 4JH Approved: Yes
      Yanmar Model: Engine Model series: 2T80L Brand of engine: 2T80L Approved: Yes
      Yanmar Model: Engine Model series: 3T84C Brand of engine: 3T84C Approved: Yes
