Artikelnr: F032113893

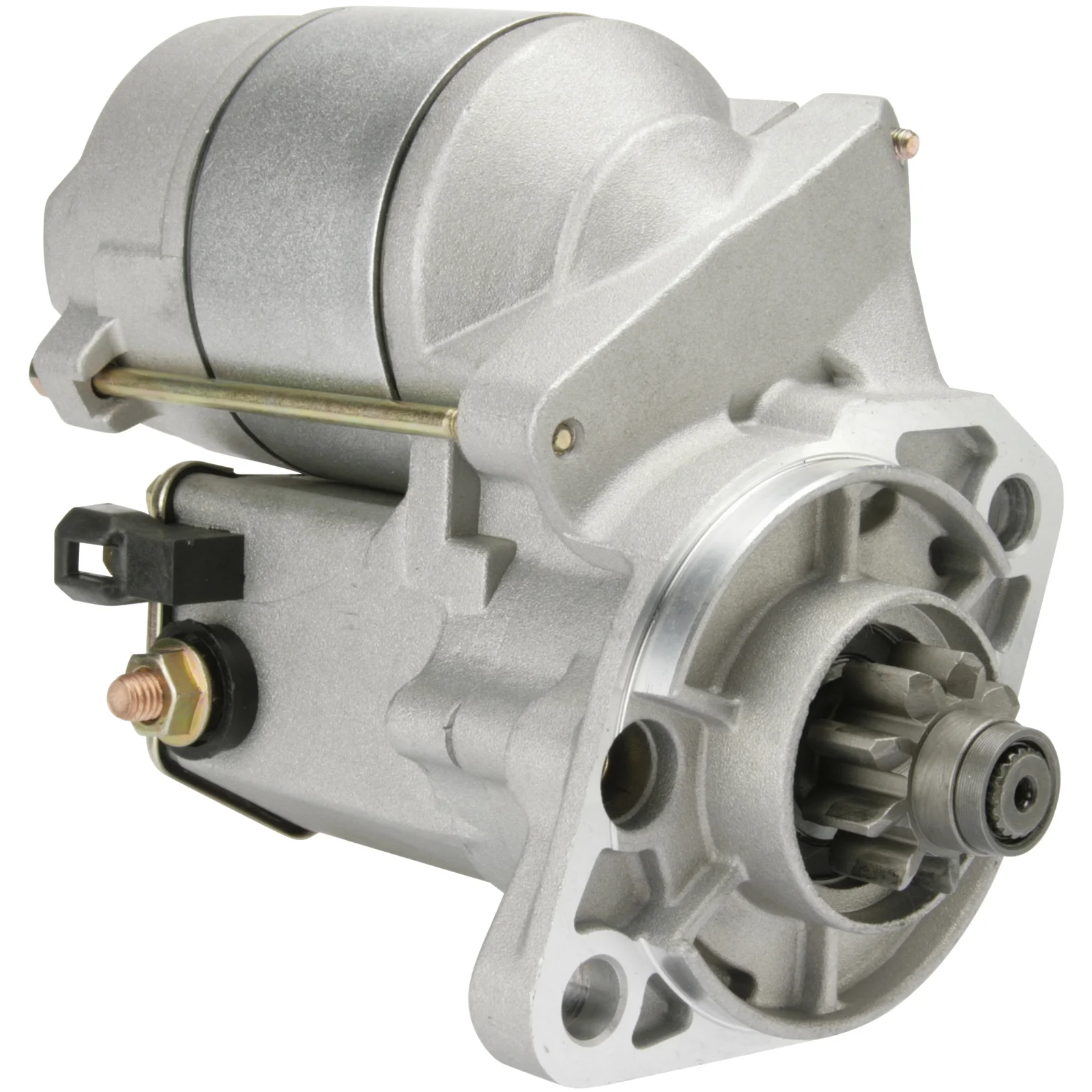

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 9, Mount. flange: 82.50

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 82.50
Drive dist.: 25.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 118.50
Dist./front: 37.00
No./teeth: 9
B+: M8
Position/50: 40
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Total length mm: 178.50
Clutch type: Wet
Drive type: Steel
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 40
Clutch type Wet
Dist./back 118.50
Dist./front 37.00
Drive dist. 25.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 178.50 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113893, 34070-16081, 34070-16083, 34070-16800, 34070-16801, 34070-16803, 128000-8460, 128000-8461, 128000-8462

  • Konkurrentreferens
    CST40530, DSN2132, snd0324, 2-2734-nd, 91-29-5349, 690.538.092, 18145, 18145N, 255131

  • Normaliserat artikelnummer
    cst40530, dsn2132, f032113893, snd0324, 18145, 18145n, 22734nd, 255131, 91295349, 690538092, 1280008460, 1280008461, 1280008462, 3407016081, 3407016083, 3407016800, 3407016801, 3407016803

  • Passar modeller
    Atlas Copco Model: CC1100 (PLUS) & CC1100C (PLUS) Model series: CC1100 (PLUS) & CC1100C (PLUS) Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Atlas Copco Model: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model series: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 325 & 329 Model series: 325 & 329 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 325 Model series: 325 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 325G Model series: 325G Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 328 Model series: 328 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 328G Model series: 328G Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AC-4 Model series: BW 100 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model series: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AC-5 Model series: BW 100 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AD-4 Model series: BW 100 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model series: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AD-5 Model series: BW 100 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
    Bomag Model: BW 120 AC-4 Model series: BW 120 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 120 AC-5 Model series: BW 120 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 120 AD-4 Model series: BW 120 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 120 AD-5 Model series: BW 120 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
    Bomag Model: BW 125 AC-4 Model series: BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 125 AD-4 Model series: BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Hitachi Model: EX33MU Model series: EX33MU Model type: Excavators Brand of engine: D1503-E Approved: Yes
    JCB Model: VMT260 Model series: VMT260 Model type: Rollers Brand of engine: D1503-E Approved: Yes
    Kubota Model: FT28 Model series: FT28 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
    Kubota Model: FT30 Model series: FT30 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
    Kubota Model: KL27R Model series: KL27R Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
    Kubota Model: KX135-3S Model series: KX135-3S Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
    Kubota Model: KX91-3S2 Model series: KX91-3S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: L Model series: L2250 Brand of engine: D1302 Approved: Yes
    Kubota Model: L Model series: L2500 Brand of engine: D1403 Approved: Yes
    Kubota Model: L Model series: L2550 Brand of engine: D1402 Approved: Yes
    Kubota Model: L Model series: L2650 Brand of engine: D1402 Approved: Yes
    Kubota Model: L Model series: L2800 Brand of engine: D1403 Approved: Yes
    Kubota Model: L Model series: L2900 Brand of engine: D1503 Approved: Yes
    Kubota Model: L Model series: L2950 Brand of engine: D1462 Approved: Yes
    Kubota Model: L Model series: L3010 Brand of engine: D1503 Approved: Yes
    Kubota Model: L Model series: L3130 Brand of engine: D1503 Approved: Yes
    Kubota Model: L Model series: L3300 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L3400 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L3410 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L3430 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L35 Brand of engine: D1703 Approved: Yes
    Kubota Model: L27R Model series: L27R Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
    Kubota Model: L28RF Model series: L28RF Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
    Kubota Model: L2900-2 Model series: L2900-2 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
    Kubota Model: L2900-4 Model series: L2900-4 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
    Kubota Model: L3008/L3608 Model series: L3008/L3608 Model type: Ag Tractors Brand of engine: D1503-M-DI Approved: Yes
    Kubota Model: RA401 Model series: RA401 Model type: Wheel Loaders and Dozers Brand of engine: D1503-E Approved: Yes
    Kubota Model: U30-5 Model series: U30-5 Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
    Kubota Model: U30-6 Model series: U30-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: U35-3A Model series: U35-3A Model type: Excavators Brand of engine: D1503-E Approved: Yes
    Kubota Model: U35-4 Model series: U35-4 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: U35-6 Model series: U35-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: U35S2 Model series: U35S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2 Model series: TA2 Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2E Model series: TA2E Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2H Model series: TA2H Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2S Model series: TA2S Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2SE Model series: TA2SE Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2SEH Model series: TA2SEH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2SH Model series: TA2SH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1000 Model series: TV1000 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1000-1 Model series: TV1000-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1200 & TV1200H Model series: TV1200 & TV1200H Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1200-1 & TV12200H-1 Model series: TV1200-1 & TV12200H-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    1 / 13
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 82.50
    Drive dist.: 25.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 118.50
    Dist./front: 37.00
    No./teeth: 9
    B+: M8
    Position/50: 40
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Total length mm: 178.50
    Clutch type: Wet
    Drive type: Steel
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 40
    Clutch type Wet
    Dist./back 118.50
    Dist./front 37.00
    Drive dist. 25.00
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 178.50 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113893, 34070-16081, 34070-16083, 34070-16800, 34070-16801, 34070-16803, 128000-8460, 128000-8461, 128000-8462

    • Konkurrentreferens
      CST40530, DSN2132, snd0324, 2-2734-nd, 91-29-5349, 690.538.092, 18145, 18145N, 255131

    • Normaliserat artikelnummer
      cst40530, dsn2132, f032113893, snd0324, 18145, 18145n, 22734nd, 255131, 91295349, 690538092, 1280008460, 1280008461, 1280008462, 3407016081, 3407016083, 3407016800, 3407016801, 3407016803

    • Passar modeller
      Atlas Copco Model: CC1100 (PLUS) & CC1100C (PLUS) Model series: CC1100 (PLUS) & CC1100C (PLUS) Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Atlas Copco Model: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model series: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 325 & 329 Model series: 325 & 329 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 325 Model series: 325 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 325G Model series: 325G Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 328 Model series: 328 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 328G Model series: 328G Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AC-4 Model series: BW 100 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model series: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AC-5 Model series: BW 100 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AD-4 Model series: BW 100 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model series: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AD-5 Model series: BW 100 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
      Bomag Model: BW 120 AC-4 Model series: BW 120 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 120 AC-5 Model series: BW 120 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 120 AD-4 Model series: BW 120 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 120 AD-5 Model series: BW 120 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
      Bomag Model: BW 125 AC-4 Model series: BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 125 AD-4 Model series: BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Hitachi Model: EX33MU Model series: EX33MU Model type: Excavators Brand of engine: D1503-E Approved: Yes
      JCB Model: VMT260 Model series: VMT260 Model type: Rollers Brand of engine: D1503-E Approved: Yes
      Kubota Model: FT28 Model series: FT28 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
      Kubota Model: FT30 Model series: FT30 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
      Kubota Model: KL27R Model series: KL27R Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
      Kubota Model: KX135-3S Model series: KX135-3S Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
      Kubota Model: KX91-3S2 Model series: KX91-3S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: L Model series: L2250 Brand of engine: D1302 Approved: Yes
      Kubota Model: L Model series: L2500 Brand of engine: D1403 Approved: Yes
      Kubota Model: L Model series: L2550 Brand of engine: D1402 Approved: Yes
      Kubota Model: L Model series: L2650 Brand of engine: D1402 Approved: Yes
      Kubota Model: L Model series: L2800 Brand of engine: D1403 Approved: Yes
      Kubota Model: L Model series: L2900 Brand of engine: D1503 Approved: Yes
      Kubota Model: L Model series: L2950 Brand of engine: D1462 Approved: Yes
      Kubota Model: L Model series: L3010 Brand of engine: D1503 Approved: Yes
      Kubota Model: L Model series: L3130 Brand of engine: D1503 Approved: Yes
      Kubota Model: L Model series: L3300 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L3400 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L3410 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L3430 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L35 Brand of engine: D1703 Approved: Yes
      Kubota Model: L27R Model series: L27R Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
      Kubota Model: L28RF Model series: L28RF Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
      Kubota Model: L2900-2 Model series: L2900-2 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
      Kubota Model: L2900-4 Model series: L2900-4 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
      Kubota Model: L3008/L3608 Model series: L3008/L3608 Model type: Ag Tractors Brand of engine: D1503-M-DI Approved: Yes
      Kubota Model: RA401 Model series: RA401 Model type: Wheel Loaders and Dozers Brand of engine: D1503-E Approved: Yes
      Kubota Model: U30-5 Model series: U30-5 Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
      Kubota Model: U30-6 Model series: U30-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: U35-3A Model series: U35-3A Model type: Excavators Brand of engine: D1503-E Approved: Yes
      Kubota Model: U35-4 Model series: U35-4 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: U35-6 Model series: U35-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: U35S2 Model series: U35S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2 Model series: TA2 Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2E Model series: TA2E Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2H Model series: TA2H Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2S Model series: TA2S Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2SE Model series: TA2SE Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2SEH Model series: TA2SEH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2SH Model series: TA2SH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1000 Model series: TV1000 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1000-1 Model series: TV1000-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1200 & TV1200H Model series: TV1200 & TV1200H Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1200-1 & TV12200H-1 Model series: TV1200-1 & TV12200H-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      1 / 13

Vi använder cookies för att ge dig den bästa upplevelsen av vår webbplats. Du godkänner användningen av cookies genom att trycka OK och surfa vidare på webbplatsen.
