Artikelnr: F032113796

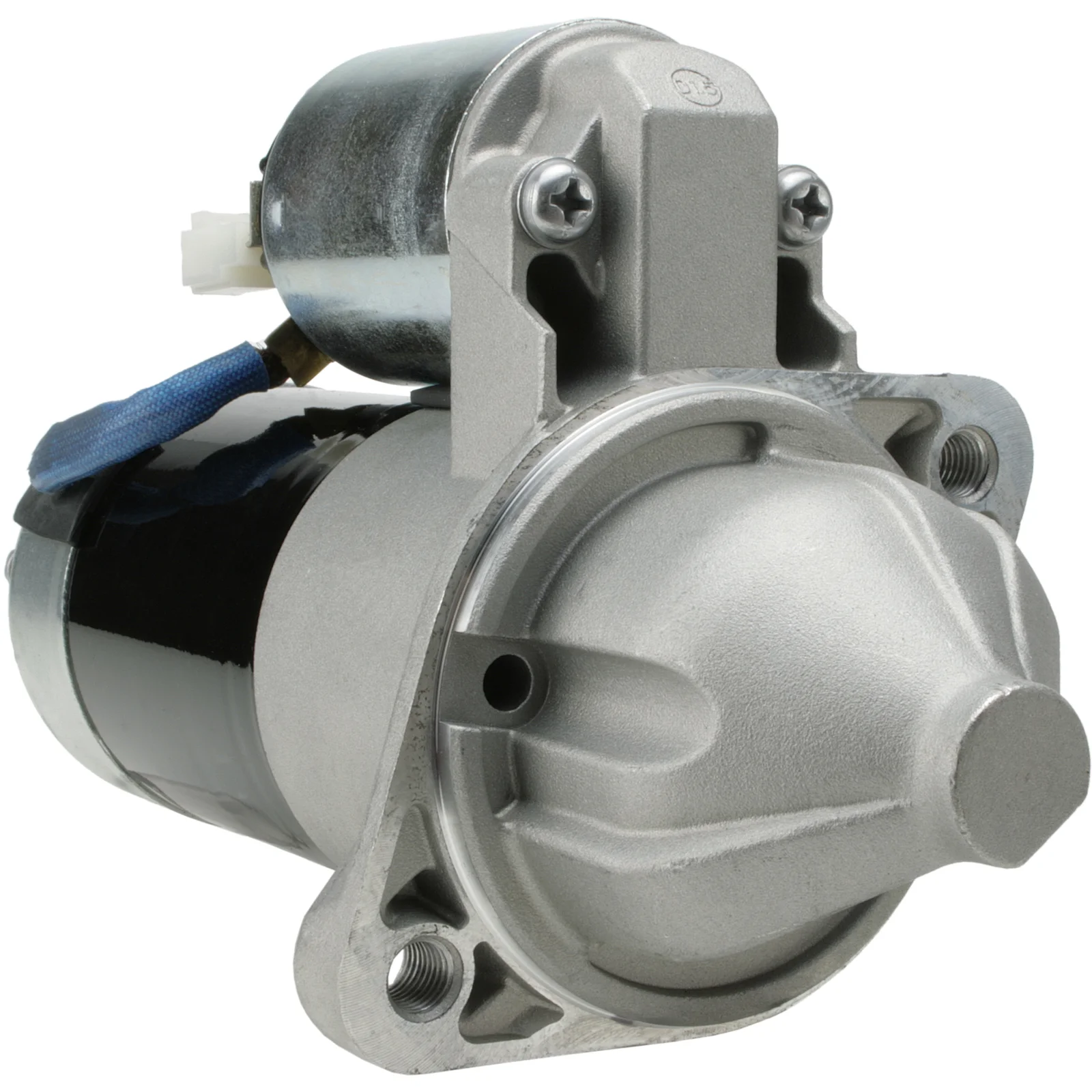

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.7
Mount. flange: 82.50
Drive dist.: 24.00
Dist./back: 158.50
Dist./front: 59.50
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.50
Rotation: CW
Total length mm: 225.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 15
Clutch type Dry
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 158.50
Dist./front 59.50
Drive dist. 24.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 6.30
Voltage 12
Total length 225.00 mm
Waterproof No
Dist. 105.50 mm

  • OEM
    F032113796, js1349, TM000A31201, 1986S01380, 36100-27510

  • Konkurrentreferens
    CST32108, DRS0071, DRS0071N, F042S0H062, J5210513, lrs02186, S3121, STR-H062, 8EA011610-801, 25-3358, 150.539.092, 326.046.092, 9771, 33186N, 33186R, 105167, 201349, 220398, 220398A, 600198, 8080283, 8213009, 11040695, 0986023370

  • Normaliserat artikelnummer
    cst32108, drs0071, drs0071n, f032113796, f042s0h062, j5210513, js1349, lrs02186, s3121, strh062, tm000a31201, 8ea011610801, 1986s01380, 9771, 33186n, 33186r, 105167, 201349, 220398, 220398a, 253358, 600198, 8080283, 8213009, 11040695, 150539092, 326046092, 0986023370, 3610027510

  • Passar modeller
    Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC Body: Hatchback From date: 01-04-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC From date: 01-01-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-07-2004 To date: 01-08-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-08-2005 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: Getz Model series: Getz Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: TB Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Matrix Model series: Matrix Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: FC Body: Estate From date: 01-10-2001 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.7
    Mount. flange: 82.50
    Drive dist.: 24.00
    Dist./back: 158.50
    Dist./front: 59.50
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.50
    Rotation: CW
    Total length mm: 225.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 15
    Clutch type Dry
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 158.50
    Dist./front 59.50
    Drive dist. 24.00
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 6.30
    Voltage 12
    Total length 225.00 mm
    Waterproof No
    Dist. 105.50 mm
  • Fordonsmatchning

    • OEM
      F032113796, js1349, TM000A31201, 1986S01380, 36100-27510

    • Konkurrentreferens
      CST32108, DRS0071, DRS0071N, F042S0H062, J5210513, lrs02186, S3121, STR-H062, 8EA011610-801, 25-3358, 150.539.092, 326.046.092, 9771, 33186N, 33186R, 105167, 201349, 220398, 220398A, 600198, 8080283, 8213009, 11040695, 0986023370

    • Normaliserat artikelnummer
      cst32108, drs0071, drs0071n, f032113796, f042s0h062, j5210513, js1349, lrs02186, s3121, strh062, tm000a31201, 8ea011610801, 1986s01380, 9771, 33186n, 33186r, 105167, 201349, 220398, 220398a, 253358, 600198, 8080283, 8213009, 11040695, 150539092, 326046092, 0986023370, 3610027510

    • Passar modeller
      Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC Body: Hatchback From date: 01-04-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC From date: 01-01-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-07-2004 To date: 01-08-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-08-2005 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: Getz Model series: Getz Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: TB Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Matrix Model series: Matrix Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: FC Body: Estate From date: 01-10-2001 To date: 01-08-2010 Fuel: Diesel Approved: Yes
