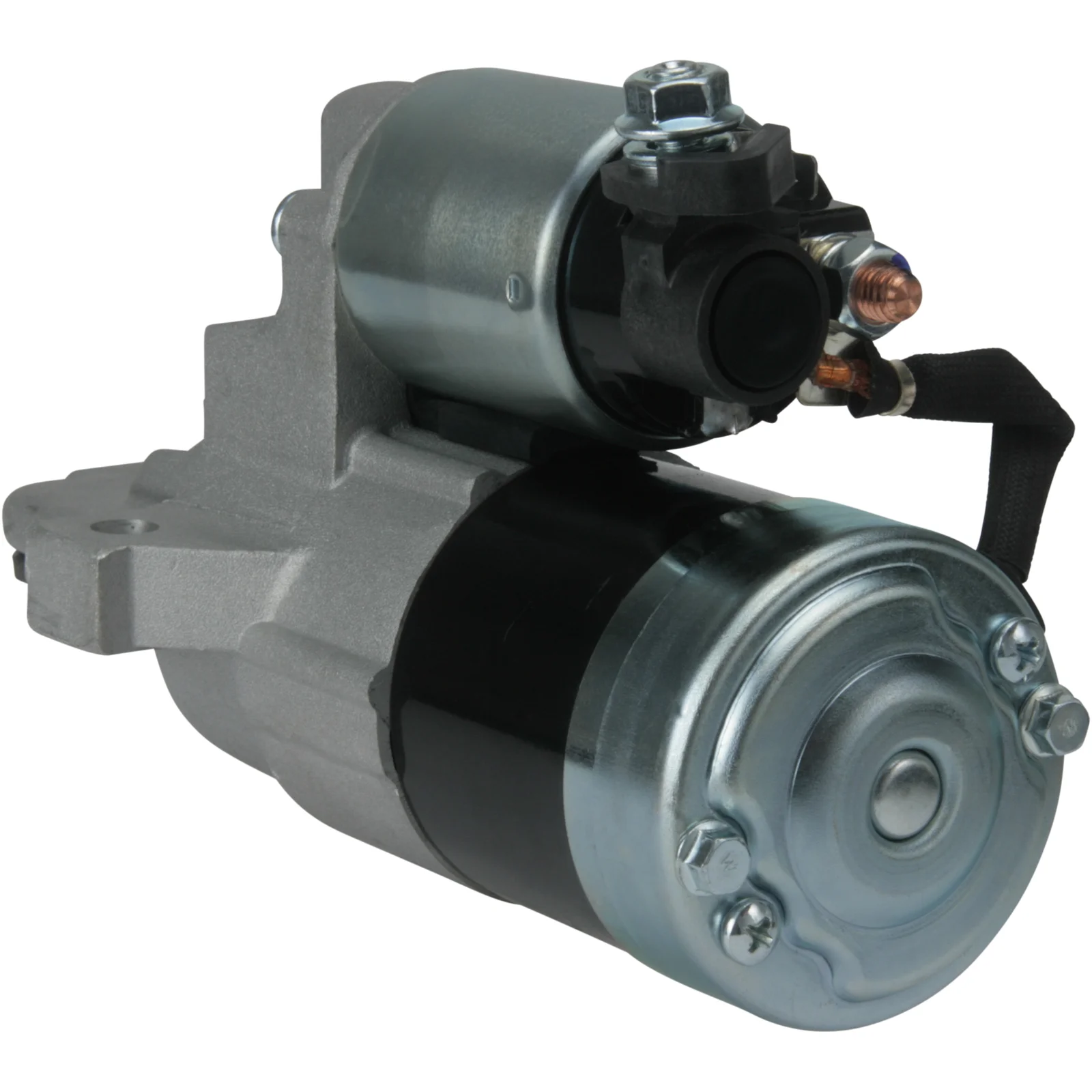

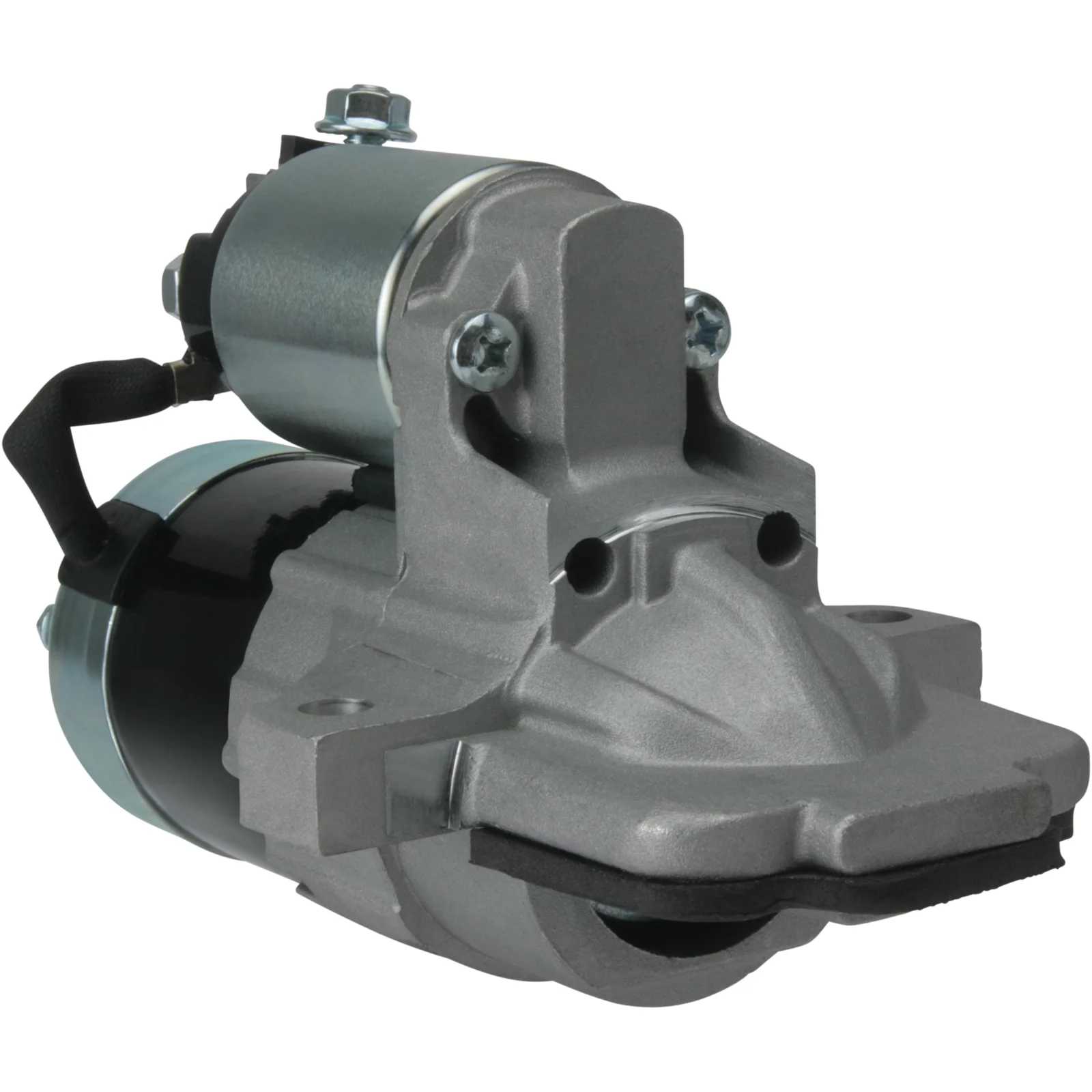

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113795

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 82.30
Drive dist.: 22.00
Mount. hole 2 mm: 10.70
Mount. hole 1 mm: 10.70
Dist./back: 133.50
Dist./front: 73.00
No./teeth: 11
B+: M8
Position/50: 2
Terminal 50: 6.30
Gear type: GR
Dist. mm: 97.50
Rotation: CW
Total length mm: 208.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.30
Oil sealed No
No./mount. holes 2 (0)
Position/50 2
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 133.50
Dist./front 73.00
Drive dist. 22.00
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 208.50 mm
Waterproof No
Dist. 97.50 mm
Mount. hole 2 10.70 mm
Mount. hole 1 10.70 mm

  • OEM
    F032113795, js1317, L813-18-400, L813-18-400A, L813-18-400RE, M000T90981, m0t90981, t90981

  • Konkurrentreferens
    CST35108, DRS0033, DRS0033N, F042200055, s-80169, S5259S, smt0253, 2-2696-mi, 8EA012528-141, 25-3268, 324.035.112, 9652, 17909, 17909N, 201317, 220921, 220921A, 8212507, 11040703, 0986023610

  • Normaliserat artikelnummer
    cst35108, drs0033, drs0033n, f032113795, f042200055, js1317, l81318400, l81318400a, l81318400re, m000t90981, m0t90981, s5259s, s80169, smt0253, t90981, 8ea012528141, 9652, 17909, 17909n, 22696mi, 201317, 220921, 220921a, 253268, 8212507, 11040703, 324035112, 0986023610

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: I Size of motor: 2.0 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: LF17 Body: Hatchback From date: 01-10-2003 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 Brand of engine: LF17 From date: 01-10-2003 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: 5 Model series: 5 Size of motor: 1.8 Brand of engine: L823 Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Mazda Model: 5 Model series: 5 Size of motor: 2.0 Brand of engine: LFF7 Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 1.8 Brand of engine: L813 Type description: GG Body: Hatchback From date: 01-08-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 1.8 Brand of engine: L813 Type description: GG From date: 01-08-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 1.8 Brand of engine: L813 Type description: GY Body: Estate From date: 01-08-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LF17 Type description: GG Body: Hatchback From date: 01-08-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LF17 Type description: GY Body: Estate From date: 01-08-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LF18 Type description: GG Body: Hatchback From date: 01-08-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LF18 Type description: GG From date: 01-06-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LF18 Type description: GY Body: Estate From date: 01-08-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LFF7 Type description: GG Body: Hatchback From date: 01-03-2005 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LFF7 Type description: GG From date: 01-03-2005 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Mazda Model: 6 Model series: 6 Size of motor: 2.0 Brand of engine: LFF7 Type description: GY Body: Estate From date: 01-03-2005 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
