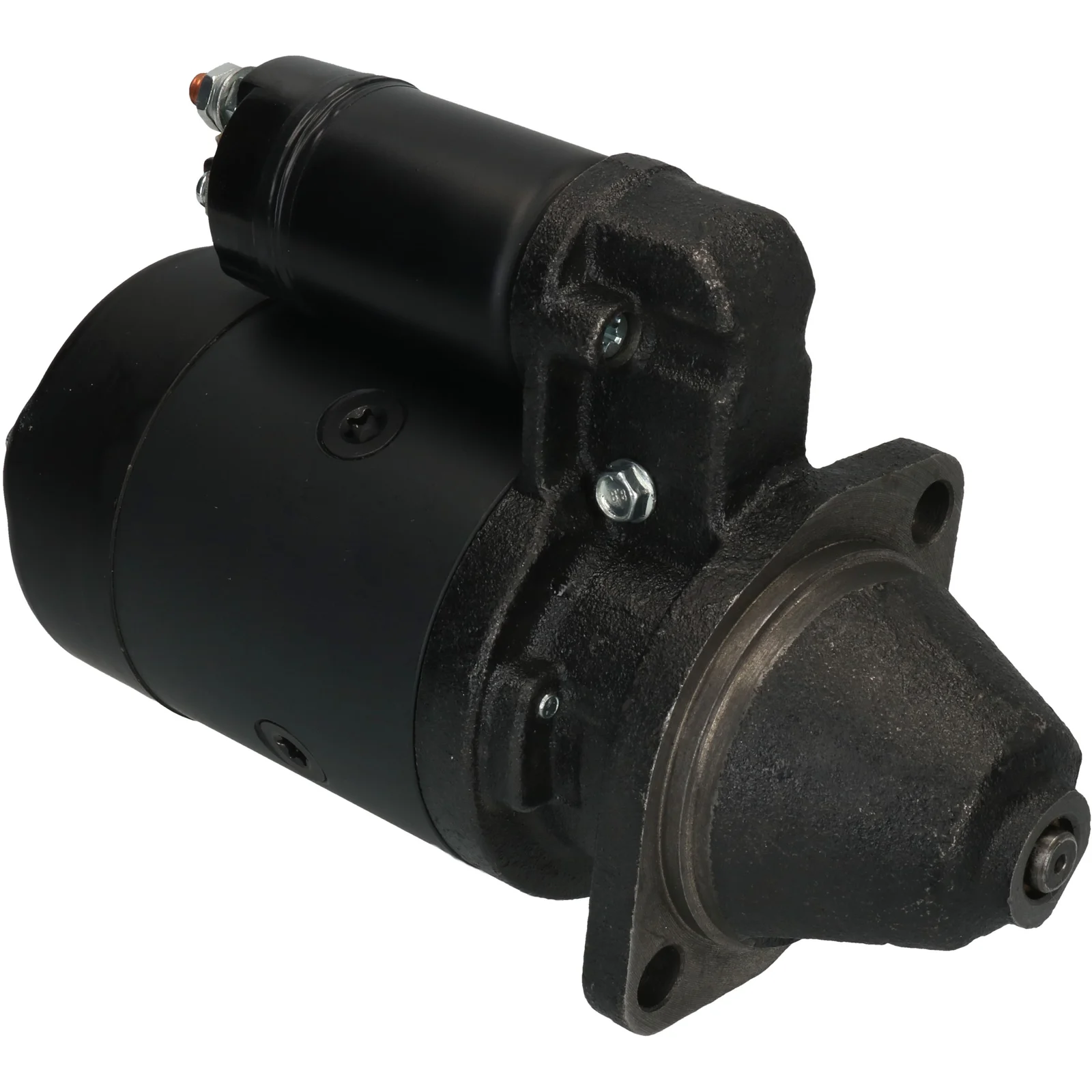

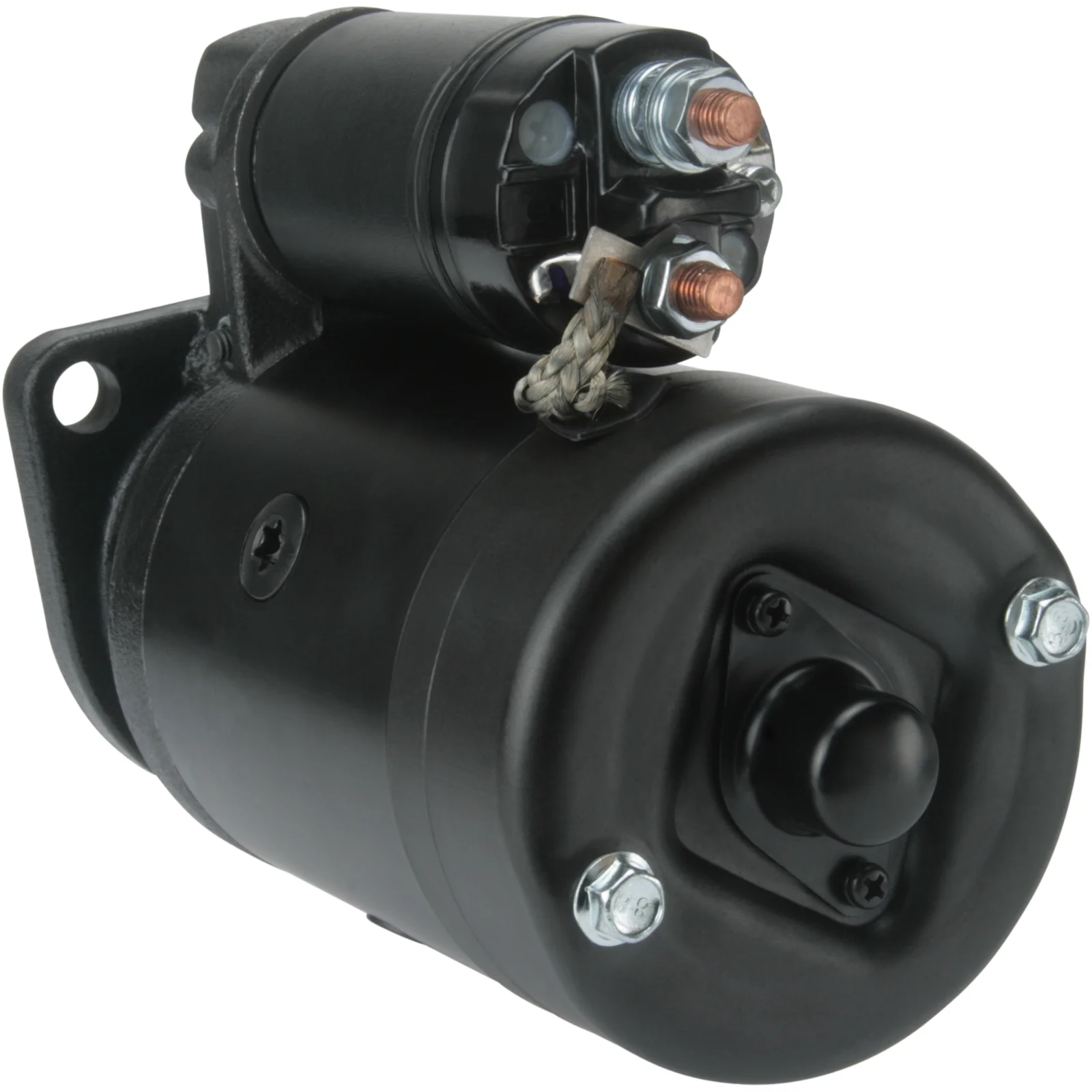

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113705

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.9, No./teeth: 11, Rotation: CCW

Beskrivning

Start 12V-1.7kW passar Penta 12V - 1.7kW, 11k, CCW. Replacement G/R starter made to replace older DD Bosch starter. Ersättnings G/R-startmotor gjord för att ersätta äldre Bosch DD startmotorer. För Yourex produkt order 91-605-1115

Voltage: 12
kW: 1.9
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 188.00
Dist./front: 60.00
No./teeth: 11
B+: M8
Position/50: 15
Terminal 50: M4
Gear type: DD/GR
Dist. mm: 105.00
Rotation: CCW
Total length mm: 256.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CCW
Dist./back 188.00
Dist./front 60.00
Drive dist. 21.00
Drive type Steel
Gear type DD/GR
kW 1.9
Terminal 50 M4
Voltage 12
Total length 256.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113705, mt38r, 0001 311 115, 0001 312 001, 0001 315 002, 833031, 833669, 838060, 0001311115, 0001312001, 0001314039, 0001315002, 3803073, 3803077, 5417601, 5121701501000

  • Konkurrentreferens
    CST10392, drs0770, LRS01032, LRS01776, S0694S, S0764S, 8ea737103-001, 8ea737104-001, 25-0203, 26-2074, 638.006.112, 638.105.112, 810.015.112, 4167, 4168, 10957, 10958, 33786, 103995, 726832

  • Bilmärken
    Penta, Penta Marin, Volvo Penta

  • Normaliserat artikelnummer
    cst10392, drs0770, f032113705, lrs01032, lrs01776, mt38r, s0694s, s0764s, 8ea737103001, 8ea737104001, 4167, 4168, 10957, 10958, 33786, 103995, 250203, 262074, 726832, 833031, 833669, 838060, 0001311115, 0001312001, 0001314039, 0001315002, 3803073, 3803077, 5417601, 638006112, 638105112, 810015112, 5121701501000

  • Passar modeller
    NSU Model: RO 80 Model series: RO 80 Size of motor: 1.0 Brand of engine: KKM From date: 01-10-1967 To date: 01-07-1977 Fuel: Gasoline Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 1.7 Brand of engine: MD3B From date: 01-05-1971 To date: 01-10-1975 Fuel: Diesel Approved: Yes
    Volvo Penta Series: Marin Model: AQD 2 B, 11 C Year: 09.71-
    Volvo Penta Series: Marin Model: MD 11 C, D, MS
    Volvo Penta Series: Marin Model: MD 17 C, D
    Volvo Penta Series: Marin Model: MD 2 B
    Volvo Penta Series: Marin Model: MD 25
    Volvo Penta Series: Marin Model: MD 3 B
    Volvo Penta Series: Marin Model: MD 5 A, B, C
    Volvo Penta Series: Marin Model: MD 6 A, B
    Volvo Penta Series: Marin Model: MD 7 A, B
    1 / 3
  • Beskrivning
    Start 12V-1.7kW passar Penta 12V - 1.7kW, 11k, CCW. Replacement G/R starter made to replace older DD Bosch starter. Ersättnings G/R-startmotor gjord för att ersätta äldre Bosch DD startmotorer. För Yourex produkt order 91-605-1115

    Voltage: 12
    kW: 1.9
    Mount. flange: 82.50
    Drive dist.: 21.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 188.00
    Dist./front: 60.00
    No./teeth: 11
    B+: M8
    Position/50: 15
    Terminal 50: M4
    Gear type: DD/GR
    Dist. mm: 105.00
    Rotation: CCW
    Total length mm: 256.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CCW
    Dist./back 188.00
    Dist./front 60.00
    Drive dist. 21.00
    Drive type Steel
    Gear type DD/GR
    kW 1.9
    Terminal 50 M4
    Voltage 12
    Total length 256.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113705, mt38r, 0001 311 115, 0001 312 001, 0001 315 002, 833031, 833669, 838060, 0001311115, 0001312001, 0001314039, 0001315002, 3803073, 3803077, 5417601, 5121701501000

    • Konkurrentreferens
      CST10392, drs0770, LRS01032, LRS01776, S0694S, S0764S, 8ea737103-001, 8ea737104-001, 25-0203, 26-2074, 638.006.112, 638.105.112, 810.015.112, 4167, 4168, 10957, 10958, 33786, 103995, 726832

    • Bilmärken
      Penta, Penta Marin, Volvo Penta

    • Normaliserat artikelnummer
      cst10392, drs0770, f032113705, lrs01032, lrs01776, mt38r, s0694s, s0764s, 8ea737103001, 8ea737104001, 4167, 4168, 10957, 10958, 33786, 103995, 250203, 262074, 726832, 833031, 833669, 838060, 0001311115, 0001312001, 0001314039, 0001315002, 3803073, 3803077, 5417601, 638006112, 638105112, 810015112, 5121701501000

    • Passar modeller
      NSU Model: RO 80 Model series: RO 80 Size of motor: 1.0 Brand of engine: KKM From date: 01-10-1967 To date: 01-07-1977 Fuel: Gasoline Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 1.7 Brand of engine: MD3B From date: 01-05-1971 To date: 01-10-1975 Fuel: Diesel Approved: Yes
      Volvo Penta Series: Marin Model: AQD 2 B, 11 C Year: 09.71-
      Volvo Penta Series: Marin Model: MD 11 C, D, MS
      Volvo Penta Series: Marin Model: MD 17 C, D
      Volvo Penta Series: Marin Model: MD 2 B
      Volvo Penta Series: Marin Model: MD 25
      Volvo Penta Series: Marin Model: MD 3 B
      Volvo Penta Series: Marin Model: MD 5 A, B, C
      Volvo Penta Series: Marin Model: MD 6 A, B
      Volvo Penta Series: Marin Model: MD 7 A, B
      1 / 3
