HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113668

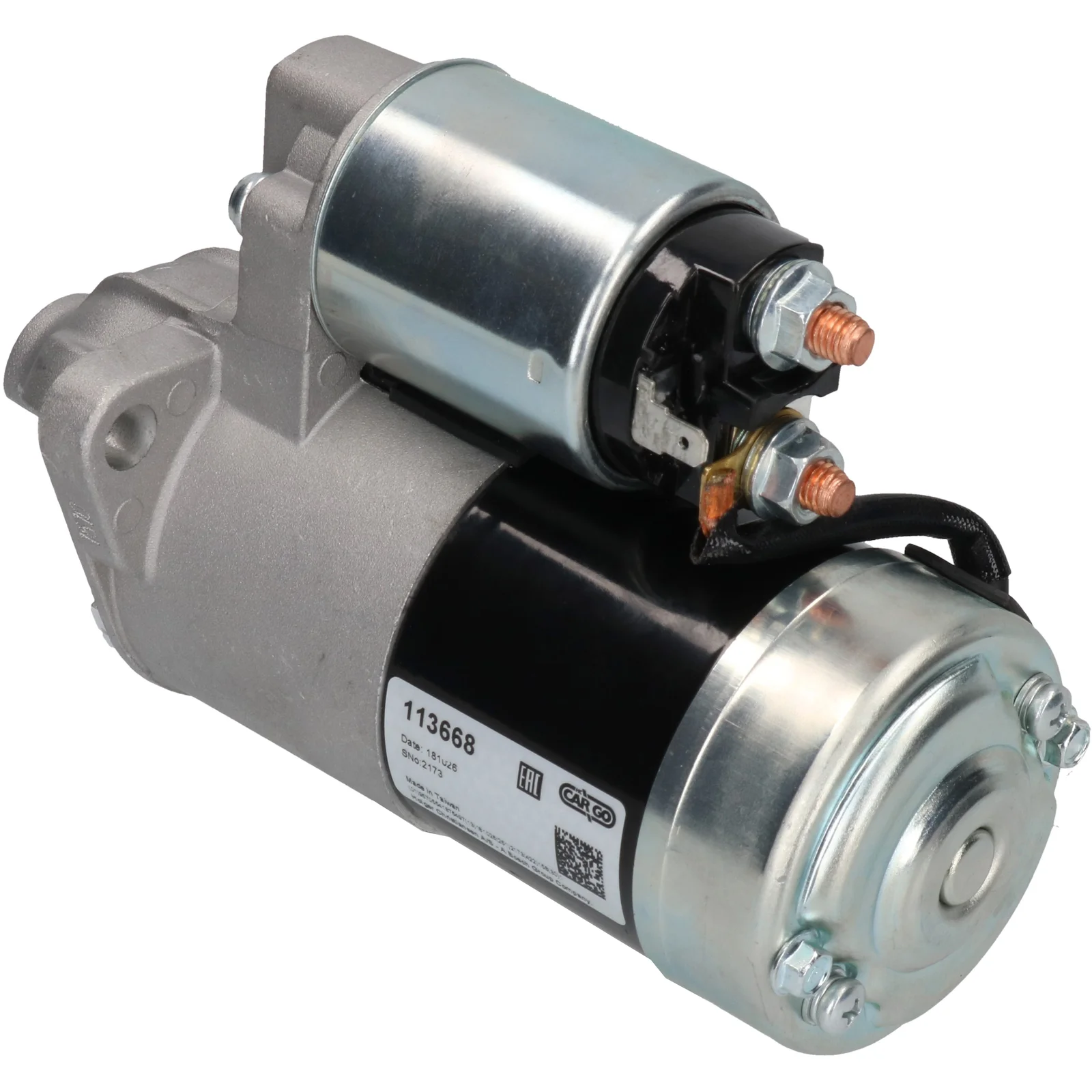

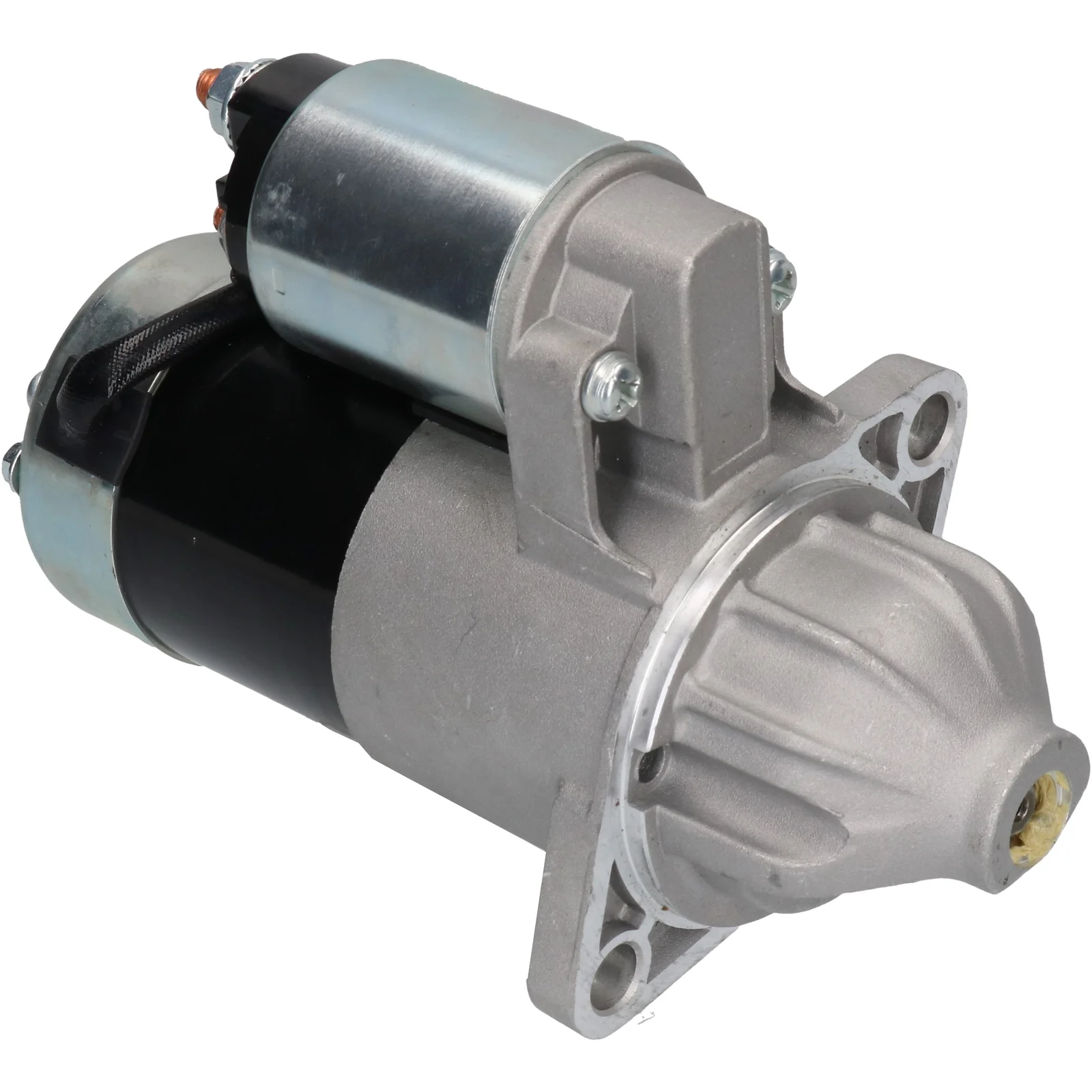

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 77.00
Drive dist.: 18.00
Mount. hole 2 mm: 11.20
Mount. hole 1 mm: 11.20
Dist./back: 154.50
Dist./front: 53.50
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 208.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ and w/o bendix housing are interchangeable.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Dry
Position/B+ 60
Prod. info BN
Remarks w/ and w/o bendix housing are interchangeable.
Rotation CW
Dist./back 154.50
Dist./front 53.50
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 208.00 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 11.20 mm
Mount. hole 1 11.20 mm

  • OEM
    F032113668, js915, M002T58581, M002T58881, m2t58581, m2t58881, s9463, 115518, 115519, 918306

  • Konkurrentreferens
    acs-116, drs3235, F042001175, F042S01175, s-8325, S5021, sm-0046r, smt0102, SR5037X, STR-7002, 2-1612-MI, 8ea737116-001, 25-2140, 91-27-3094, 150.515.112, 626.012.112, 4327, 17110, 17110N, 17110R, 69207, 3025527, 11040341

  • Normaliserat artikelnummer
    acs116, drs3235, f032113668, f042001175, f042s01175, js915, m002t58581, m002t58881, m2t58581, m2t58881, s5021, s8325, s9463, sm0046r, smt0102, sr5037x, str7002, 8ea737116001, 4327, 17110, 17110n, 17110r, 21612mi, 69207, 115518, 115519, 252140, 918306, 3025527, 11040341, 91273094, 150515112, 626012112

  • Passar modeller
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
    Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 77.00
    Drive dist.: 18.00
    Mount. hole 2 mm: 11.20
    Mount. hole 1 mm: 11.20
    Dist./back: 154.50
    Dist./front: 53.50
    No./teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 208.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ and w/o bendix housing are interchangeable.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 77.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Clutch type Dry
    Position/B+ 60
    Prod. info BN
    Remarks w/ and w/o bendix housing are interchangeable.
    Rotation CW
    Dist./back 154.50
    Dist./front 53.50
    Drive dist. 18.00
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 208.00 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 11.20 mm
    Mount. hole 1 11.20 mm
  • Fordonsmatchning

    • OEM
      F032113668, js915, M002T58581, M002T58881, m2t58581, m2t58881, s9463, 115518, 115519, 918306

    • Konkurrentreferens
      acs-116, drs3235, F042001175, F042S01175, s-8325, S5021, sm-0046r, smt0102, SR5037X, STR-7002, 2-1612-MI, 8ea737116-001, 25-2140, 91-27-3094, 150.515.112, 626.012.112, 4327, 17110, 17110N, 17110R, 69207, 3025527, 11040341

    • Normaliserat artikelnummer
      acs116, drs3235, f032113668, f042001175, f042s01175, js915, m002t58581, m002t58881, m2t58581, m2t58881, s5021, s8325, s9463, sm0046r, smt0102, sr5037x, str7002, 8ea737116001, 4327, 17110, 17110n, 17110r, 21612mi, 69207, 115518, 115519, 252140, 918306, 3025527, 11040341, 91273094, 150515112, 626012112

    • Passar modeller
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
      Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
