Artikelnr: F032113665

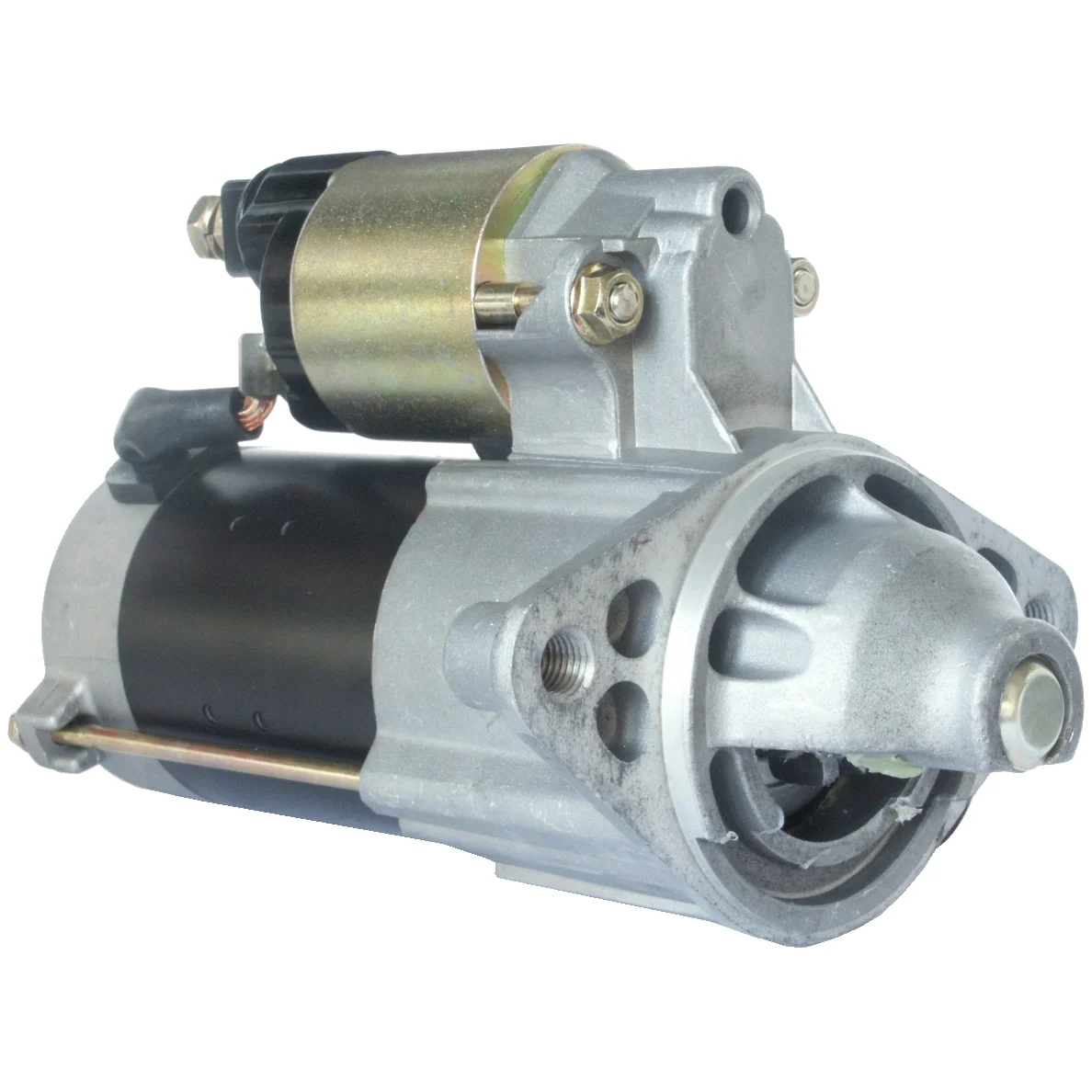

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 0.8
Mount. flange: 74.00
Drive dist.: 5.00
Dist./back: 164.00
Dist./front: 40.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 42
Terminal 50: Plug
Gear type: DD/GR
Dist. mm: 114.00
Rotation: CW
Total length mm: 206.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 42
Clutch type Wet
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 164.00
Dist./front 40.00
Drive dist. 5.00
Drive type Steel
Gear type DD/GR
kW 0.8
Terminal 50 Plug
Voltage 12
Total length 206.50 mm
Waterproof No
Dist. 114.00 mm

  • OEM
    F032113665, js1023, 6858, 28100-11060, 28100-11080, 28100-11140, 228000-4020, 228000-6730

  • Konkurrentreferens
    CST44110, drs3379, F042000201, F042S00201, s-8907, S6321S, snd0220, st-00147r, STR-8261, STR8279, 2-1840-nd, 8EA011611-271, 8ea737356-001, 25-2218, 25-2234, 44-6741, 335.045.092, 335.212.092, 4508, 17285, 17679, 17679N, 103726, 105021, 201023, 11040611, 11040612, 11040624, 0986018741, 0986019111, 0986019121

  • Normaliserat artikelnummer
    cst44110, drs3379, f032113665, f042000201, f042s00201, js1023, s6321s, s8907, snd0220, st00147r, str8261, str8279, 8ea011611271, 8ea737356001, 4508, 6858, 17285, 17679, 17679n, 21840nd, 103726, 105021, 201023, 252218, 252234, 446741, 11040611, 11040612, 11040624, 335045092, 335212092, 0986018741, 0986019111, 0986019121, 2280004020, 2280006730, 2810011060, 2810011080, 2810011140

  • Passar modeller
    Toyota Model: Corolla Model series: Corolla Model type: GLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Estate From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Hatchback From date: 01-08-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Estate From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes Manufacture type: Wagon
    Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 4E-FE Type description: _E11_ From date: 01-05-1997 To date: 01-09-1999 Fuel: Petrol Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Estate From date: 01-04-1997 To date: 01-02-2000 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Hatchback From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Model type: Convertible Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Convertible From date: 01-10-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Coupe From date: 01-08-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE Body: Hatchback From date: 01-01-1996 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE,2E Type description: _P9_ Body: Hatchback From date: 01-11-1996 To date: 01-07-1999 Fuel: Petrol Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
