Artikelnr: F032113655

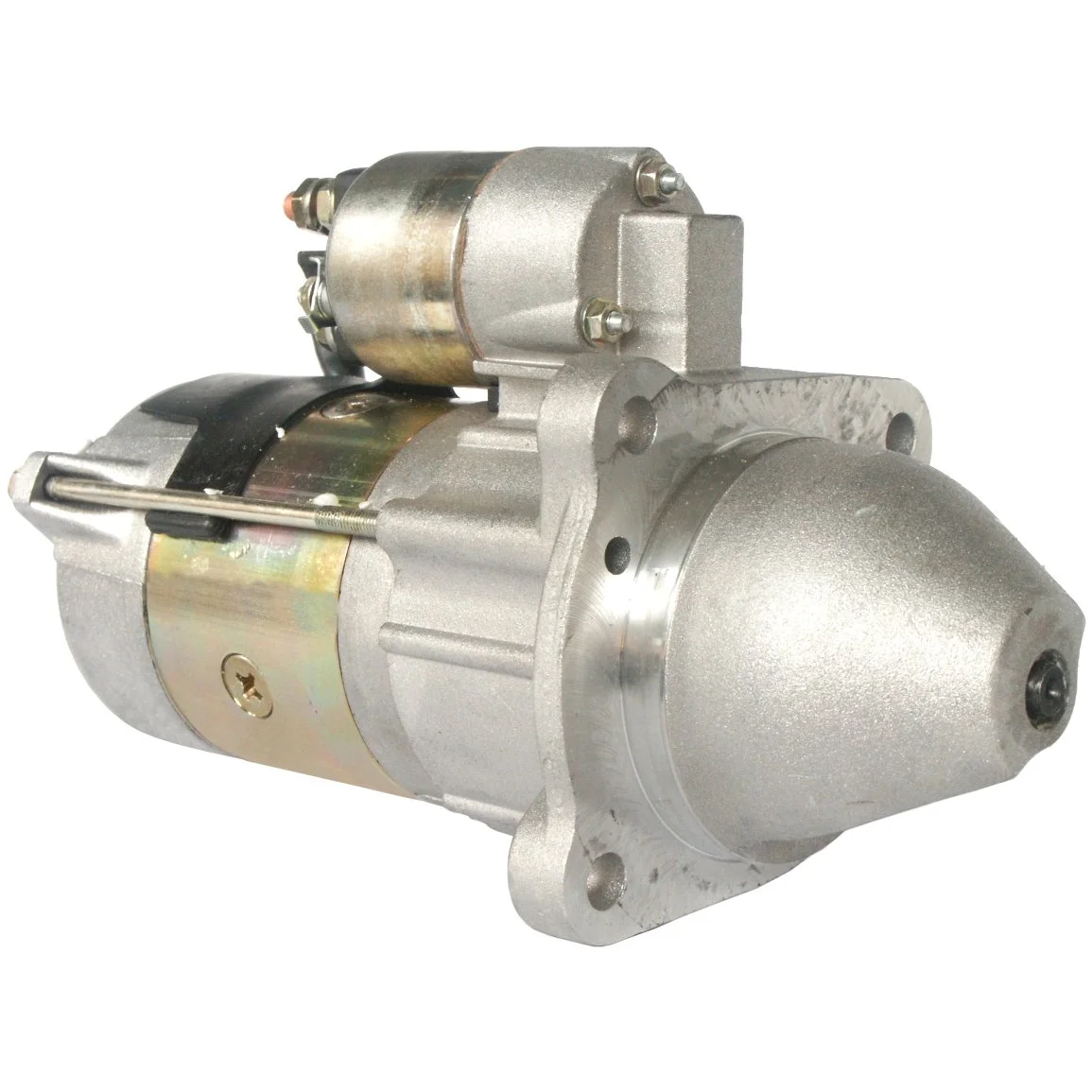

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 30.50
Mount. hole 3 mm: 11.50
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 196.50
Dist./front: 68.50
No./teeth: 10
B+: M8
Thread length mm: 19.00
Position/50: 20
Terminal 50: M6
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 126.50
Rotation: CW
Total length mm: 291.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: HC-CARGO 113655 is a Marelli/Denso version
Remarks: Marelli/Denso version.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 20
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Remarks Marelli/Denso version.
Dist. 3 90.00
Rotation CW
Dist./back 196.50
Dist./front 68.50
Drive dist. 30.50
Drive type Steel
Gear type GR
Info HC-CARGO 113655 is a Marelli/Denso version
kW 3.0
Terminal 50 M6
Voltage 12
Total length 291.00 mm
Waterproof No
Dist. 126.50 mm
Thread length 19.00 mm
Mount. hole 3 11.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032113655, 2873k405, 428000-1290, 63280041

  • Konkurrentreferens
    BSO7311, CST30170, LES0271, LRS02425, MSN8041, S4030, STR70057, 8EA015642-131, 25-4097, 18940N, 220702, 220702A, 254193, 11090183

  • Normaliserat artikelnummer
    bso7311, cst30170, f032113655, les0271, lrs02425, msn8041, s4030, str70057, 8ea015642131, 2873k405, 18940n, 220702, 220702a, 254097, 254193, 11090183, 63280041, 4280001290

  • Passar modeller
    Hattat Tarim Model: A-Series Model series: A-Series Approved: Yes
    JCB Model: 8 Model series: 8 Brand of engine: Perkins 6-354 From date: 01-01-1969 Fuel: Diesel Approved: Yes
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 30.50
    Mount. hole 3 mm: 11.50
    Mount. hole 2 mm: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 196.50
    Dist./front: 68.50
    No./teeth: 10
    B+: M8
    Thread length mm: 19.00
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 291.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Info: HC-CARGO 113655 is a Marelli/Denso version
    Remarks: Marelli/Denso version.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 20
    Clutch type Dry
    Prod. info BN
    Dist. 2 90.00
    Remarks Marelli/Denso version.
    Dist. 3 90.00
    Rotation CW
    Dist./back 196.50
    Dist./front 68.50
    Drive dist. 30.50
    Drive type Steel
    Gear type GR
    Info HC-CARGO 113655 is a Marelli/Denso version
    kW 3.0
    Terminal 50 M6
    Voltage 12
    Total length 291.00 mm
    Waterproof No
    Dist. 126.50 mm
    Thread length 19.00 mm
    Mount. hole 3 11.50 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning

    • OEM
      F032113655, 2873k405, 428000-1290, 63280041

    • Konkurrentreferens
      BSO7311, CST30170, LES0271, LRS02425, MSN8041, S4030, STR70057, 8EA015642-131, 25-4097, 18940N, 220702, 220702A, 254193, 11090183

    • Normaliserat artikelnummer
      bso7311, cst30170, f032113655, les0271, lrs02425, msn8041, s4030, str70057, 8ea015642131, 2873k405, 18940n, 220702, 220702a, 254097, 254193, 11090183, 63280041, 4280001290

    • Passar modeller
      Hattat Tarim Model: A-Series Model series: A-Series Approved: Yes
      JCB Model: 8 Model series: 8 Brand of engine: Perkins 6-354 From date: 01-01-1969 Fuel: Diesel Approved: Yes
      Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
