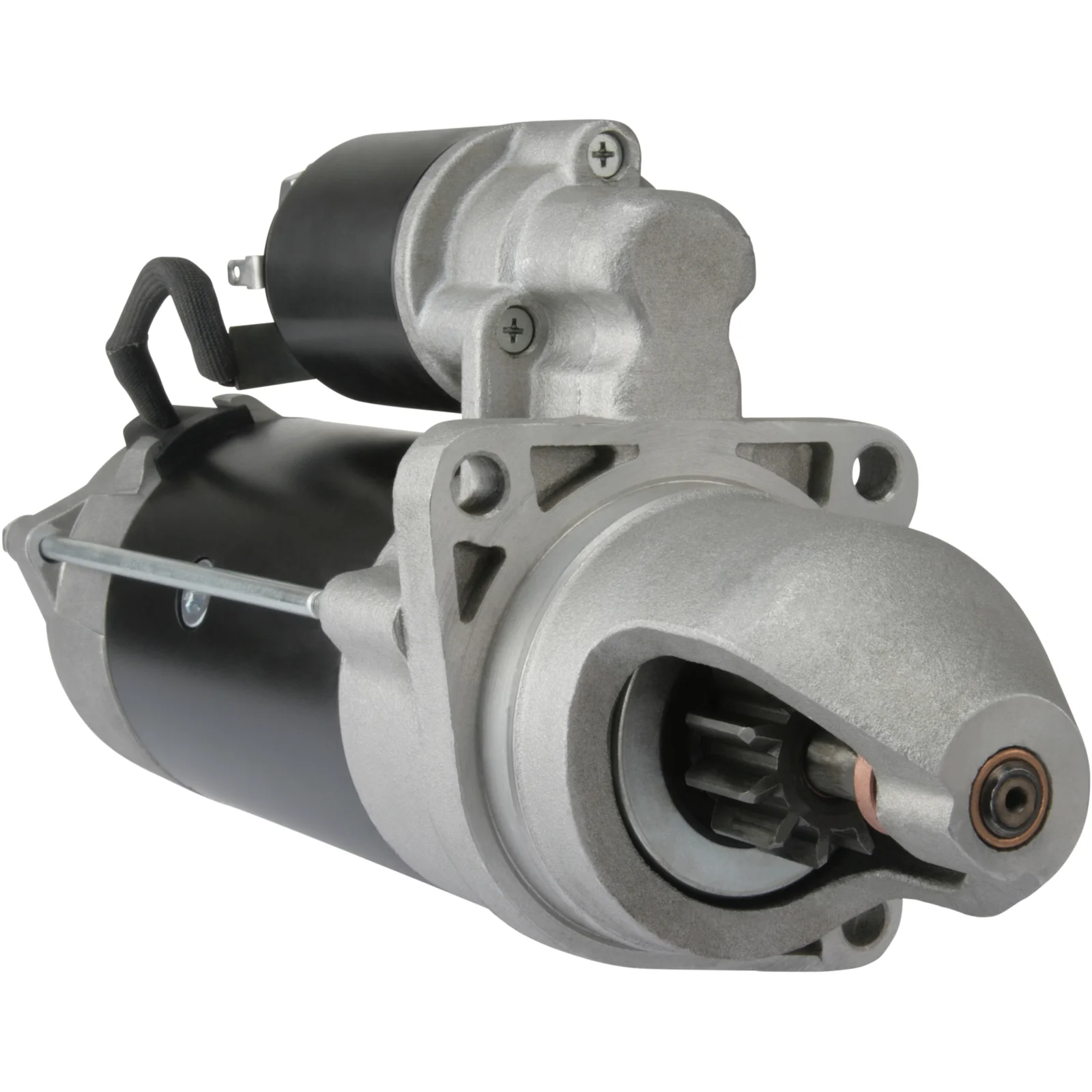

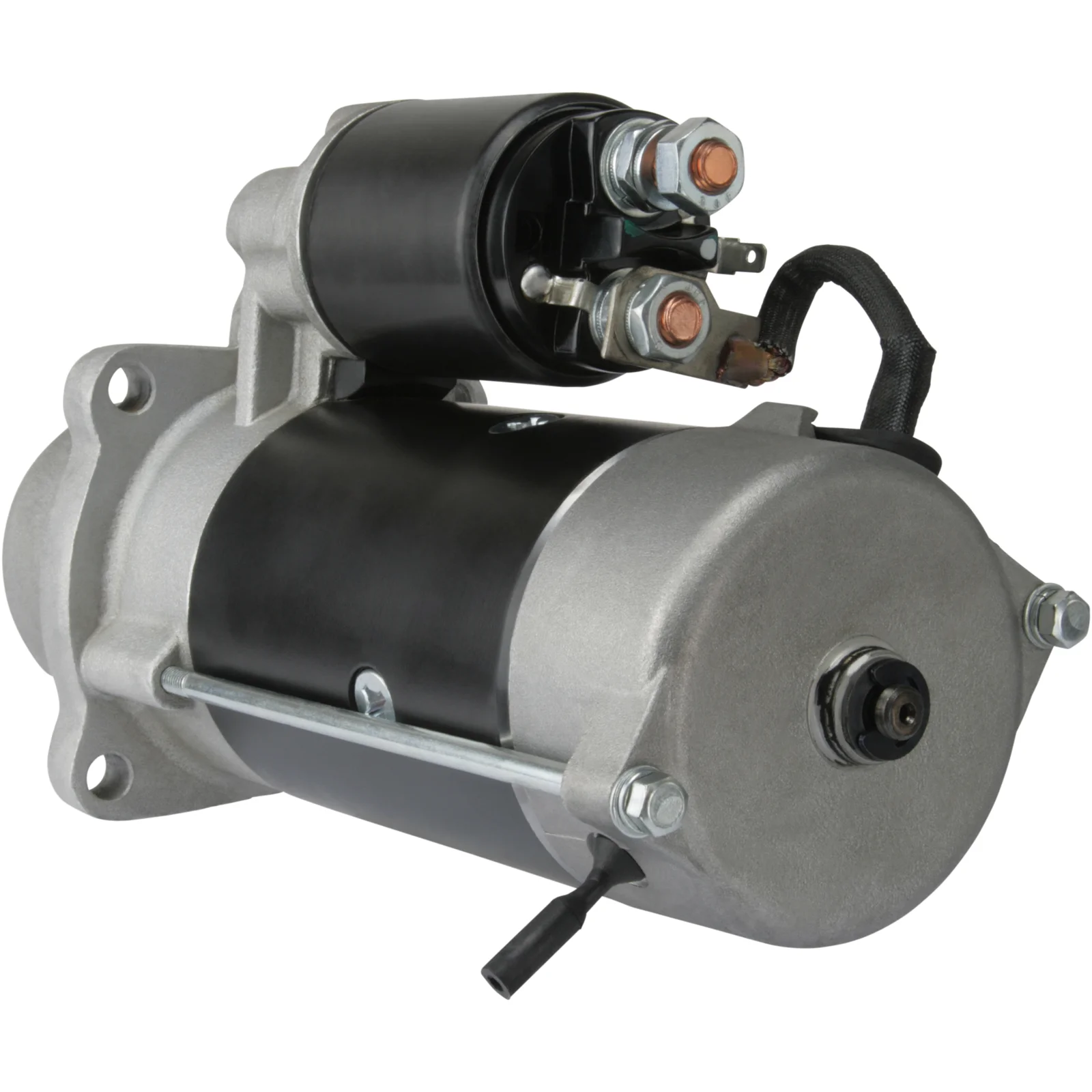

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113570

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 220.50
Dist./front: 94.50
No./teeth: 11
B+: M10
Position/50: 17
Terminal 50: 6.30
Gear type: GR
Dist. 2: 89.50
Dist. 3: 126.50
Dist. mm: 89.50
Rotation: CW
Total length mm: 320.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 17
Clutch type Dry
Prod. info BN
Dist. 2 89.50
Dist. 3 126.50
Rotation CW
Dist./back 220.50
Dist./front 94.50
Drive dist. 48.00
Drive type Steel
Gear type GR
kW 4.0
Terminal 50 6.30
Voltage 12
Total length 320.00 mm
Waterproof No
Dist. 89.50 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    azf4190, AZF4513, F032113570, V836866817, V836873457, VPF7263, 11.130.836, 11.131.542, 11.131.727, 1986S10042, 569018D1, 0001260025, 0001260026, 47111575, 83646500, 84284540, 87693781, 87751000, 89732200, 836673290, 836866817, 836873088, 836873290, 836873457, 162000090722

  • Konkurrentreferens
    CST21117, DRS0569, IS0836, LRS02361, MS175, MS591, S0285, S9227, 8EA015642-661, 25-4033, 19992N, 254856, 11090215, 35259360, 0986025413, 0986026910

  • Normaliserat artikelnummer
    azf4190, azf4513, cst21117, drs0569, f032113570, is0836, lrs02361, ms175, ms591, s0285, s9227, v836866817, v836873457, vpf7263, 8ea015642661, 1986s10042, 19992n, 254033, 254856, 569018d1, 0001260025, 0001260026, 11090215, 11130836, 11131542, 11131727, 35259360, 47111575, 83646500, 84284540, 87693781, 87751000, 89732200, 836673290, 836866817, 836873088, 836873290, 836873457, 0986025413, 0986026910, 162000090722

  • Passar modeller
    Valtra Model: T Model series: T120 Fuel: Diesel Approved: Yes
    Valtra Model: T Model series: T130 Fuel: Diesel Approved: Yes
    Valtra Model: T Model series: T140 Fuel: Diesel Approved: Yes
    Valtra Model: T Model series: T160 Fuel: Diesel Approved: Yes
    Valtra Model: T Model series: T170 Fuel: Diesel Approved: Yes
    Valtra Model: T Model series: T180 Fuel: Diesel Approved: Yes
    Valtra Model: T Model series: T190 Fuel: Diesel Approved: Yes
    Valtra Model: Various Models Model series: Various Models Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 220.50
    Dist./front: 94.50
    No./teeth: 11
    B+: M10
    Position/50: 17
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 89.50
    Dist. 3: 126.50
    Dist. mm: 89.50
    Rotation: CW
    Total length mm: 320.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 17
    Clutch type Dry
    Prod. info BN
    Dist. 2 89.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 220.50
    Dist./front 94.50
    Drive dist. 48.00
    Drive type Steel
    Gear type GR
    kW 4.0
    Terminal 50 6.30
    Voltage 12
    Total length 320.00 mm
    Waterproof No
    Dist. 89.50 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      azf4190, AZF4513, F032113570, V836866817, V836873457, VPF7263, 11.130.836, 11.131.542, 11.131.727, 1986S10042, 569018D1, 0001260025, 0001260026, 47111575, 83646500, 84284540, 87693781, 87751000, 89732200, 836673290, 836866817, 836873088, 836873290, 836873457, 162000090722

    • Konkurrentreferens
      CST21117, DRS0569, IS0836, LRS02361, MS175, MS591, S0285, S9227, 8EA015642-661, 25-4033, 19992N, 254856, 11090215, 35259360, 0986025413, 0986026910

    • Normaliserat artikelnummer
      azf4190, azf4513, cst21117, drs0569, f032113570, is0836, lrs02361, ms175, ms591, s0285, s9227, v836866817, v836873457, vpf7263, 8ea015642661, 1986s10042, 19992n, 254033, 254856, 569018d1, 0001260025, 0001260026, 11090215, 11130836, 11131542, 11131727, 35259360, 47111575, 83646500, 84284540, 87693781, 87751000, 89732200, 836673290, 836866817, 836873088, 836873290, 836873457, 0986025413, 0986026910, 162000090722

    • Passar modeller
      Valtra Model: T Model series: T120 Fuel: Diesel Approved: Yes
      Valtra Model: T Model series: T130 Fuel: Diesel Approved: Yes
      Valtra Model: T Model series: T140 Fuel: Diesel Approved: Yes
      Valtra Model: T Model series: T160 Fuel: Diesel Approved: Yes
      Valtra Model: T Model series: T170 Fuel: Diesel Approved: Yes
      Valtra Model: T Model series: T180 Fuel: Diesel Approved: Yes
      Valtra Model: T Model series: T190 Fuel: Diesel Approved: Yes
      Valtra Model: Various Models Model series: Various Models Approved: Yes
