HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113551

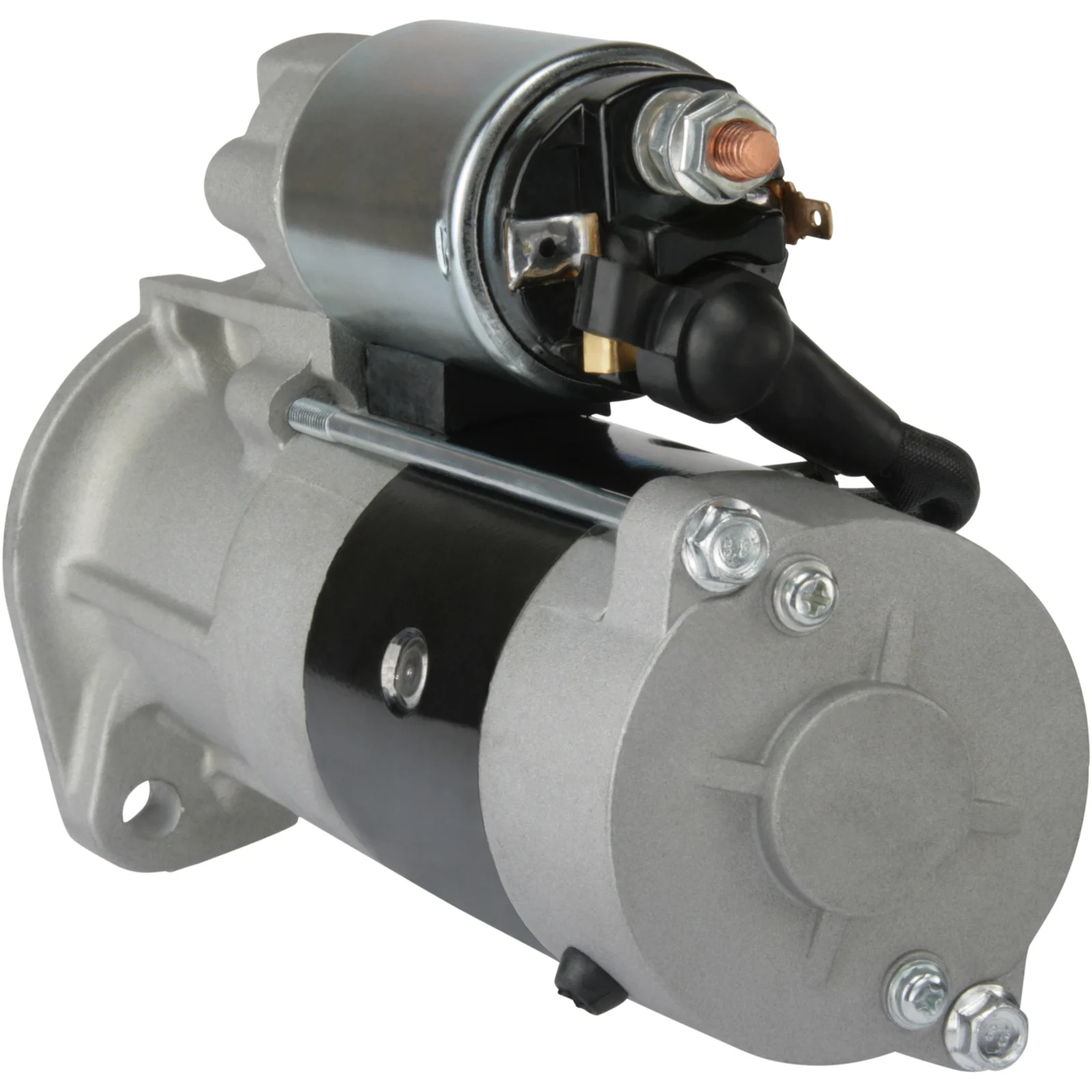

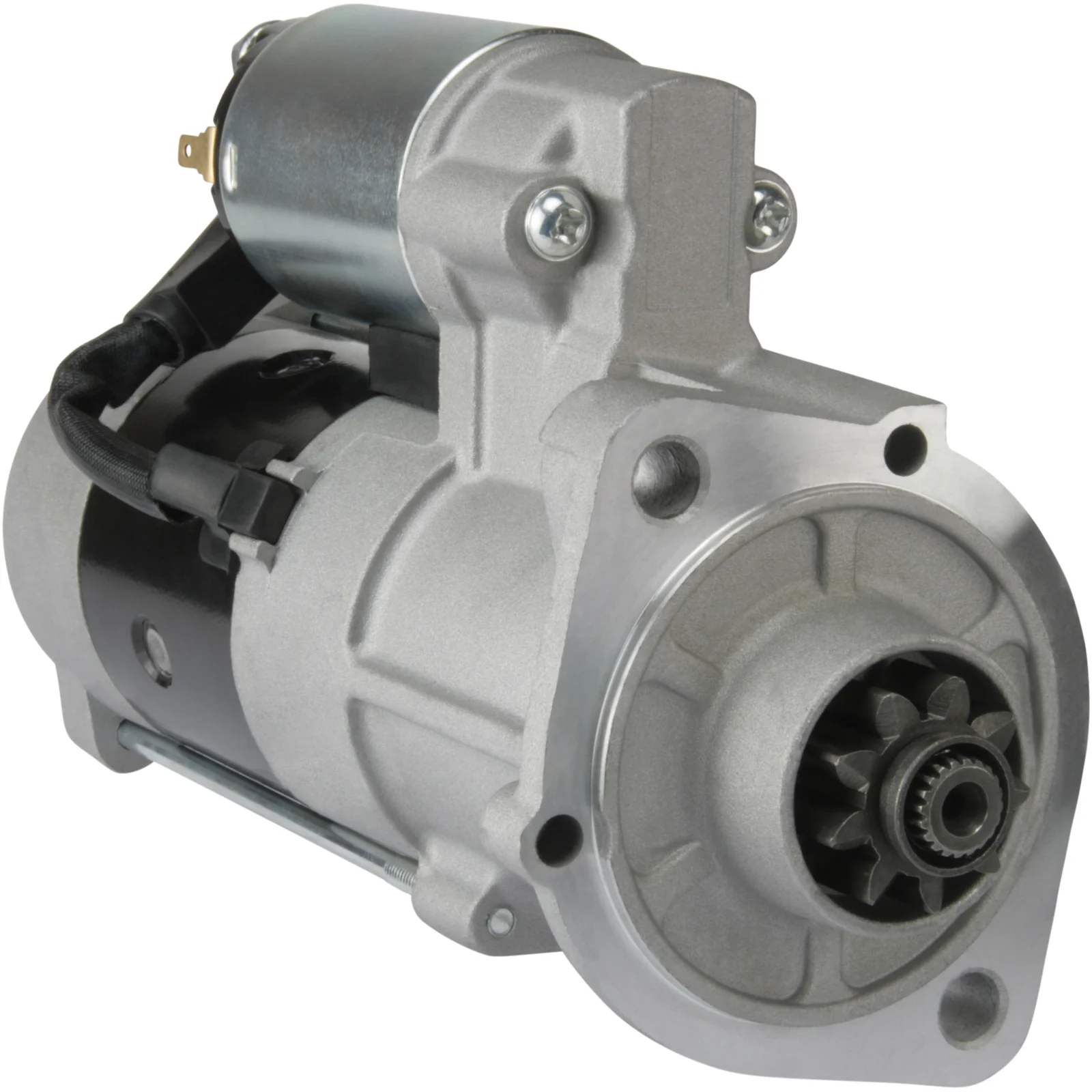

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Kubota V3300 Startm. 12V-2.5kW 12V - 2.5kW, 9k A - 82.5mm, B - 27mm För Yourex produkt order 91-293-7097

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 27.00
Mount. hole 2 mm: 11.20
Mount. hole 1 mm: 11.20
Dist./back: 223.00
Dist./front: 35.00
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 258.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 223.00
Dist./front 35.00
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 258.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.20 mm
Mount. hole 1 11.20 mm

  • OEM
    F032113551, M008T70971, M8T-70971, m8t70971, 1C010-63010, 1c010-63010, 1C010-63011, 1c010-63011, 1C010-63012, 1G772-63011, 1G772-63012, 113551

  • Konkurrentreferens
    CST35158, DRS0358, s-8961, S5057, smt0179, STR71019, 8EA015642-231, 25-5022, 683.041.092, 18398, 18398N, 254042, 42992831

  • Bilmärken
    Kubota

  • Normaliserat artikelnummer
    cst35158, drs0358, f032113551, m008t70971, m8t70971, s5057, s8961, smt0179, str71019, 1c01063010, 1c01063011, 1c01063012, 1g77263011, 1g77263012, 8ea015642231, 18398, 18398n, 113551, 254042, 255022, 42992831, 683041092

  • Passar modeller
    Kubota Model: Engine Model series: Various Models Approved: Yes
    Kubota Series: Generator Set Model: SQ 3350 SW Engine type: V 3300
    Kubota Series: Traktor Model: M 105 ... Engine type: V 3800 Year: 01.03-12.05
    Kubota Series: Traktor Model: M 6800 ... Engine type: V 3300 Year: 01.98-12.05
    Kubota Series: Traktor Model: M 8200 ... Engine type: V 3300 Year: 01.98-12.05
    Kubota Series: Traktor Model: M 9000 ... Engine type: V 3300 Year: 01.98-12.05
