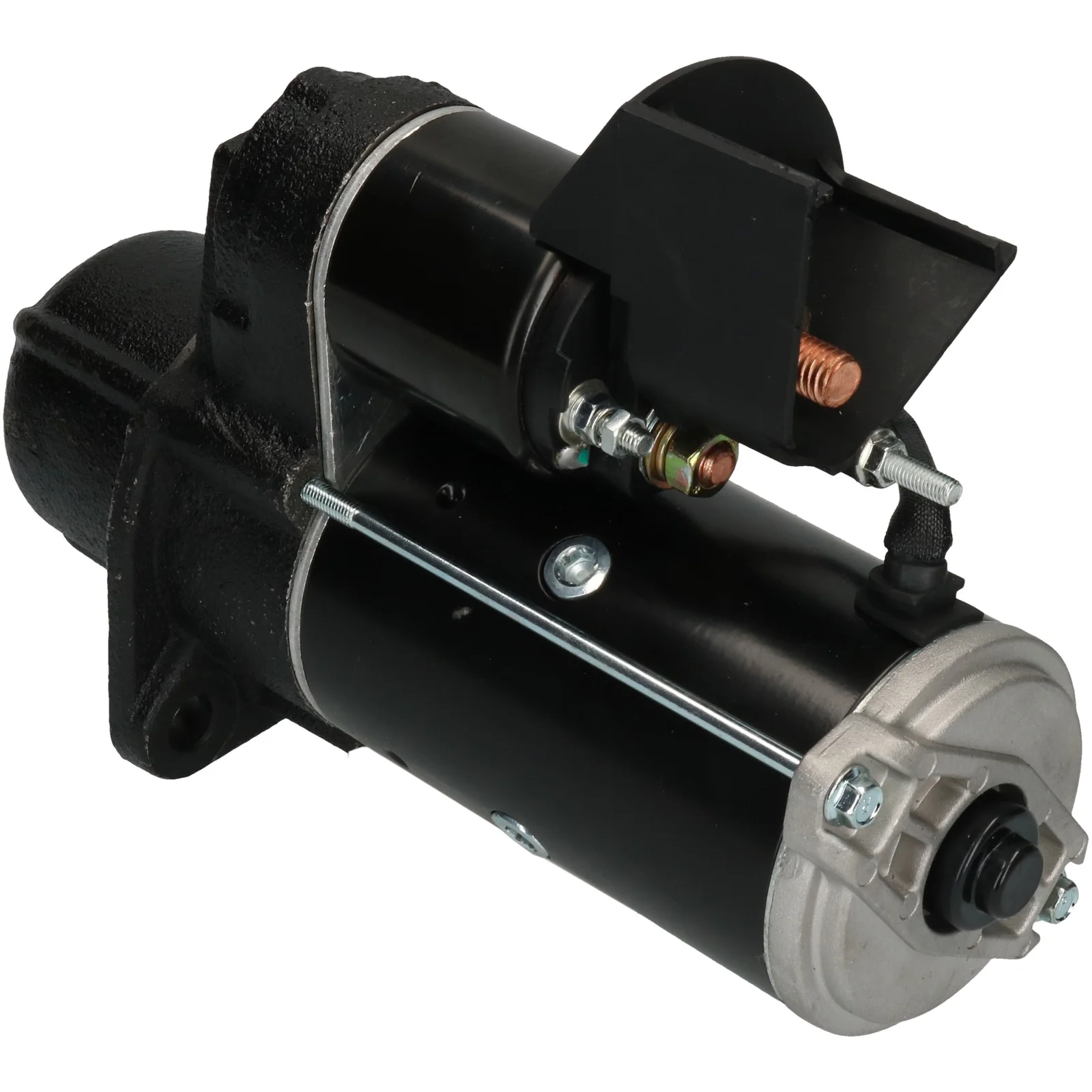

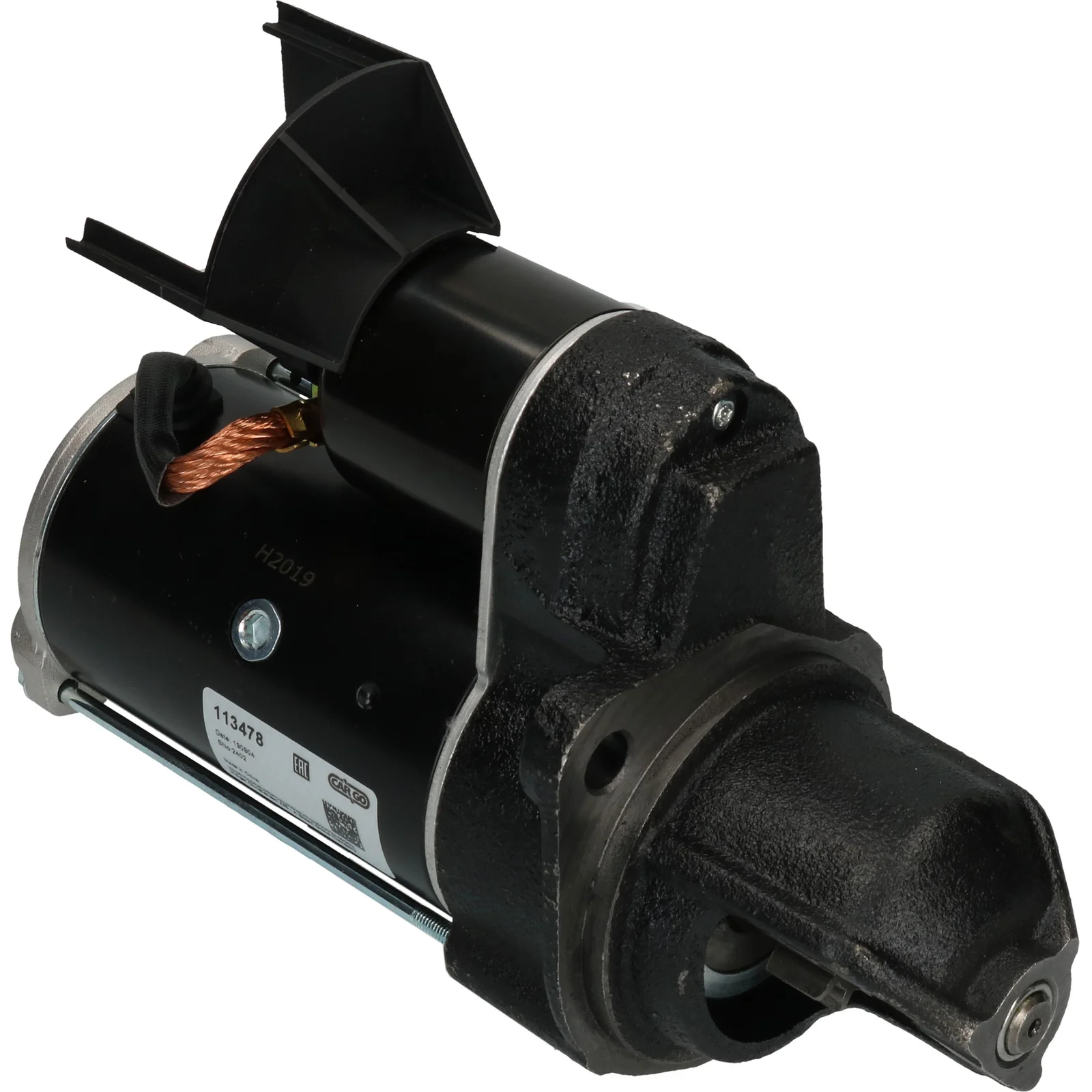

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113478

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 82.50
Drive dist.: 35.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 183.00
Dist./front: 71.00
No./teeth: 10
B+: M10
Position/B+: 60
Position/50: 45
Terminal 50: M5
Gear type: DD/GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 254.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: GR Type.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 82.50
Oil sealed Yes
No./mount. holes 2 (0)
Position/50 45
Clutch type Dry
Position/B+ 60
Prod. info BN
Remarks GR Type.
Rotation CW
Dist./back 183.00
Dist./front 71.00
Drive dist. 35.00
Drive type Steel
Gear type DD/GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 254.00 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    aze4603, aze4620, d7r14, F032113478, RE500819, re501157, RE501347, RE501680, RE501689, re501693, RE501854, re502156, RE502196, re505746, re516157, re60641, RE63010, re684701, re71505, 11.131.063, 11.131.221, 11.131.384, 187031, 1109208, 0001223502, 0001230005, 0001367081, 26024033a

  • Konkurrentreferens
    CST10229, CST10360, CST15206, CST40246, DRS0152, DRS0303, DRT2520, MS419, s-6532, S0298, S0299, S0534, S3071, S9325S, STR50264, 2-2294-VA, 25-4465, 91-20-3530, 630.537.102, 686.018.102, 17086, 17086N, 17362N, 18359N, 105681, 220613, 220613A, 220820, 220820A, 254364, 455735, 8213654, 11022520, 11090154, 11090176, 42017880, 0986021187, 0986022520

  • Normaliserat artikelnummer
    aze4603, aze4620, cst10229, cst10360, cst15206, cst40246, d7r14, drs0152, drs0303, drt2520, f032113478, ms419, re500819, re501157, re501347, re501680, re501689, re501693, re501854, re502156, re502196, re505746, re516157, re60641, re63010, re684701, re71505, s0298, s0299, s0534, s3071, s6532, s9325s, str50264, 17086, 17086n, 17362n, 18359n, 22294va, 105681, 187031, 220613, 220613a, 220820, 220820a, 254364, 254465, 455735, 1109208, 0001223502, 0001230005, 0001367081, 8213654, 11022520, 11090154, 11090176, 11131063, 11131221, 11131384, 26024033a, 42017880, 91203530, 630537102, 686018102, 0986021187, 0986022520

  • Passar modeller
    Atlas Copco Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: 5000 Series Model series: 5210 Approved: Yes
    John Deere Model: 5000 Series Model series: 5310 Approved: Yes
    John Deere Model: 5000 Series Model series: 5410 Approved: Yes
    John Deere Model: 6000 Series Model series: 6320 Size of motor: 3.9 From date: 01-01-2002 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 82.50
    Drive dist.: 35.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 183.00
    Dist./front: 71.00
    No./teeth: 10
    B+: M10
    Position/B+: 60
    Position/50: 45
    Terminal 50: M5
    Gear type: DD/GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 254.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: GR Type.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 82.50
    Oil sealed Yes
    No./mount. holes 2 (0)
    Position/50 45
    Clutch type Dry
    Position/B+ 60
    Prod. info BN
    Remarks GR Type.
    Rotation CW
    Dist./back 183.00
    Dist./front 71.00
    Drive dist. 35.00
    Drive type Steel
    Gear type DD/GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 254.00 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      aze4603, aze4620, d7r14, F032113478, RE500819, re501157, RE501347, RE501680, RE501689, re501693, RE501854, re502156, RE502196, re505746, re516157, re60641, RE63010, re684701, re71505, 11.131.063, 11.131.221, 11.131.384, 187031, 1109208, 0001223502, 0001230005, 0001367081, 26024033a

    • Konkurrentreferens
      CST10229, CST10360, CST15206, CST40246, DRS0152, DRS0303, DRT2520, MS419, s-6532, S0298, S0299, S0534, S3071, S9325S, STR50264, 2-2294-VA, 25-4465, 91-20-3530, 630.537.102, 686.018.102, 17086, 17086N, 17362N, 18359N, 105681, 220613, 220613A, 220820, 220820A, 254364, 455735, 8213654, 11022520, 11090154, 11090176, 42017880, 0986021187, 0986022520

    • Normaliserat artikelnummer
      aze4603, aze4620, cst10229, cst10360, cst15206, cst40246, d7r14, drs0152, drs0303, drt2520, f032113478, ms419, re500819, re501157, re501347, re501680, re501689, re501693, re501854, re502156, re502196, re505746, re516157, re60641, re63010, re684701, re71505, s0298, s0299, s0534, s3071, s6532, s9325s, str50264, 17086, 17086n, 17362n, 18359n, 22294va, 105681, 187031, 220613, 220613a, 220820, 220820a, 254364, 254465, 455735, 1109208, 0001223502, 0001230005, 0001367081, 8213654, 11022520, 11090154, 11090176, 11131063, 11131221, 11131384, 26024033a, 42017880, 91203530, 630537102, 686018102, 0986021187, 0986022520

    • Passar modeller
      Atlas Copco Model: Various Models Model series: Various Models Approved: Yes
      John Deere Model: 5000 Series Model series: 5210 Approved: Yes
      John Deere Model: 5000 Series Model series: 5310 Approved: Yes
      John Deere Model: 5000 Series Model series: 5410 Approved: Yes
      John Deere Model: 6000 Series Model series: 6320 Size of motor: 3.9 From date: 01-01-2002 Fuel: Diesel Approved: Yes
