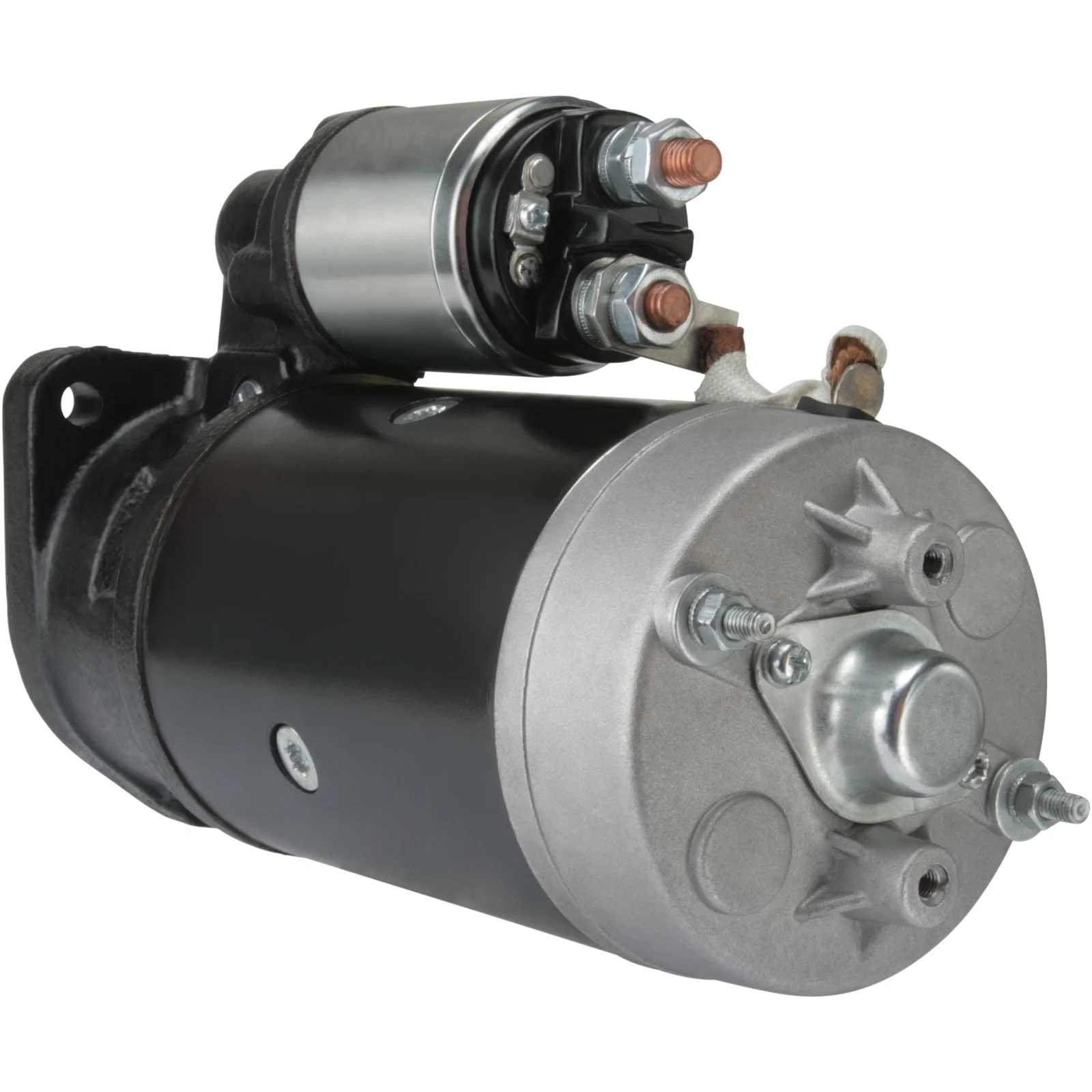

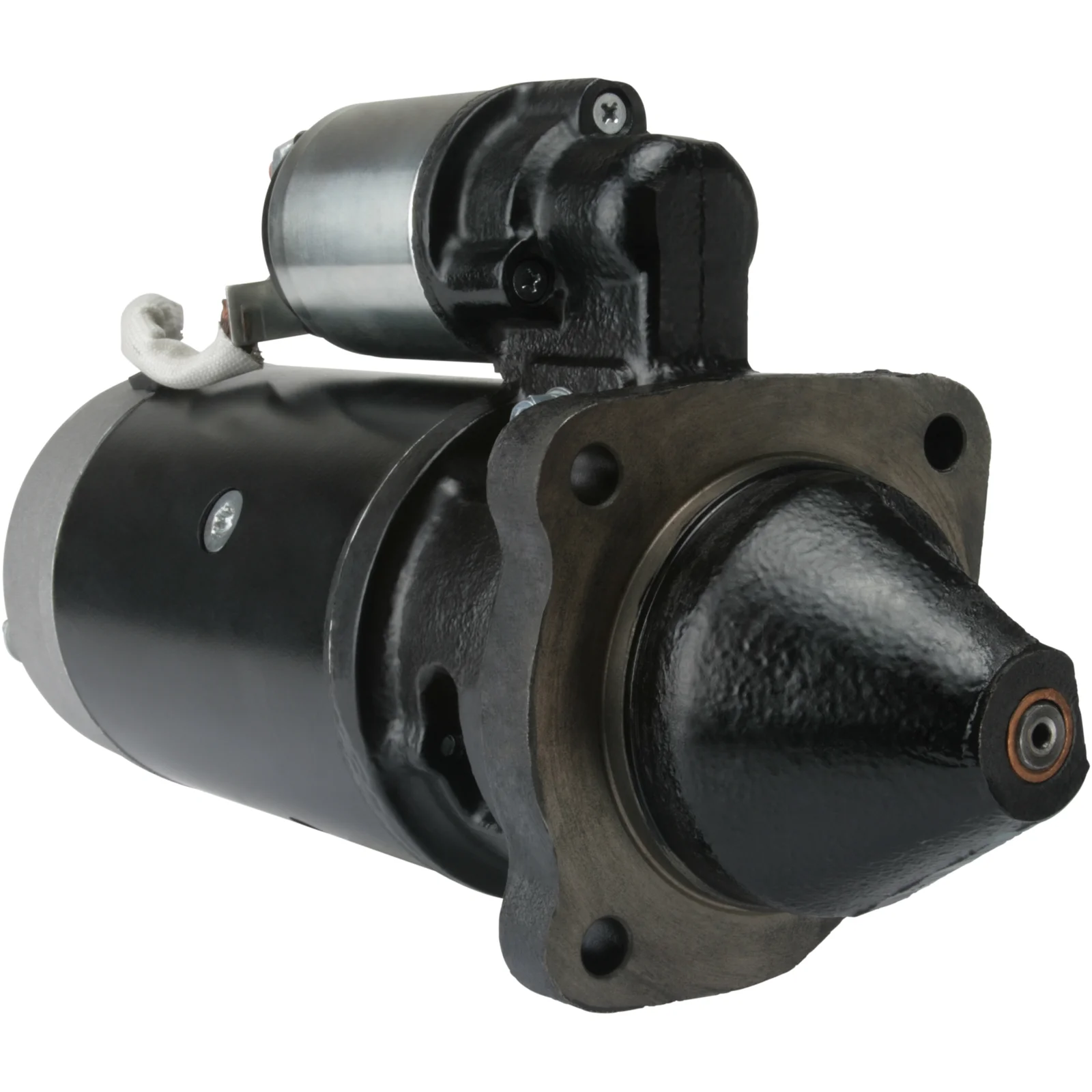

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113465

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 21.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 266.00
Dist./front: 70.50
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 338.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 266.00
Dist./front 70.50
Drive dist. 21.50
Drive type Steel
Gear type DD
kW 3.0
Terminal 50 M4
Voltage 12
Total length 338.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    A5.00055-9361, azj3187, d11e104, d11e119, d11e119t, F032113465, ND53301B, 11.130.596, 50.26201-7078, 81.26201-9010, 12760, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785R, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684

  • Konkurrentreferens
    drs0960, is0596, lrs00631, MS328, MSR734, S0739S, S1127, sr924x, 8ea730177-001, 25-0362, 50-9123, 88-10.960, 600.006.102, 1586, 6602N, 10607, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308A, 436091, 11010960, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 943252273010

  • Normaliserat artikelnummer
    a5000559361, azj3187, d11e104, d11e119, d11e119t, drs0960, f032113465, is0596, lrs00631, ms328, msr734, nd53301b, s0739s, s1127, sr924x, 8ea730177001, 1586, 6602n, 10607, 12760, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308a, 250362, 436091, 509123, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785r, 8810960, 11010960, 11130596, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 600006102, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684, 50262017078, 81262019010, 943252273010

  • Passar modeller
    Renault V.I. Model: G Series Model series: G 170.11 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Body: Platform / Chassis From date: 01-05-1983 To date: 01-02-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 110.06 Size of motor: 5.5 Brand of engine: 797-21 Type description: Midliner Body: Platform / Chassis From date: 01-06-1985 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 130.07 Size of motor: 5.5 Brand of engine: 797 Type description: Midliner Body: Platform / Chassis From date: 01-09-1983 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 130.08 Size of motor: 5.5 Brand of engine: 797 Type description: Midliner Body: Platform / Chassis From date: 01-09-1983 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Dump Truck From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Platform / Chassis From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 6.2 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Dump Truck From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Platform / Chassis From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: General Purpose Vehicle From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.11 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.11 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-04-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.14 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: General Purpose Vehicle From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.11 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1987 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: General Purpose Vehicle From date: 01-10-1983 To date: 01-03-1993 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Semi-Trailer From date: 01-10-1984 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Dump Truck From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1987 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.15 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: General Purpose Vehicle From date: 01-10-1982 To date: 01-09-1993 Fuel: Diesel Approved: Yes
