HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113429

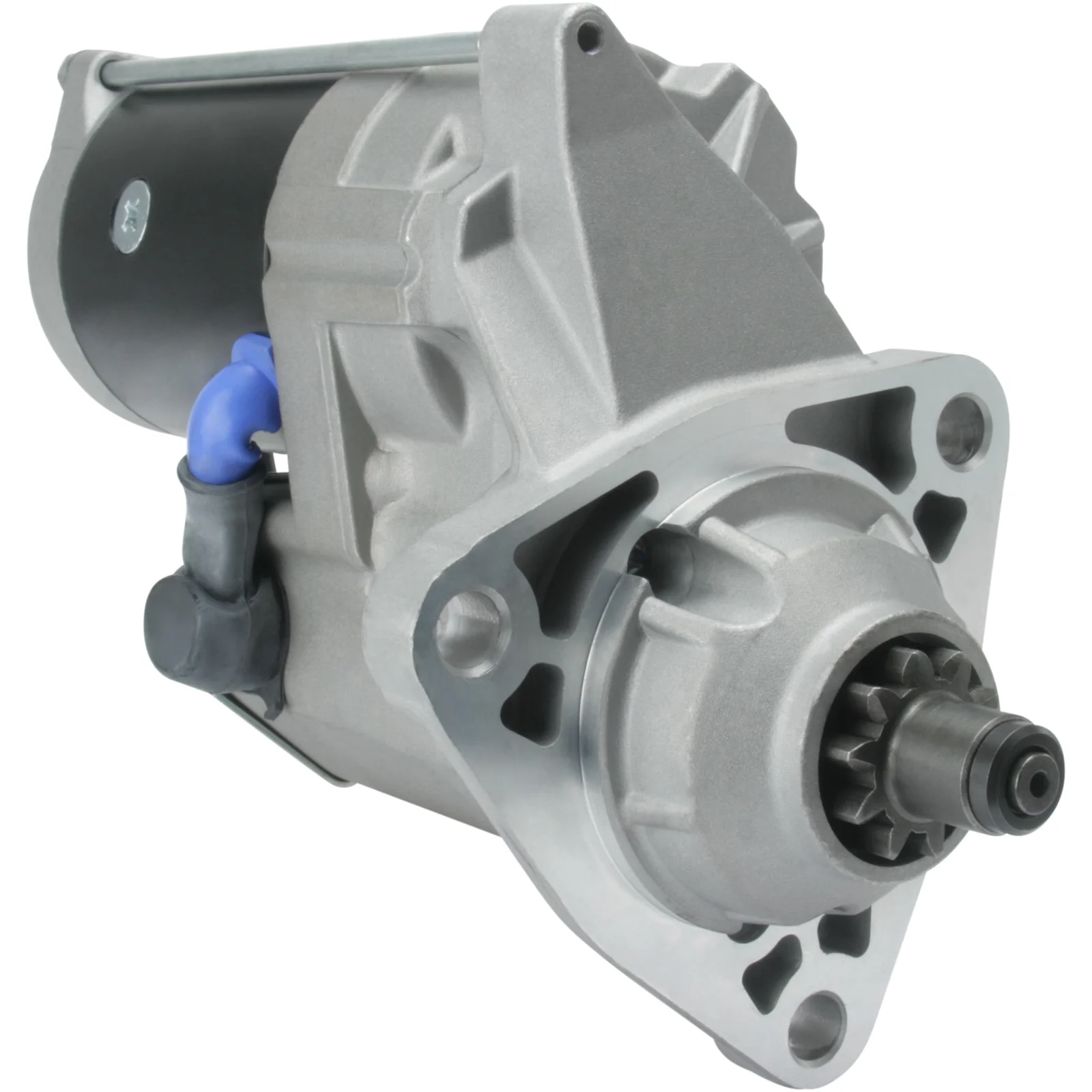

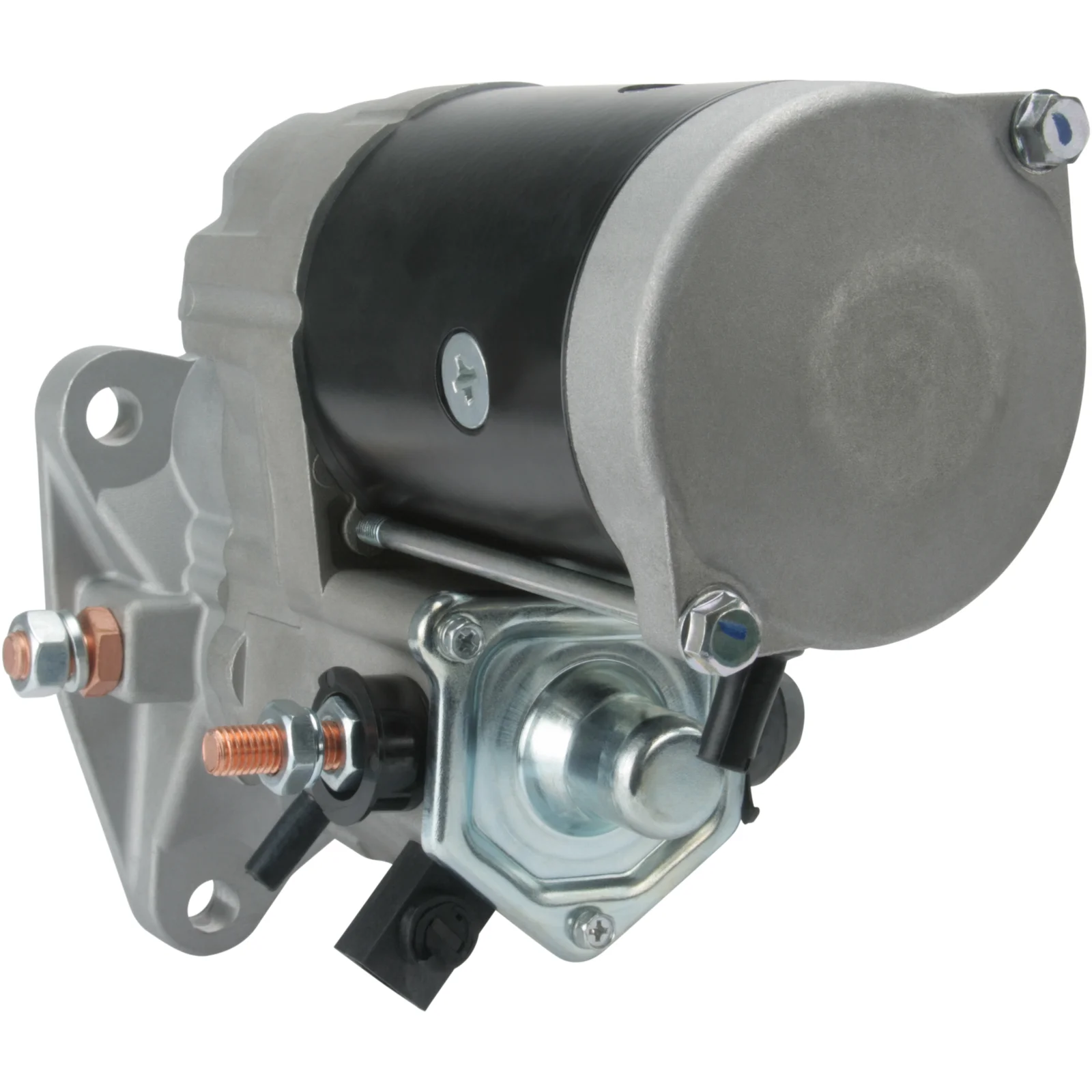

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.2
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 160.50
Dist./front: 74.00
No./teeth: 10
B+: M10
Position/50: 35
Terminal 50: M5
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. mm: 126.50
Rotation: CW
Position/b-: 15
B-: M12
Total length mm: 317.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M12
No./teeth 10
Mount. flange 92.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 35
Position/b- 15
Prod. info BN/OE
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 160.50
Dist./front 74.00
Drive dist. 47.50
Drive type Steel
Gear type GR
kW 4.2
Terminal 50 M5
Voltage 12
Total length 317.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    a162469, a187615, A187728, azf4577, azf4611, F032113429, 11.131.117, 11.131.300, 191-2212, 191-2347, 2347, 028000-7430, 028000-7431, 91902c1, 128000-4340, 128000-5330, 128000-5331, 128000-6391, 128000-9800, 128000-9801, 193432A01, 193432A1, 193432A2, 228000-5600, 228000-5601, 228000-5602, 228000-5603, 228000-5620, 228000-5621, 228000-5623, 228000-6390, 228000-6391, 228000-6392, 228000-6393, 705755A1, 01912347, 3283813, 3675245, 3675245RX, 3920328, 3921012, 3957589, 10461645, 10465537, 84146320, 87419387

  • Konkurrentreferens
    CST21154, CST40254, CST40321, DRS0356, DSN2011, DSN2023, IS1077, IS1089, les0653, LRS04177, MS101, MS117, S6333S, s8098, s8285, S9223, S9223(LETRIKA), S9233, 25-4499, 25-5340, 44-0209, 91-29-5060, 630.010.103, 685.035.102, 715.502.070, 17353, 17353N, 17614N, 17634N, 18343, 18343N, 18408, 18408N, 31641, 254714

  • Normaliserat artikelnummer
    a162469, a187615, a187728, azf4577, azf4611, cst21154, cst40254, cst40321, drs0356, dsn2011, dsn2023, f032113429, is1077, is1089, les0653, lrs04177, ms101, ms117, s6333s, s8098, s8285, s9223, s9223letrika, s9233, 2347, 17353, 17353n, 17614n, 17634n, 18343, 18343n, 18408, 18408n, 31641, 91902c1, 193432a01, 193432a1, 193432a2, 254499, 254714, 255340, 440209, 705755a1, 1912212, 01912347, 1912347, 3283813, 3675245, 3675245rx, 3920328, 3921012, 3957589, 10461645, 10465537, 11131117, 11131300, 84146320, 87419387, 91295060, 0280007430, 0280007431, 630010103, 685035102, 715502070, 1280004340, 1280005330, 1280005331, 1280006391, 1280009800, 1280009801, 2280005600, 2280005601, 2280005602, 2280005603, 2280005620, 2280005621, 2280005623, 2280006390, 2280006391, 2280006392, 2280006393

  • Passar modeller
    Case Model: 1000 Series Model series: 1620 Approved: Yes
    Case Model: 1000 Series Model series: 1640 Approved: Yes
    Case Model: 1000 Series Model series: 1644 Approved: Yes
    Case Model: 1000 Series Model series: 1666 Approved: Yes
    Case Model: 1000 Series Model series: 1680 Approved: Yes
    Case Model: 1000 Series Model series: 1688 Approved: Yes
    Case Model: 1000 Series Model series: 1690 From date: 01-01-1984 Approved: Yes
    Case Model: 2000 Series Model series: 2144 From date: 01-01-1994 Approved: Yes
    Case Model: 2000 Series Model series: 2155 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2166 Model type: Combines Size of motor: 8.3 Brand of engine: 6CTA From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2188 Model type: Combines Size of motor: 8.3 Brand of engine: 6CTA From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2366 Model type: Combines Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 5000 Series Model series: 5130 Brand of engine: 6T-590 From date: 01-06-1990 Fuel: Diesel Approved: Yes
    Case Model: 5000 Series Model series: 5140 Brand of engine: 6T-590 From date: 01-06-1990 Fuel: Diesel Approved: Yes
    Case Model: 600 Series Model series: 680 From date: 01-01-1983 To date: 01-01-1988 Approved: Yes
    Case Model: 6000 Series Model series: 6000 From date: 01-01-1985 Approved: Yes
    Case Model: 7000 Series Model series: 7120 Size of motor: 8.3 Brand of engine: 6CT From date: 01-01-1998 To date: 01-01-2003 Fuel: Diesel Approved: Yes
    Case Model: 7000 Series Model series: 7130 Size of motor: 8.3 Brand of engine: 6CT From date: 01-01-1998 To date: 01-01-2003 Fuel: Diesel Approved: Yes
    Case Model: 7000 Series Model series: 7140 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-01-1998 To date: 01-01-2003 Fuel: Diesel Approved: Yes
    Case Model: 8000 Series Model series: 8930 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
    Cummins Model: C Series Model series: Engine Approved: Yes
