Artikelnr: F032113381

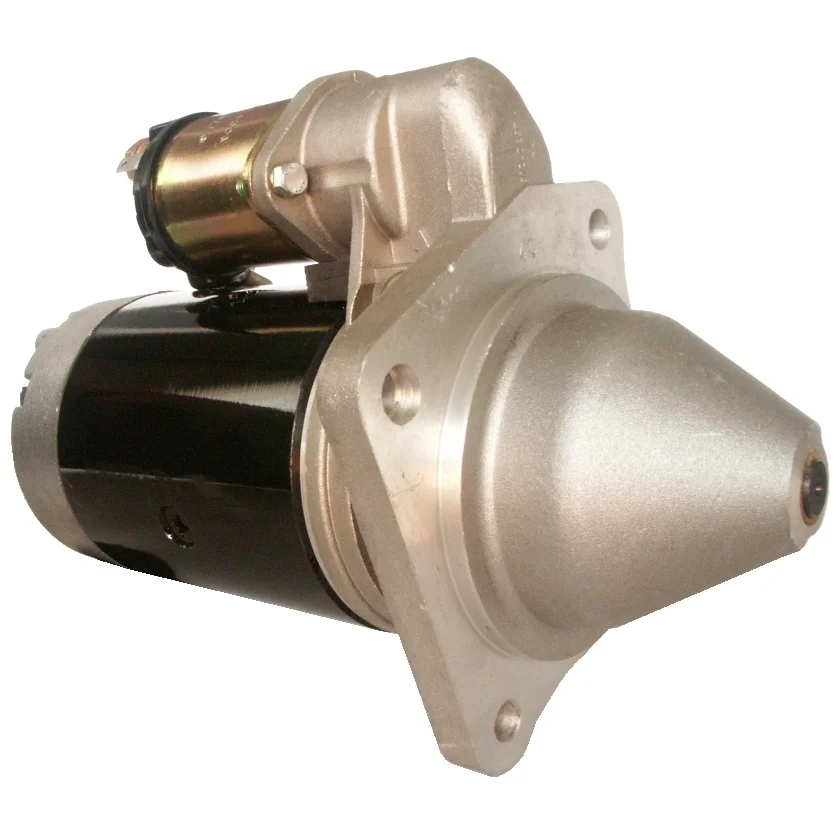

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 110.00
Drive dist.: 26.00
Mount. hole 3 mm: 12.00
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 12.00
Dist./back: 258.00
Dist./front: 75.00
No./teeth: 9
B+: M10
Position/50: 8
Terminal 50: 6.30
Gear type: DD
Dist. 2: 103.00
Dist. 3: 103.00
Dist. mm: 146.00
Rotation: CW
Position/b-: 33
B-: M8
Total length mm: 340.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M8
No./teeth 9
Mount. flange 110.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 8
Position/b- 33
Prod. info BN
Dist. 2 103.00
Dist. 3 103.00
Rotation CW
Dist./back 258.00
Dist./front 75.00
Drive dist. 26.00
Drive type Steel
Gear type DD
kW 2.5
Terminal 50 6.30
Voltage 12
Total length 340.00 mm
Waterproof No
Dist. 146.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    azj3145, azj3195, AZJ3462, cs795, CT6005706634, F032113381, v450dt, 11.130.510, 11.130.618, 11.139.456, 27430, 27430b, 5111319, 20404082, 63217121, 6005706634

  • Konkurrentreferens
    BSO7054, CST21157, drs2670, drs3405, is0618, IS9448, LES0031, lrs00554, lrs00944, MS107, MS224, S9203(LETRIKA), 8ea731785-001, 25-1268, 618.003.092, 4130, 10795, 33416, 104848, 943217121

  • Normaliserat artikelnummer
    azj3145, azj3195, azj3462, bso7054, cs795, cst21157, ct6005706634, drs2670, drs3405, f032113381, is0618, is9448, les0031, lrs00554, lrs00944, ms107, ms224, s9203letrika, v450dt, 8ea731785001, 4130, 10795, 27430, 27430b, 33416, 104848, 251268, 5111319, 11130510, 11130618, 11139456, 20404082, 63217121, 618003092, 943217121, 6005706634

  • Passar modeller
    Farymann Model: Engine Model series: Various Models Approved: Yes
    Farymann Model: Various Models Model series: Various Models Approved: Yes
    Fiat Model: 400 Model series: 404 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 420 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 440 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 450 From date: 01-06-1972 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 455 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 470 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 480 Approved: Yes
    Fiat Model: 500 Model series: 500, DT Brand of engine: 8035.02.201 From date: 01-06-1973 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500S From date: 01-01-1978 To date: 01-01-1982 Fuel: Diesel Approved: Yes
    Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Goldoni Model: Various Models Model series: Various Models Approved: Yes
