Artikelnr: F032113319

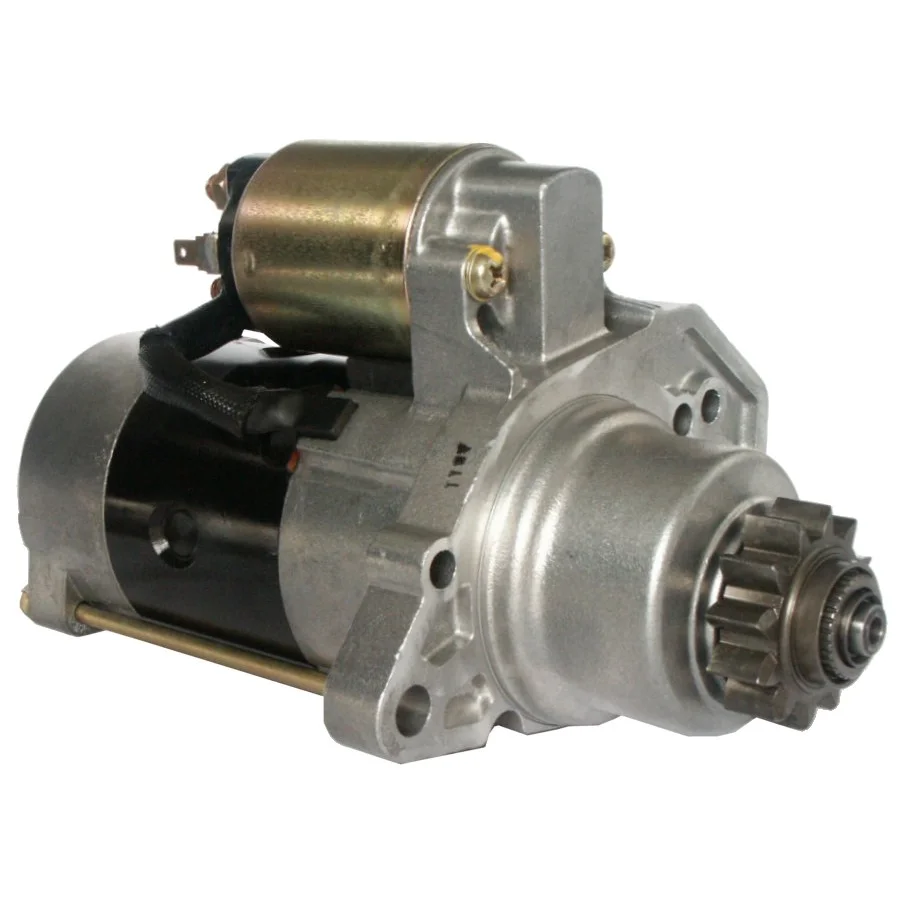

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 12, Rotation: CCW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 72.50
Drive dist.: 55.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 165.00
Dist./front: 67.00
No./teeth: 12
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 122.00
Rotation: CCW
Total length mm: 233.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 72.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN/OE
Rotation CCW
Dist./back 165.00
Dist./front 67.00
Drive dist. 55.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 233.00 mm
Waterproof No
Dist. 122.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032113319, js1235, M008T71371, M008T71371ZE, M008T75371, m8t71371, M8T71371ZE, m8t75371, 1986S00962, 23300-BN301, 23300-BN302, 23300-wd000, 23300-WD001

  • Konkurrentreferens
    CST35134, DRS3917, DRS3971, F042S0H049, J5211091, S5138, STR-H049, 8EA012527-451, 8EA737991-001, 25-3076, 160.537.122, 327.082.122, 9577, 32575N, 105369, 201235, 220466, 220466A, 458962, 8020721, 8212306, 11040652, 0986020721, 944280207210

  • Normaliserat artikelnummer
    cst35134, drs3917, drs3971, f032113319, f042s0h049, j5211091, js1235, m008t71371, m008t71371ze, m008t75371, m8t71371, m8t71371ze, m8t75371, s5138, strh049, 8ea012527451, 8ea737991001, 1986s00962, 9577, 23300bn301, 23300bn302, 23300wd000, 23300wd001, 32575n, 105369, 201235, 220466, 220466a, 253076, 458962, 8020721, 8212306, 11040652, 160537122, 327082122, 0986020721, 944280207210

  • Passar modeller
    Nissan Model: Almera Model series: Almera Tino Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: V10 Body: MPV From date: 01-08-2000 To date: 01-02-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-07-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-03-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 72.50
    Drive dist.: 55.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 165.00
    Dist./front: 67.00
    No./teeth: 12
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 122.00
    Rotation: CCW
    Total length mm: 233.00
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 72.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN/OE
    Rotation CCW
    Dist./back 165.00
    Dist./front 67.00
    Drive dist. 55.50
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 233.00 mm
    Waterproof No
    Dist. 122.00 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032113319, js1235, M008T71371, M008T71371ZE, M008T75371, m8t71371, M8T71371ZE, m8t75371, 1986S00962, 23300-BN301, 23300-BN302, 23300-wd000, 23300-WD001

    • Konkurrentreferens
      CST35134, DRS3917, DRS3971, F042S0H049, J5211091, S5138, STR-H049, 8EA012527-451, 8EA737991-001, 25-3076, 160.537.122, 327.082.122, 9577, 32575N, 105369, 201235, 220466, 220466A, 458962, 8020721, 8212306, 11040652, 0986020721, 944280207210

    • Normaliserat artikelnummer
      cst35134, drs3917, drs3971, f032113319, f042s0h049, j5211091, js1235, m008t71371, m008t71371ze, m008t75371, m8t71371, m8t71371ze, m8t75371, s5138, strh049, 8ea012527451, 8ea737991001, 1986s00962, 9577, 23300bn301, 23300bn302, 23300wd000, 23300wd001, 32575n, 105369, 201235, 220466, 220466a, 253076, 458962, 8020721, 8212306, 11040652, 160537122, 327082122, 0986020721, 944280207210

    • Passar modeller
      Nissan Model: Almera Model series: Almera Tino Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: V10 Body: MPV From date: 01-08-2000 To date: 01-02-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-07-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-03-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
