Artikelnr: F032113313

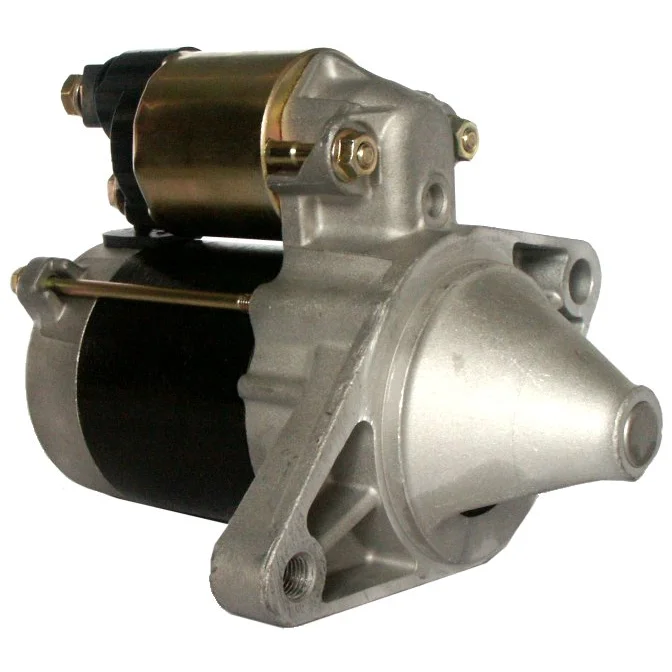

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.7, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 0.7
Mount. flange: 74.00
Drive dist.: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 135.00
Dist./front: 47.50
No./teeth: 8
B+: M8
Position/50: 40
Terminal 50: Plug
Gear type: DD
Dist. mm: 131.50
Rotation: CW
Total length mm: 187.00
Drive type: Steel
Prod. info: Reman
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 40
Prod. info Reman
Rotation CW
Dist./back 135.00
Dist./front 47.50
Drive dist. 11.50
Drive type Steel
Gear type DD
kW 0.7
Terminal 50 Plug
Voltage 12
Total length 187.00 mm
Waterproof No
Dist. 131.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530

  • Konkurrentreferens
    DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561

  • Normaliserat artikelnummer
    drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 0.7
    Mount. flange: 74.00
    Drive dist.: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 135.00
    Dist./front: 47.50
    No./teeth: 8
    B+: M8
    Position/50: 40
    Terminal 50: Plug
    Gear type: DD
    Dist. mm: 131.50
    Rotation: CW
    Total length mm: 187.00
    Drive type: Steel
    Prod. info: Reman
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info Reman
    Rotation CW
    Dist./back 135.00
    Dist./front 47.50
    Drive dist. 11.50
    Drive type Steel
    Gear type DD
    kW 0.7
    Terminal 50 Plug
    Voltage 12
    Total length 187.00 mm
    Waterproof No
    Dist. 131.50 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning

    • OEM
      F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530

    • Konkurrentreferens
      DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561

    • Normaliserat artikelnummer
      drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
