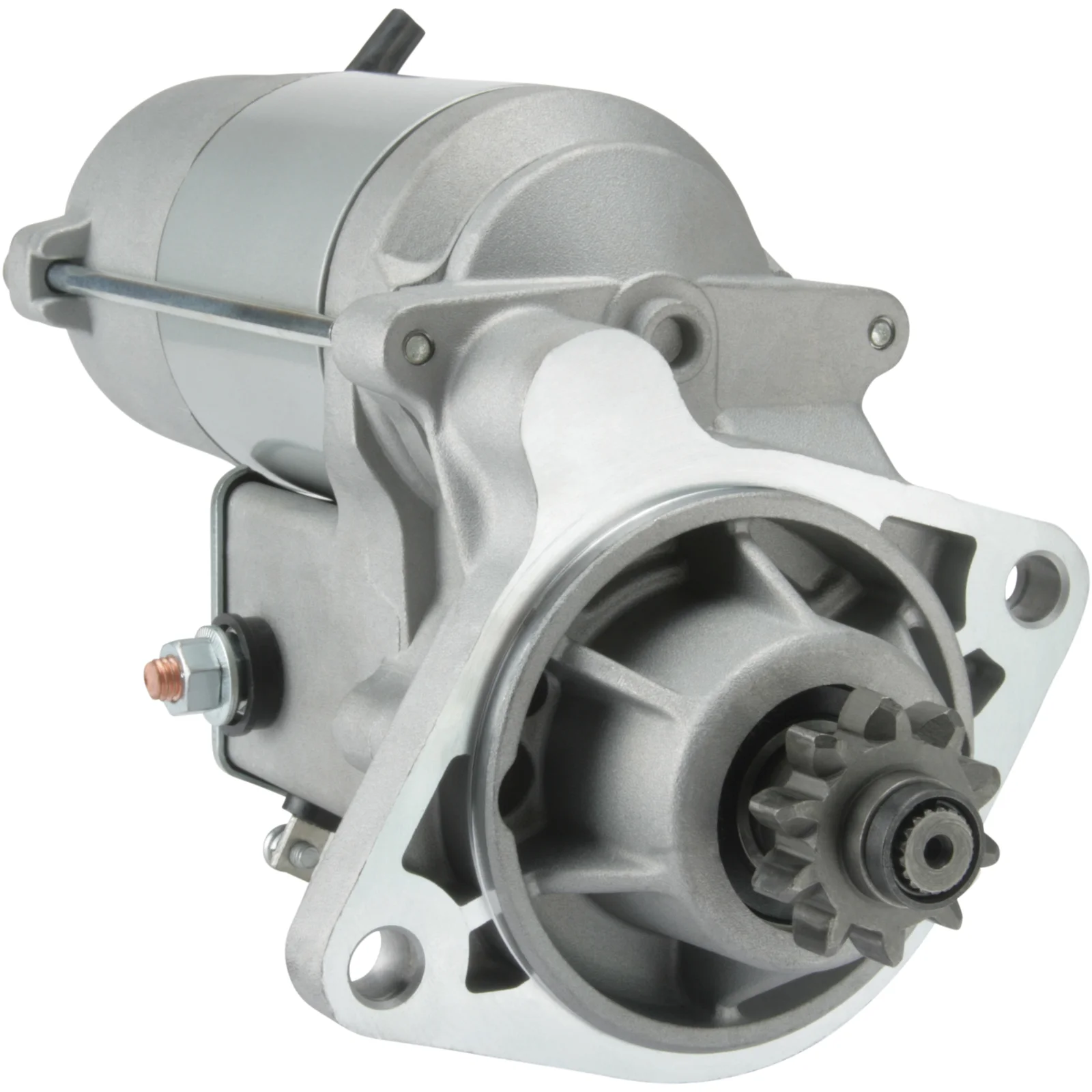

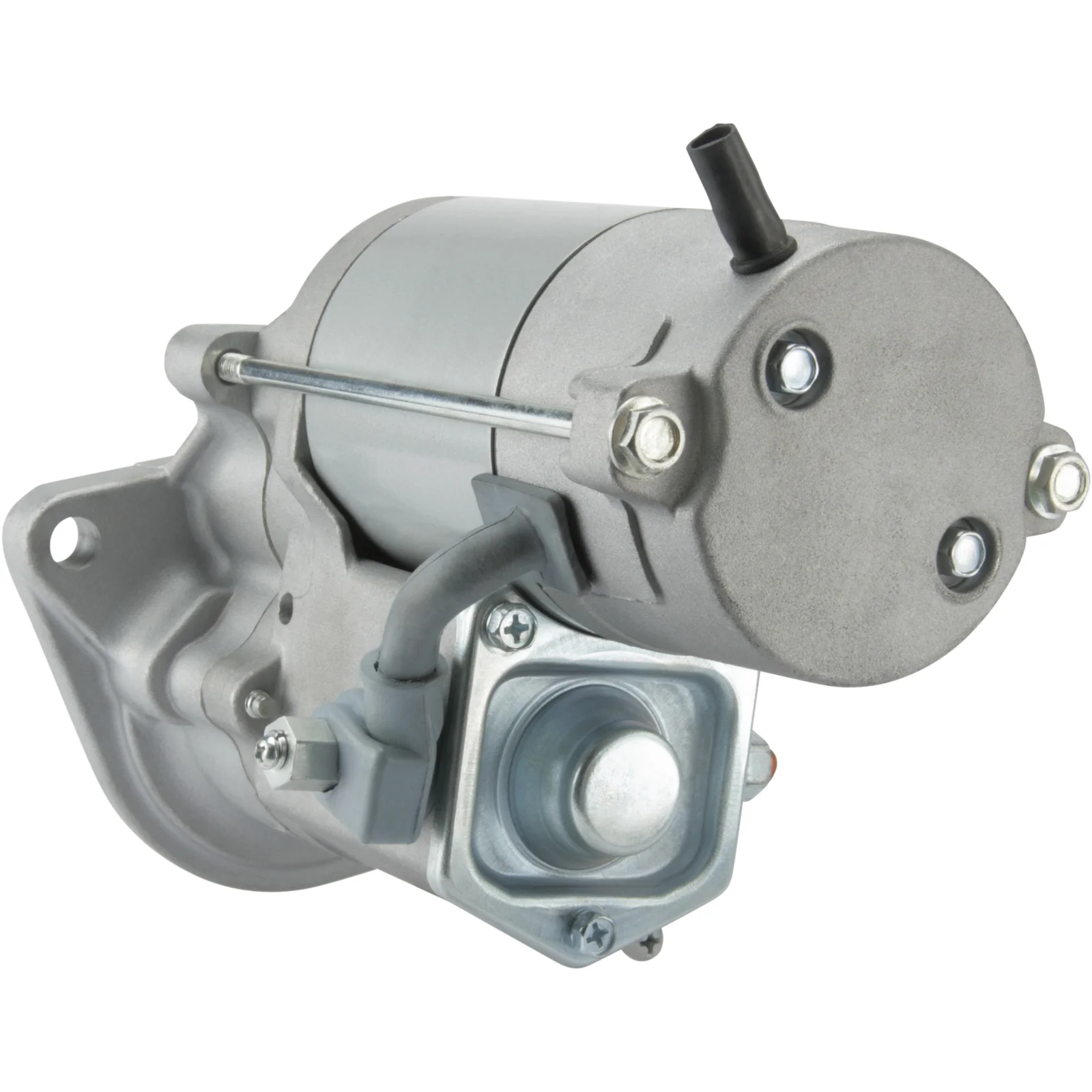

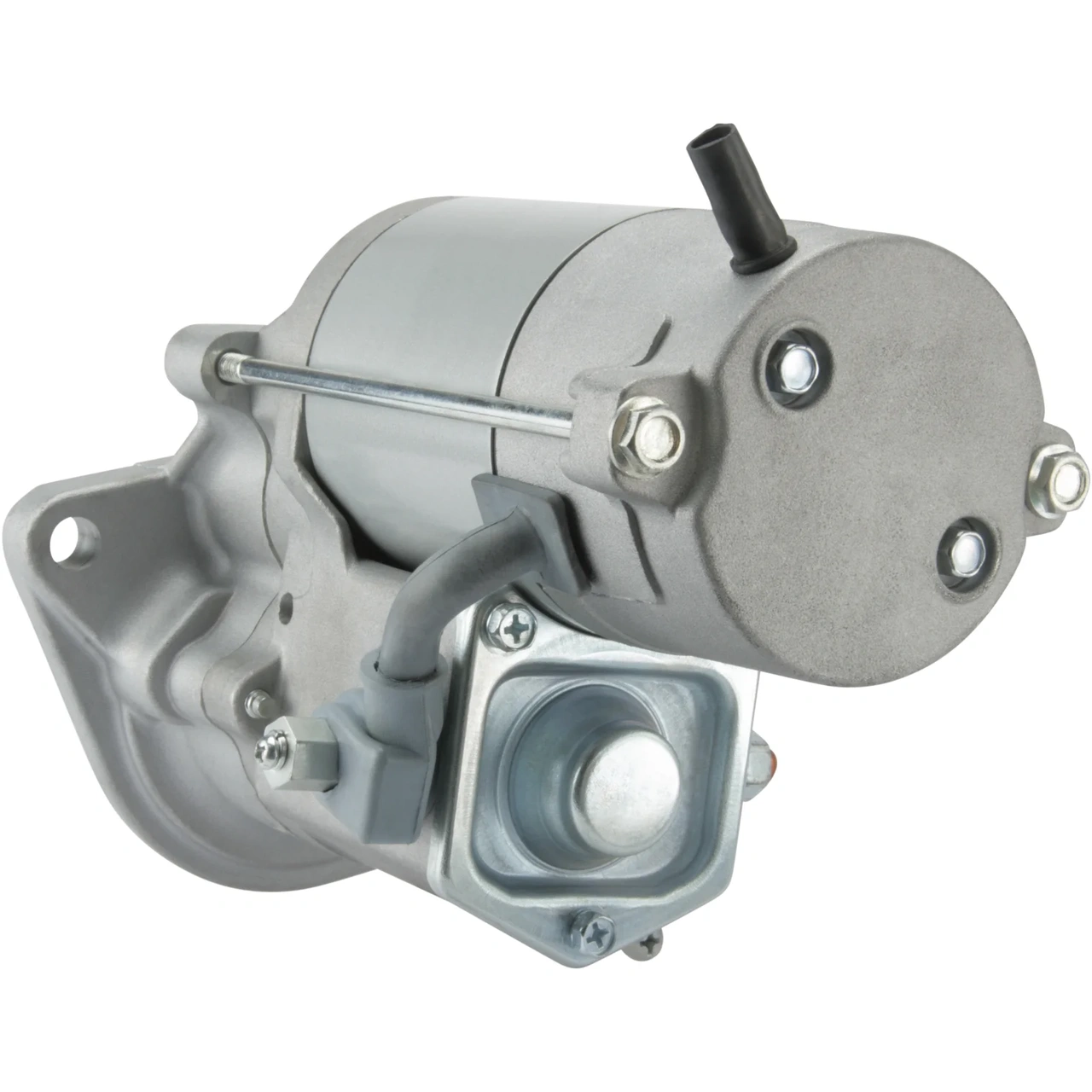

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113172

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 89.00
Drive dist.: 46.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 130.00
Dist./front: 57.00
No./teeth: 9
B+: M8
Position/50: 25
Terminal 50: M5
Gear type: GR
Dist. mm: 126.50
Rotation: CW
Total length mm: 249.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 10MT.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 2 (0)
Position/50 25
Clutch type Wet
Prod. info BN
Remarks Replacing: 10MT.
Rotation CW
Dist./back 130.00
Dist./front 57.00
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M5
Voltage 12
Total length 249.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032113172, 3T8191, 7x1057, 128000-6870, 128000-6871, 228000-5860, 228000-5861, 228000-5862, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2200071-43

  • Konkurrentreferens
    CST40148, DRS0575, ds17262, DSN2123, F042000035, F042S00035, lrs00191, LRS01775, LRS02389, s-8274, s-8678, S1194S, S6076, s7x1057, s9146, sdr0101, sn-00156r, sn-0084r, snd0187, STR-5022, STR30040, STR5022, ts-1250, 2-2047-nd, 2-2203-ND, 25-4061, 26-2033, 44-4055, 46-4055, 91-01-4199, 91-29-5136, 91-29-5390, 640.020.103, 640.548.102, 672.118.102, 692.112.092, 4525N, 4776s, 4781s, 17622, 18198, 18198N, 18198R, 61103, 254819, 284074, 335867, 2135890, 3001023, 3136101, 8504304

  • Normaliserat artikelnummer
    cst40148, drs0575, ds17262, dsn2123, f032113172, f042000035, f042s00035, lrs00191, lrs01775, lrs02389, s1194s, s6076, s7x1057, s8274, s8678, s9146, sdr0101, sn00156r, sn0084r, snd0187, str30040, str5022, ts1250, 3t8191, 7x1057, 4525n, 4776s, 4781s, 17622, 18198, 18198n, 18198r, 22047nd, 22203nd, 61103, 254061, 254819, 262033, 284074, 335867, 444055, 464055, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2135890, 3001023, 3136101, 8504304, 91014199, 91295136, 91295390, 220007143, 640020103, 640548102, 672118102, 692112092, 1280006870, 1280006871, 2280005860, 2280005861, 2280005862

  • Passar modeller
    Caterpillar Model: V Model series: V60E Brand of engine: Perkins 4-236 From date: 01-01-1985 Fuel: Diesel Approved: Yes
    Caterpillar Model: V Model series: V80E Brand of engine: Perkins 4-236 From date: 01-01-1985 Fuel: Diesel Approved: Yes
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Yale Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 89.00
    Drive dist.: 46.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 130.00
    Dist./front: 57.00
    No./teeth: 9
    B+: M8
    Position/50: 25
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 249.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 10MT.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 2 (0)
    Position/50 25
    Clutch type Wet
    Prod. info BN
    Remarks Replacing: 10MT.
    Rotation CW
    Dist./back 130.00
    Dist./front 57.00
    Drive dist. 46.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M5
    Voltage 12
    Total length 249.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032113172, 3T8191, 7x1057, 128000-6870, 128000-6871, 228000-5860, 228000-5861, 228000-5862, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2200071-43

    • Konkurrentreferens
      CST40148, DRS0575, ds17262, DSN2123, F042000035, F042S00035, lrs00191, LRS01775, LRS02389, s-8274, s-8678, S1194S, S6076, s7x1057, s9146, sdr0101, sn-00156r, sn-0084r, snd0187, STR-5022, STR30040, STR5022, ts-1250, 2-2047-nd, 2-2203-ND, 25-4061, 26-2033, 44-4055, 46-4055, 91-01-4199, 91-29-5136, 91-29-5390, 640.020.103, 640.548.102, 672.118.102, 692.112.092, 4525N, 4776s, 4781s, 17622, 18198, 18198N, 18198R, 61103, 254819, 284074, 335867, 2135890, 3001023, 3136101, 8504304

    • Normaliserat artikelnummer
      cst40148, drs0575, ds17262, dsn2123, f032113172, f042000035, f042s00035, lrs00191, lrs01775, lrs02389, s1194s, s6076, s7x1057, s8274, s8678, s9146, sdr0101, sn00156r, sn0084r, snd0187, str30040, str5022, ts1250, 3t8191, 7x1057, 4525n, 4776s, 4781s, 17622, 18198, 18198n, 18198r, 22047nd, 22203nd, 61103, 254061, 254819, 262033, 284074, 335867, 444055, 464055, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2135890, 3001023, 3136101, 8504304, 91014199, 91295136, 91295390, 220007143, 640020103, 640548102, 672118102, 692112092, 1280006870, 1280006871, 2280005860, 2280005861, 2280005862

    • Passar modeller
      Caterpillar Model: V Model series: V60E Brand of engine: Perkins 4-236 From date: 01-01-1985 Fuel: Diesel Approved: Yes
      Caterpillar Model: V Model series: V80E Brand of engine: Perkins 4-236 From date: 01-01-1985 Fuel: Diesel Approved: Yes
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Yale Model: Various Models Model series: Various Models Approved: Yes
