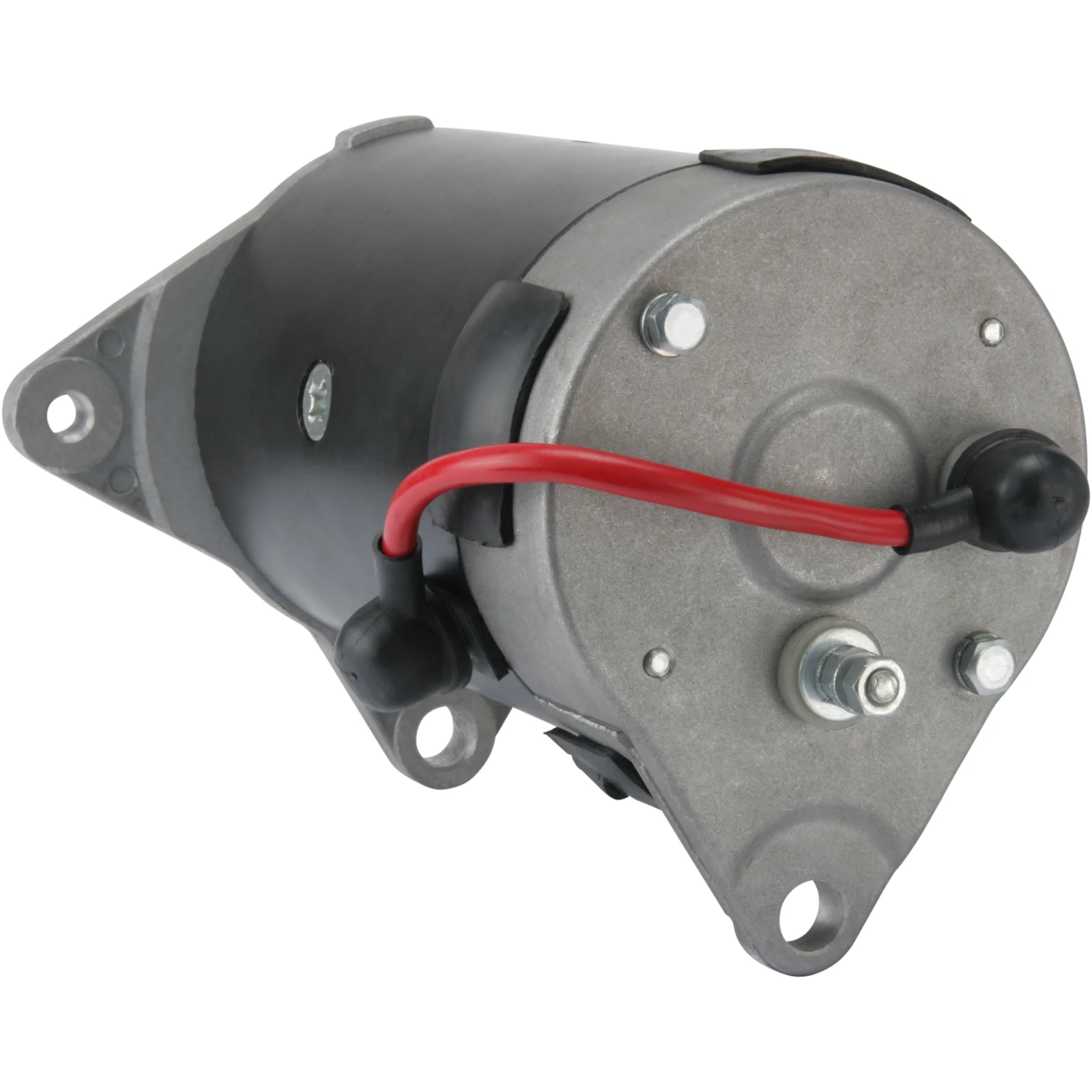

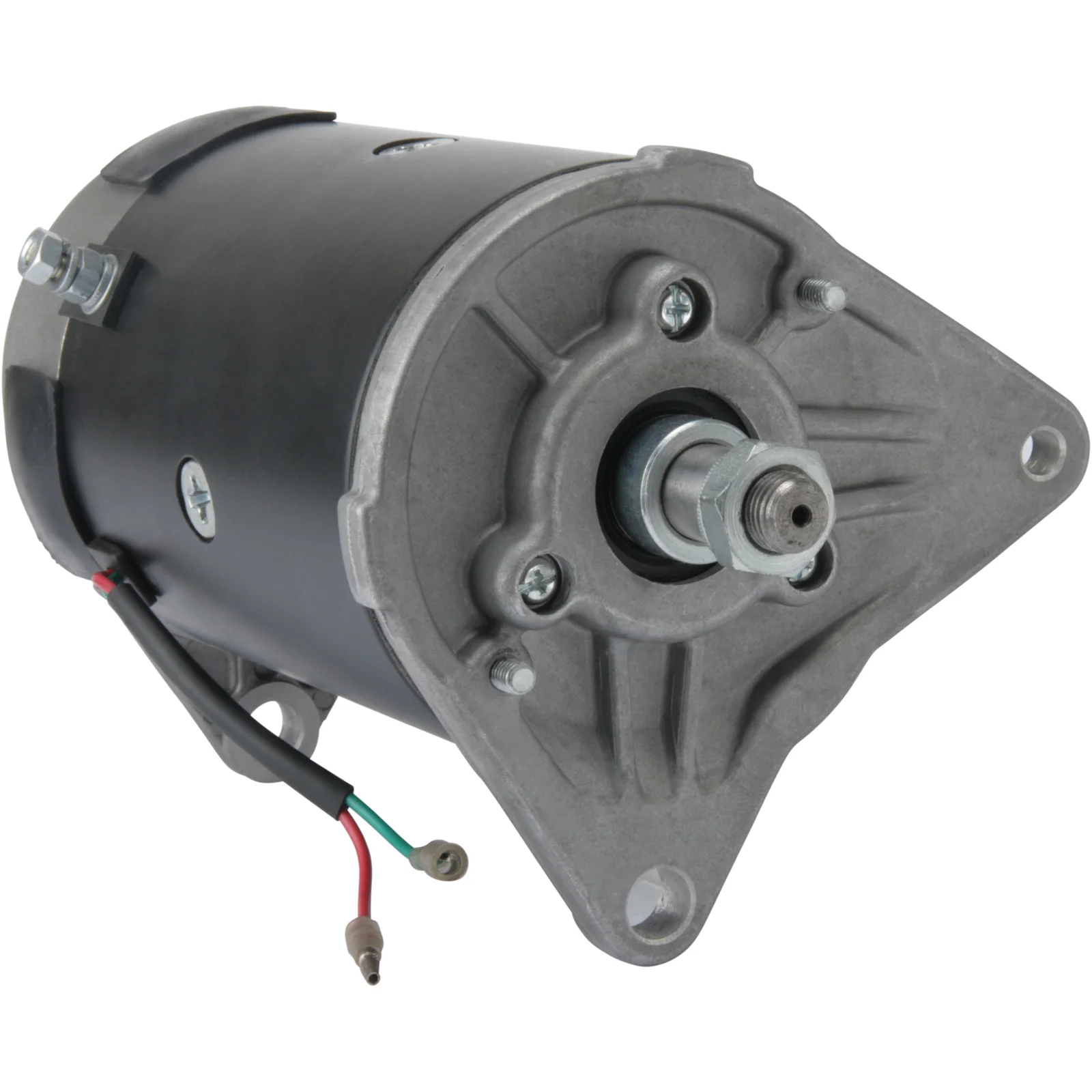

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113147

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.7, Amp: 23, Rotation: CCW

Beskrivning

Voltage: 12
Amp: 23
kW: 0.7
Insulated return: No
Mount. bracket dist.: 158.00
Mount. hole d1: 13.00
Mount. hole d2: 8.50
Mount. hole d3: 13.00
OD mm: 113.00
Length mm: 253.00
Fan: w/o
Pulley: w/o
Regulator plug: w/o
Shaft dia.: 17.00
Thread size: M14-1.50
Rotation: CCW
Radius: 76.50
Radius 2: 83.00
Prod. info: BN
Info: Not for universal use.
Remarks: Regulator: HC-CARGO 233625.

Filer

Specifikation

Mount. bracket dist. 158.00
Mount. hole d1 13.00
Mount. hole d2 8.50
Mount. hole d3 13.00
Prod. info BN
Pulley w/o
Radius 76.50
Radius 2 83.00
Regulator plug w/o
Remarks Regulator: HC-CARGO 233625.
Rotation CCW
Shaft dia. 17.00
Fan w/o
Info Not for universal use.
Insulated return No
kW 0.7
Thread size M14-1.50
Voltage 12
Amp 23
OD 113.00 mm
Length 253.00 mm

  • OEM
    F032113147, gsb107-06b, j38-81100-00, j38-81100-11-00

  • Konkurrentreferens
    DST10006, ghi0005, 3-1014-01hi, 3-1014-01HI-1, 92-15-1003, 405.004.011, 15425N

  • Normaliserat artikelnummer
    dst10006, f032113147, ghi0005, gsb10706b, j388110000, j38811001100, 15425n, 3101401hi, 3101401hi1, 92151003, 405004011

  • Passar modeller
    Yanmar Model: G Model series: G14 Model type: Golf Carts Approved: Yes
    Yanmar Model: G Model series: G2 Model type: Golf Carts Approved: Yes
    Yanmar Model: G Model series: G8 Model type: Golf Carts Approved: Yes
    Yanmar Model: G Model series: G9 Model type: Golf Carts Approved: Yes
  • Beskrivning
    Voltage: 12
    Amp: 23
    kW: 0.7
    Insulated return: No
    Mount. bracket dist.: 158.00
    Mount. hole d1: 13.00
    Mount. hole d2: 8.50
    Mount. hole d3: 13.00
    OD mm: 113.00
    Length mm: 253.00
    Fan: w/o
    Pulley: w/o
    Regulator plug: w/o
    Shaft dia.: 17.00
    Thread size: M14-1.50
    Rotation: CCW
    Radius: 76.50
    Radius 2: 83.00
    Prod. info: BN
    Info: Not for universal use.
    Remarks: Regulator: HC-CARGO 233625.

    Filer

  • Specifikation
    Mount. bracket dist. 158.00
    Mount. hole d1 13.00
    Mount. hole d2 8.50
    Mount. hole d3 13.00
    Prod. info BN
    Pulley w/o
    Radius 76.50
    Radius 2 83.00
    Regulator plug w/o
    Remarks Regulator: HC-CARGO 233625.
    Rotation CCW
    Shaft dia. 17.00
    Fan w/o
    Info Not for universal use.
    Insulated return No
    kW 0.7
    Thread size M14-1.50
    Voltage 12
    Amp 23
    OD 113.00 mm
    Length 253.00 mm
  • Fordonsmatchning

    • OEM
      F032113147, gsb107-06b, j38-81100-00, j38-81100-11-00

    • Konkurrentreferens
      DST10006, ghi0005, 3-1014-01hi, 3-1014-01HI-1, 92-15-1003, 405.004.011, 15425N

    • Normaliserat artikelnummer
      dst10006, f032113147, ghi0005, gsb10706b, j388110000, j38811001100, 15425n, 3101401hi, 3101401hi1, 92151003, 405004011

    • Passar modeller
      Yanmar Model: G Model series: G14 Model type: Golf Carts Approved: Yes
      Yanmar Model: G Model series: G2 Model type: Golf Carts Approved: Yes
      Yanmar Model: G Model series: G8 Model type: Golf Carts Approved: Yes
      Yanmar Model: G Model series: G9 Model type: Golf Carts Approved: Yes
