Artikelnr: F032113146

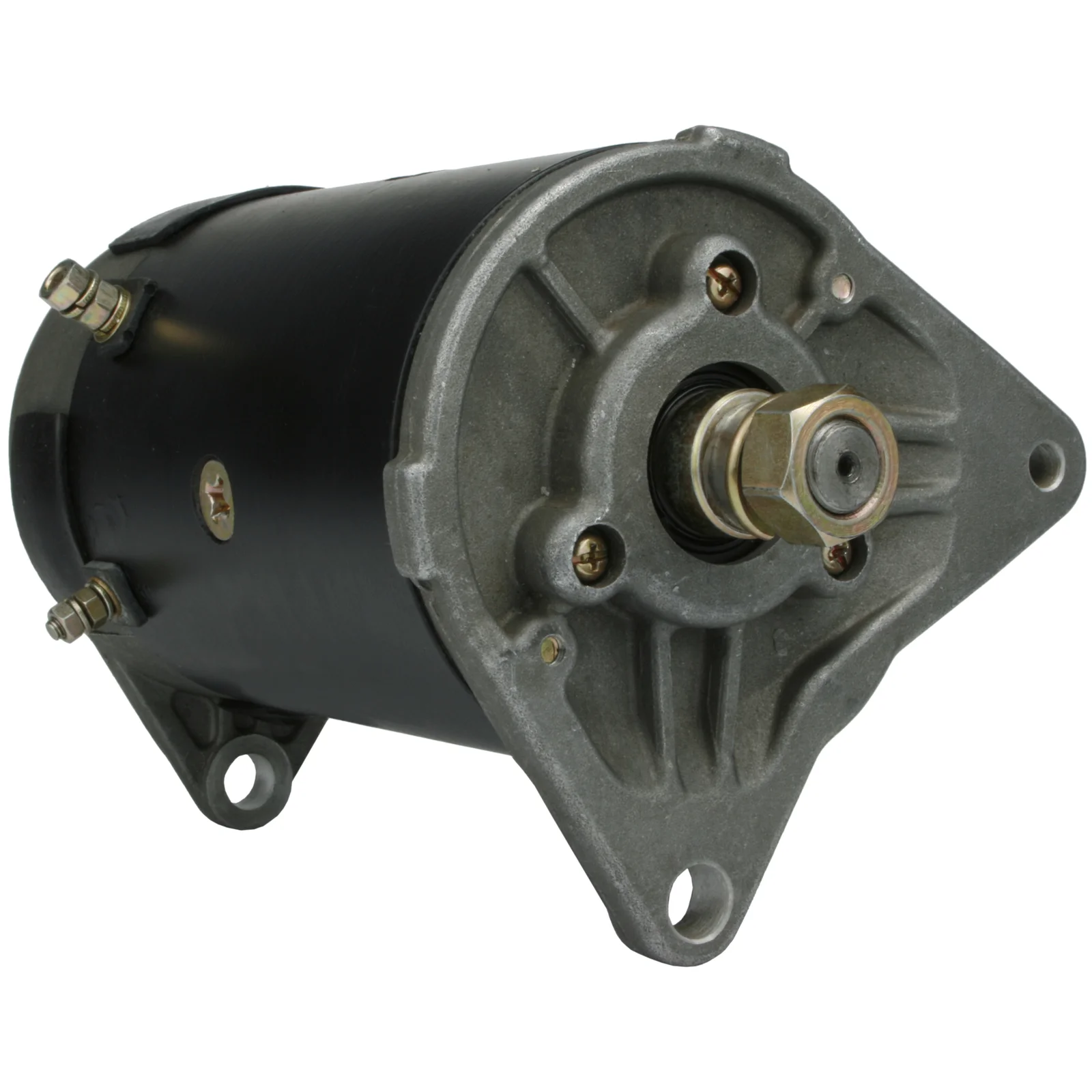

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.75, Amp: 15, Rotation: CW

Beskrivning

Voltage: 12
Amp: 15
kW: 0.75
Insulated return: No
Mount. bracket dist.: 158.00
Mount. hole d1: 13.00
Mount. hole d2: 8.50
Mount. hole d3: 13.00
OD mm: 113.00
Length mm: 239.00
Fan: w/o
Pulley: w/o
Regulator plug: w/o
Shaft dia.: 17.00
Thread size: M16-1.50
Rotation: CW
Radius: 76.50
Radius 2: 83.00
Prod. info: BN
Info: Not for universal use.
Remarks: Regulator: HC-CARGO 233625.

Filer

Specifikation

Mount. bracket dist. 158.00
Mount. hole d1 13.00
Mount. hole d2 8.50
Mount. hole d3 13.00
Prod. info BN
Pulley w/o
Radius 76.50
Radius 2 83.00
Regulator plug w/o
Remarks Regulator: HC-CARGO 233625.
Rotation CW
Shaft dia. 17.00
Fan w/o
Info Not for universal use.
Insulated return No
kW 0.75
Thread size M16-1.50
Voltage 12
Amp 15
OD 113.00 mm
Length 239.00 mm

  • OEM
    F032113146, gsb107-10b, gsb107-10c

  • Konkurrentreferens
    ghi0003, 3-1012-01HI-1, 3-1013-01hi, 3-1013-01HI-1, 92-25-1002, 405.003.011, 15423, 15423N

  • Normaliserat artikelnummer
    f032113146, ghi0003, gsb10710b, gsb10710c, 15423, 15423n, 3101201hi1, 3101301hi, 3101301hi1, 92251002, 405003011

  • Passar modeller
    Yanmar Model: G Model series: G16 - G22 Model type: Golf Carts Approved: Yes
  • Beskrivning
    Voltage: 12
    Amp: 15
    kW: 0.75
    Insulated return: No
    Mount. bracket dist.: 158.00
    Mount. hole d1: 13.00
    Mount. hole d2: 8.50
    Mount. hole d3: 13.00
    OD mm: 113.00
    Length mm: 239.00
    Fan: w/o
    Pulley: w/o
    Regulator plug: w/o
    Shaft dia.: 17.00
    Thread size: M16-1.50
    Rotation: CW
    Radius: 76.50
    Radius 2: 83.00
    Prod. info: BN
    Info: Not for universal use.
    Remarks: Regulator: HC-CARGO 233625.

    Filer

  • Specifikation
    Mount. bracket dist. 158.00
    Mount. hole d1 13.00
    Mount. hole d2 8.50
    Mount. hole d3 13.00
    Prod. info BN
    Pulley w/o
    Radius 76.50
    Radius 2 83.00
    Regulator plug w/o
    Remarks Regulator: HC-CARGO 233625.
    Rotation CW
    Shaft dia. 17.00
    Fan w/o
    Info Not for universal use.
    Insulated return No
    kW 0.75
    Thread size M16-1.50
    Voltage 12
    Amp 15
    OD 113.00 mm
    Length 239.00 mm
  • Fordonsmatchning

    • OEM
      F032113146, gsb107-10b, gsb107-10c

    • Konkurrentreferens
      ghi0003, 3-1012-01HI-1, 3-1013-01hi, 3-1013-01HI-1, 92-25-1002, 405.003.011, 15423, 15423N

    • Normaliserat artikelnummer
      f032113146, ghi0003, gsb10710b, gsb10710c, 15423, 15423n, 3101201hi1, 3101301hi, 3101301hi1, 92251002, 405003011

    • Passar modeller
      Yanmar Model: G Model series: G16 - G22 Model type: Golf Carts Approved: Yes
