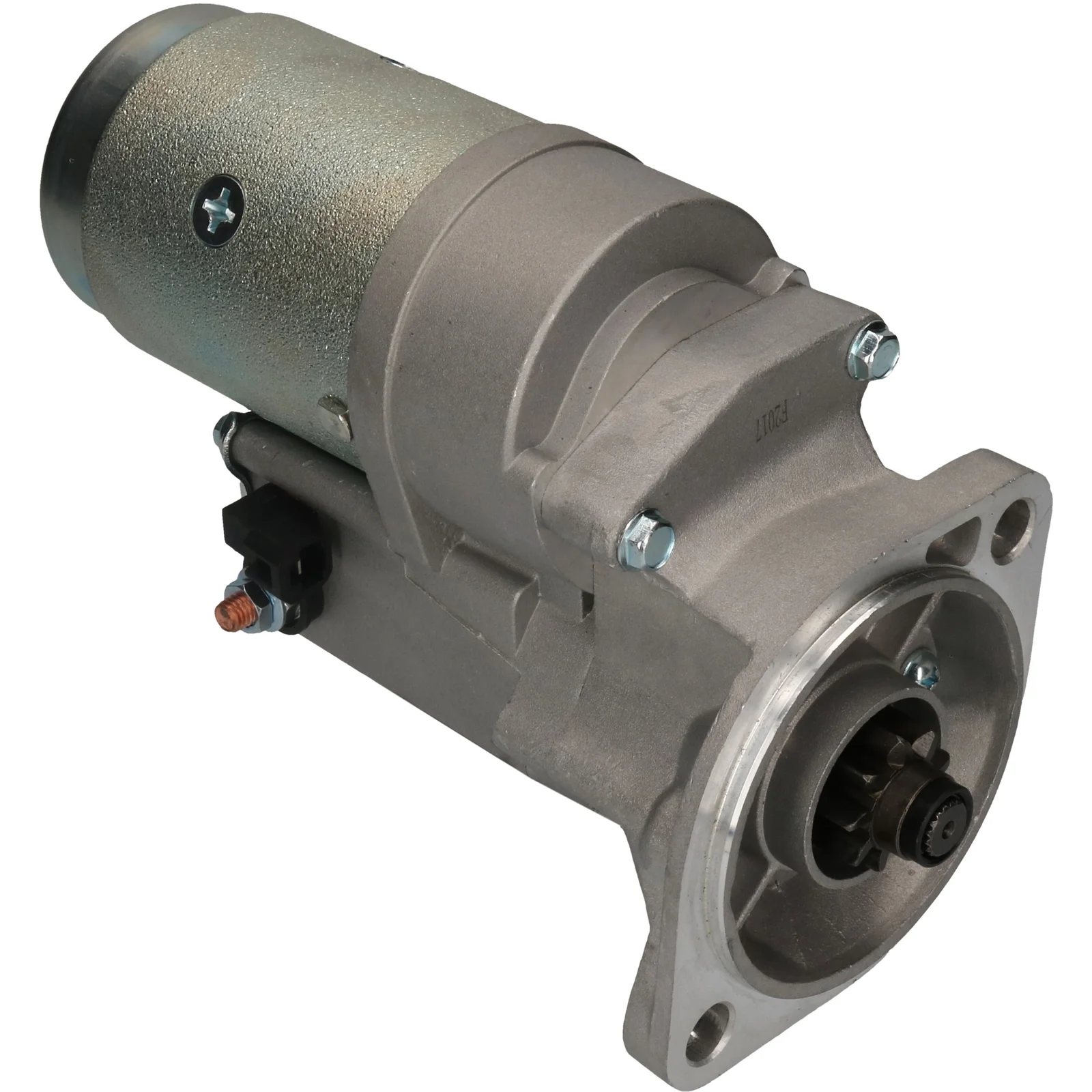

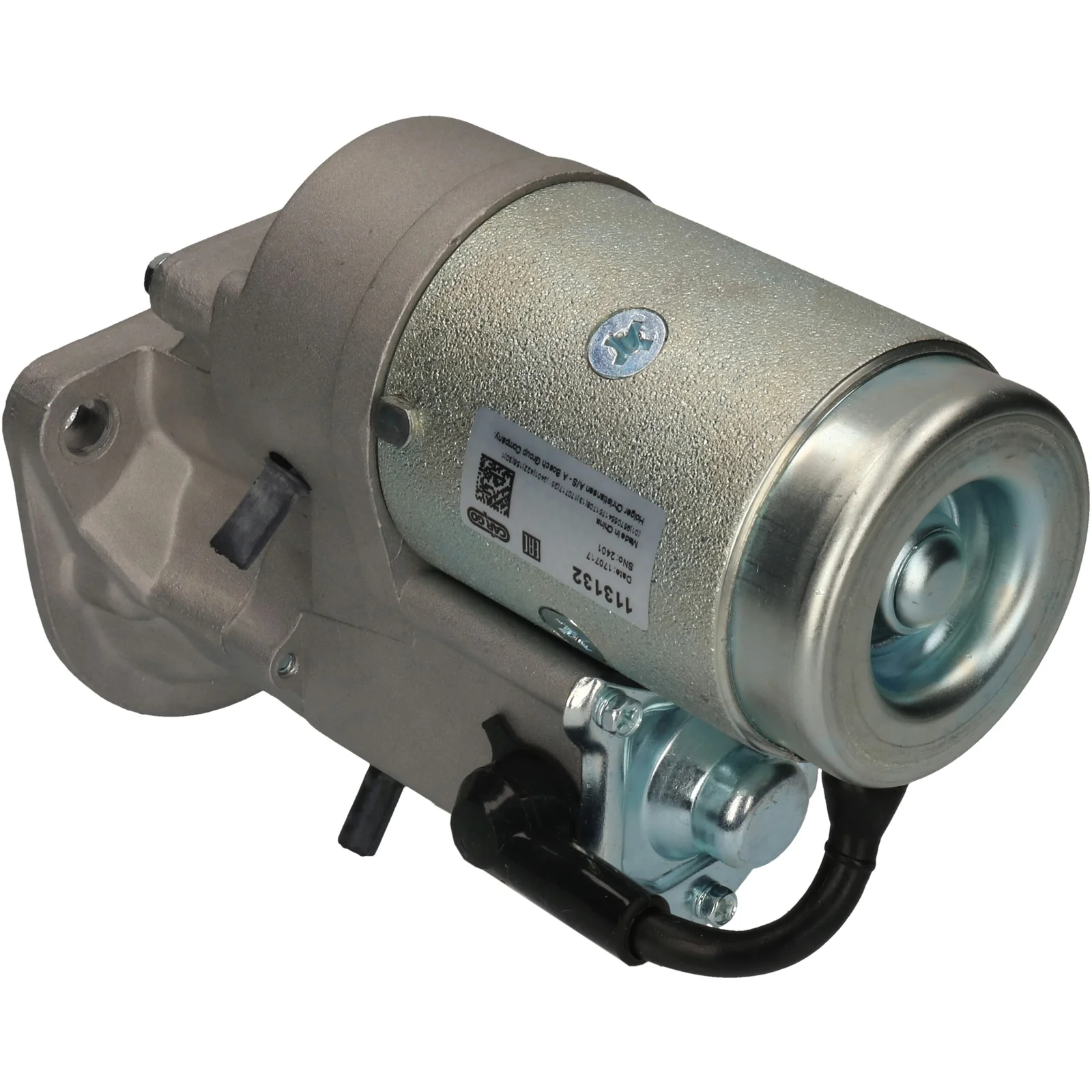

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113132

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 95.00
Drive dist.: 10.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 162.00
Dist./front: 21.00
No./teeth: 9
B+: M8
Position/50: 10
Terminal 50: Plug
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 237.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 162.00
Dist./front 21.00
Drive dist. 10.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 Plug
Voltage 12
Total length 237.00 mm
Waterproof No
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032113132, 2873k401, 128000-0830, 128000-0831, 128000-0832, 128000-0833, 228000-1890, 228000-1891, 228000-1892, 228000-1893, 228000-8040, 228000-8041, 1347064, 8970429970, 8970429971, 8970429972

  • Konkurrentreferens
    BSX2640001, CST40131, DRS0194, DSN2061, F042000022, F042000025, F042000026, F042S00022, F042S00025, GA24890, les0350, LRS02067, s-8661, S6399S, sj-00288r, snd0331, STR-5011, STR-5011H, STR5011, STR70025, 2-2099-nd, 8EA015642-051, 25-2114, 91-29-5369, 343.006.092, 8155, 17303, 18449, 220934, 220934A, 254041, 3122813, 11040289

  • Normaliserat artikelnummer
    bsx2640001, cst40131, drs0194, dsn2061, f032113132, f042000022, f042000025, f042000026, f042s00022, f042s00025, ga24890, les0350, lrs02067, s6399s, s8661, sj00288r, snd0331, str5011, str5011h, str70025, 8ea015642051, 2873k401, 8155, 17303, 18449, 22099nd, 220934, 220934a, 252114, 254041, 1347064, 3122813, 11040289, 91295369, 343006092, 1280000830, 1280000831, 1280000832, 1280000833, 2280001890, 2280001891, 2280001892, 2280001893, 2280008040, 2280008041, 8970429970, 8970429971, 8970429972

  • Passar modeller
    Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Isuzu Model: Engine Model series: Engine Brand of engine: 6BD1T Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 95.00
    Drive dist.: 10.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 162.00
    Dist./front: 21.00
    No./teeth: 9
    B+: M8
    Position/50: 10
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 237.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 10
    Prod. info BN
    Rotation CW
    Dist./back 162.00
    Dist./front 21.00
    Drive dist. 10.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 Plug
    Voltage 12
    Total length 237.00 mm
    Waterproof No
    Dist. 120.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032113132, 2873k401, 128000-0830, 128000-0831, 128000-0832, 128000-0833, 228000-1890, 228000-1891, 228000-1892, 228000-1893, 228000-8040, 228000-8041, 1347064, 8970429970, 8970429971, 8970429972

    • Konkurrentreferens
      BSX2640001, CST40131, DRS0194, DSN2061, F042000022, F042000025, F042000026, F042S00022, F042S00025, GA24890, les0350, LRS02067, s-8661, S6399S, sj-00288r, snd0331, STR-5011, STR-5011H, STR5011, STR70025, 2-2099-nd, 8EA015642-051, 25-2114, 91-29-5369, 343.006.092, 8155, 17303, 18449, 220934, 220934A, 254041, 3122813, 11040289

    • Normaliserat artikelnummer
      bsx2640001, cst40131, drs0194, dsn2061, f032113132, f042000022, f042000025, f042000026, f042s00022, f042s00025, ga24890, les0350, lrs02067, s6399s, s8661, sj00288r, snd0331, str5011, str5011h, str70025, 8ea015642051, 2873k401, 8155, 17303, 18449, 22099nd, 220934, 220934a, 252114, 254041, 1347064, 3122813, 11040289, 91295369, 343006092, 1280000830, 1280000831, 1280000832, 1280000833, 2280001890, 2280001891, 2280001892, 2280001893, 2280008040, 2280008041, 8970429970, 8970429971, 8970429972

    • Passar modeller
      Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Isuzu Model: Engine Model series: Engine Brand of engine: 6BD1T Approved: Yes
