Artikelnr: F032113114

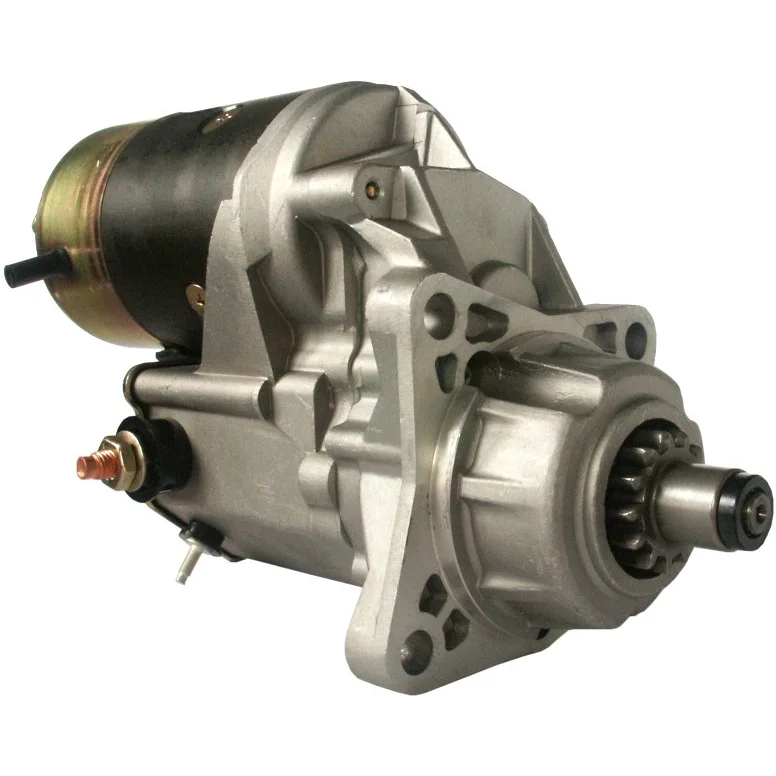

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.7, No./teeth: 13, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.7
Mount. flange: 89.00
Drive dist.: 47.00
Mount. hole 3 mm: 11.30
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 221.50
Dist./front: 73.50
No./teeth: 13
B+: M10
Position/50: 25
Terminal 50: M5
Gear type: GR
Dist. 2: 89.50
Dist. 3: 89.50
Dist. mm: 126.50
Rotation: CW
Total length mm: 301.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 13
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 25
Prod. info BN
Dist. 2 89.50
Dist. 3 89.50
Rotation CW
Dist./back 221.50
Dist./front 73.50
Drive dist. 47.00
Drive type Steel
Gear type GR
kW 2.7
Terminal 50 M5
Voltage 12
Total length 301.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 11.30 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113114, 228000-2290, 228000-2291, 228000-2292, 3604684rx, 3921682, 4741012, 4746639

  • Konkurrentreferens
    CST40182, ds17548, DSN2120, F042000081, F042S00081, s-8544, s2409, S6070, snd0038, sr6519x, STR-6086, STR30011, STR6086, sz-0023r, 2-1739-nd, 35-2518, 91-29-5245, 17244, 17548, 17548N, 17548R, 255129

  • Normaliserat artikelnummer
    cst40182, ds17548, dsn2120, f032113114, f042000081, f042s00081, s2409, s6070, s8544, snd0038, sr6519x, str30011, str6086, sz0023r, 17244, 17548, 17548n, 17548r, 21739nd, 255129, 352518, 3604684rx, 3921682, 4741012, 4746639, 91295245, 2280002290, 2280002291, 2280002292

  • Passar modeller
    Cummins Model: B Series Model series: Engine Approved: Yes
    Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1994 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 2.7
    Mount. flange: 89.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 11.30
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 221.50
    Dist./front: 73.50
    No./teeth: 13
    B+: M10
    Position/50: 25
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 89.50
    Dist. 3: 89.50
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 301.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 13
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 25
    Prod. info BN
    Dist. 2 89.50
    Dist. 3 89.50
    Rotation CW
    Dist./back 221.50
    Dist./front 73.50
    Drive dist. 47.00
    Drive type Steel
    Gear type GR
    kW 2.7
    Terminal 50 M5
    Voltage 12
    Total length 301.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 11.30 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113114, 228000-2290, 228000-2291, 228000-2292, 3604684rx, 3921682, 4741012, 4746639

    • Konkurrentreferens
      CST40182, ds17548, DSN2120, F042000081, F042S00081, s-8544, s2409, S6070, snd0038, sr6519x, STR-6086, STR30011, STR6086, sz-0023r, 2-1739-nd, 35-2518, 91-29-5245, 17244, 17548, 17548N, 17548R, 255129

    • Normaliserat artikelnummer
      cst40182, ds17548, dsn2120, f032113114, f042000081, f042s00081, s2409, s6070, s8544, snd0038, sr6519x, str30011, str6086, sz0023r, 17244, 17548, 17548n, 17548r, 21739nd, 255129, 352518, 3604684rx, 3921682, 4741012, 4746639, 91295245, 2280002290, 2280002291, 2280002292

    • Passar modeller
      Cummins Model: B Series Model series: Engine Approved: Yes
      Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1994 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
