Artikelnr: F032113044

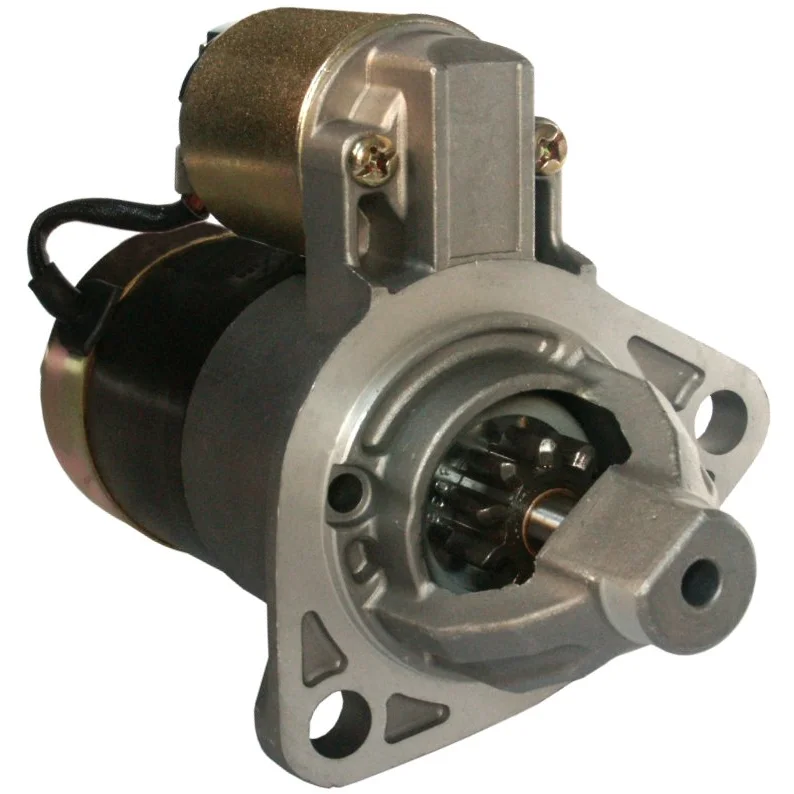

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 72.00
Drive dist.: 23.00
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 12.00
Dist./back: 166.00
Dist./front: 67.00
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: M5
Gear type: GR
Dist. mm: 101.50
Rotation: CW
Total length mm: 237.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 72.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Wet
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 166.00
Dist./front 67.00
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 M5
Voltage 12
Total length 237.00 mm
Waterproof No
Dist. 101.50 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032113044, m001t76081, M001T76081ZC, M001T76082, M001T76082ZC, m1t76081, m1t76081zc, m1t76082, m1t76082zc, 56004934

  • Konkurrentreferens
    CST35203, DRS0018, ds17467, F042001056, F042S01056, LRS01521, s1284, S5120, sc-0031r, smt0063, sr6506x, STR-3055, 2-1547-mi, 25-2495, 35-2509, 91-27-3164, 17166, 17467, 17467N, 17467R, 31487, 254142, 11040757

  • Normaliserat artikelnummer
    cst35203, drs0018, ds17467, f032113044, f042001056, f042s01056, lrs01521, m001t76081, m001t76081zc, m001t76082, m001t76082zc, m1t76081, m1t76081zc, m1t76082, m1t76082zc, s1284, s5120, sc0031r, smt0063, sr6506x, str3055, 17166, 17467, 17467n, 17467r, 21547mi, 31487, 252495, 254142, 352509, 11040757, 56004934, 91273164

  • Passar modeller
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: AWD Size of motor: 5.2 Brand of engine: ELF Type description: ZJ From date: 01-01-1992 To date: 01-04-1999 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Laredo Size of motor: 5.2 From date: 01-01-1993 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Laredo Size of motor: 5.2 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Limited Size of motor: 5.2 From date: 01-01-1993 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Limited Size of motor: 5.2 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Limited Size of motor: 5.9 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: Orvis Size of motor: 5.2 From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: SE Size of motor: 5.2 From date: 01-01-1994 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Size of motor: 5.2 Brand of engine: Y01 From date: 01-10-1995 To date: 01-04-1999 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Size of motor: 5.2 From date: 01-01-1993 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Size of motor: 5.2 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
