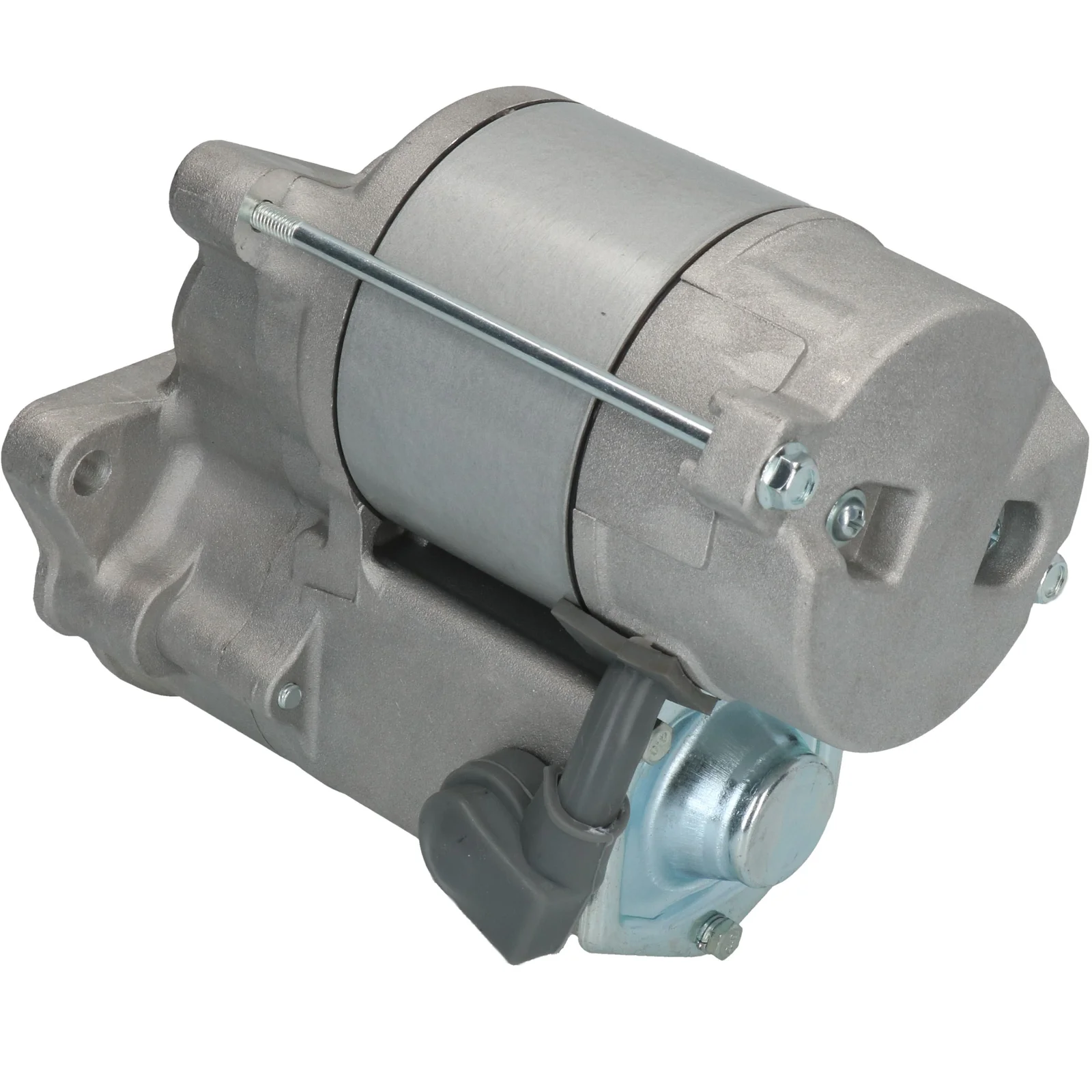

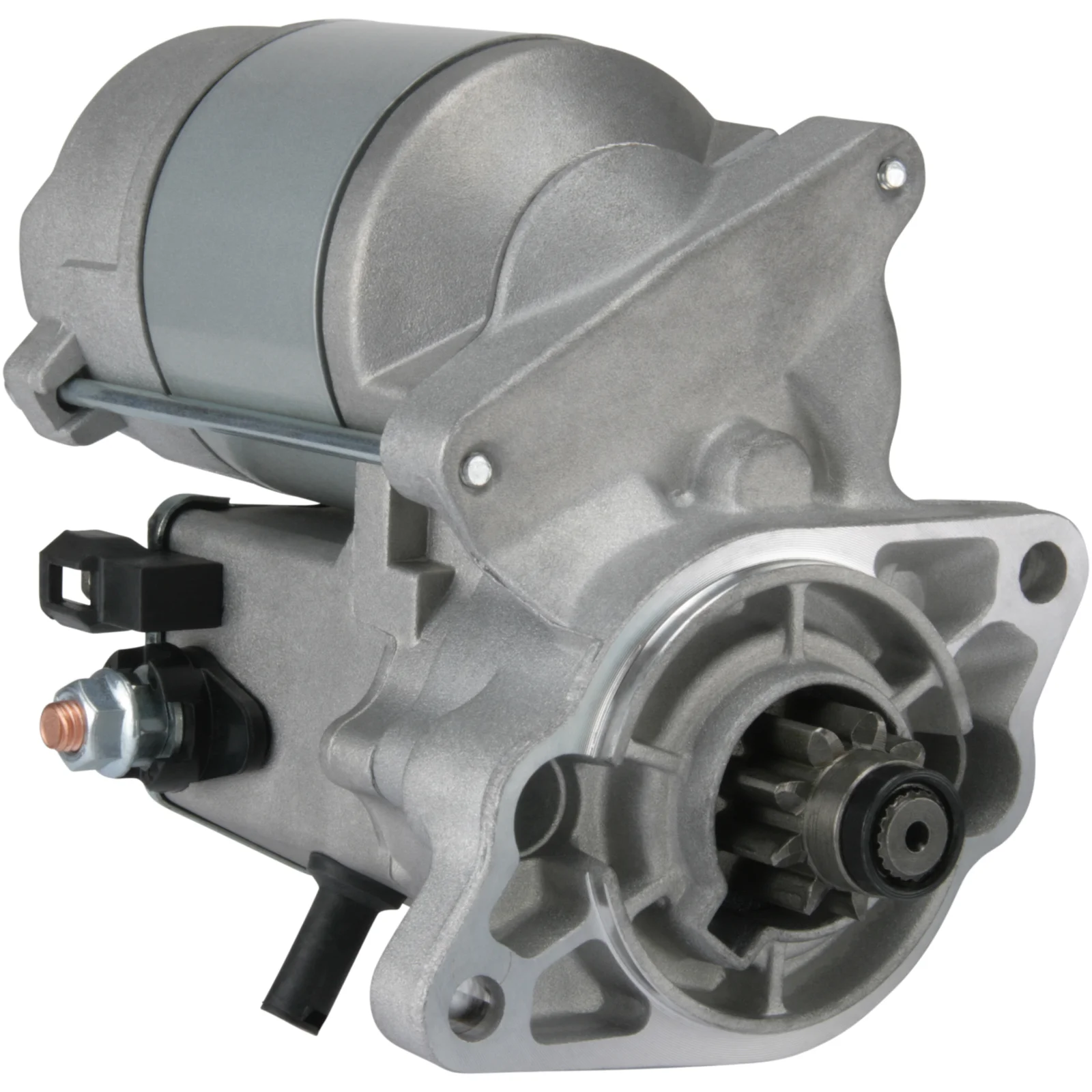

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112547

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 66.00
Drive dist.: 18.00
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Dist./back: 160.00
Dist./front: 51.50
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 211.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: May be supplied with or without nosecone
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 66.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Position/B+ 60
Prod. info BN
Remarks May be supplied with or without nosecone
Rotation CW
Dist./back 160.00
Dist./front 51.50
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 211.50 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032112547, K7561-61810, 17423-63010, 17423-63012, 228000-7610, 228000-7611

  • Konkurrentreferens
    CST40185, DSN2087, F042000183, F042S00183, S6274S, STR-8090, STR30046, STR70073, STR8090, 2-2656-ND, 25-4444, 683.039.092, 683.040.132, 18413N, 18419N, 112547

  • Normaliserat artikelnummer
    cst40185, dsn2087, f032112547, f042000183, f042s00183, k756161810, s6274s, str30046, str70073, str8090, 18413n, 18419n, 22656nd, 112547, 254444, 683039092, 683040132, 1742363010, 1742363012, 2280007610, 2280007611

  • Passar modeller
    Kubota Model: Engine Model series: Engine Brand of engine: D1105BH Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: D905E-BX Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: V1505BH Approved: Yes
    Kubota Model: Engine Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 66.00
    Drive dist.: 18.00
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Dist./back: 160.00
    Dist./front: 51.50
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 211.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: May be supplied with or without nosecone
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Position/B+ 60
    Prod. info BN
    Remarks May be supplied with or without nosecone
    Rotation CW
    Dist./back 160.00
    Dist./front 51.50
    Drive dist. 18.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 211.50 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Fordonsmatchning

    • OEM
      F032112547, K7561-61810, 17423-63010, 17423-63012, 228000-7610, 228000-7611

    • Konkurrentreferens
      CST40185, DSN2087, F042000183, F042S00183, S6274S, STR-8090, STR30046, STR70073, STR8090, 2-2656-ND, 25-4444, 683.039.092, 683.040.132, 18413N, 18419N, 112547

    • Normaliserat artikelnummer
      cst40185, dsn2087, f032112547, f042000183, f042s00183, k756161810, s6274s, str30046, str70073, str8090, 18413n, 18419n, 22656nd, 112547, 254444, 683039092, 683040132, 1742363010, 1742363012, 2280007610, 2280007611

    • Passar modeller
      Kubota Model: Engine Model series: Engine Brand of engine: D1105BH Approved: Yes
      Kubota Model: Engine Model series: Engine Brand of engine: D905E-BX Approved: Yes
      Kubota Model: Engine Model series: Engine Brand of engine: V1505BH Approved: Yes
      Kubota Model: Engine Model series: Various Models Approved: Yes
