Artikelnr: F032112546

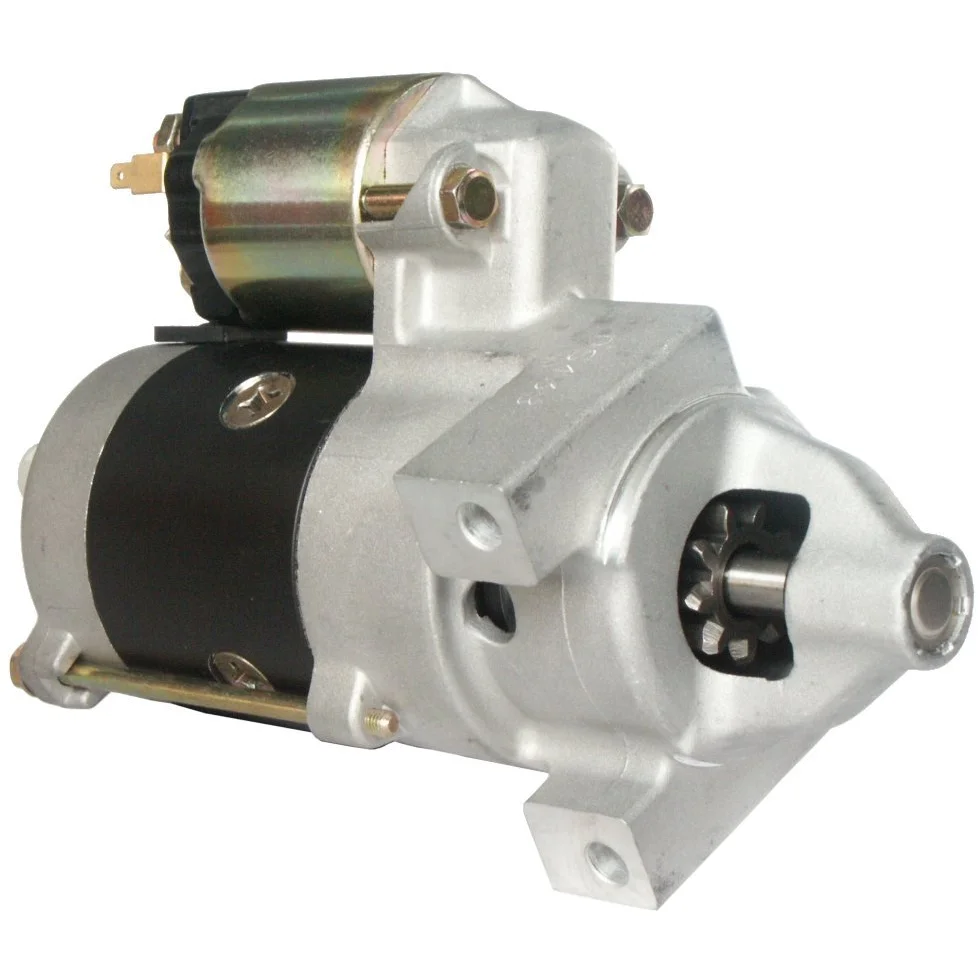

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.6, No./teeth: 9, Rotation: CCW

Beskrivning

Voltage: 12
kW: 0.6
Mount. flange: 63.00
Drive dist.: 17.00
Mount. hole 2 mm: 8.50
Mount. hole 1 mm: 8.50
Dist./back: 159.00
Dist./front: 46.50
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: DD
Dist. mm: 67.50
Rotation: CCW
Total length mm: 205.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 63.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Wet
Prod. info BN
Rotation CCW
Dist./back 159.00
Dist./front 46.50
Drive dist. 17.00
Drive type Steel
Gear type DD
kW 0.6
Terminal 50 6.30
Voltage 12
Total length 205.50 mm
Waterproof No
Dist. 67.50 mm
Mount. hole 2 8.50 mm
Mount. hole 1 8.50 mm

  • OEM
    am107631, am108390, am124993, am131296, am132702, e7194-63010, E7194-63012, F032112546, SR5044X, 12-098-03, 24-098-01, 25-098-08, 25-098-09, 25-098-11, 25-098-21, 25-098-21S, 128000-7480, 228000-2640, 1045513, 2509809, 5174720M030SM, 5174740, 8000335, 8000869, 8000870, 10455513, 10455516

  • Konkurrentreferens
    CST40505, CST40561, F042000214, F042S00214, LRS01429, s-8538, S1209S, SND0007, STR-8276, STR30037, STR8276, 2-2022-DR, 2-2022-nd, 25-2334, 91-29-5239, 600.091.092, 630.518.092, 630.518.102, 6744, 6744N, 17628, 17628N, 18011N, 254118, 255488

  • Normaliserat artikelnummer
    am107631, am108390, am124993, am131296, am132702, cst40505, cst40561, e719463010, e719463012, f032112546, f042000214, f042s00214, lrs01429, s1209s, s8538, snd0007, sr5044x, str30037, str8276, 6744, 6744n, 17628, 17628n, 18011n, 22022dr, 22022nd, 252334, 254118, 255488, 1045513, 1209803, 2409801, 2509808, 2509809, 2509811, 2509821, 2509821s, 5174720m030sm, 5174740, 8000335, 8000869, 8000870, 10455513, 10455516, 91295239, 600091092, 630518092, 630518102, 1280007480, 2280002640

  • Passar modeller
    Cub Cadet Model: 1000 Series Model series: Garden 1863 Brand of engine: Kohler From date: 01-01-1993 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: 1000 Series Model series: Garden 1864 Brand of engine: Kohler From date: 01-01-1993 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: 2000 Series Model series: Compact 2130 Brand of engine: Kohler From date: 01-01-1994 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: 2000 Series Model series: Compact 2135 Brand of engine: Kohler From date: 01-01-1994 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: 2000 Series Model series: Compact 2185 Brand of engine: Kohler From date: 01-01-1994 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: 2000 Series Model series: Garden 2084 Brand of engine: Kohler From date: 01-01-1994 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: Mowers Model series: 365 Brand of engine: Kohler From date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: Mowers Model series: 3654 Brand of engine: Kohler From date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: Mowers Model series: 3660 Brand of engine: Kohler From date: 01-01-2000 Approved: Yes
    Cub Cadet Model: Mowers Model series: Z48 Brand of engine: Kohler From date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Cub Cadet Model: Mowers Model series: Z54 Brand of engine: Kohler From date: 01-01-1997 Fuel: Gasoline Approved: Yes
    John Deere Model: Lawn Model series: GT225 Brand of engine: Kohler Approved: Yes
    John Deere Model: Lawn Model series: LX173 Brand of engine: Kohler From date: 01-01-1996 Approved: Yes
    John Deere Model: Lawn Model series: LX255 Brand of engine: Kohler Approved: Yes
    John Deere Model: Lawn Model series: STX30 Brand of engine: Kohler From date: 01-01-1989 Approved: Yes
    John Deere Model: Lawn Model series: STX38 Brand of engine: Kohler From date: 01-01-1989 Approved: Yes
    Kohler Model: Engine Model series: Engine Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 12
    kW: 0.6
    Mount. flange: 63.00
    Drive dist.: 17.00
    Mount. hole 2 mm: 8.50
    Mount. hole 1 mm: 8.50
    Dist./back: 159.00
    Dist./front: 46.50
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD
    Dist. mm: 67.50
    Rotation: CCW
    Total length mm: 205.50
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 63.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Clutch type Wet
    Prod. info BN
    Rotation CCW
    Dist./back 159.00
    Dist./front 46.50
    Drive dist. 17.00
    Drive type Steel
    Gear type DD
    kW 0.6
    Terminal 50 6.30
    Voltage 12
    Total length 205.50 mm
    Waterproof No
    Dist. 67.50 mm
    Mount. hole 2 8.50 mm
    Mount. hole 1 8.50 mm
  • Fordonsmatchning

    • OEM
      am107631, am108390, am124993, am131296, am132702, e7194-63010, E7194-63012, F032112546, SR5044X, 12-098-03, 24-098-01, 25-098-08, 25-098-09, 25-098-11, 25-098-21, 25-098-21S, 128000-7480, 228000-2640, 1045513, 2509809, 5174720M030SM, 5174740, 8000335, 8000869, 8000870, 10455513, 10455516

    • Konkurrentreferens
      CST40505, CST40561, F042000214, F042S00214, LRS01429, s-8538, S1209S, SND0007, STR-8276, STR30037, STR8276, 2-2022-DR, 2-2022-nd, 25-2334, 91-29-5239, 600.091.092, 630.518.092, 630.518.102, 6744, 6744N, 17628, 17628N, 18011N, 254118, 255488

    • Normaliserat artikelnummer
      am107631, am108390, am124993, am131296, am132702, cst40505, cst40561, e719463010, e719463012, f032112546, f042000214, f042s00214, lrs01429, s1209s, s8538, snd0007, sr5044x, str30037, str8276, 6744, 6744n, 17628, 17628n, 18011n, 22022dr, 22022nd, 252334, 254118, 255488, 1045513, 1209803, 2409801, 2509808, 2509809, 2509811, 2509821, 2509821s, 5174720m030sm, 5174740, 8000335, 8000869, 8000870, 10455513, 10455516, 91295239, 600091092, 630518092, 630518102, 1280007480, 2280002640

    • Passar modeller
      Cub Cadet Model: 1000 Series Model series: Garden 1863 Brand of engine: Kohler From date: 01-01-1993 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: 1000 Series Model series: Garden 1864 Brand of engine: Kohler From date: 01-01-1993 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: 2000 Series Model series: Compact 2130 Brand of engine: Kohler From date: 01-01-1994 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: 2000 Series Model series: Compact 2135 Brand of engine: Kohler From date: 01-01-1994 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: 2000 Series Model series: Compact 2185 Brand of engine: Kohler From date: 01-01-1994 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: 2000 Series Model series: Garden 2084 Brand of engine: Kohler From date: 01-01-1994 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: Mowers Model series: 365 Brand of engine: Kohler From date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: Mowers Model series: 3654 Brand of engine: Kohler From date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: Mowers Model series: 3660 Brand of engine: Kohler From date: 01-01-2000 Approved: Yes
      Cub Cadet Model: Mowers Model series: Z48 Brand of engine: Kohler From date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Cub Cadet Model: Mowers Model series: Z54 Brand of engine: Kohler From date: 01-01-1997 Fuel: Gasoline Approved: Yes
      John Deere Model: Lawn Model series: GT225 Brand of engine: Kohler Approved: Yes
      John Deere Model: Lawn Model series: LX173 Brand of engine: Kohler From date: 01-01-1996 Approved: Yes
      John Deere Model: Lawn Model series: LX255 Brand of engine: Kohler Approved: Yes
      John Deere Model: Lawn Model series: STX30 Brand of engine: Kohler From date: 01-01-1989 Approved: Yes
      John Deere Model: Lawn Model series: STX38 Brand of engine: Kohler From date: 01-01-1989 Approved: Yes
      Kohler Model: Engine Model series: Engine Approved: Yes
