Artikelnr: F032112541

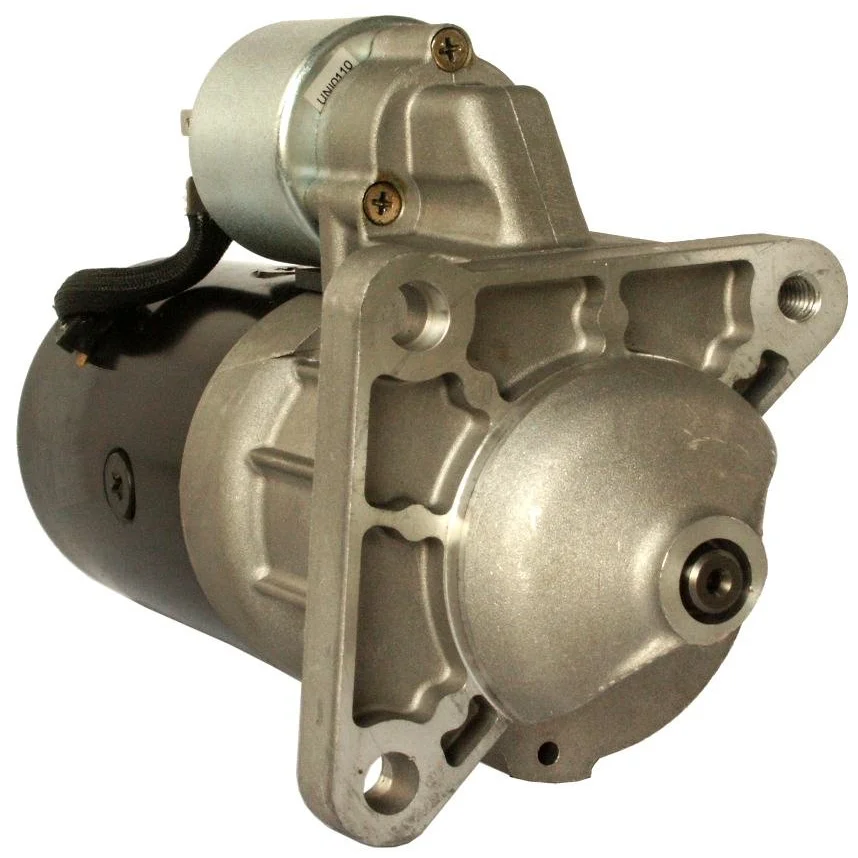

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 77.00
Drive dist.: -7.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Dist./back: 241.50
Dist./front: 32.50
No./teeth: 10
B+: M8
Position/50: 12
Terminal 50: 6.30
Gear type: DD/GR
Dist. 2: 86.00
Dist. 3: 82.50
Dist. mm: 127.50
Rotation: CW
Total length mm: 273.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 12
Clutch type Dry
Prod. info BN
Dist. 2 86.00
Dist. 3 82.50
Rotation CW
Dist./back 241.50
Dist./front 32.50
Drive dist. -7.00
Drive type Steel
Gear type DD/GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 273.00 mm
Waterproof No
Dist. 127.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm

  • OEM
    cs338, d11e172, d11e272, F032112541, 0001218002, 1516739R, 1516747R, 5002476, 7700665613, 7701351026, 7701499466, 8953002577, 9000331420

  • Konkurrentreferens
    CST15154, drs0590, drs3075, F042002044, F042S02044, IS9329, lrs00383, lrs00531, MSR665, nd036, nd086, QS1340, S0183, STR-2053, STR54029, vs116, vs168, 2-1230-PR, 8ea726086-001, 25-0411, 25-1490, 32-10.590, 330.005.092, 330.008.122, 1142, 3572, 10338, 11355, 11361, 17005, 17005R, 19721R, 432538, 433256, 433310, 436061, 8016611, 11010590, 11016610, 943251059, 943251307, 0986010591, 0986016611, 943251307010

  • Normaliserat artikelnummer
    cs338, cst15154, d11e172, d11e272, drs0590, drs3075, f032112541, f042002044, f042s02044, is9329, lrs00383, lrs00531, msr665, nd036, nd086, qs1340, s0183, str2053, str54029, vs116, vs168, 8ea726086001, 1142, 3572, 10338, 11355, 11361, 17005, 17005r, 19721r, 21230pr, 250411, 251490, 432538, 433256, 433310, 436061, 0001218002, 1516739r, 1516747r, 3210590, 5002476, 8016611, 11010590, 11016610, 330005092, 330008122, 943251059, 943251307, 0986010591, 0986016611, 7700665613, 7701351026, 7701499466, 8953002577, 9000331420, 943251307010

  • Passar modeller
    Fiat Model: Croma Model series: Croma Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.97S Type description: 154 Body: Hatchback From date: 01-12-1991 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: Turbo Size of motor: 2.1 From date: 01-01-1985 To date: 01-01-1987 Fuel: Diesel Approved: Yes
    Jeep Model: Various Models Model series: Various Models Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Type of engine: Turbo Size of motor: 2.1 From date: 01-01-1985 To date: 01-01-1985 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: TD Size of motor: 2.1 Brand of engine: J8S612 Type description: J63 Body: MPV From date: 01-11-1994 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    Renault Model: R18 Model series: R18 Type of engine: Diesel Size of motor: 2.1 Brand of engine: 852710 Body: Van From date: 01-11-1981 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault Model: R18 Model series: R18 Type of engine: Diesel Size of motor: 2.1 Brand of engine: J8S711 Body: Van From date: 01-11-1981 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault Model: Safrane Model series: Safrane Type of engine: TD Size of motor: 2.1 Brand of engine: J8S760 Type description: B546 Body: Hatchback From date: 01-11-1993 To date: 01-07-1996 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.1 Brand of engine: 852750 Body: Van From date: 01-05-1989 To date: 01-06-1994 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.1 Brand of engine: J8S620 Body: Van From date: 01-06-1994 To date: 01-10-1997 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.1 Brand of engine: J8S758 Body: Van From date: 01-06-1994 To date: 01-10-1997 Fuel: Diesel Approved: Yes
