HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112478

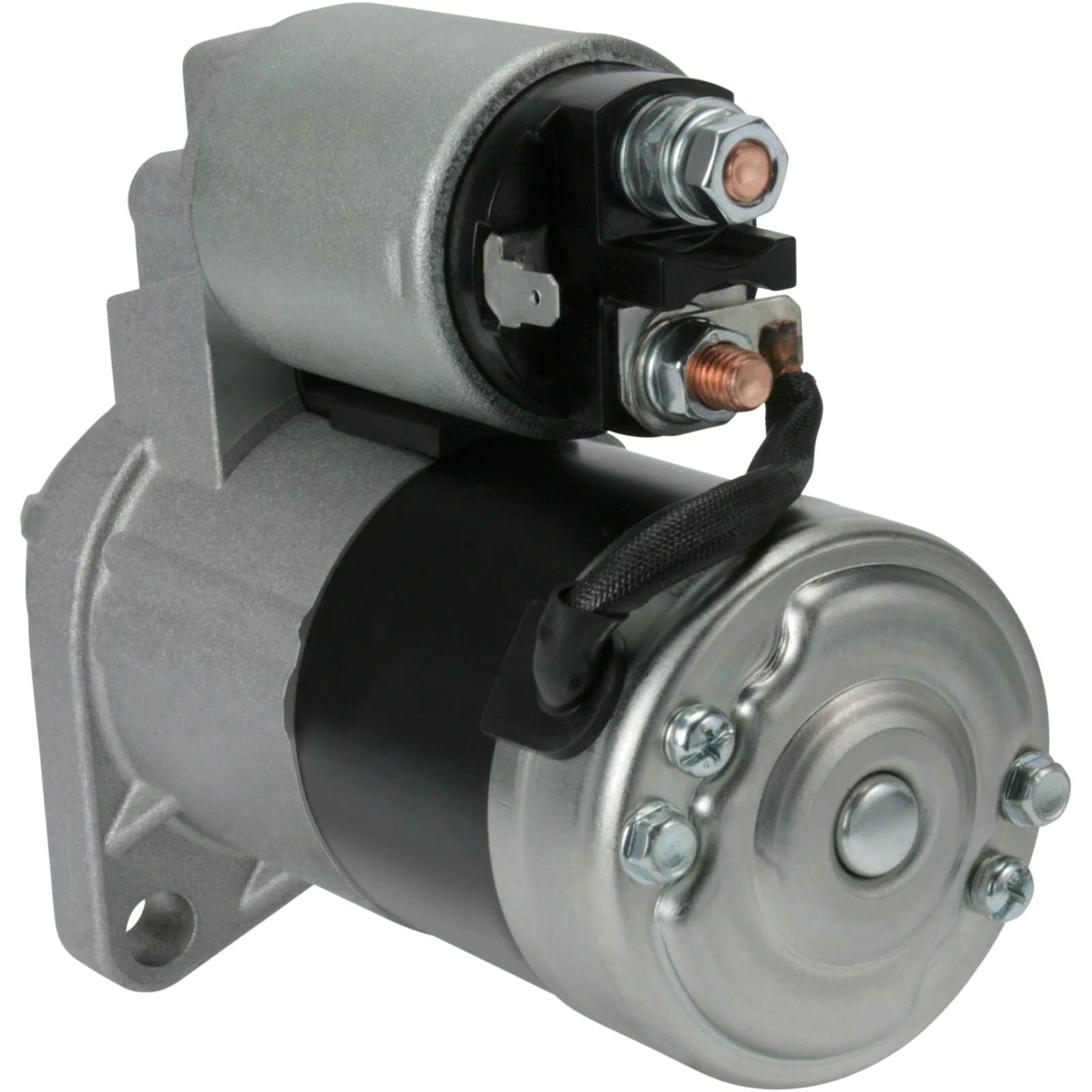

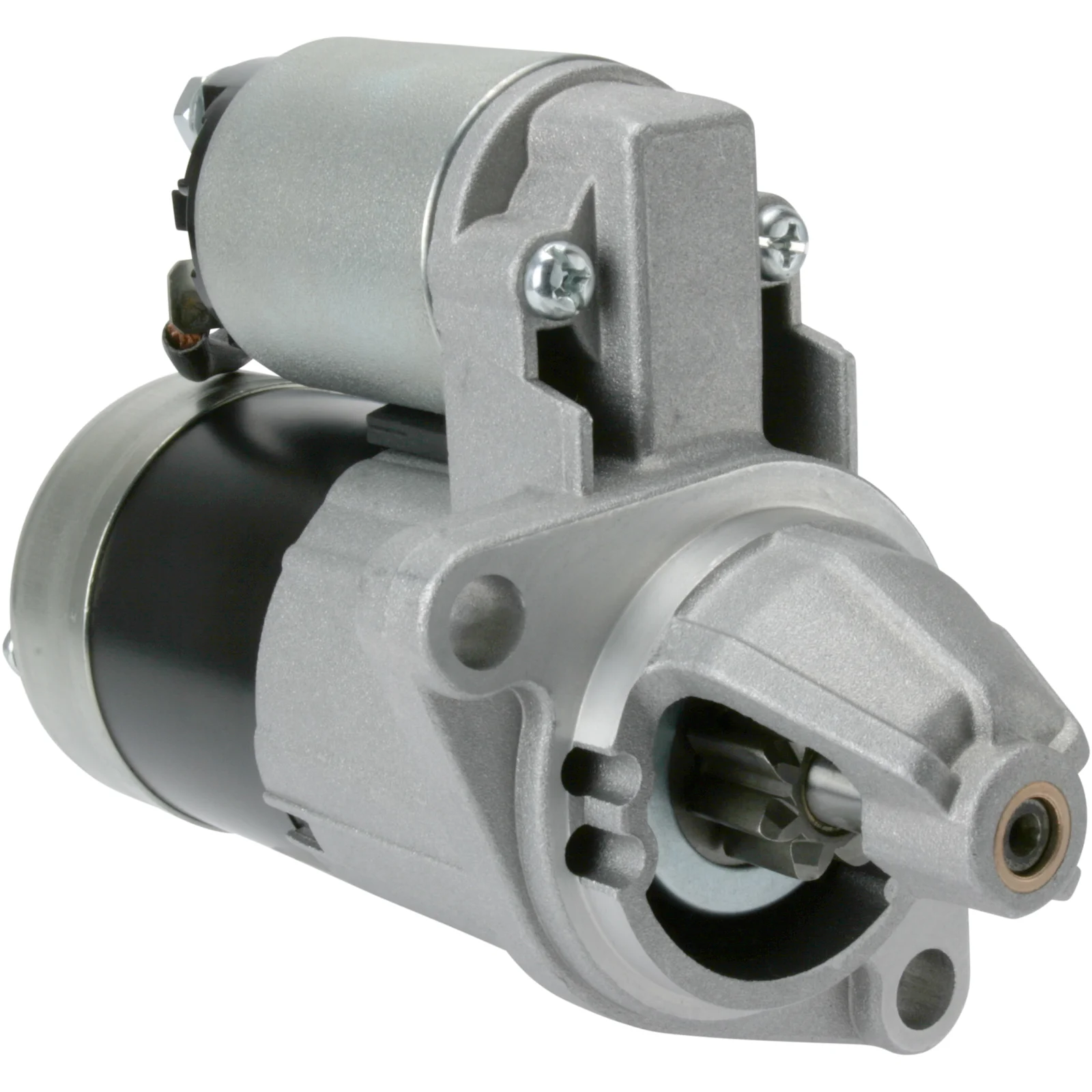

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.8, No./teeth: 8, Rotation: CCW

Beskrivning

Yanmar Startm.12V-0.8kW 12V - 0.8kW, 8k, CCW A - 66mm, B - 14mm CW rotation = 91-678-4413 För Yourex produkt order 91-678-4651

Voltage: 12
kW: 0.8
Mount. flange: 66.00
Drive dist.: 14.50
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 142.50
Dist./front: 49.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 101.50
Rotation: CCW
Total length mm: 192.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Direct drive version: HC-CARGO 116115.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 66.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Wet
Prod. info BN
Remarks Direct drive version: HC-CARGO 116115.
Rotation CCW
Dist./back 142.50
Dist./front 49.00
Drive dist. 14.50
Drive type Steel
Gear type GR
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 192.00 mm
Waterproof No
Dist. 101.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032112478, S114-414, s114-414, S114-414A, s114-414a, S114-651, s114-651, S114-651A, s114-651a, 178FM-191000, 178FM-B, 114361-77010, 114361-77011, 114362-77010, 114362-77011, 114399-77010

  • Konkurrentreferens
    BSO7187, CST20117, F042004014, F042S04014, RS41146, S1165S, S2031, S9079, STR-3806, STR23000, STR3806, 2-2008-HI, 25-1152, 682.009.082, 8782, 11620, 18203, 18203N, 254036, 11040485

  • Bilmärken
    Yanmar, Yanmar Marine

  • Normaliserat artikelnummer
    bso7187, cst20117, f032112478, f042004014, f042s04014, rs41146, s114414, s114414a, s114651, s114651a, s1165s, s2031, s9079, str23000, str3806, 178fm191000, 178fmb, 8782, 11620, 18203, 18203n, 22008hi, 251152, 254036, 11040485, 682009082, 11436177010, 11436177011, 11436277010, 11436277011, 11439977010

  • Passar modeller
    Honda Marin Series: Outboard Model: BF 60
    Komatsu Series: Grävmaskin Model: PC 03-1, -2 Engine type: Yanmar
    Yanmar Model: GA Series Model series: GA220 - GA340 Fuel: Gasoline Approved: Yes
    Yanmar Model: L Series Model series: Various Models Fuel: Diesel Approved: Yes
    Yanmar Model: Various Models Model series: Various Models Size of motor: 1.4 Brand of engine: F115TJR From date: 01-01-2005 Approved: Yes
    Yanmar Series: GA 220 -> 340 Year: 00.93-00.96
    Yanmar Series: L - Serie Model: CCW
    Yanmar Series: Marin Model: L 60 AE-DEJN / RE-DEJN
    Yanmar Series: Marin Model: L 60 AE-DEJN Engine volume: 0.3
    Yanmar Series: Marin Model: L 60 RE-DEJN Engine volume: 0.3
    Yanmar Series: YDG - Serie
    Yanmar Series: YSG - Serie Model: 2501, 3501, 5001
    1 / 3
  • Beskrivning
    Yanmar Startm.12V-0.8kW 12V - 0.8kW, 8k, CCW A - 66mm, B - 14mm CW rotation = 91-678-4413 För Yourex produkt order 91-678-4651

    Voltage: 12
    kW: 0.8
    Mount. flange: 66.00
    Drive dist.: 14.50
    Mount. hole 2 mm: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 142.50
    Dist./front: 49.00
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 101.50
    Rotation: CCW
    Total length mm: 192.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Direct drive version: HC-CARGO 116115.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Clutch type Wet
    Prod. info BN
    Remarks Direct drive version: HC-CARGO 116115.
    Rotation CCW
    Dist./back 142.50
    Dist./front 49.00
    Drive dist. 14.50
    Drive type Steel
    Gear type GR
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 192.00 mm
    Waterproof No
    Dist. 101.50 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning

    • OEM
      F032112478, S114-414, s114-414, S114-414A, s114-414a, S114-651, s114-651, S114-651A, s114-651a, 178FM-191000, 178FM-B, 114361-77010, 114361-77011, 114362-77010, 114362-77011, 114399-77010

    • Konkurrentreferens
      BSO7187, CST20117, F042004014, F042S04014, RS41146, S1165S, S2031, S9079, STR-3806, STR23000, STR3806, 2-2008-HI, 25-1152, 682.009.082, 8782, 11620, 18203, 18203N, 254036, 11040485

    • Bilmärken
      Yanmar, Yanmar Marine

    • Normaliserat artikelnummer
      bso7187, cst20117, f032112478, f042004014, f042s04014, rs41146, s114414, s114414a, s114651, s114651a, s1165s, s2031, s9079, str23000, str3806, 178fm191000, 178fmb, 8782, 11620, 18203, 18203n, 22008hi, 251152, 254036, 11040485, 682009082, 11436177010, 11436177011, 11436277010, 11436277011, 11439977010

    • Passar modeller
      Honda Marin Series: Outboard Model: BF 60
      Komatsu Series: Grävmaskin Model: PC 03-1, -2 Engine type: Yanmar
      Yanmar Model: GA Series Model series: GA220 - GA340 Fuel: Gasoline Approved: Yes
      Yanmar Model: L Series Model series: Various Models Fuel: Diesel Approved: Yes
      Yanmar Model: Various Models Model series: Various Models Size of motor: 1.4 Brand of engine: F115TJR From date: 01-01-2005 Approved: Yes
      Yanmar Series: GA 220 -> 340 Year: 00.93-00.96
      Yanmar Series: L - Serie Model: CCW
      Yanmar Series: Marin Model: L 60 AE-DEJN / RE-DEJN
      Yanmar Series: Marin Model: L 60 AE-DEJN Engine volume: 0.3
      Yanmar Series: Marin Model: L 60 RE-DEJN Engine volume: 0.3
      Yanmar Series: YDG - Serie
      Yanmar Series: YSG - Serie Model: 2501, 3501, 5001
      1 / 3
