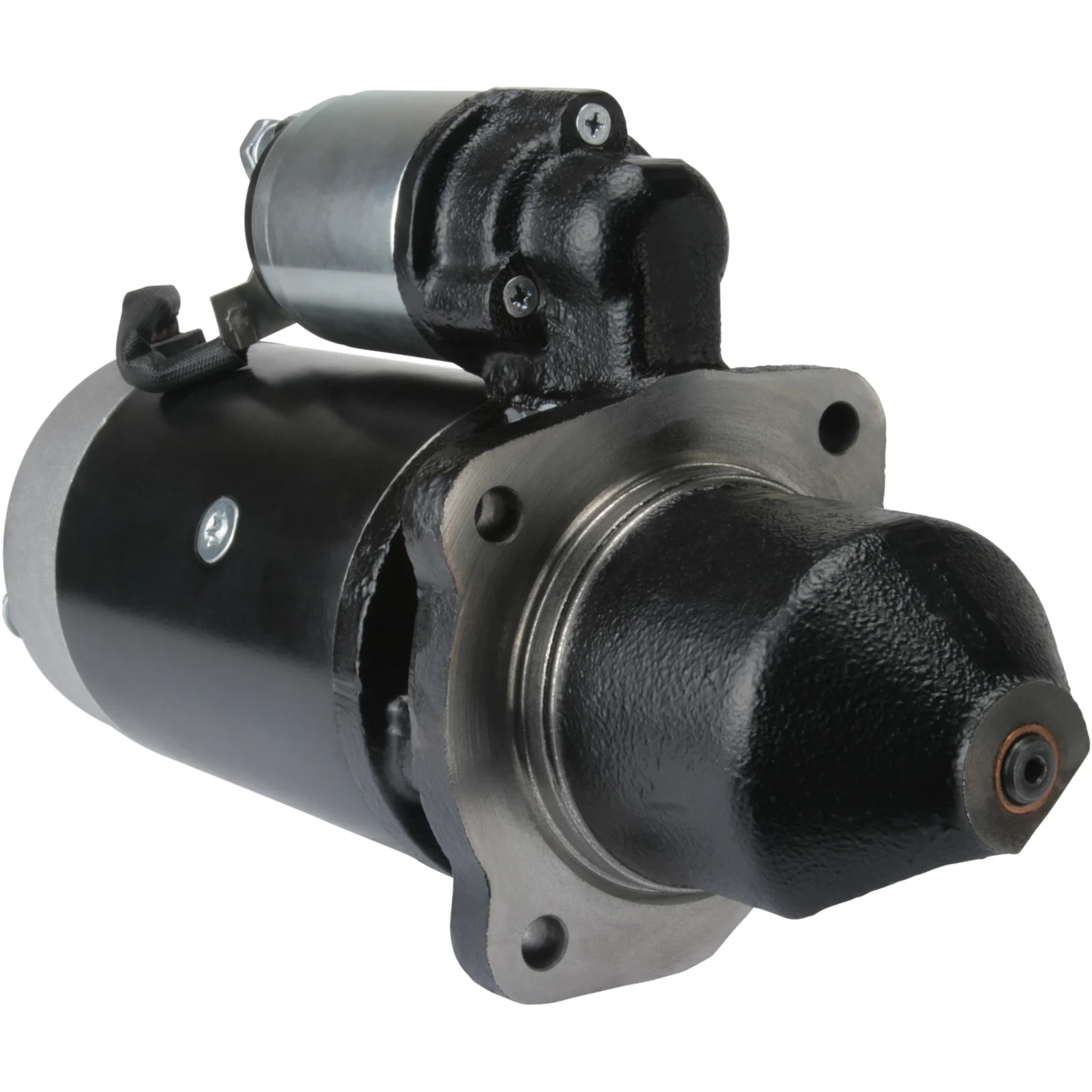

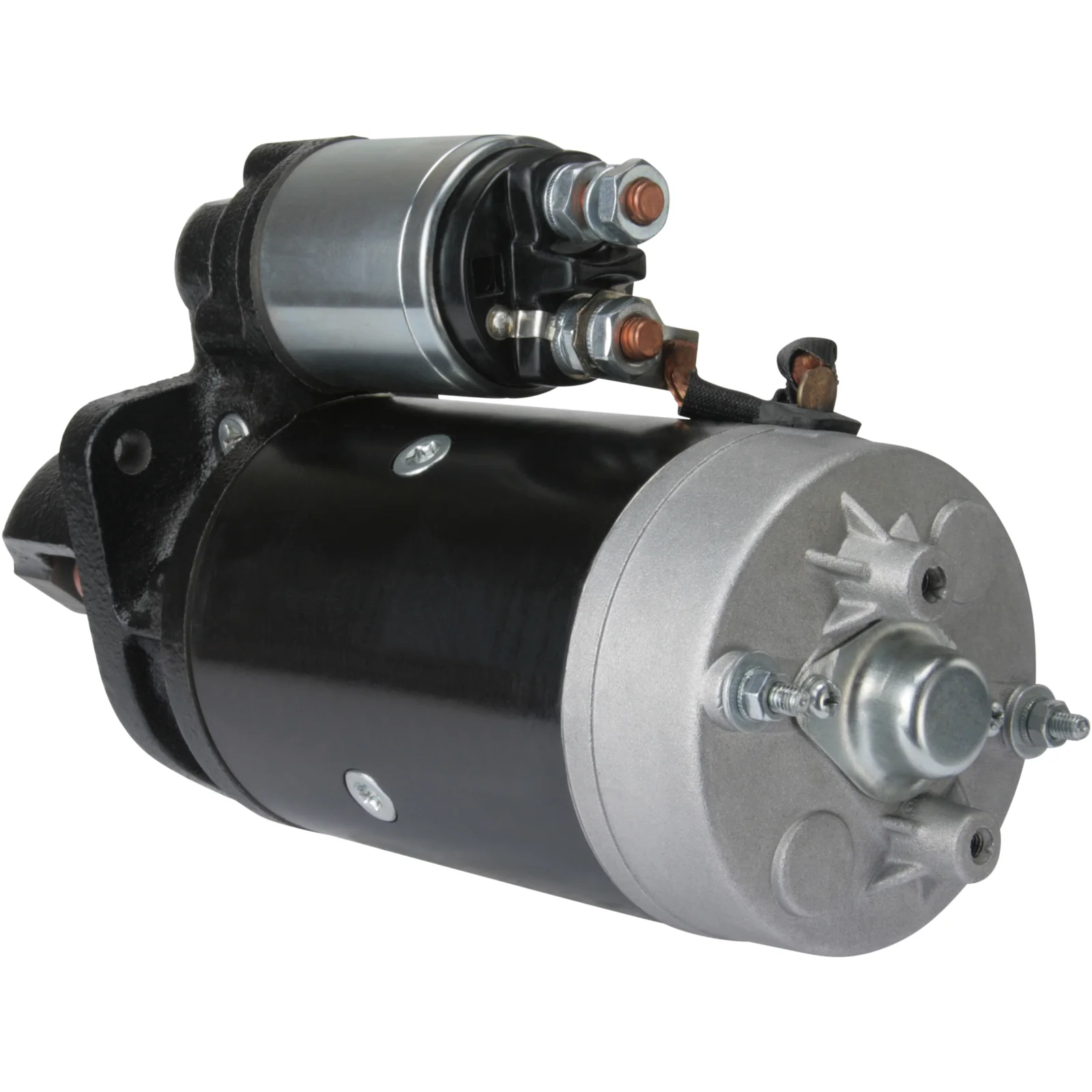

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112442

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 235.00
Dist./front: 96.00
No./teeth: 10
B+: M10
Position/50: 15
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 340.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: GR Starter HC-CARGO 115609.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 235.00
Dist./front 96.00
Drive dist. 48.00
Drive type Steel
Gear type DD
Info GR Starter HC-CARGO 115609.
kW 3.0
Terminal 50 M4
Voltage 12
Total length 340.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AL70852, al81154, cs1205, F032112442, 501856, 0001367077, 9142745

  • Konkurrentreferens
    ALT10391, CST10228, DRS3818, LRS01622, S0250, S9060, STR22096, 25-3148, 630.009.103, 686.005.102, 18361, 18631N, 19655N, 19655R, 101205, 101376, 0986024000, 0986024003

  • Normaliserat artikelnummer
    al70852, al81154, alt10391, cs1205, cst10228, drs3818, f032112442, lrs01622, s0250, s9060, str22096, 18361, 18631n, 19655n, 19655r, 101205, 101376, 253148, 501856, 0001367077, 9142745, 630009103, 686005102, 0986024000, 0986024003

  • Passar modeller
    John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
